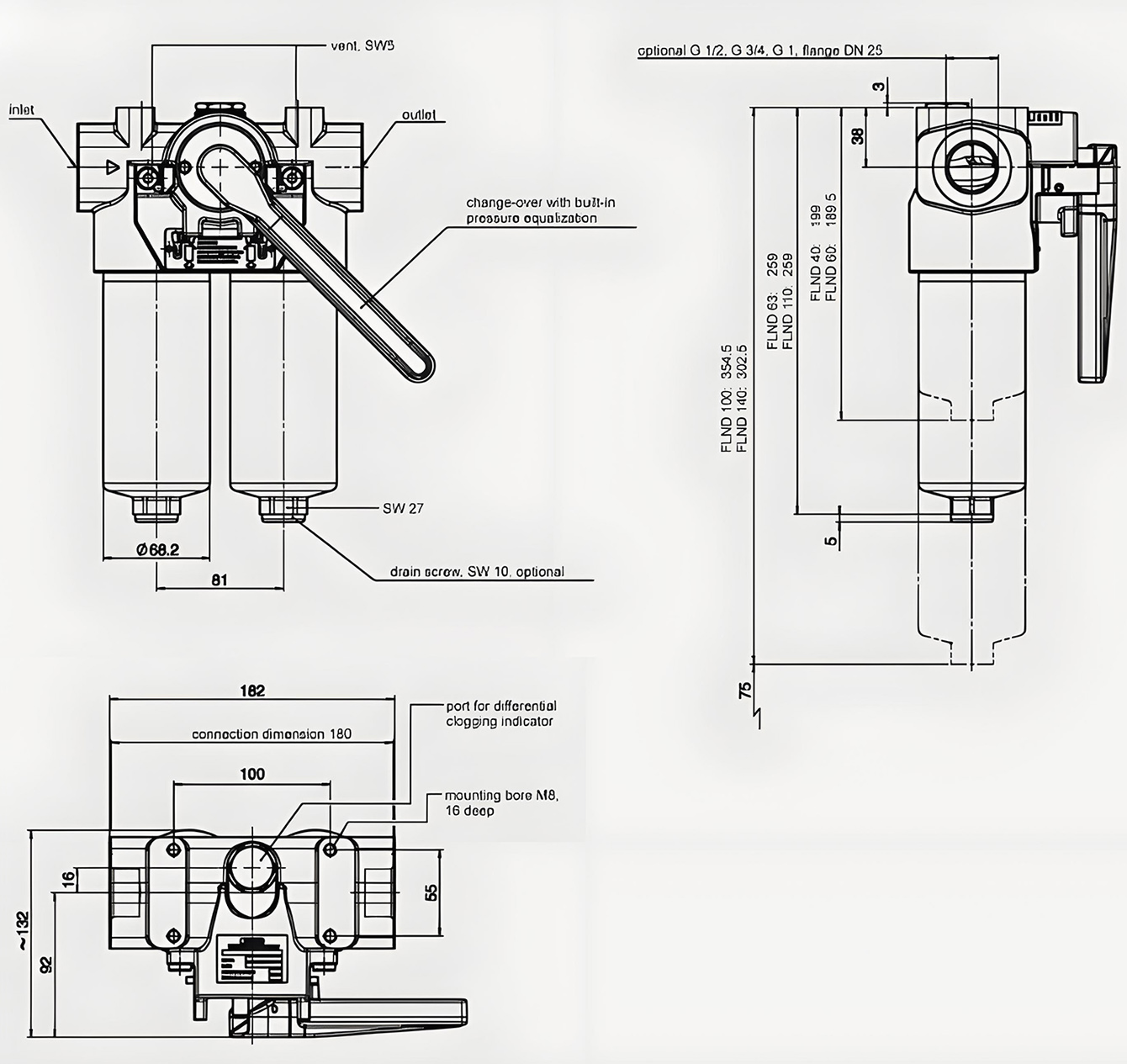

Product Outline Drawing:
Product Specifications:
Nominal pressure | 25 bar (FLND 160 to 400) 63 bar (FLND 40 to 140) |
Fatigue strength | At nominal pressure 10s cycles from 0 to nominal pressure |
Temperature range | -10°C to + 100°C |
Material of filter head | Aluminium |
Material of filter bowl | Aluminium (FLND 100 and 140: Steel) |
Type of clogging indicator | VM (differential pressure measurement up to 210 bar operating pressure) |
Pressure setting of the clogging indicator | 2.5 bar or 5 bar (others on request) |
Bypass cracking pressure (optional) | 3.5 bar or 7 bar (others on request) |
Product Features:
The double-bag (cylinder) filter is suitable for oil equipment and lubrication stations in industries such as petroleum, chemical, metallurgical, nuclear power, heavy machinery, electric power, and shipbuilding. It efficiently filters and separates impurities from oils, featuring high filtering precision, zero leakage, automatic sensors, and easy replacement and maintenance. The filter element is designed with integrated stainless steel or fiberglass, and the filtering precision can be customized to meet various high-standard operational requirements.
Product Advantages：
The assembly features a robust screwed forged steel filter cartridge and forged steel filter head, with a phosphated spray coating for corrosion protection, making it both aesthetically pleasing and durable.
The oil flows from the outside to the inside, equipped with a built-in low-inertia fast response full-flow bypass valve, reducing the possibility of filter element rupture and enhancing the filter element's resistance to flow fatigue impact characteristics.
Multiple pressure difference alarm devices are available; various sealing materials can be selected to enhance the filter's durability and safety.
The inlet and outlet oil ports are installed facing upwards, secured by four side screw holes.
It uses a high-efficiency filter element with various filtration precisions available.
The filter assembly has undergone multiple inspections.
