Industrial Valve Material Selection Guide: Pros & Cons, Application Scenarios and Practical Cases
As core components of fluid control systems, industrial valves are widely used in petrochemical, chemical, power, offshore engineering, municipal HVAC and other fields. The operational stability, service life and safety coefficient of valves are directly determined by the accuracy of material selection. In industrial production, most valve failures are not caused by processing technology or installation errors, but by mismatched materials that fail to adapt to working conditions such as medium characteristics, temperature, pressure and corrosive environments, resulting in common defects including leakage, jamming, cracking and corrosion perforation.
Reasonable valve material selection requires balancing five core indicators: corrosion resistance, temperature and pressure bearing capacity, mechanical strength, machinability and cost budget. Based on practical industrial manufacturing scenarios, this article systematically analyzes the performance advantages and limitations of five mainstream valve materials including carbon steel, stainless steel, duplex steel, special alloys and non-metallic lining materials. Combined with real engineering cases and visualized data charts, it clarifies material selection pain points and provides professional references for standardized valve selection in various industries.
There is no one-size-fits-all optimal material for industrial valves; only the most suitable option for specific working conditions. All material selection practices must follow four key criteria to avoid failure risks from the source:
1. Priority of working condition adaptation: Precisely match material properties with medium characteristics (acid-base property, chloride ion, solid particles, high-temperature melt), operating temperature and rated pressure, which directly determines the service life of valves;
2. Controllable safety redundancy: Reserve sufficient material performance redundancy for flammable, explosive, toxic, high-temperature and high-pressure media to eliminate potential safety hazards such as stress corrosion and fatigue cracking;
3. Balanced cost performance: Balance upfront procurement cost and long-term operation and maintenance costs, avoiding dual wastes of frequent maintenance for low-cost materials and performance surplus of high-end materials;
4. Process adaptability: Adapt to the casting, welding and machining characteristics of valve bodies to prevent processing defects caused by overly hard or soft materials.
To intuitively distinguish the performance differences, application boundaries and cost levels of various valve materials, mainstream material parameters are sorted out based on industry test data and engineering application experience, serving as a reliable basis for rapid selection.
Material Type | Common Grade | Applicable Temperature (℃) | Chloride Corrosion Resistance | High Pressure Bearing Capacity | Relative Cost Coefficient | Core Application Scenarios |
|---|---|---|---|---|---|---|
Carbon Steel | WCB, A105 | -20～600 | Poor | Good | 1.0 (Benchmark) | Normal temperature and pressure, non-corrosive clean medium |
Conventional Stainless Steel | 304/304L, 316/316L | -270～800 | Average (Low chloride adaptation) | Medium | 2.5～3.0 | Mild corrosion, clean fluid, conventional high and low temperature working conditions |
Duplex Stainless Steel | 2205, 2507 | -40～300 | Excellent (High chloride adaptation) | Superior (2 times strength of ordinary stainless steel) | 4.0～5.0 | Marine high-salt, high-pressure and severe corrosion working conditions |
Special Alloy | Hastelloy C276, Titanium Alloy | -196～675 | Ultra Excellent | Ultra-high | 8.0～12.0 | Strong acid, strong oxidation and extreme corrosive chemical working conditions |
Non-metallic Lining | PTFE/F46, Rubber Lining | -20～180 | Excellent | Weak | 2.0～2.5 | Medium and low temperature, particle-free, strong corrosion and low-pressure working conditions |
Note: The relative cost coefficient takes ordinary carbon steel as the benchmark 1.0; the higher the value, the higher the procurement and processing cost. Corrosion resistance and pressure bearing capacity are graded according to the universal five-level industrial standard.

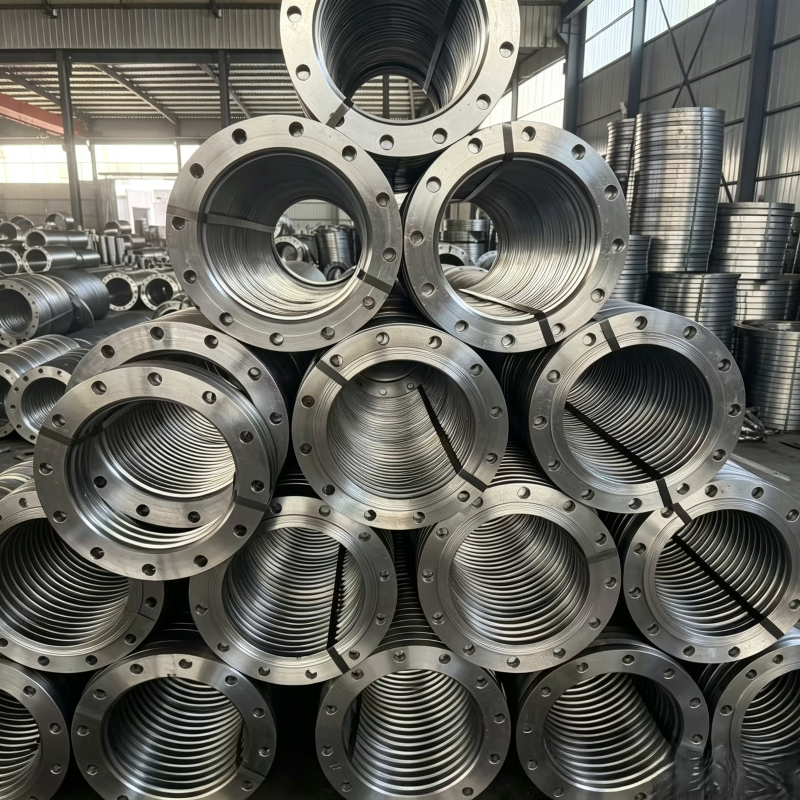

Carbon steel is the mainstream valve body material for industrial low-pressure and normal-temperature non-corrosive working conditions. Cast carbon steel WCB and forged carbon steel A105 are the most commonly used grades, widely applied in oil and gas, water supply and drainage, and heat supply pipelines.
Core Advantages: Low material cost, 40%-60% lower than 316 stainless steel; high mechanical strength and good toughness with mature casting and welding processes and low processing difficulty; stable high-pressure bearing performance, adaptable to a wide temperature range of -20℃ to 600℃, fully meeting the conveying requirements of conventional industrial fluids.
Core Disadvantages: Extremely poor corrosion resistance, prone to oxidation, pitting and rusting in chloride-containing, low-pH acidic and humid marine environments; insufficient low-temperature toughness, easy to brittle fracture under ultra-low temperature conditions, unable to adapt to corrosive, low-temperature and high-salt environments.
Applicable Scenarios: Municipal pipelines, thermal pipe networks and general petrochemical utility systems for non-corrosive media such as pure water, steam and air.
Practical Case: A refining and chemical plant originally used carbon steel ball valves to convey circulating water containing trace chloride ions in the utility system. According to NACE corrosion monitoring data, the valves suffered severe pitting and rusting after 18 months of operation, with frequent internal leakage and jamming, causing more than 4 maintenance shutdowns every year. After all valves were replaced with ASTM A351 CF8M (316 stainless steel) bodies, the molybdenum element effectively resisted chloride pitting corrosion. The trouble-free operation cycle was extended to more than 8 years.

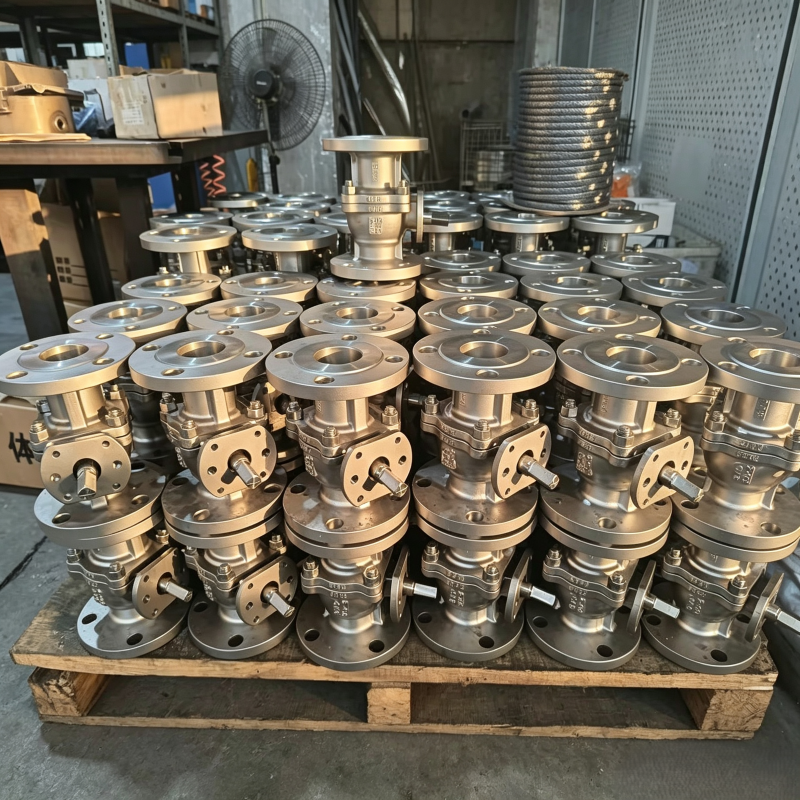

Austenitic stainless steel is the most widely used valve material in chemical, food and pharmaceutical industries. The 304 series is a general-purpose type, while the 316 series adds molybdenum elements for upgraded corrosion resistance. Low-carbon L-grade effectively avoids welding intergranular corrosion.
Core Advantages: Excellent resistance to atmospheric corrosion and mild acid-base corrosion; 316/316L can withstand low-concentration chloride corrosion with a wide temperature adaptation range of -270℃ to 800℃ and stable high and low temperature performance; good toughness, excellent sealing performance and high sanitary grade, meeting the requirements of clean fluid conveying; no intergranular corrosion after welding, suitable for continuous and complex production conditions.
Core Disadvantages: Much higher cost than carbon steel; still prone to pitting and crevice corrosion in high-concentration chloride and strong acid-base media; insufficient strength under high temperature and high pressure, unable to replace special alloy steel; 316 series has weaker nitric acid resistance than 304 series with obvious performance shortcomings.
Applicable Scenarios: Food and pharmaceutical pure water pipelines, common acid-base chemical media, seawater desalination pretreatment, fine chemical fluid conveying and other mild corrosive working conditions.
Practical Case: A fine chemical enterprise initially adopted 316L stainless steel globe valves for nitric acid conveying pipelines. Uniform corrosion and sealing failure occurred on the inner valve body wall after 6 months of operation. Technical verification showed that molybdenum elements in 316L are easily oxidized and corroded by nitric acid, resulting in poor adaptability. After replacing with 304 stainless steel valves, the equipment operated stably without corrosion failure, verifying the medium adaptation differences between different stainless steel grades.

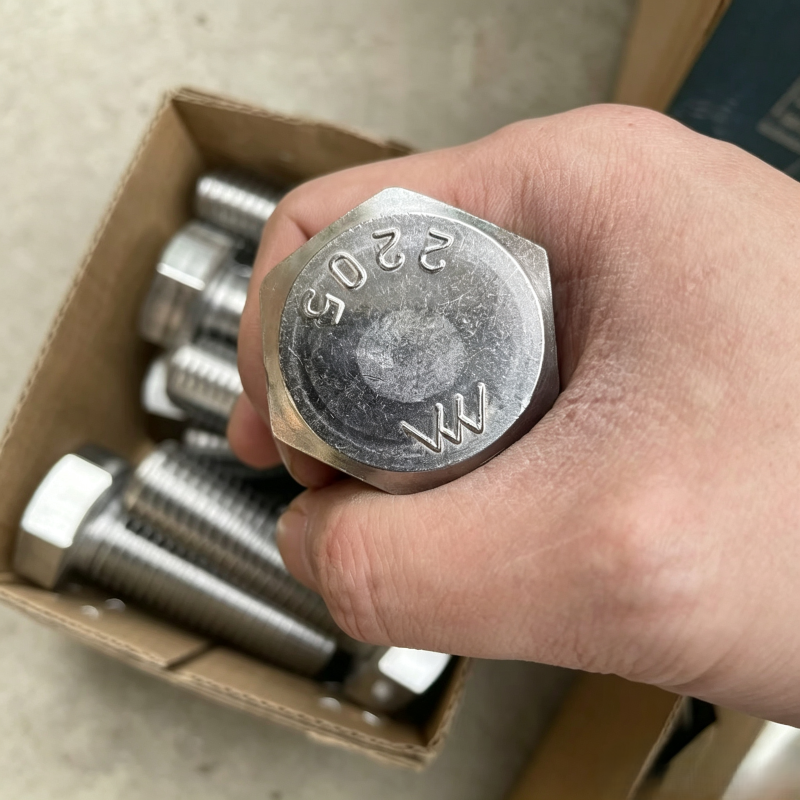

Duplex stainless steel combines the dual advantages of austenitic and ferritic stainless steel. 2205 and 2507 are the mainstream grades, specially designed for severe working conditions with high chloride ions, high pressure and medium-high temperature.
Core Advantages: Far superior resistance to chloride pitting, crevice corrosion and stress corrosion than ordinary stainless steel, adaptable to high-concentration chloride media below 300℃; mechanical strength is twice that of ordinary stainless steel with excellent high-pressure bearing capacity; good fatigue resistance and scouring resistance, suitable for high-speed fluid scouring conditions.
Core Disadvantages: High procurement and processing costs, much more expensive than 316 stainless steel; strict welding process requirements, unregulated heat input will cause unbalanced phase ratio and reduce corrosion resistance; poor low-temperature toughness, not applicable for ultra-low temperature working conditions.
Applicable Scenarios: Offshore platform seawater systems, coastal chemical pipe networks, high-salt wastewater treatment, petrochemical brine conveying and other high-pressure and severe corrosive working conditions.
Practical Case: An offshore drilling platform originally used 304 stainless steel gate valves for seawater circulation systems. Affected by high-salt seawater scouring and chloride corrosion, the valve bodies were perforated and valve stems jammed after only 6 months of operation, failing to open and close normally. After replacing with 2205 duplex steel valves, the equipment operated continuously for 36 months without corrosion or failure, and the service life was increased by 6 times, perfectly adapting to offshore high-salt corrosive conditions.

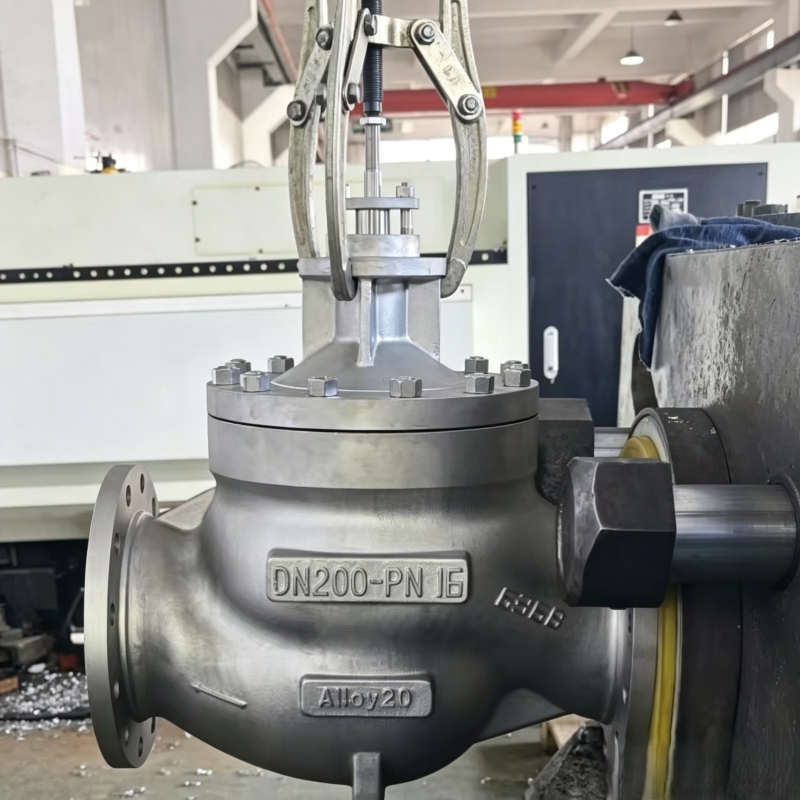

For strong acid and strong oxidation extreme media that cannot be adapted by ordinary steel and stainless steel, high-end special alloy materials such as Hastelloy, titanium alloy and zirconium alloy are required, which are high-grade valve materials for extreme industrial conditions.
Core Advantages: Top-level corrosion resistance; zirconium alloy can resist most strong corrosive media including boiling concentrated hydrochloric acid and normal-temperature concentrated sulfuric acid; Hastelloy adapts to composite oxidizing and reducing media; titanium alloy has excellent resistance to seawater and hypochlorite corrosion with light weight and high strength.
Core Disadvantages: Extremely high material cost, difficult processing and complex welding technology with high operation and maintenance costs; only applicable for extreme working conditions, causing serious performance surplus if used in conventional scenarios.
Applicable Scenarios: Fine chemical strong acid-base reaction kettles, pharmaceutical strong acid medium conveying, nuclear power cooling systems, high-end environmental protection waste liquid treatment and other extreme corrosive working conditions.
Non-metallic lined valves adopt carbon steel as the base material, lined with PTFE/F46, rubber and other non-metallic materials inside, balancing the structural strength of metal and the corrosion resistance of non-metal, serving as an economical selection for strong corrosive working conditions.
Core Advantages: Resistant to most strong corrosive media such as hydrochloric acid, strong alkali and oxidants, with a wider corrosion resistance range than ordinary metal materials; much lower procurement cost than special alloy valves; excellent sealing performance without medium leakage risk.
Core Disadvantages: Limited high-temperature resistance, the maximum applicable temperature of conventional fluorine-lined valves is ≤180℃; weak high-pressure bearing capacity, prone to lining cold flow deformation, falling off and aging under long-term high-pressure load; poor wear resistance, not suitable for media containing solid particles.
Applicable Scenarios: Chemical acid-base conveying, environmental protection desulfurization and denitrification, pharmaceutical waste liquid treatment and other medium-low temperature, particle-free and strong corrosive low-pressure working conditions.
Practical Case: A refinery in Texas, USA, originally used metal valves for acidic waste liquid pipelines, requiring frequent replacement of accessories due to corrosion failure and causing 4 annual maintenance shutdowns. After replacing with PTFE fluorine-lined ball valves, the maintenance cycle was extended to once every 3 years, greatly reducing shutdown loss and operation costs. Meanwhile, metal valves were retained for high-temperature steam pipelines to avoid the high-temperature resistance defects of fluorine-lined materials.
To solve the problems of low selection efficiency and ambiguous judgment in on-site application, a progressive working condition selection logic is sorted out based on material performance, realizing rapid judgment layer by layer according to medium, temperature, pressure and corrosion level, suitable for most industrial scenarios:
Selection Judgment Process:
1. Medium judgment: Non-corrosive clean medium → Carbon steel; Mild acid-base/clean medium → Conventional stainless steel; High-salt chloride medium → Duplex stainless steel; Strong acid corrosive medium → Lined material/Special alloy
2. Temperature correction: Non-metallic lining is prohibited above 180℃; Ordinary carbon steel and duplex steel are prohibited under -40℃ ultra-low temperature conditions, low-temperature stainless steel/special alloy is preferred
3. Pressure correction: Carbon steel, duplex stainless steel and special alloy are preferred for high-pressure working conditions to avoid the low-pressure defect of non-metallic lining
4. Cost correction: Adopt high-end materials for extreme working conditions as required; prioritize stainless steel and lined materials for conventional corrosive working conditions to avoid performance surplus
Based on a large number of industrial operation and maintenance cases, most valve failures are caused by selection errors. Five typical mistakes to avoid are summarized as follows:
1. Cost-oriented selection only: Adopting low-cost carbon steel or ordinary stainless steel for strong corrosive and high-pressure working conditions saves procurement cost in the short term, but the subsequent maintenance, replacement and shutdown losses far exceed the material price difference, resulting in low overall cost performance.
2. Blind universal application of stainless steel: Mistakenly believing that stainless steel adapts to all corrosive conditions, ignoring the defects that 304 cannot resist concentrated nitric acid and 316 cannot withstand high-temperature and high-chloride media, leading to premature valve failure.
3. Ignoring dynamic working condition changes: Selecting materials only according to conventional operating parameters without considering extreme working conditions such as unit start-stop, medium concentration fluctuation and temperature peak, resulting in substandard material performance.
4. Overlooking lining material limitations: Applying fluorine-lined valves in high-temperature, high-pressure and solid particle scouring working conditions, causing lining deformation, falling off and wear leakage.
5. Mismatched maintenance cycle: Failing to align the service life of aging-prone lining materials with the unit overhaul cycle, resulting in sudden failures caused by material aging before regular maintenance.
Valve material selection is a systematic and professional technical work with the core logic of working condition orientation, safety bottom line and cost performance optimization, avoiding blind over-selection or under-selection.
Combined with the above chart data and practical cases, standardized selection conclusions are summarized: carbon steel is preferred for conventional non-corrosive, normal-temperature and normal-pressure fluid conveying (steam, pure water, ordinary oil products) to balance cost and practicability; 304/316 stainless steel is the first choice for mild corrosive, clean fluid and conventional high-low temperature working conditions; duplex stainless steel is targeted for high-chloride, high-pressure and severe marine working conditions; fluorine-lined valves are applicable for medium-low temperature, strong corrosive and low-pressure working conditions, while special alloys are matched for extreme strong acid, high-temperature and high-pressure corrosive scenarios.
In the iteration and upgrading of industrial equipment, accurate material selection can not only reduce valve failure rate and extend service life, but also effectively cut down production line shutdown loss and operation and maintenance costs. It is a key link to improve the stability of fluid control systems and ensure continuous industrial production. With the support of parameter comparison tables and selection logic diagrams, standardized rapid selection can be realized to avoid material adaptation failures from the source.
