Regulating Valve vs Shut‑Off Valve vs Diverter Valve: Core Differences & Practical Selection Guide
Industrial valves are critical components for fluid pipelines. Many procurement engineers and system integrators often confuse regulating valves, shut‑off valves and diverter valves because their external appearances can look similar. Mis‑selection will cause seal wear, internal leakage, unstable process parameters and even unexpected system downtime. This article clarifies their core functions, structural distinctions, typical application boundaries and shares real‑world project reference cases for your specification work.

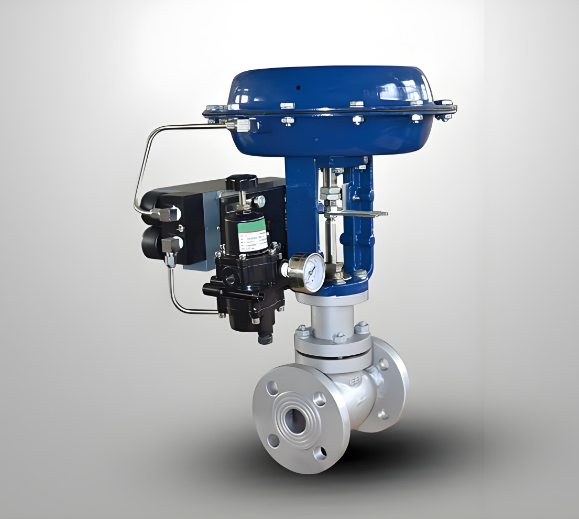

Core purpose: Continuously adjust flow, pressure or temperature, maintain stable process set‑points.
Receives analog control signals (4‑20 mA, RS485 Modbus‑RTU) from DCS / PLC systems; the trim stays at any intermediate opening position for long‑time throttling work.
Focus: Flow characteristic (equal‑percentage / linear), control accuracy, anti‑cavitation performance.
Weakness: Not designed for bubble‑tight zero‑leak isolation; slight seat leakage is permitted per international standards under closed status.
Typical product example: IoT sanitary tri‑clamp regulating butterfly valve for data‑center liquid‑cooling loops.

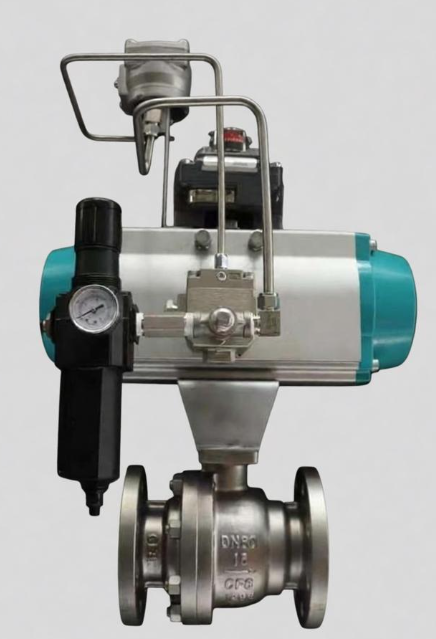

Core purpose: Only two working states — fully open or fully closed. Completely isolate pipeline media for maintenance or emergency protection.
No intermediate throttling position intended for long‑term use. Excellent tight‑shut‑off / zero‑leak performance when fully closed.
Focus: Bubble‑tight sealing, wear‑resistant seat, ability to cut fiber / solid‑particle media.
Weakness: If kept in half‑open status for long‑time throttling, high‑speed fluid scours sealing surfaces, rapidly causing seal damage and permanent internal leakage.
Typical product example: Stafsjö WB14E full‑lug bi‑directional knife gate valve for pulp and sludge slurry lines.
Core purpose: Route one incoming fluid stream into multiple outlets, or mix multiple incoming flows into one single outlet; switch flow between different pipeline branches.
Multi‑port body structure (3‑way / multi‑way). It changes flow path rather than simply cutting‑off or fine‑tuning flow magnitude.
Focus: Smooth flow switching, minimize dead‑leg cavities to avoid media stagnation.
Weakness: Not suitable for high‑precision continuous flow regulation; not designed as primary isolation safety valve.

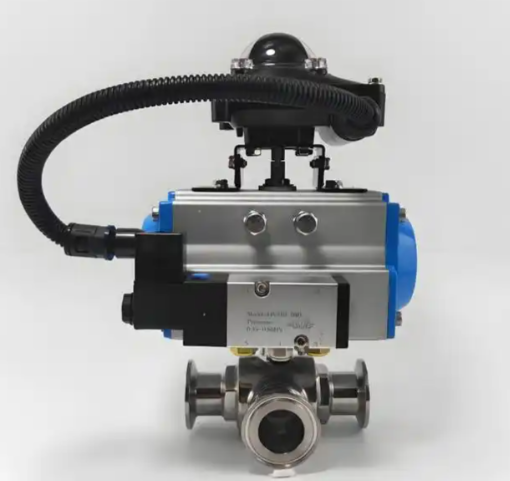

Typical product example: 3‑way sanitary diverting valve for food‑beverage production line product‑grade switching.
Item | Regulating Valve | Shut‑Off Valve | Diverter Valve |
Main Function | Continuous flow / pressure adjustment | Full open / full‑close media isolation | Flow‑path switching, split / mix streams |
Working Position | Any intermediate opening (long‑term throttling) | Only fully‑open or fully‑closed | Switch between different port passages |
Control Signal | 4‑20 mA, Modbus analog signalControl accuracy, flow characteristic | On‑off digital signal | On‑off / limited position signal |
Key Performance Index | Control accuracy, flow characteristic | Zero‑leak tight shut‑off | Smooth flow switching, low dead volume |
Major Risk of Mis‑use | Cannot achieve reliable bubble‑tight isolation | Half‑open throttling destroys sealing seat | Cannot deliver fine flow‑rate tuning |
A large European colocation data‑center needed precise coolant temperature control for immersion‑cooled server racks.
Requirement: Dynamically adjust coolant flow rate according to server real‑time heat load; remote signal feedback via 4‑20 mA and RS485 Modbus‑RTU; 7×24 h continuous partial‑opening operation.
Correct solution: IoT sanitary tri‑clamp regulating butterfly valve (SS304 body, EPDM seat). Equal‑percentage flow characteristic realized stable temperature control, PUE value dropped obviously.
Wrong alternative: If a shut‑off‑only butterfly valve was adopted, long‑term half‑open throttling would erode the soft seat, bringing coolant leakage risk to expensive server hardware.
A recycle paper mill handles pulp stock mixed with paper fiber and solid impurities. Valves on cyclone outlet pipelines frequently failed with seat‑leakage using ordinary butterfly valves.
Requirement: Complete isolation for cyclone equipment overhaul; cut entangled fiber‑rich pulp media; bi‑directional bubble‑tight shut‑off; no requirement for flow adjustment.
Correct solution: Stafsjö WB14E full‑lug knife gate valve. Cavity‑free full‑bore design prevents fiber buildup; self‑cleaning gate guides flush residues when closing. It only runs fully‑open or fully‑closed during normal production.
Wrong alternative: Installing a general regulating globe valve here. Solid pulp fibers will jam the trim and cause severe blockage inside the valve cavity.
A beverage factory needs to switch production between fruit‑juice and purified‑water cleaning‑in‑place (CIP) cycles on one main process pipe.
Requirement: Switch fluid flow between product filling branch and CIP return branch; avoid product cross‑contamination from dead‑zone media stagnation. Neither fine flow adjustment nor full safety isolation was the primary target.
Correct solution: Sanitary 3‑way diverter valve. One inlet stream can divert toward two different outlets without disassembling pipe flanges.
Wrong alternative: Two separate 2‑way shut‑off valves. This creates large dead‑leg sections where residual juice stays and goes bad, raising food‑safety risks.
If you need to continuously tune flow / pressure / temperature for stable set‑points: Choose a regulating valve. Check signal compatibility (4‑20 mA / Modbus), flow characteristic curve, allowable pressure‑drop.
If you only need to completely cut‑off / open pipeline for maintenance & safety isolation: Choose a shut‑off valve. Prioritize zero‑leak rating, anti‑clog performance especially for slurry / fiber‑containing media. Never use a shut‑off valve for long‑term partial‑opening throttling.
If you need to redirect flow between multiple branches, split or mix streams: Choose a diverter valve. Pay attention to dead‑cavity volume, multi‑port porting definition.
For slurry, pulp, sludge with solid particles: Knife‑gate‑type shut‑off valves are strongly recommended instead of conventional globe‑style regulating valves.
For sanitary liquid‑cooling / food‑grade service: Prefer tri‑clamp quick‑connect construction, compliant elastomer seat materials (EPDM / FKM).
Regulating duty: Confirm analog input / output signals (4‑20 mA) or field‑bus communication (RS485 Modbus‑RTU).
Pure on‑off shut‑off or divert duty: Digital switch signal is sufficient.
In many complex systems you can combine multiple valve types: Use one regulating valve for flow tuning plus one independent shut‑off isolation valve on the same pipeline for maintenance safety.
A: Not recommended for long‑term partial‑opening operation. Shut‑off valves are optimized for fully‑open / fully‑closed positions. Continuous half‑open throttling will create high‑speed fluid scouring on sealing surfaces, quickly generating internal leakage and permanent seal failure, which may trigger safety‑related accidents. Occasional manual rough adjustment for short‑time emergency is the only acceptable exception.
A: Most standard regulating valves only meet moderate leakage classes and cannot deliver bubble‑tight zero‑leak isolation. If complete media blocking is required for overhaul or emergency ESD protection, you still need an independent dedicated shut‑off / isolation valve in series.
A: No. Diverter valves are designed for flow‑path switching. They are not substitutes for safety‑grade isolation shut‑off valves, and cannot provide high‑precision continuous flow‑rate regulation. For full‑isolation safety, independent shut‑off valves still must be installed on each branch.
