Built with a detachable three-piece stainless steel body and ISO5211 high mounting platform, this electric ball valve features simple maintenance, wide media compatibility and flexible control options. It is widely applied in chemical processing, water treatment, food machinery, hydraulic stations and general industrial automation projects.
The split three-section valve body enables easy disassembly. Users can replace ball and seat seals without removing the entire valve from pipelines, significantly shortening downtime.
Valve body supports casting or forging manufacturing. Multiple internal thread standards are available: BSPT, G thread and NPT thread, matching global piping requirements. Optional connection types include flange, clamp, butt weld and socket weld.
Equipped with PTFE (F) and PPL soft sealing materials, the valve realizes bidirectional pressure resistance and automatic sealing compensation. The spherical surface has self-cleaning capability to reduce sediment buildup. It works steadily with viscous fluid, fiber suspensions and media containing tiny particles.
The design complies with API607 and GB/T6899 fire-safe anti-static standards, meeting safety requirements for flammable working conditions. Two temperature grades are provided: W2 (-20~150℃) and W3 (-20~250℃).
Adopts international ISO5211 high platform, so the electric actuator can be directly interchanged with pneumatic actuator without structural modification.
Multiple control versions are selectable: standard on-off type, integral on-off type, modulating type with 4-20mA signal, and RS485 bus type. Explosion-proof electric actuators are optional for hazardous areas. Supporting accessories include manual override handwheel, positioner and limit switches.
Item | Parameter |
Model | 3-Piece Internal Thread Ball Valve |
Nominal Diameter | DN10 ~ DN100 |
Nominal Pressure | 1.6 ~ 6.4MPa; custom pressure available upon request |
Valve Body Material | 304 Stainless Steel (P), 316 Stainless Steel (R) |
Seal Material | PTFE (F), Polyphenylene (PPL) |
Medium Temperature | W2: -20~150℃; W3: -20~250℃ |
Connection Type | Internal Thread, Flange, Clamp, Butt Weld, Socket Weld |
Actuator | Electric actuator (JLA / JLB series); Pneumatic actuator (JLAT / JLAW) interchangeable |
Control Mode | Standard On-off, Integral On-off, Modulating 4-20mA, RS485 Bus |
Executive Standard | GB/T12237, GB/T12221, GB/T26640, API607, ISO5211 |
Chemical Industry: Weak corrosive liquid, solvent and viscous medium pipeline control
Water & Wastewater: Circulating water, water supply automatic isolation
General Machinery: Hydraulic station, compressed air and lubrication system cut-off
Food & Pharmaceutical: Clean medium conveying control
Energy & Metallurgy: Cooling fluid and low-temperature medium on-off
Manual override handwheel for emergency operation
4-20mA electro-pneumatic positioner for continuous flow regulation
Explosion-proof electric actuator for flammable environments

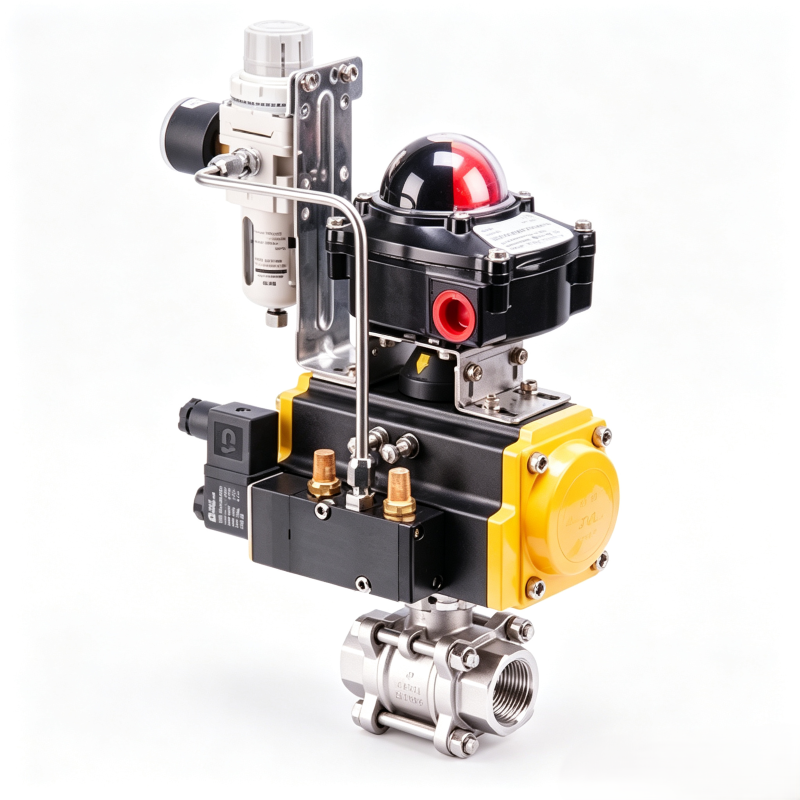

Limit switches, solenoid valve, air filter regulator (for pneumatic configuration)
RS485 MODBUS communication module
A: The three-piece split structure allows independent disassembly of the middle section. Ball and seat seals can be replaced without detaching the valve from the pipeline, bringing much easier maintenance. It is more suitable for medium containing particles that require regular inspection.
A: Yes. Choose the integral modulating electric actuator with 4–20mA analog input and feedback signal, which supports continuous flow adjustment from 0% to 100%. RS485 bus type is also available for DCS centralized control.
A: We support BSPT, G thread and NPT thread. Please confirm the thread standard when placing orders. Besides internal thread, flange, clamp, butt weld and socket weld connections are also optional.
The electric three-piece threaded ball valve combines stable sealing performance, flexible automation configuration and convenient maintenance. It serves as a cost-effective imported replacement solution for small-bore automated industrial pipelines worldwide.

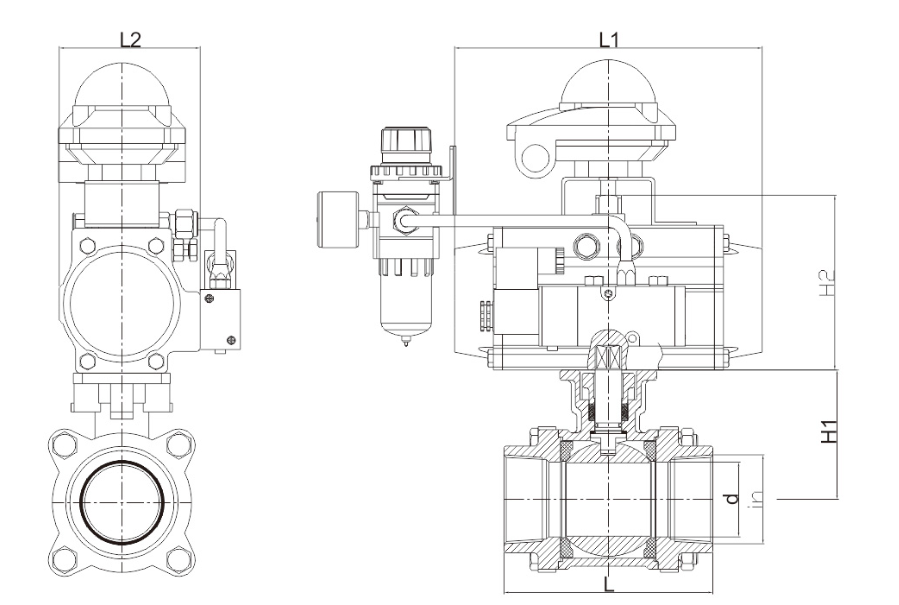

We provide dimension drawings, material test certificates and sample testing support. Contact QingDao MDP Flow Control Co,;Ltd. for customized quotation and technical consultation.
