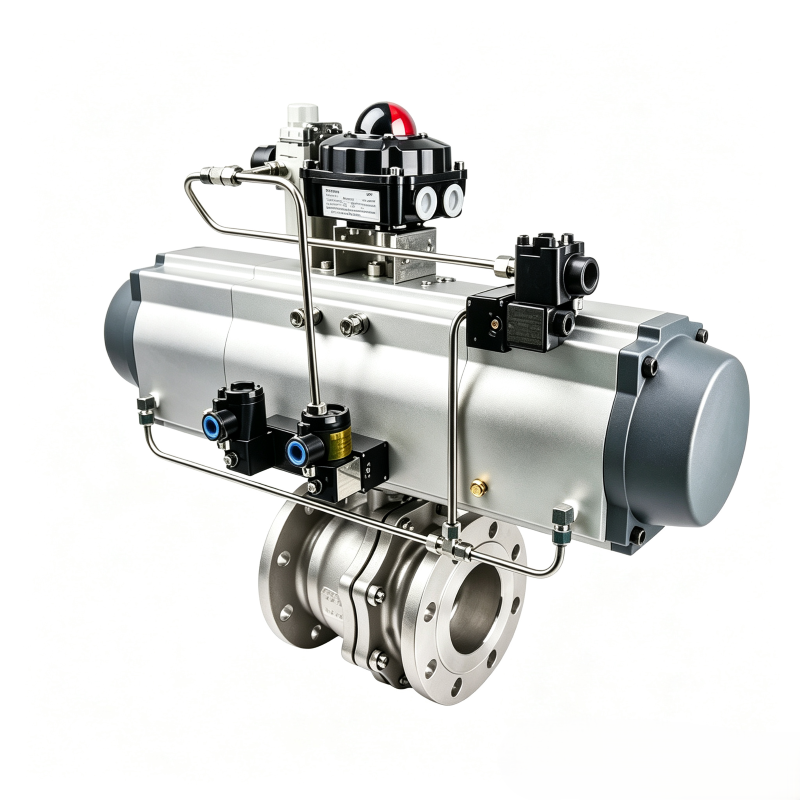

Automated fluid isolation is the core demand of modern industrial control systems. Pneumatic flanged ball valves serve as critical on-off actuators for remote PLC control, batch production and pipeline safety cut-off. The MDP JL600-Q1 Pneumatic Flanged Ball Valveis a universal replacement-grade automated ball valve engineered for harsh industrial environments.
Designed to comply with global industrial standards including ISO5211 and API607, this two-way flanged ball valve delivers fast quarter-turn actuation, bubble-tight sealing and broad media compatibility. It is widely deployed in petroleum refining, long-distance pipelines, chemical processing, papermaking, pharmaceutical, water conservancy, power and municipal steel projects. Special degreased versions are available for oxygen piping in metallurgy plants.
The full straight-through bore minimizes fluid resistance and pressure drop. Spring preloaded valve seats automatically compensate for thermal expansion and pressure fluctuation, achieving Class VI zero leakage with PTFE soft seals.
Multi-seal material options cover all working temperatures: PTFE (-20~150℃), PPL high-temperature soft seal (-20~250℃) and metal hard seal (-29~425℃). It handles viscous liquids, fiber suspensions and micro particle fluids without jamming, with self-cleaning ball surface to avoid medium buildup.

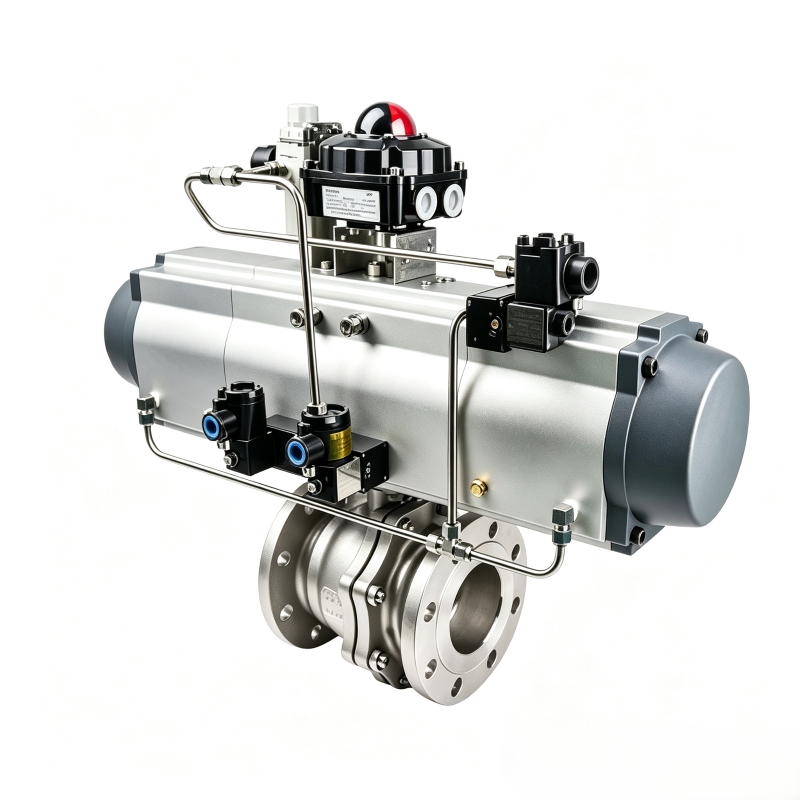

Adopts international ISO5211 high mounting platform, interchangeable with all global brands of pneumatic/electric actuators without pipeline modification. Two actuator modes are optional: double-acting (air open & air close) and single spring return (fail-safe normally open / normally closed for emergency cut-off).

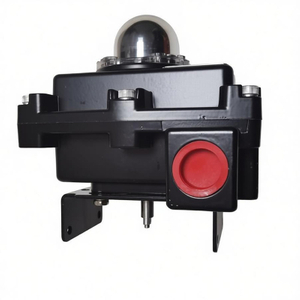

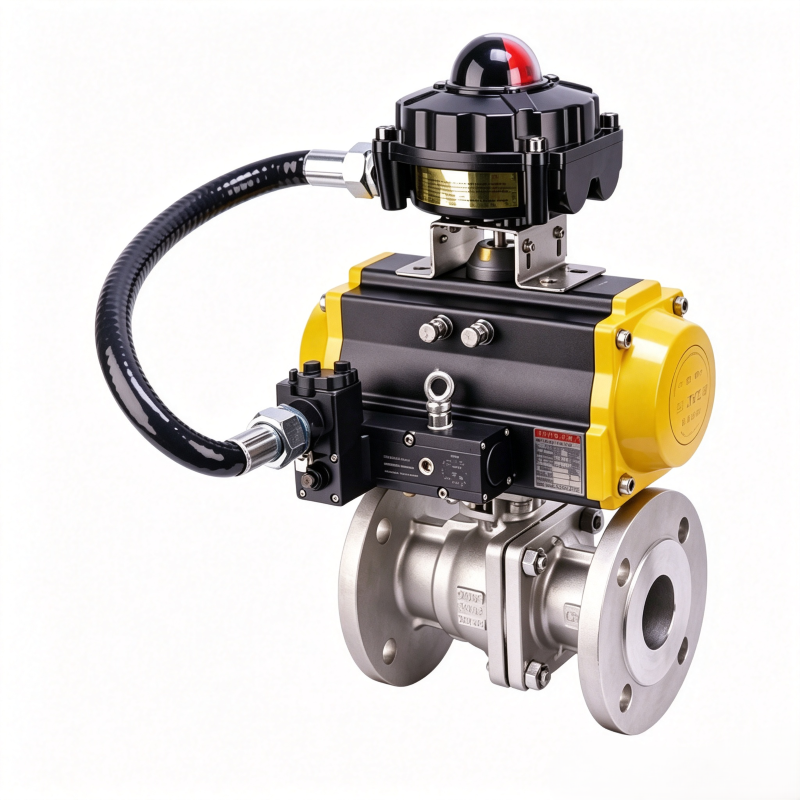

Fully compatible automation accessories include 24VDC solenoid valves, explosion-proof limit switches, 4-20mA electro-pneumatic positioners and air filter regulators, supporting DCS centralized remote control and local manual override. The valve integrates fire-safe and anti-static structure, fully meeting API607 and GB/T6899 standards for flammable medium safety.
Valve body supports casting/forging process with 3 material grades: carbon steel, 304 stainless steel, 316 stainless steel to resist general oil, water, weak acid and strong corrosive chemical liquids.
Low friction ball and stem design reduces opening/closing torque for frequent cyclic operation. Recessed adjustable stem packing eliminates external leakage without full valve disassembly during maintenance. Modular flange structure shortens downtime for seat and ball replacement, greatly cutting plant maintenance costs.
Item | Standard Parameter |
Model | MDP 600-Q1 Pneumatic Flanged Ball Valve |
Nominal Diameter | DN15 ~ DN200 |
Nominal Pressure | 1.6MPa ~ 6.4MPa; custom high pressure available |
Valve Body Material | Carbon Steel (C), SS304 (P), SS316 (R) |
Seal Material | PTFE(F), PPL, Metal Hard Seal(H), Hard Alloy(Y) |
Medium Temp Grade | W2: -20~150℃; W3: -20~250℃; W4: -29~425℃ |
Connection Type | Flange |
Pneumatic Actuator | JLAT, JLAW series or imported actuator |
Actuation Mode | Double Acting, Single Acting Normally Closed / Normally Open |
Test Standard | Shell test: 1.5×PN; Seal test: 1.1×PN |
Applicable Media | Oil, steam, water, chemical slurry, gas, fiber & particle suspension |
Oil & Gas: Crude oil pipelines, fuel delivery system on-off isolation
Chemical Plant: Corrosive liquid, viscous medium pipeline control
Water & Municipal: Sewage, circulating water, water supply automation cut-off
Pharmaceutical & Papermaking: Clean fluid, slurry automatic switching
Power & Metallurgy: Cooling water, degreased oxygen special valves
General Manufacturing: Hydraulic stations, compressed air pipeline isolation
Explosion-proof assembly for hazardous flammable environments
Handwheel manual override for air failure emergency operation

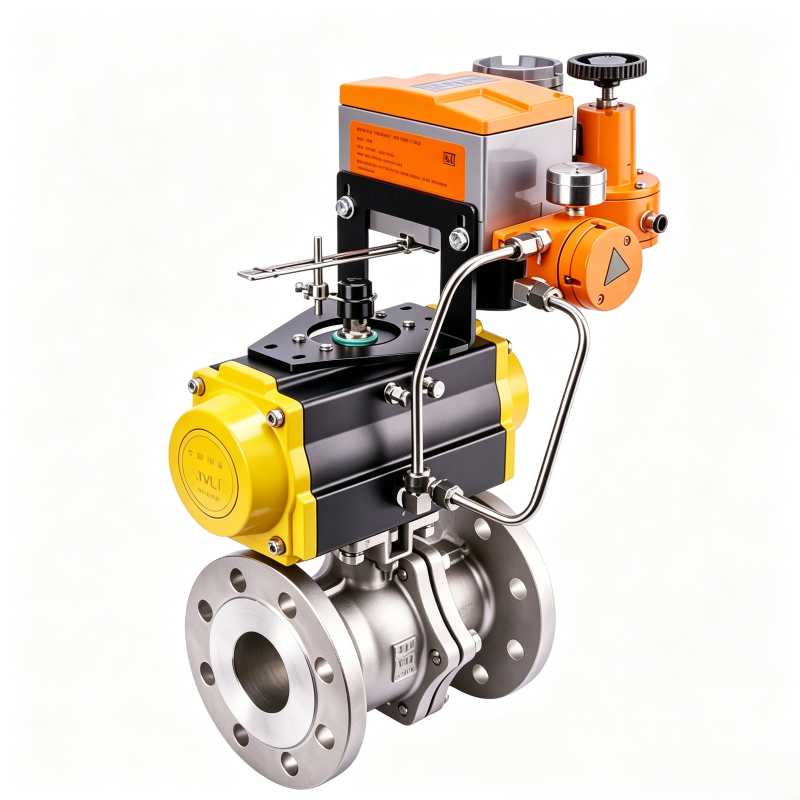

4-20mA proportional positioner for flow regulation
Special degreasing treatment for oxygen medium service
Custom ultra-low/high temperature sealing combinations

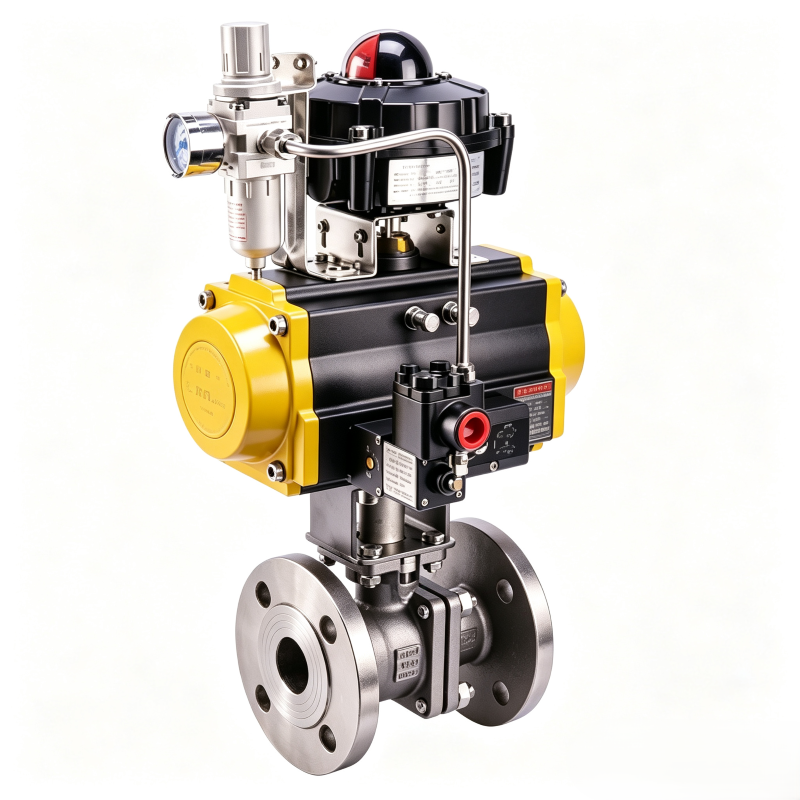

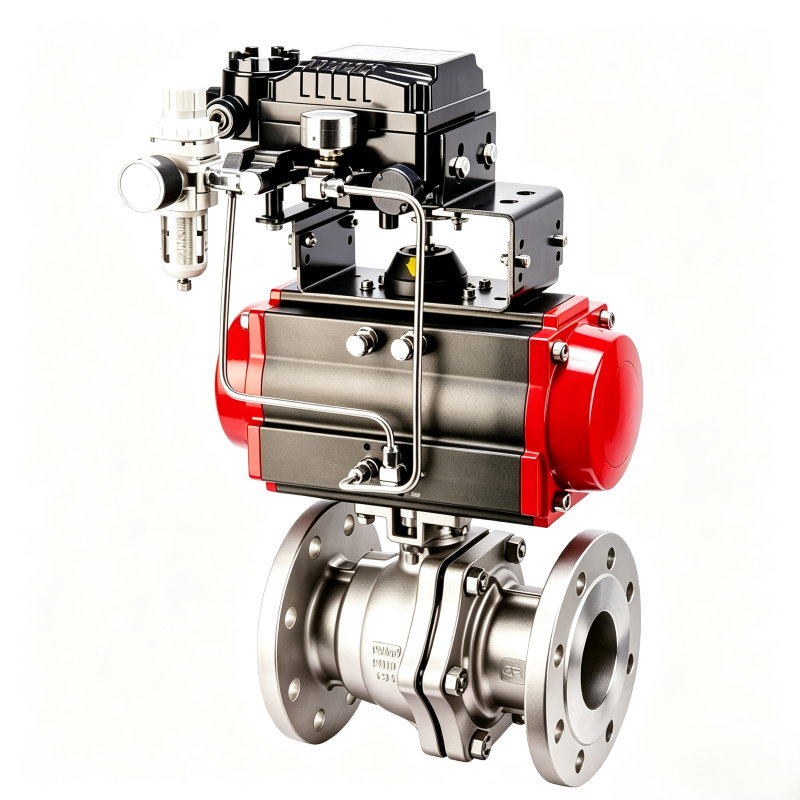

Full sets of solenoid valve, limit switch, air filter regulator
Two standard options: double acting actuator which relies on dual air source for open/close; single spring return actuator that automatically resets to open/closed state when air supply fails, ideal for safety-critical pipelines. Standard air supply pressure ranges from 0.4–0.8MPa.
Carbon steel fits general oil and water; 304 stainless steel for weak corrosive liquid; 316 stainless steel for acid, alkaline and strong corrosion media. PTFE soft seal for zero leakage at medium temperature below 150℃; PPL for high temperature up to 250℃; metal hard seal for high temp up to 425℃ and abrasive particle fluid.
Yes. The MDP 600-Q1 series adopts integrated fireproof and anti-static design, fully compliant with API607 fire safety specification, suitable for flammable gas and oil pipelines.
Yes. Equipped with universal ISO5211 high platform mounting bracket, compatible with all mainstream domestic and international pneumatic/electric actuators without structural modification.
Standard flanged sizes from DN15 to DN200, floating ball design for medium-small bore pipeline automation control.
The MDP 600-Q1 pneumatic flanged ball valve balances stable performance, wide material selection and flexible automated configuration, serving as a cost-effective imported replacement fluid control component. With full compliance with international safety standards and customizable technical parameters, it meets diverse on-off and regulating demands across global industrial automation projects.
For CAD drawings, full data sheets, custom quotation and sample testing support, contact us sales team.
