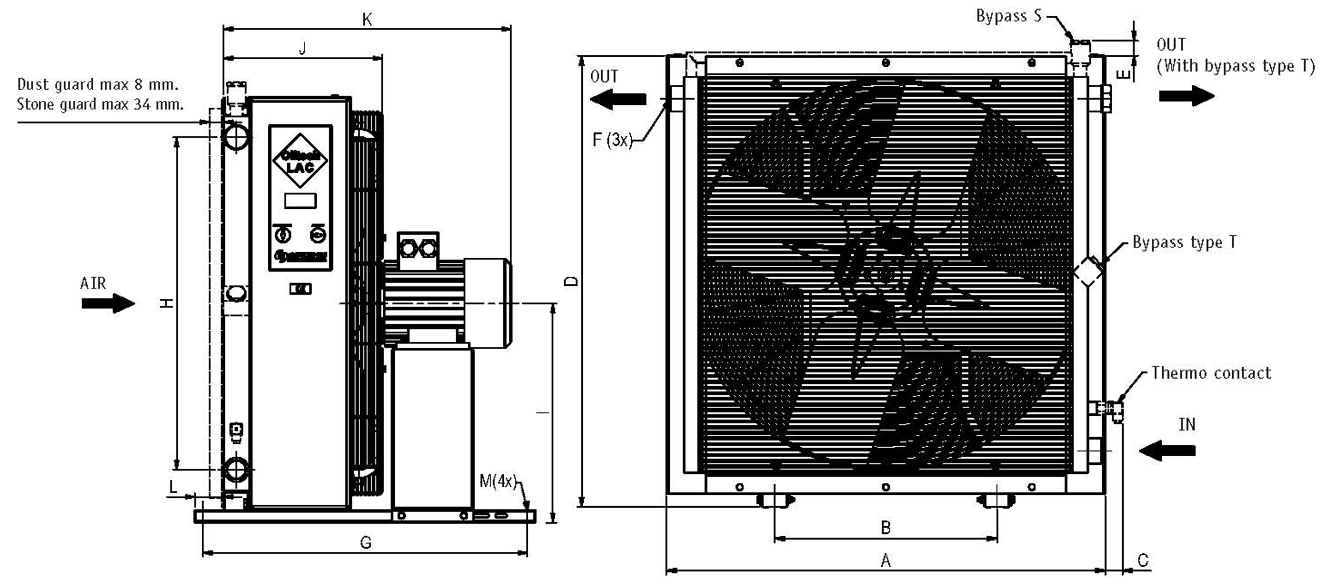

Product Outline Drawing:

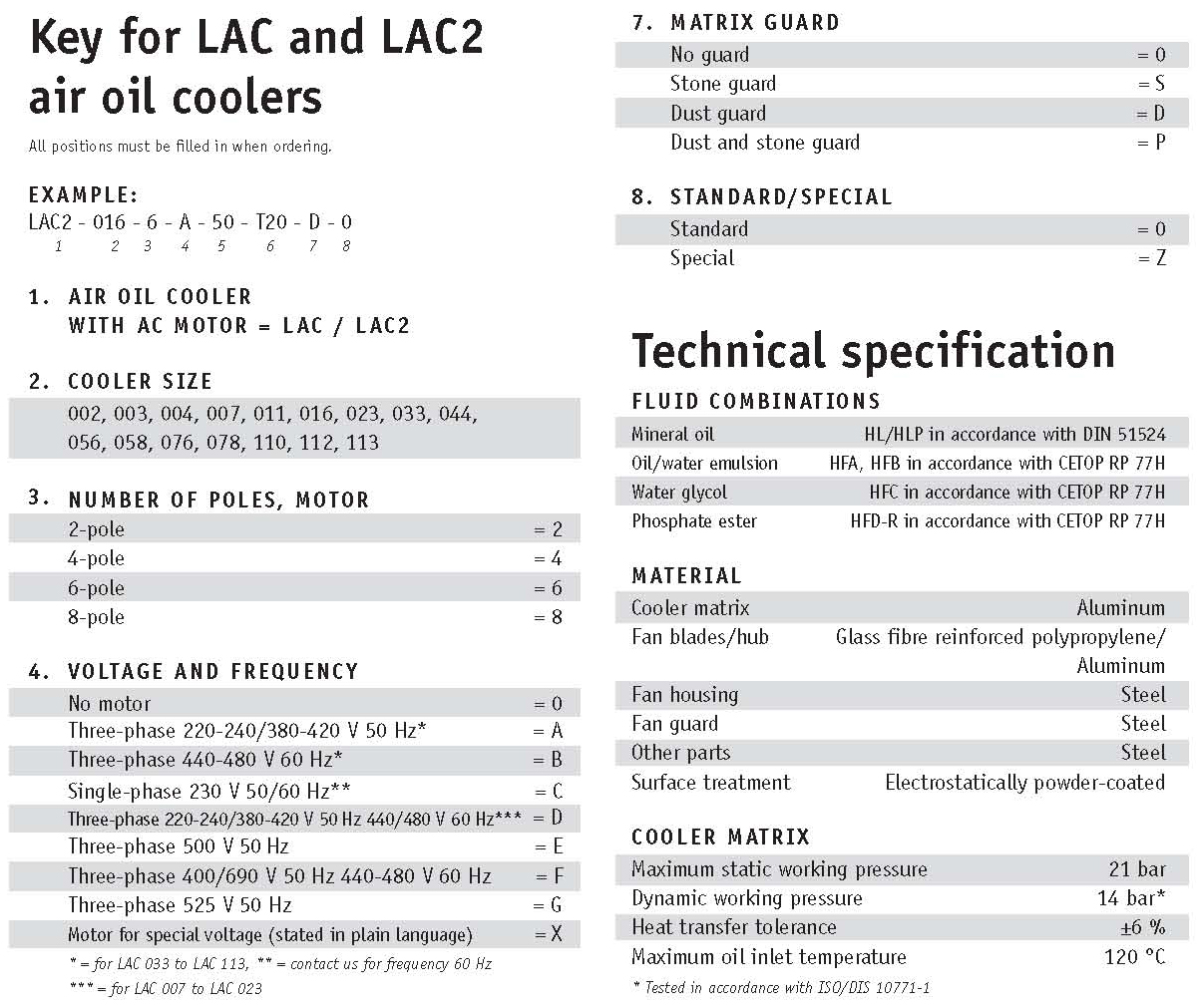

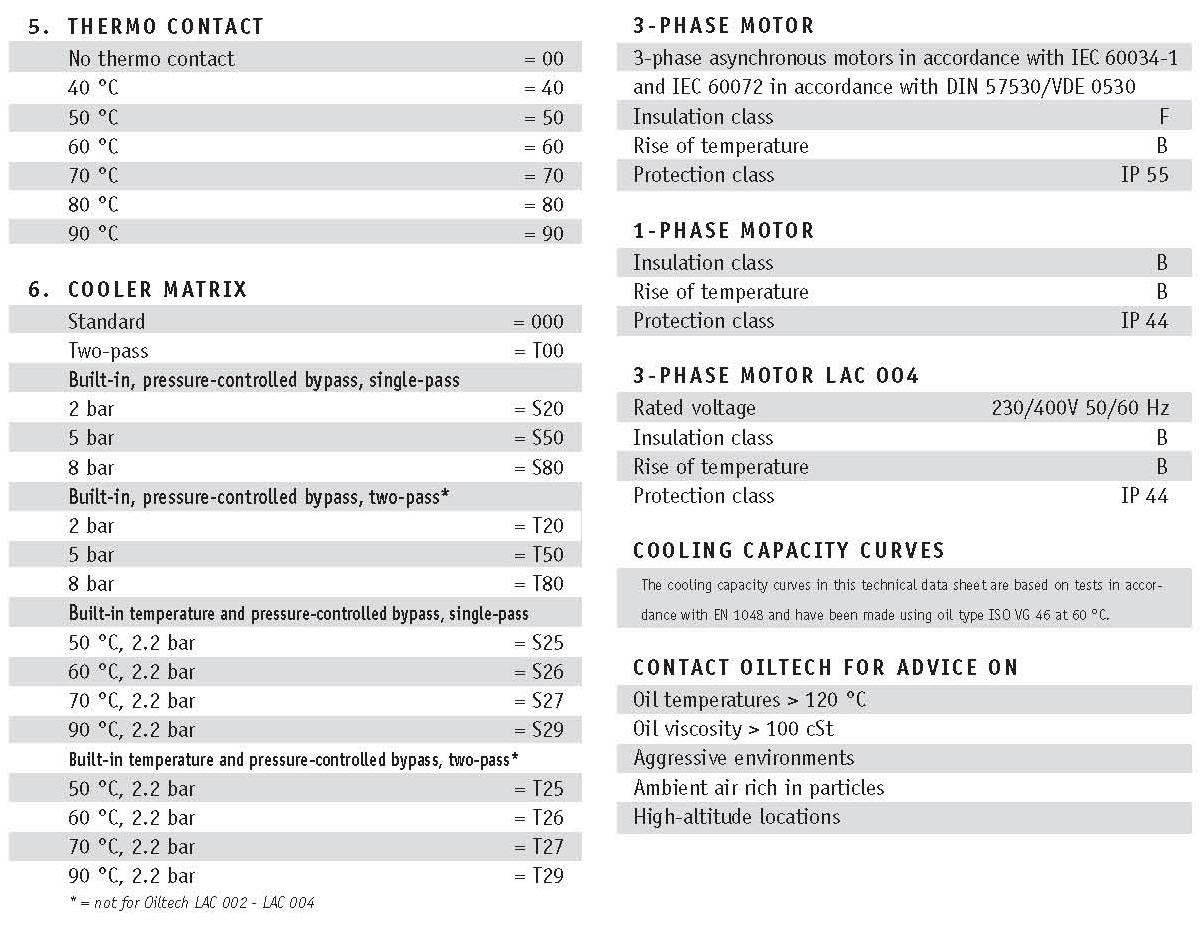

Product Specifications:
Product Features:
The air flow of the cooler has been optimized by the use of a more efficient axial fan and a variety of housing modifications. The cooler can also be used in the bypass flow by attaching a boost pump An additional filter enables continuous filtration of the medium; the cooler can then be connected as required
Large product range
Large cooling performance range
Modular design
Product Advantages：
Wide range size 16 bar rated dynamic pressure modular structure coolers utilize efficient axial fans and powerful cooling elements to achieve optimal performance. Many models are equipped with medium or high-speed fans, and the modular design allows for the addition of circulation pumps and filters when necessary. Offline complete package. Avoids pressure and flow issues in the return oil line. High-performance filters. The advantages of offline cooling systems include stable cooling (and filtration) performance, regardless of variations in flow and load in the main hydraulic circuit. This allows the cooler size to match the thermal load rather than the maximum return pipe flow of the main circuit. Another advantage is that the offline cooler is completely isolated from surge pressure in the return line, which could damage the cooler.
• Cooling range 2-108 kW at ΔT 40 °C
• Compact, efficient, powerful
• Standard motor flange B5/B14
• Easy disassembly of components.
Application Field：
Systems with high cooling requirements ,such as:
Hydraulic systems
Lubrication systems
Gears
Motors
Generators
Converters
Machine tools
