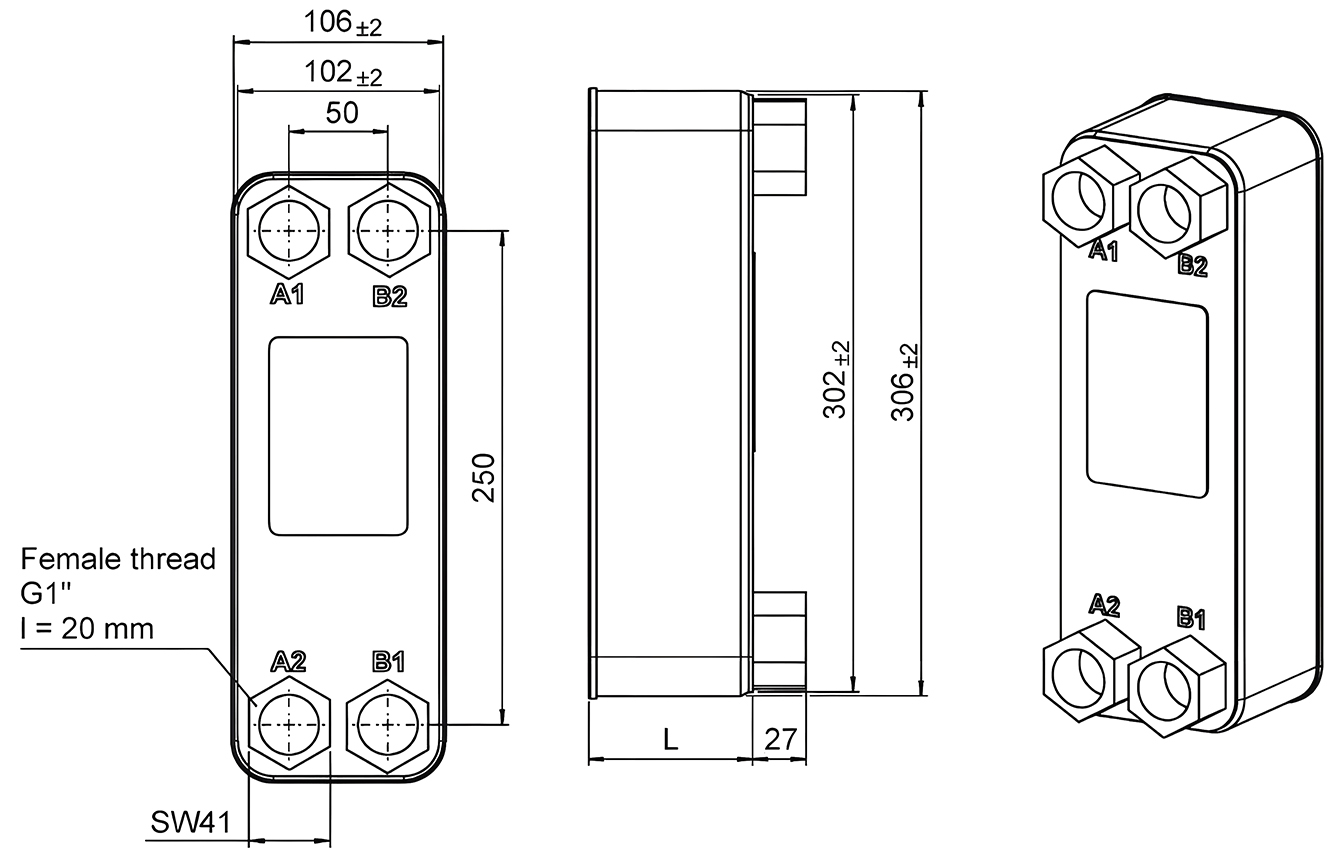

Product Outline Drawing:

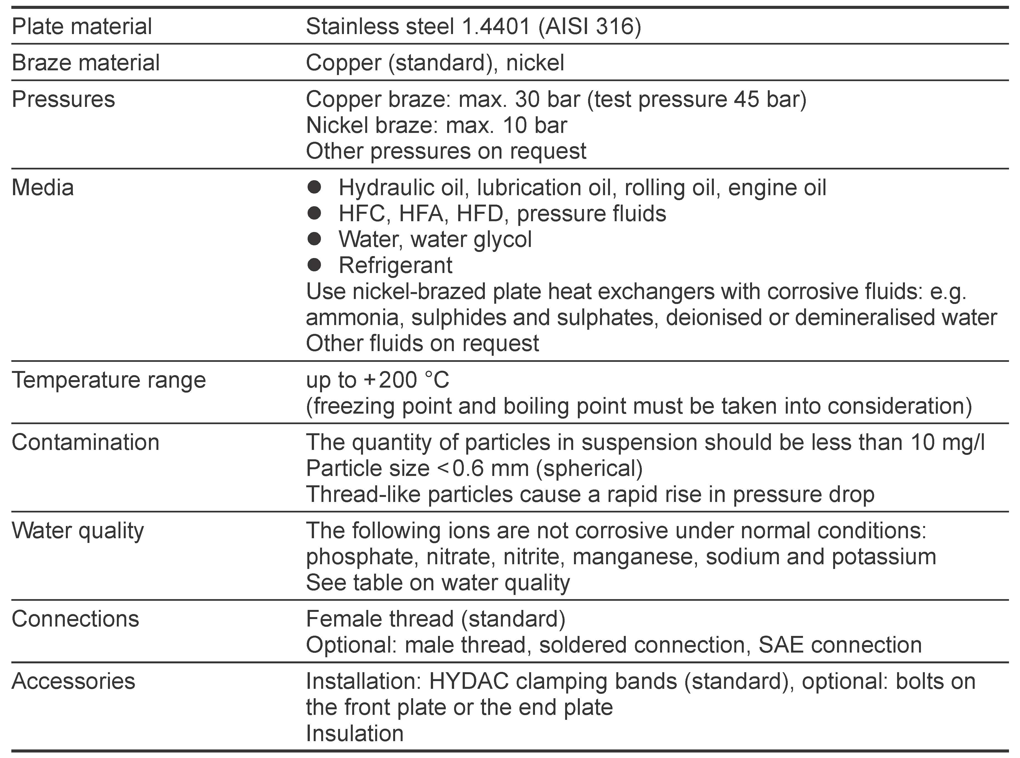

Product Specifications:
Product Features:
Plate heat exchangers are used wherever thermal energy (heat) has to be transferred from one fluid to another.
The advantage is that they can maintain the fluid temperature at a very low and stable level-depending on the temperature of the coolant.
Plate heat exchangers consist of a stack of stamped heat exchange plates which are either brazed together or bolted together in a frame with gaskets Medium flows in the channels between the plates where hot medium (which will be cooled) alternates with cold medium (which will be heated). The design of the plates induces the turbulent flow required for efficient heat transfer.
Product Advantages：
1. The heat transfer efficiency of the plate heat exchanger is high, effectively completing a large amount of heat exchange, which improves production efficiency.
2. The compact structure of the plate heat exchanger saves space and materials, reducing investment costs.
3. The plate heat exchanger is easy to clean and maintain, which reduces operating costs and maintenance time.
4. The dirt coefficient of the plate heat exchanger is low, which can reduce the problem of decreased heat exchange efficiency caused by dirt.
5. The technology of the plate heat exchanger is mature and highly reliable, ensuring the stability and safety of the production process.
