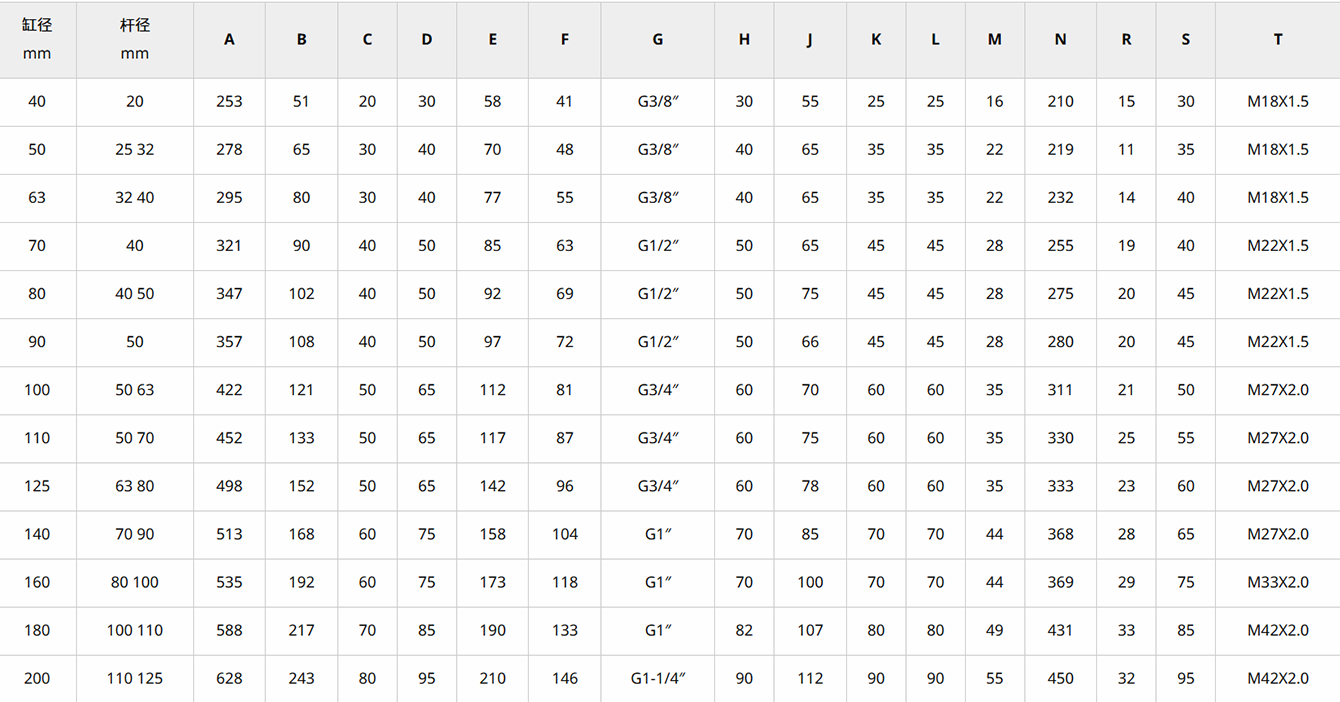

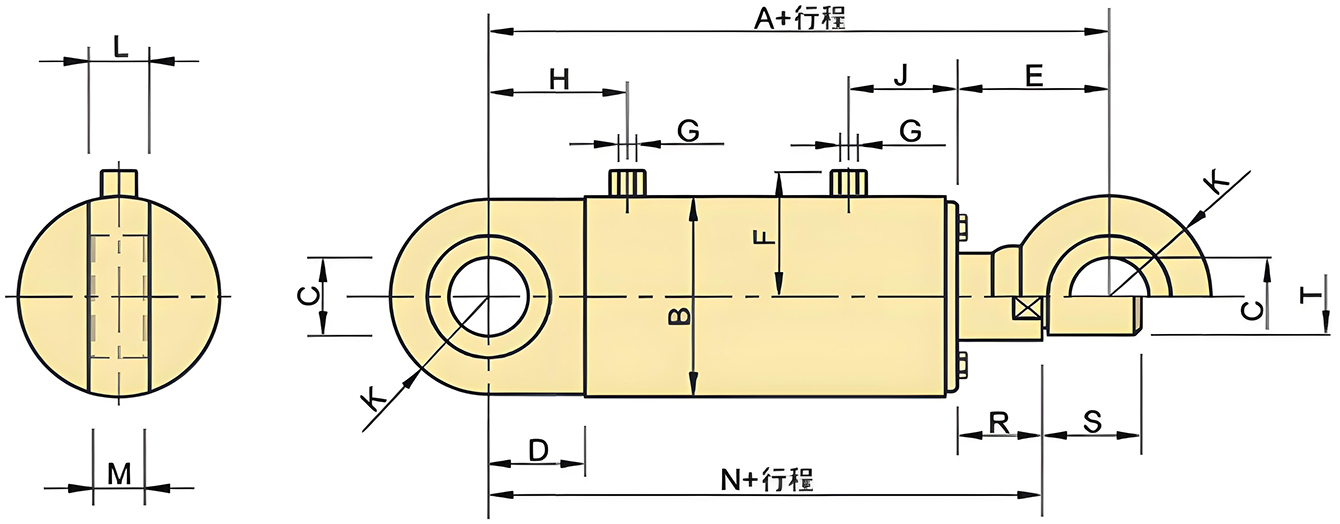

Product Outline Drawing:

Product Specifications:

Features & Specifications |
1Stroke lengths to 4100mm(161 inches),Customizable |
Hydraulic pressure to 31.5 Mpa( 4568 psi), Customized up to 63Mpa (9137psi) |
Temperature to -20℃ to 80℃(-4'Fto 176°F),Customized up to 230℃(446°F) |
Standard Carbon, Alloy & Stainless material options available based on application |
Single & Double Acting configurations |
Plating/treatment options available based on application |
Seal options available based on fluid/pressure/temperature |
Special Options |
Chrome bore available Adjustable cushions |
Air bleeds Special materials & plating |
Integrated valve technology Linear displacement transducers |
Proximity switches Pressure boosters |
Intensifier designs |
Product Features:
Double-acting hydraulic cylinder, working pressure of 21, 25, 31.5 MPa, double-acting design, hydraulic return, multi-seal and guide design, extended reliable service life, multiple connection methods available: ear ring, flange, hinge pin, threaded and other connection methods; chrome-plated piston rod surface: special coating on the cylinder surface, strong corrosion resistance; the cylinder design is suitable for fields such as construction, shipping, mining and engineering support.
Product Advantages:
Working pressure: 21MPa, 25MPa, 31.5MPaTesting pressure: 1.5 times the working pressure
Standard cylinder diameter: 40 – 200 mm
Standard stroke: 0 – 4000 mm
Maximum cylinder diameter: 1000 mm
Maximum stroke: 8000 mm
Connection method: Ear ring, flange, hinge, thread, etc.
