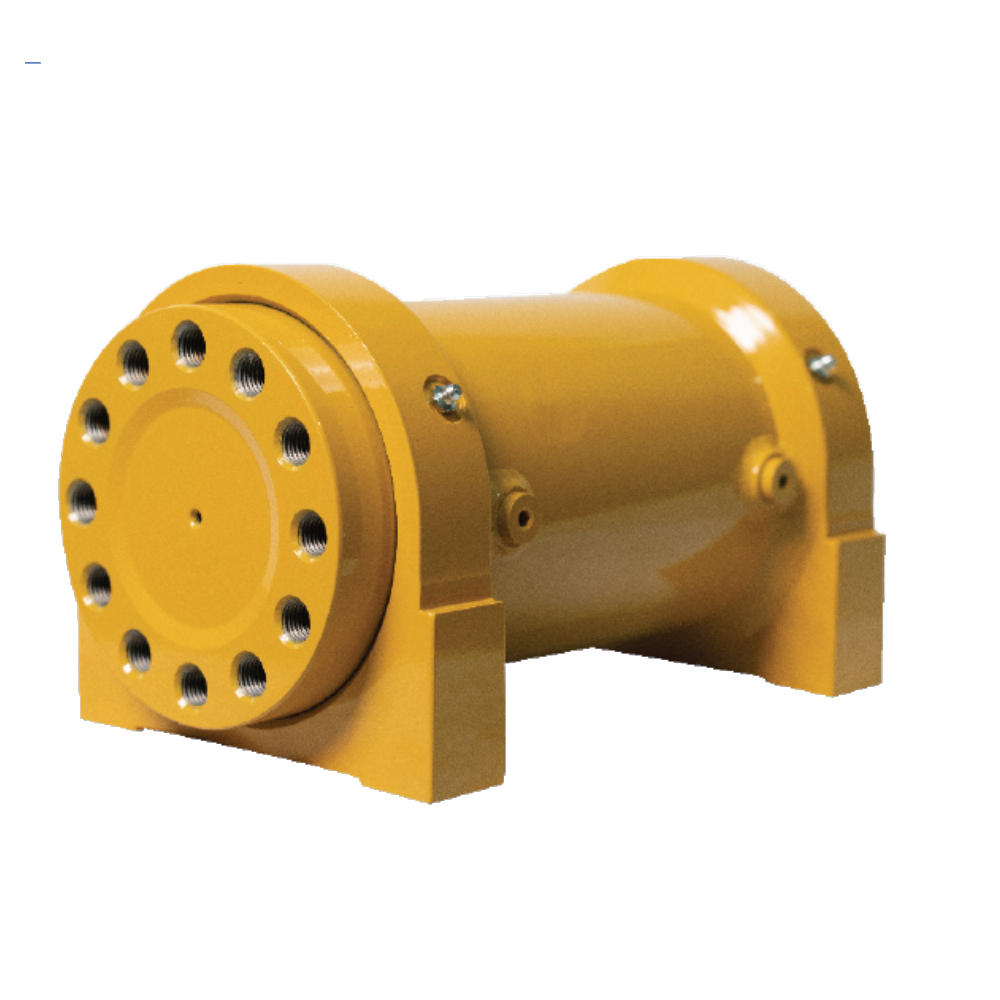

This design is based on a system with a multiple helical gear,the linear movement of the piston is converted into a rotational movement via the multiple helical gears by hydraulic pressure,the rotational movement variable.

Quantity:
Availability:





Inquire Add to Basket

Model:
KT Series
Brand:
MDP Hydraulics

Product Category

Product Description

Product Feature:

Product Application Scenarios

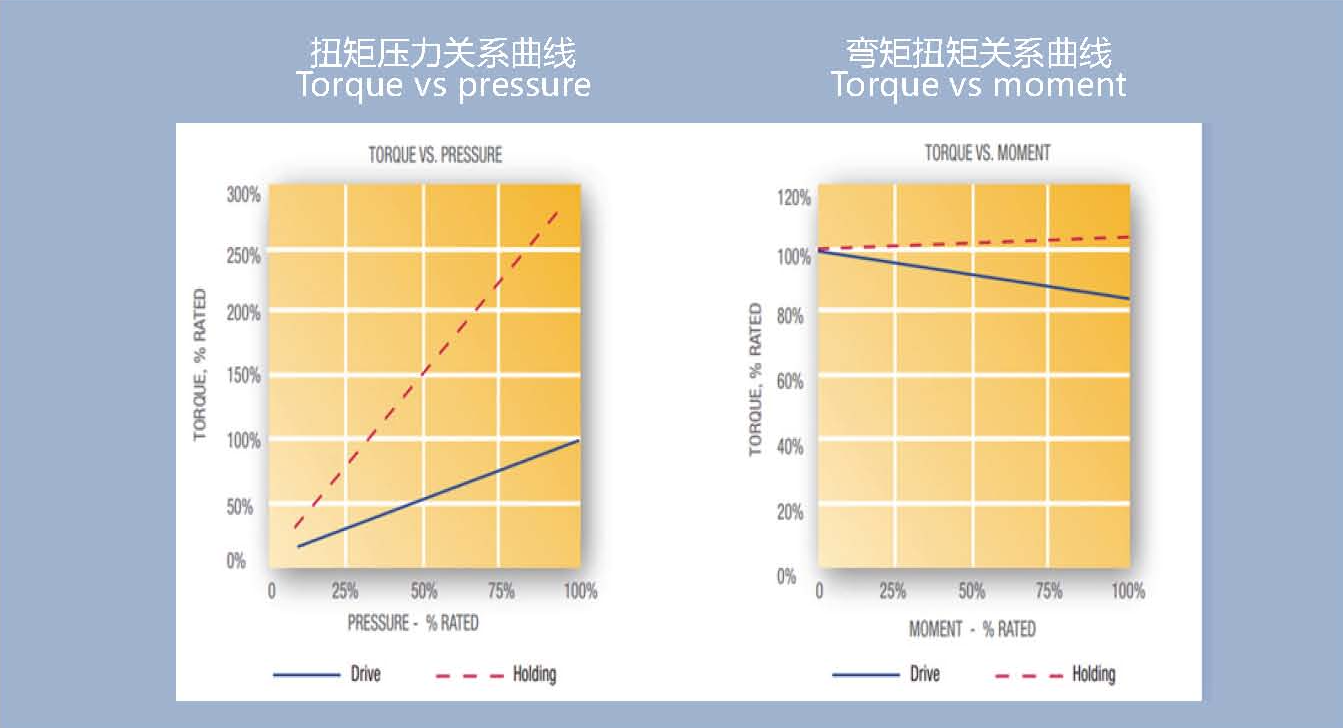

Product performance

1.Powerful

High torque,high bearing capacity

2.Durable

moving parts enclosed,suitable foe harsh environments

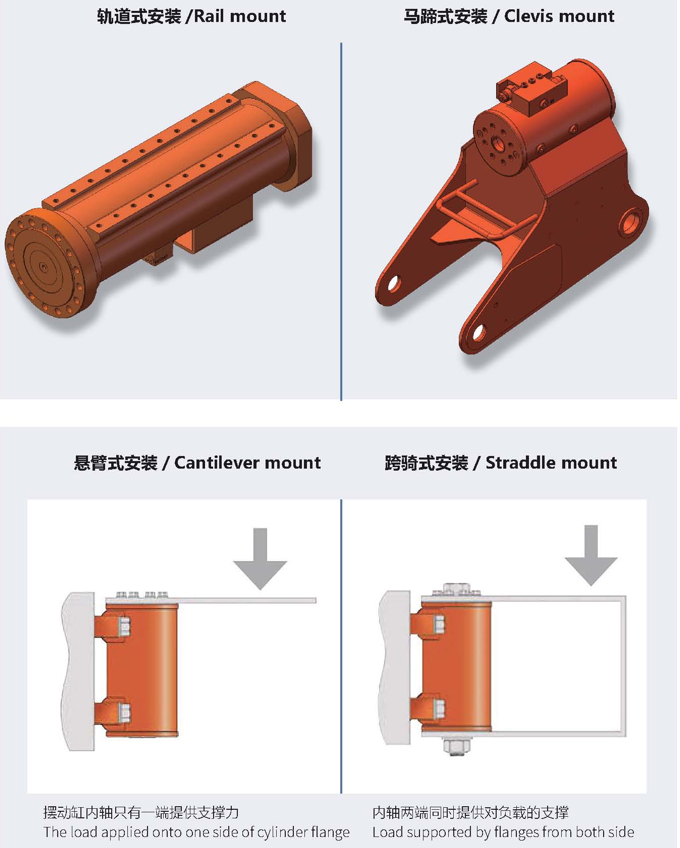

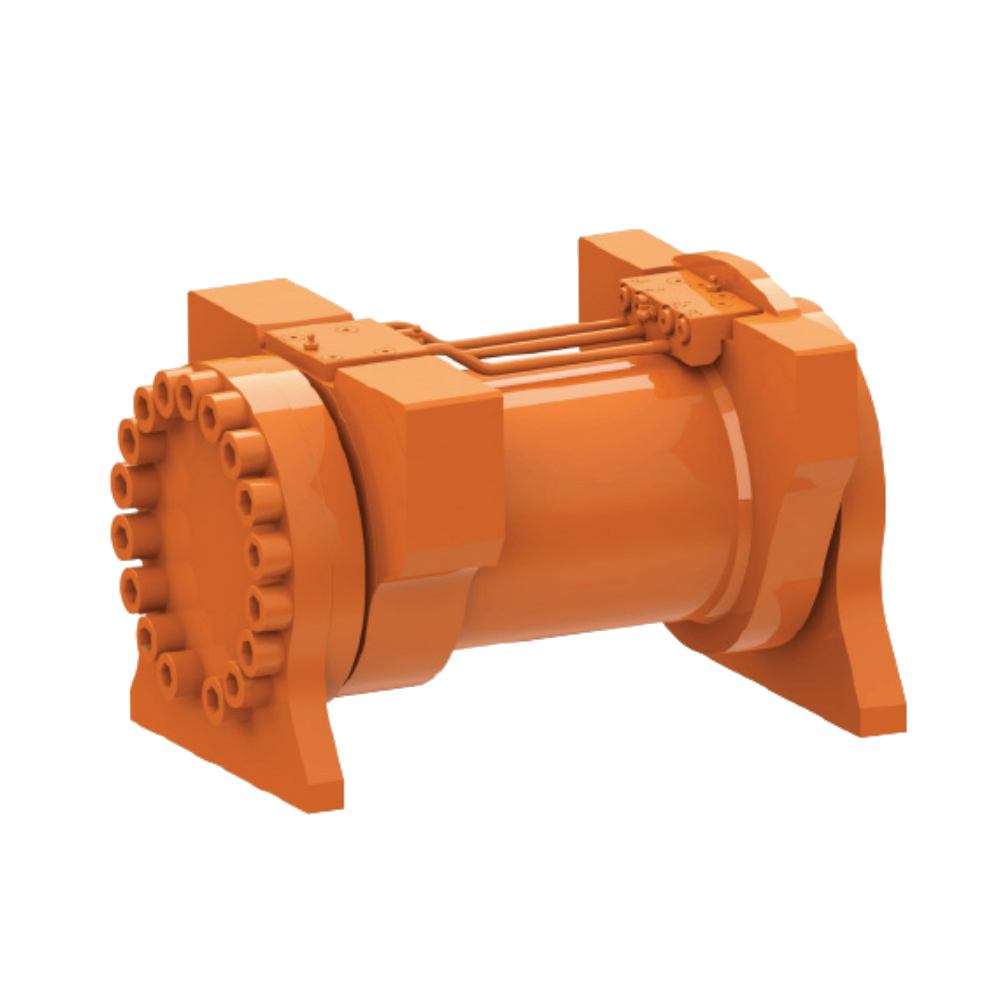

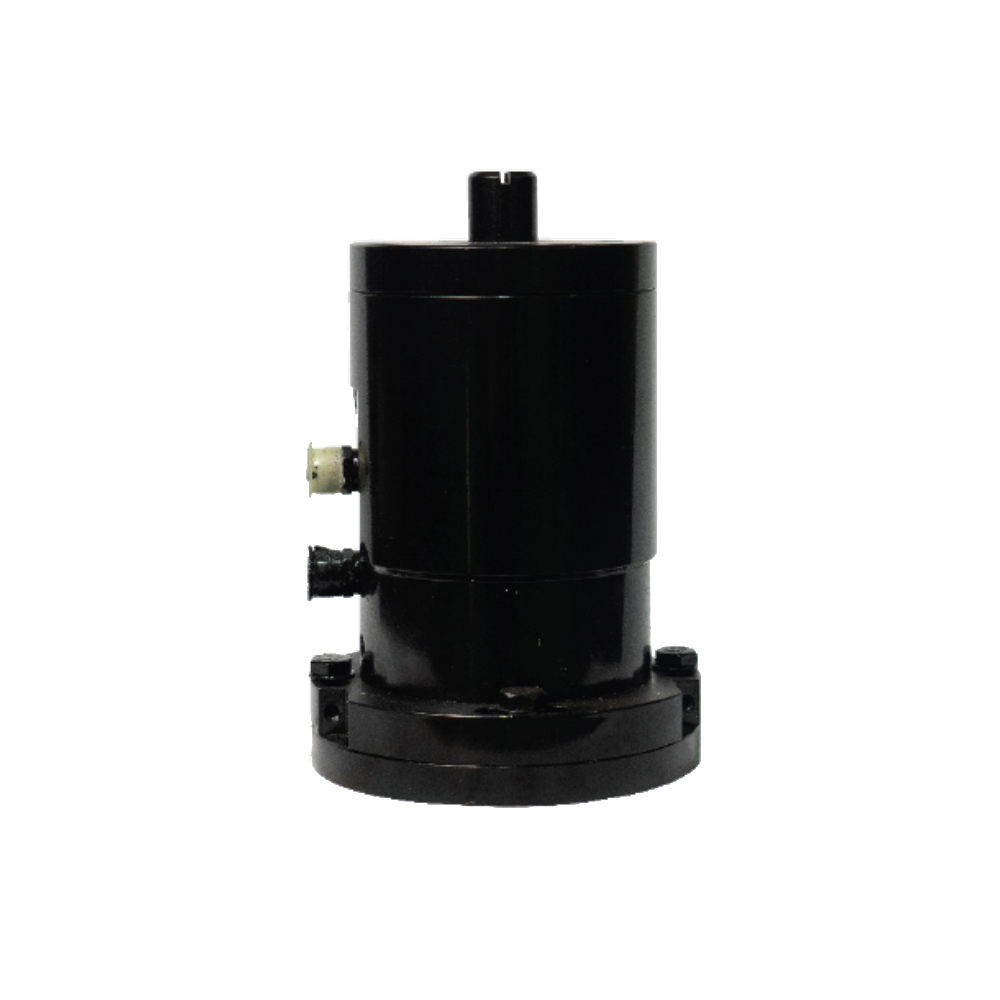

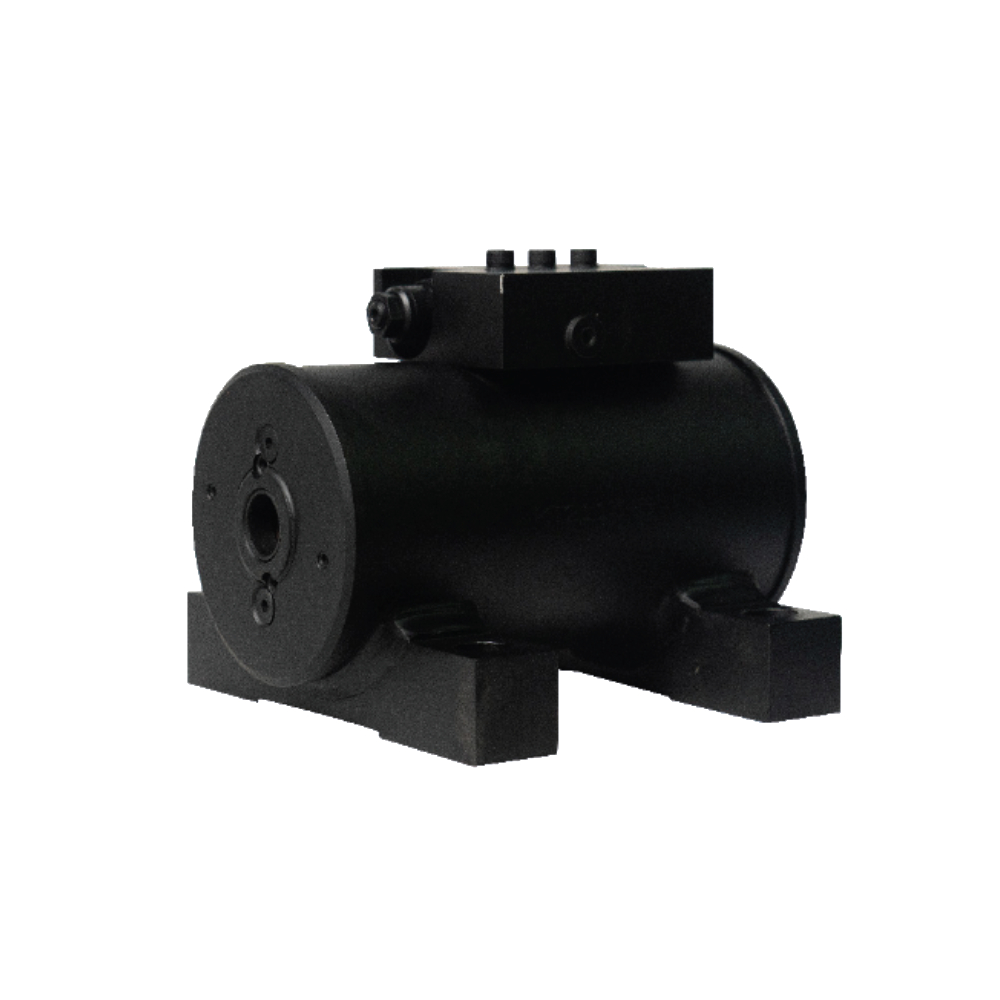

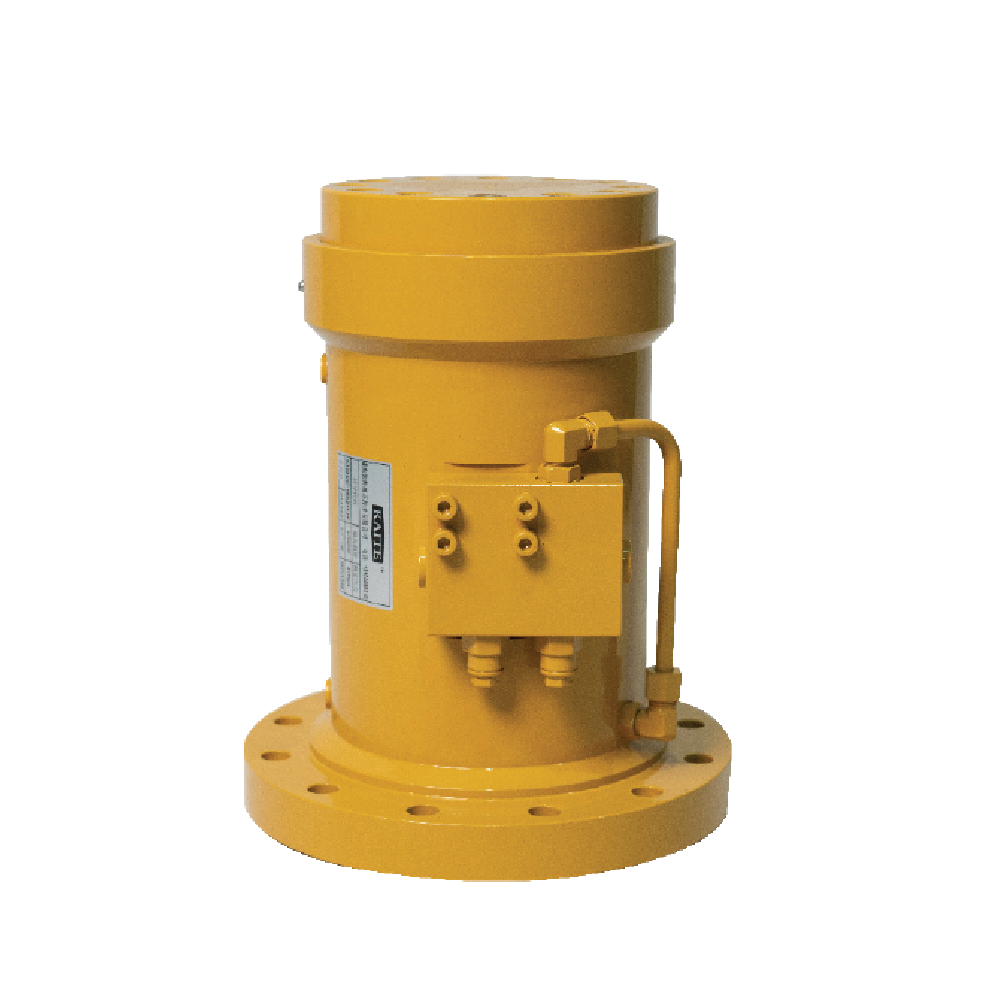

Installation Method

Rail mount
Clevis mount
Cantilever mount： The load applied onto one side of cylinder flange
Straddle mount：Load supported by flanges from both side

Model Code Guide

Example:

KT10 - 27 - 360 - Q Q Y J

Description	Detailed Explanation
Series No.	Common series: KT10,KT20,KT30,KT40,KT50
100/Output Torque Value Divided By 100	For example: the output torque is 4700nm, denoted as: 47, ie 100
Output Rotation Angle	Standard angles are generally 180°, 360°, special angles can be customized
Torque Output Form	Q- Front flange,S- Double flange, Z- Shaft output,H- Spline Shaft
Mounting	Q- Front flange mount,H- Rear flange mount , D- Foot mounting,M- Clevis mounting
Counterbalance valve	Y- With ordinary Counterbalance valve, W-Without Counterbalance valve, A-Aluminum alloy Counterbalance valve
Seals	J- Imported normal temperature seals, G- Seals made in China, D- Withstand low temp, H- Withstand high temp

Hydraulic Industrial Rotating Cylinder

1.Load-bearing capacity

Without the need for additional external bearings, the large, integral nylon composite bearing can withstand heavy radial, instantaneous and longitudinal loads.

2.High seismic resistance

The innovative sliding spline evenly distributes the load across all the teeth during operation, making it durable and possessing outstanding resilience to vibration loads.

3.Zero leakage and no position drift

The seal is achieved on a smooth cylindrical surface, effectively eliminating all leakage and maintaining the selected position without drift.

4.Installation is flexible

There is a large-diameter, hollow hole on the shaft, and a flange with internal threads is provided. The housing is installed together with the base foot through the drilled threaded holes.

5.Corrosion resistance

The solid extrusion-type seal can effectively prevent dirt and moisture from entering, and the grease injection port ensures that the bearing is not contaminated.

6.Multifunctionality

The oscillating cylinder can be customized according to the user's requirements.

Hydraulic Industrial Rotating Cylinder

The oscillating cylinder is widely used in various aspects of construction machinery, especially in coal mining machinery and tunnel equipment.
The application of the oscillating cylinder on the garbage cleaning vehicle simplifies the flipping motion and makes the flipping more reliable.
The application of the oscillating cylinder in the wet spraying truck usually installs two oscillating cylinders along the X/Y axes to provide rotations in different directions.
The application of the oscillating cylinder at the joint of the excavator's bucket enables the bucket to rotate while the vehicle remains stationary, significantly enhancing work efficiency.
The application of the oscillating cylinder in valves such as oil pipelines enables remote, safe and efficient operation.
