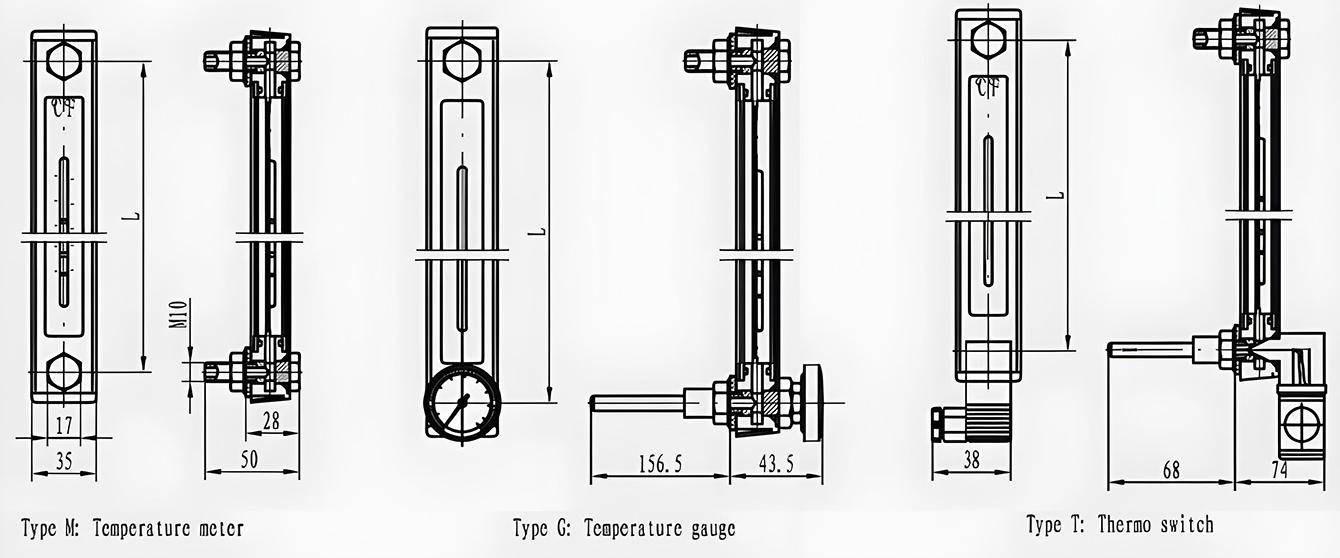

Product Outline Drawing:
Product Specifications:
Temperature: -20°C to +100°C, expressed in Celsius and Fahrenheit.
Temp. range: -20°C to +100°C.
Pressure class: 0.1 to 0.15 MPa.
Product Features:

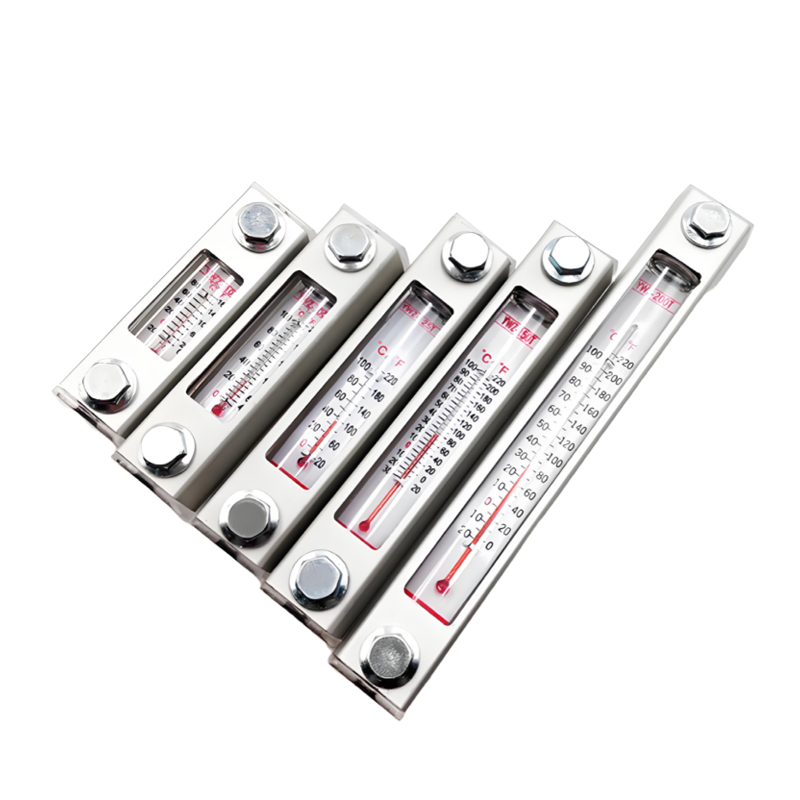

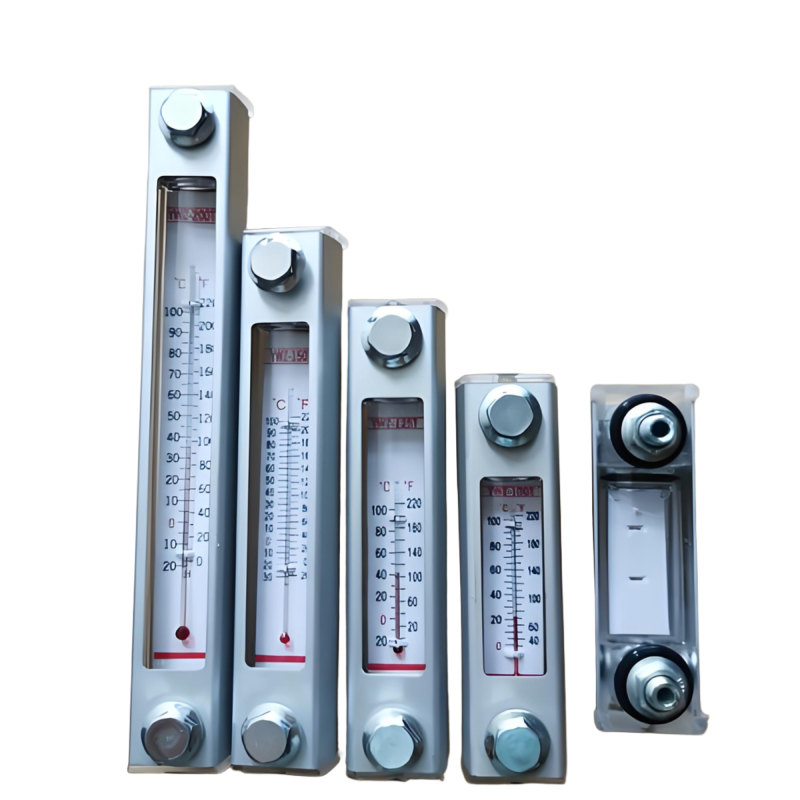

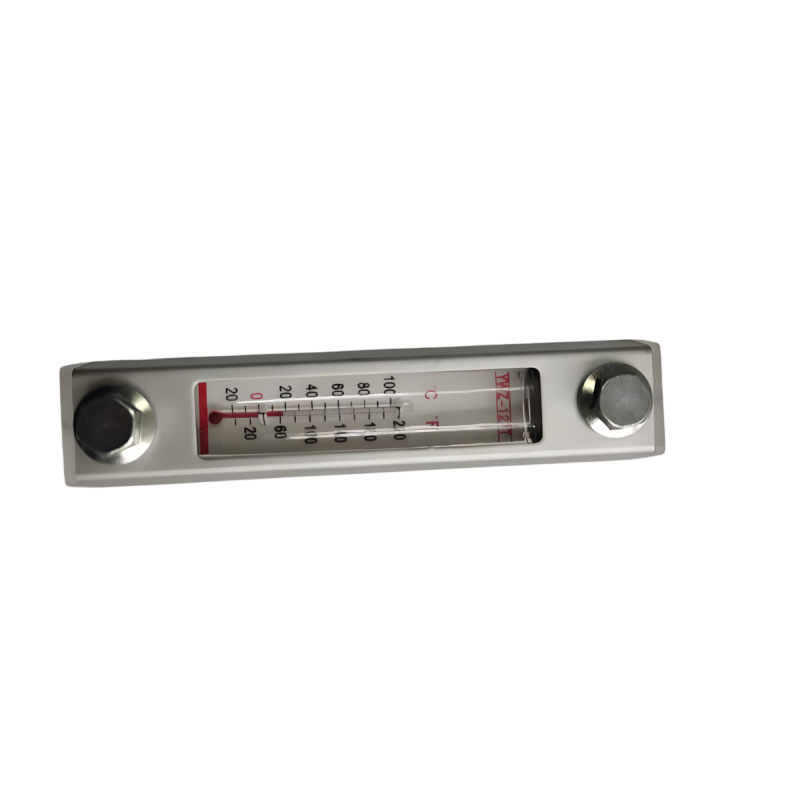

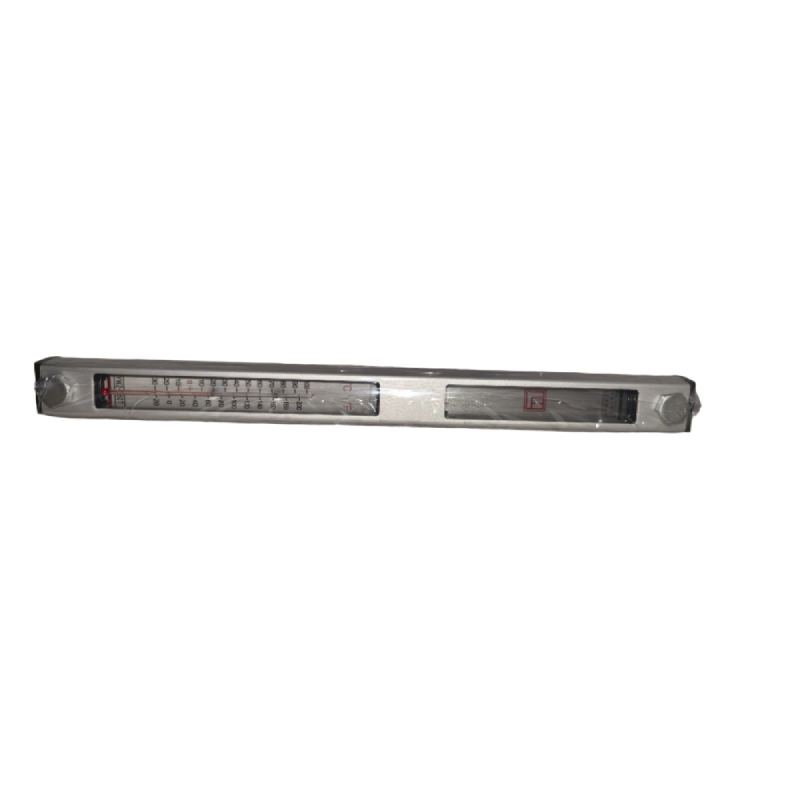

The YWz series liquid level and temperature gauge is an essential accessory for oil tanks, lubrication devices, cooling boxes, and gearboxes. It can indicate the height of liquid levels and temperatures.
Product Advantages：
It features a novel design, beautiful appearance, clear display of liquid level and temperature, and a strong three-dimensional sense. It has excellent assembly performance and advantages such as sturdiness, crack resistance, shock resistance, and leak-proof. This product is designed in 30 different specifications based on the tank capacity.
Installation Method and Accessories
According to the center distance (E) size of the selected specifications, prepare two mounting holes. For cases where the wall thickness of the oil tank is less than 10mm, the clear hole for the two mounting screws should be 11mm; if the wall thickness is greater than 10mm, the threaded hole for the two mounting screws should be M10. The surfaces of these two types of holes must be treated to prevent oil leakage after installation. Accessories for the liquid level gauge: two each of nuts, washers, and sealing flat washers, all provided by our company.
