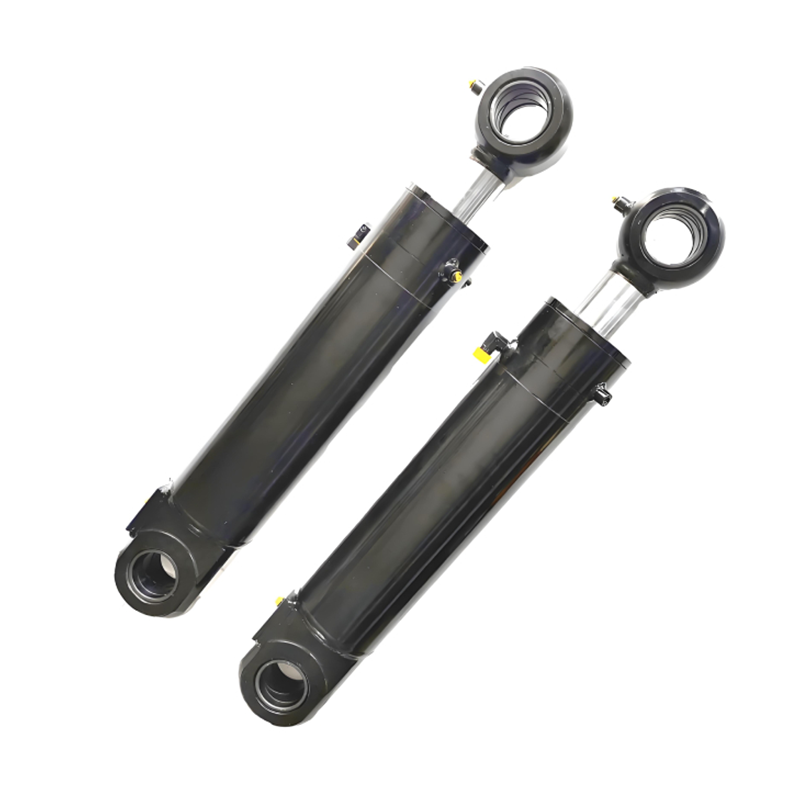

Single-acting Hydraulic Cylinder Industrial-grade Single-acting Hydraulic Cylinder, Hydraulic Lifting, Spring Return.

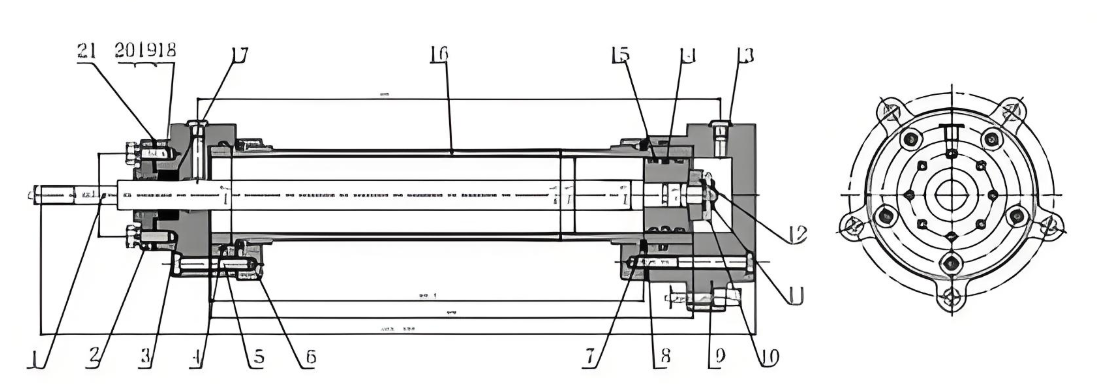

Product Outline Drawing:

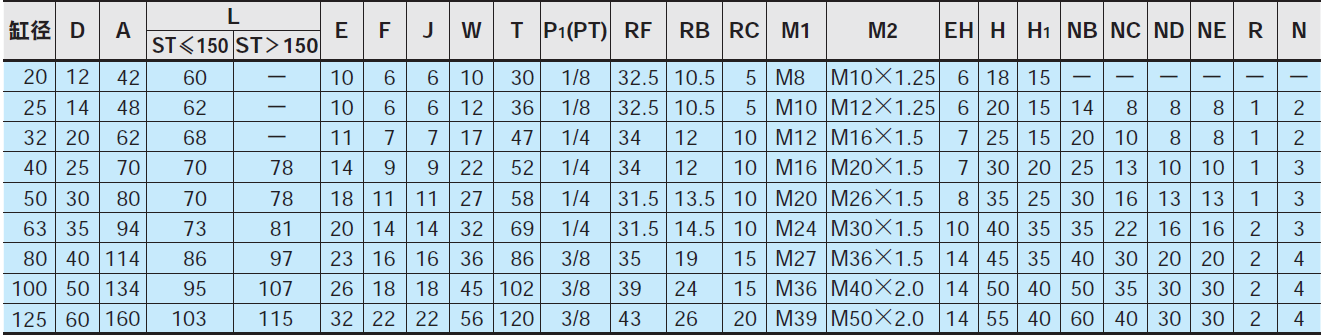

Product Specifications:

Product Features:

A single-acting hydraulic cylinder is a piston-type hydraulic cylinder with a piston rod on one side that can only supply pressure oil to that side. Its piston working stroke is unidirectional, and the return stroke relies on a return spring, its own weight, or external loads to be realized. The single-acting hydraulic cylinder only allows oil flow in a single chamber to complete unidirectional movement. This type of hydraulic cylinder provides working pressure oil only on one side, while the other end is in contact with gas, and its thrust and speed are affected by friction losses and hydraulic oil leakage. Compared to double-acting hydraulic cylinders, the latter requires alternating oil supply to both chambers to achieve bidirectional movement.

Product Advantages：

• Single action, spring return.

• Industrial-grade hydraulic cylinder, can be used repeatedly for a long time.

• Cylinder body with neck thread, plunger with internal thread, and installation hole at the bottom, widely applicable .

• The top of the hydraulic cylinder is equipped with a dust ring to prevent impurities from entering the cylinder body.
