Imagine such a scene: a dump truck smoothly lifts and dumps dozens of tons of goods; a crane precisely lifts heavy objects to the designated position; a garbage collection vehicle efficiently compresses and transports waste. Behind these powerful and reliable mechanical actions, there is a common power core - the hydraulic system. And the "heart" of the hydraulic system is precisely the hydraulic pump.
For equipment manufacturers, fleet managers, maintenance technicians, and purchasing personnel, when faced with the wide variety of hydraulic pump types available in the market - ranging from cost-effective and durable gear pumps to highly efficient piston pumps, as well as various specialized pump types - how to make the most informed choice is often a perplexing challenge. Incorrect selection can not only lead to poor equipment performance and increased energy consumption, but also cause frequent failures, resulting in high maintenance costs and downtime losses.
This article aims to serve as your ultimate selection guide. We will systematically review all the mainstream and specialized types of hydraulic pumps in the mobile hydraulic field, thoroughly analyze their working principles, core advantages and disadvantages, as well as their optimal application scenarios. We will provide you with a clear decision-making map to help you optimize equipment performance and ensure that every investment is worthwhile.
Before delving into various types of pumps, it is crucial to understand the basic role of hydraulic pumps. In simple terms, a hydraulic pump is an energy converter. It takes mechanical rotational energy from the "prime mover" (such as a truck engine, power take-off unit, or electric motor) and converts it into the pressure energy and kinetic energy (i.e., flow rate) of the hydraulic oil. Without it, hydraulic cylinders cannot extend, hydraulic motors cannot rotate, and the entire system will come to a standstill.
Furthermore, according to the design, hydraulic pumps can be divided into two basic types based on their rotational direction:
Unidirectional rotating pump: It can only operate in one preset direction. Reverse rotation may cause damage to the pump or prevent the establishment of pressure.
Bidirectional rotating pump: It allows the input shaft to rotate in two directions and can output pressure oil normally in both directions. This is very useful in certain special systems that require reversible drive.
Understanding this is the first step in correctly installing and connecting the pump.
In the world of mobile hydraulics, gear pumps, piston pumps and vane pumps constitute the three most common categories. Each of them has its own unique advantages and is suitable for different applications.

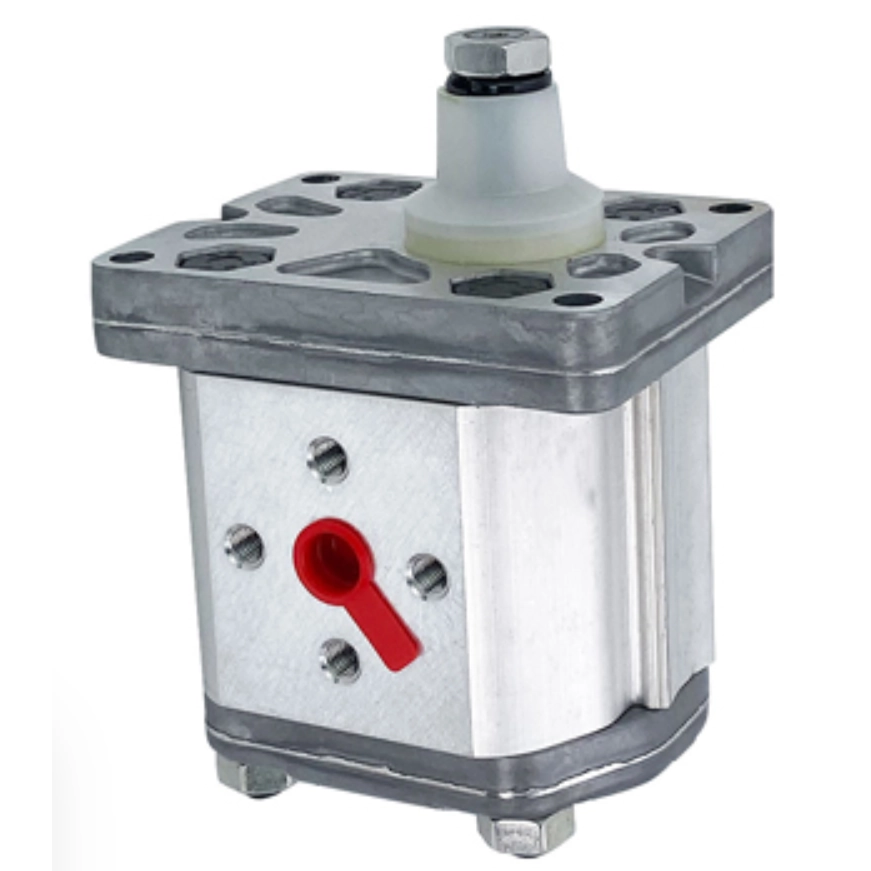

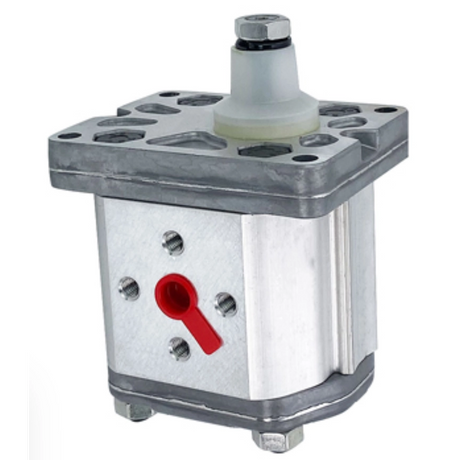

The gear pump is one of the simplest positive displacement pumps. It consists of two closely meshing gears (an active gear and a driven gear) and a pump housing that surrounds them. When the gears rotate, a local vacuum is formed in the space between the separated teeth at the meshing points, drawing in the oil. The oil is carried by the gear teeth and transported along the inner wall of the pump housing to the outlet side. At the outlet, the gears re-mesh, reducing the space between the teeth and forcing the oil to be squeezed out, creating pressure and flow.
Simple structure: Few moving parts, sturdy design.
Easy maintenance: Easy to disassemble, inspect and replace components.
Strong resistance to contamination: Relatively tolerant to impurities in the oil, suitable for harsh conditions.
High cost-effectiveness: Initial purchase and maintenance costs are usually the lowest.
Pressure limitation: Usually operates at a pressure lower than that of piston pumps, and the medium pressure range is its mainstream.
Fixed displacement: Most gear pumps are of fixed displacement design, with the output flow strictly proportional to the rotational speed.
Noise and pulsation: The noise is relatively large during operation, and there is certain pulsation in the flow output.
The gear pump is the absolute main force of the truck hydraulic system. It is widely used in dump trucks, trailers, agricultural machinery, and various medium-low pressure hydraulic systems, especially in open-center hydraulic systems. In this type of system, the pump continuously outputs flow, and when all the valves are in the neutral position, the oil flows back to the oil tank under low pressure.
When making the selection, the following aspects should be given particular attention: the maximum working pressure, the displacement, and the highest allowable input speed.

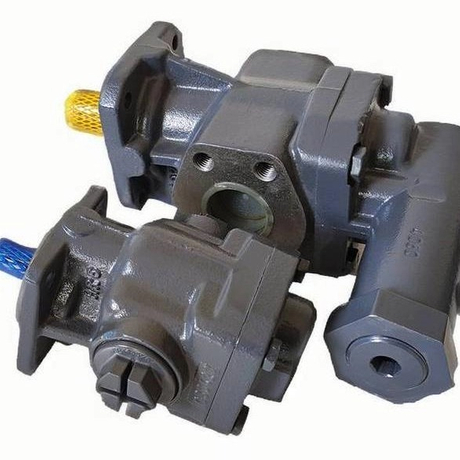

The plunger pump operates by the reciprocating motion of multiple plungers within the cylinder bore. The reciprocating motion of the plungers is typically driven by a rotating vane or bent shaft. As the drive shaft rotates, the plungers are pushed to draw in the oil, and then are pushed back to discharge the oil. The angle of the vane directly determines the stroke length of the plungers, thereby determining the pump's displacement.
Fixed-displacement piston pump: The angle of the swashplate is fixed, and the volume of the oil discharged per revolution is constant. Its characteristics are similar to those of a gear pump, but it can withstand higher pressure and is often used in open systems with high performance requirements.
Variable-displacement piston pump: This is the essence of piston pump technology. The angle of the swashplate can be dynamically adjusted through a control mechanism (such as pilot pressure or electromagnetic valve). This means that the output flow of the pump can vary continuously from zero to maximum without interruption when the engine speed remains constant.
Compensation Control Mode: The "brain" of the variable pump. Common modes include:
Pressure compensation: When the system pressure reaches the set value, the pump automatically reduces the displacement and only outputs the small flow required to maintain the pressure, thereby significantly reducing energy consumption and heat generation.
Load sensing: The output pressure of the pump is always a constant pressure difference (e.g., 200 psi) higher than the maximum system load pressure, and the flow is only provided according to the demand of the actuating element. This is one of the most efficient control methods, commonly used in advanced construction machinery and snow removal vehicles.
Ultra-high pressure: Capable of withstanding the highest working pressure in mobile hydraulic systems.
High efficiency: High volumetric efficiency, low energy loss.
Intelligent control: The variable pump can supply oil on demand, significantly saving energy and reducing system heat generation.
Long lifespan: Long design life in clean oil environments.
High cost: Initial investment and maintenance costs are much higher than those of gear pumps.
Expensive: Extremely demanding on oil cleanliness, requiring a high-precision filtration system.
Complex structure: Many internal parts, small tolerances, and high requirements for manufacturing and maintenance technology.
Devices that require high-pressure or intelligent energy management, such as truck cranes, concrete pump trucks, aerial work platforms, large excavators, as well as snow removal and ice control equipment.
The rotor of the vane pump is eccentrically installed inside the pump casing. There are slots on the rotor, and sliding vanes are placed in the slots. When the rotor rotates, the centrifugal force pushes the vanes out, and they closely adhere to the inner surface of the pump casing to form a sealing cavity. As the rotor rotates, the volume of the sealing cavity increases in the oil suction area and decreases in the oil discharge area, thereby achieving oil suction and oil pressure generation.
Once, vane pumps were widely used in equipment such as aerial work platforms due to their smooth operation and low noise. However, in the modern mobile hydraulic field, vane pumps have been largely replaced by gear pumps. The main reason is that gear pumps have more comprehensive advantages in terms of cost, pollution resistance, availability, and power density. Nowadays, vane pumps are rarely seen in newly designed mobile equipment.
In addition to the above three categories, there are also some pump types that are specifically designed for certain working conditions.
The clutch pump is essentially a small gear pump that integrates an electromagnetic clutch. It is usually driven by a belt, and the clutch is controlled by a switch inside the cab for its engagement and disengagement.
When the gearbox of a vehicle does not have an installation opening for the power take-off device, or the installation space is extremely limited, the clutch pump is an ideal solution. It is commonly found on aerial work platforms, rescue vehicles, or certain specialized agricultural equipment.
Due to its reliance on belt transmission, clutch pumps are typically only suitable for applications with relatively low flow requirements (such as less than 15 GPM). Excessive flow can cause the belt to slip, lead to increased wear, and even result in the inability to transmit the required power.
The dump pump is specifically designed for dump trucks and trailers and is not suitable for applications that require continuous operation (such as open-bottom trailers or push-type trailers).
The main difference between it and a conventional gear pump lies in its high degree of integration. The internal structure of the dump pump usually incorporates a pressure relief valve and a three-position three-way directional control valve. This significantly simplifies the external pipeline connections, typically requiring only the connection of the inlet pipe, the outlet pipe (to the lifting cylinder), and the return pipe.
Rigid Support: Even if the pump body is directly installed on the drive shaft, an additional bracket must be used to rigidly fix it on the gearbox housing to prevent damage caused by vibration and misalignment.
"Two-line" and "Three-line" Installation:
Two-line Installation: Only use two pipelines for oil intake and oil discharge. The structure is simple, but if the pump operates in the "neutral position" (the lifting cylinder does not move) for a long time, all the flow will generate heat through the overflow valve, which is likely to cause the oil temperature to rise excessively. This is the most common failure reason for dump trucks.
Three-line Installation: Add a pipeline that directly returns the oil from the pump's oil discharge port to the oil tank. In the neutral position, most of the oil flows through this pipeline for low-pressure circulation, effectively preventing overheating and extending the pump's lifespan. Many dump trucks can be easily converted from two-line to three-line.
The operation mode of the garbage collection vehicle is intermittent: a large flow is required during compression and lifting, while no such flow is needed during driving and idling. The dedicated pump was developed for this purpose, aiming to maximize fuel savings and reduce wear in the "off" mode, and to provide full-flow power in the "on" mode.
Working Principle: An piston-type shut-off valve is integrated at the pump's oil inlet. When the hydraulic system is not in operation, this valve is almost closed, allowing only a small amount of oil to pass through for lubricating the pump's interior. When the system needs to operate, the control oil pressure fully opens the valve, achieving full flow supply.
Critical Maintenance Point: There is a relief valve on the pump for redirecting the small amount of lubricating oil back to the oil tank. This valve must remain absolutely unobstructed. Once it is clogged by contaminants, the pump fails to draw in oil adequately, immediately causing cavitation and rapidly damaging the pump.
Important Warning: The wear plates and seals inside the dry valve pump are specially designed and not interchangeable with standard gear pumps. Do not attempt to repair it with parts from standard gear pumps.
Working Principle: Unlike the dry valve pump's control of the oil inlet, the Live Pak pump integrates a Live Pak valve at the oil outlet. In the "closed" mode, this valve acts as a relief valve, allowing the pump to circulate at extremely low pressure. In the "open" mode, it functions as a flow-limiting valve, restricting the maximum system flow within a safe range to prevent excessive operation speed.
Advantages: There is no need to worry about cavitation caused by blocked valves on the oil inlet side, resulting in higher reliability.
What is the working pressure required by the system? (High pressure refers to piston pumps, medium pressure can consider gear pumps)
What is the required flow rate? (The size of the pump and the driving method are affected by the flow rate)
Is the equipment to operate continuously or intermittently? (Continuous operation requires higher durability and heat dissipation of the pump)
Is the system a simple open center or an efficient closed center/lift-sensing system? (The latter must use variable piston pumps)
Is it necessary to adjust the actuator speed without changing the engine speed? (If so, choose a variable pump)
Is the working environment dusty and humid? Is the risk of oil contamination high? (For high-pollution environments, consider gear pumps with better resistance to contamination)
Is there an existing power take-off interface and installation space? (If not, consider a clutch pump)
Is it a specific vehicle type such as a dump truck or garbage truck? (Directly consider the corresponding dedicated pump)
Is the initial budget limited? (Gear pumps have the greatest cost advantage)
Does the system have the ability to maintain precision and high cleanliness requirements? (Piston pumps have higher maintenance thresholds and costs)
Which is more important: the initial purchase cost or the long-term operational efficiency? (Variable piston pumps are expensive but energy-efficient)
Summary and Call to Action
Choosing the right hydraulic pump is not just about comparing the numbers in the parameter tables. It is an art of finding the best balance point among reliability, efficiency, cost and applicability.
Seeking ultimate economic efficiency and durability? Gear pumps are your loyal companions.
Challenging the limits of high pressure and longing for intelligent energy saving? Variable piston pumps are your top choice.
Looking for experts for special tasks like dump trucks or garbage collection? Then dump pumps or garbage truck-specific pumps will perfectly meet your needs.
The correct selection is the cornerstone for the stable, efficient and long-lasting operation of the hydraulic system. It means fewer downtime due to failures, lower operating costs and higher equipment availability.
