Hydraulic oil is the "blood" of your equipment. Choosing the wrong oil or neglecting maintenance are the main causes of system failures. This article provides detailed explanations on the types of hydraulic oil, viscosity selection, contamination control, oil analysis, and oil replacement cycles, helping you extend the lifespan of your equipment and save maintenance costs.
Has your equipment begun to exhibit these symptoms: sluggish and weak movements, abnormal overheating during operation, a harsh noise from the hydraulic pump, or even a sudden "failure" during a critical operation?
Before rushing to inspect the expensive pumps, valves or hydraulic cylinders, please first pay attention to something that is often overlooked but is the culprit behind over 70% of hydraulic failures - hydraulic oil.
Hydraulic oil is far from being just "engine oil". It is the lifeblood of the entire system, fulfilling six crucial functions:
1. Transmitting power: As an incompressible medium, it precisely conveys the pressure generated by the pump to every actuator.
2. Lubrication protection: It forms a protective oil film between the precise moving parts inside the pump and motor, preventing direct metal-to-metal contact and wear.
3. Cooling and heat dissipation: It carries and dissipates the heat generated by internal leakage and throttling in the system, preventing components from overheating.
4. Sealing and leak prevention: It helps fill the tiny gaps in precise fits, enhancing the sealing effect.
5. Rust and corrosion prevention: It forms a protective layer on the metal surface, resisting the erosion of water and air.
6. Cleaning and carrying: It carries away the tiny metal particles and contaminants produced by wear to the filter, keeping the system interior clean.
We will offer you a complete hydraulic oil "blood management" solution. We won't list dry statistics; instead, we will teach you how to think like a professional engineer, preventing faults at their root and achieving cost reduction and efficiency improvement.
Entering the workshop and facing the numerous oil drums on the shelves, how can one make the right choice? The first step is to understand the family members.
• Feature: Based on refined petroleum, it is supplemented with various additives such as anti-wear, anti-oxidation, and anti-rust. The technology is the most advanced, the cost is the most competitive, and it can meet the majority of routine requirements.

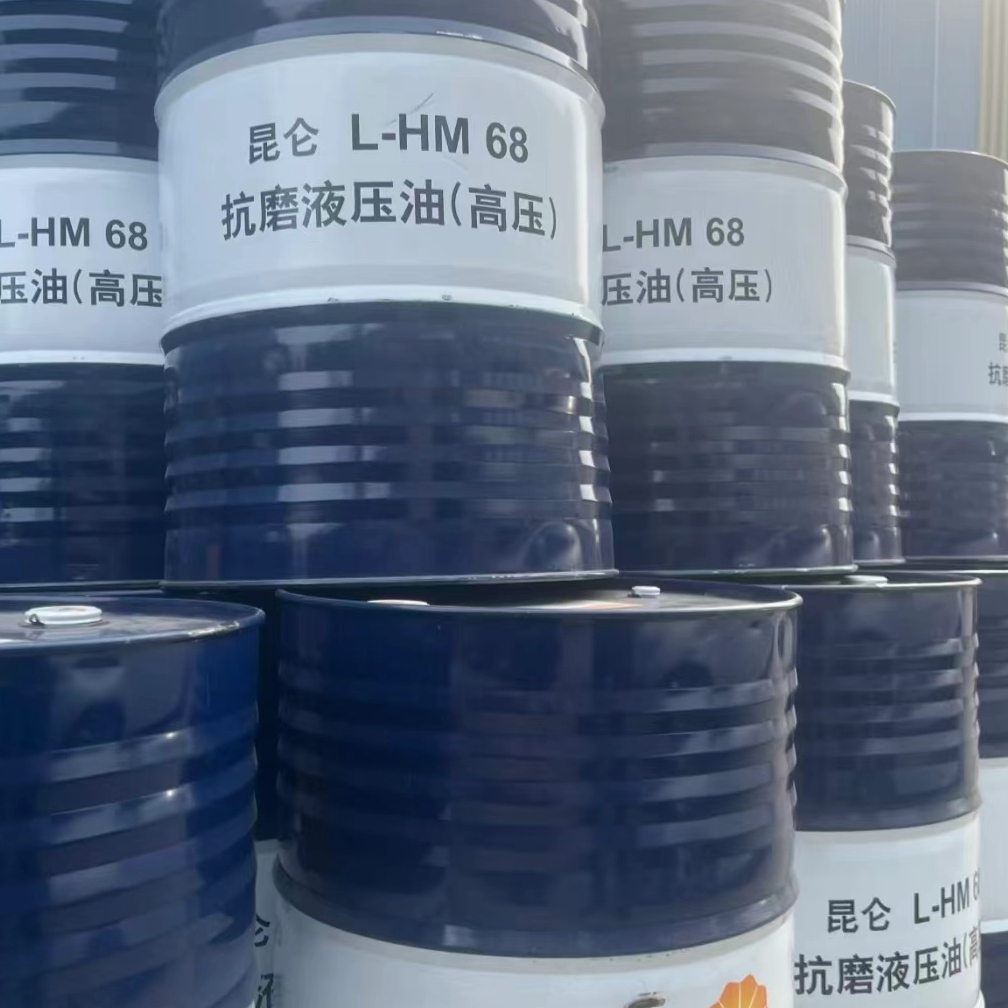

• Understand the designation: Common examples include ISO HM 46. "HM" stands for anti-wear type (the most common), and "46" indicates that its kinematic viscosity at 40°C is approximately 46 centistokes. For environments with large temperature differences, the HV (high viscosity index) type can be chosen, as its viscosity is less affected by temperature.
• Applicable scenarios: Virtually all types of construction machinery (excavators, loaders), industrial machines, injection molding machines, etc. When there are no special requirements in the equipment manual, it is usually a safe and cost-effective choice.
• Feature: Manufactured through chemical synthesis, the molecular structure is uniform. It boasts exceptional performance: an extremely wide operating temperature range (-40°C to above 150°C), an extremely long oxidation life (the oil replacement cycle can be 3-5 times that of mineral oil), and outstanding thermal stability. However, the price is usually 2-4 times that of mineral oil.
• Main types:
Poly-alpha-olefin: The king of wide temperature performance, it starts smoothly at low temperatures and remains stable at high temperatures. It is suitable for extremely cold regions or systems with high heat generation.
Phosphate ester: Fire-resistant star, with extremely strong fire resistance, but it is necessary to pay attention to its compatibility with ordinary sealing materials and paints.
• Applicable scenarios: Extremely cold or hot environments, equipment requiring extremely long maintenance intervals, places with high fire safety standards (such as steel mills, power stations with systems close to open flames).
• Feature: The main advantage is its fire resistance, and it also has excellent cooling performance. The disadvantages are that its lubricity and rust prevention properties are much inferior to those of oil, and it is necessary to prevent the growth of microorganisms.
Common type: Water-ethylene glycol solution (approximately 40% water + additives), which looks like "antifreeze" in red or green color.
• Applicable scenarios: Equipment located near open flames, hot metal splashes or high-temperature heat sources, such as underground equipment in coal mines, casting machines, and hot rolling lines in steel mills.
• Feature: Mainly derived from rapeseed oil (HEES) or synthetic esters (HEPE). It can be rapidly decomposed by natural microorganisms in the wild, is environmentally friendly, and has low toxicity. However, its antioxidant stability is usually poor, and the quality of the oil needs to be closely monitored.
• Applicable scenarios: Equipment used in operations within sensitive ecological environments, such as forestry machinery, inland waterway vessels, agricultural machinery, and engineering equipment used for construction near wetlands or water sources.
Understanding the technical parameters of hydraulic oil: The intelligent selection strategy of the "Yibo" brand
• What is it: It measures the internal flow resistance of the oil. In simple terms, it is referred to as "viscosity". The larger the number, the thicker the oil.
Choose the golden rule: You must follow the recommendations provided by the hydraulic pump manufacturer. This is determined by the precise mating clearance inside the pump.
• The Art of Weighing Options:
◦ Excessive viscosity: Difficult to start at low temperatures, suction failure of the pump leads to cavitation; During operation, high resistance, high energy consumption, and severe overheating.
◦ Insufficient viscosity: Increased internal leakage, unstable system pressure, and weak operation of the actuating elements; Insufficient oil film strength, leading to accelerated wear.
• How to choose: Based on the lowest environmental temperature in your region (which determines the starting viscosity) and the highest operating temperature of the system (which determines the running viscosity), select within the viscosity range recommended by the pump manufacturer.
• What is it: It measures the extent to which viscosity changes with temperature. The higher the VI value, the less viscous the oil is at low temperatures and the less thin it is at high temperatures, indicating a more stable performance.
• Meaning: High-VI oils (such as many synthetic oils) can adapt to a wider range of climate and operating conditions, making them the preferred choice for equipment operating in extreme temperature differences and in outdoor environments.
The base oil merely provides the framework. The real performance differences lie in the additive package.
• Anti-wear agent: Forms a solid chemical film on the metal surface, preventing wear under high load. It is crucial for pumps such as vane pumps and piston pumps, which have high-stress friction components like sliding shoes and valve plates.
• Antioxidants: They slow down the aging process of the oil, the formation of acidic substances and sludge when exposed to high temperatures and air, and directly determine the service life of the oil.
• Rust and corrosion inhibitor: Adsorbed onto the metal surface, preventing the penetration of moisture and air.
• Emulsifier: Facilitates the rapid separation and sedimentation of water mixed in the oil, making it easier to remove and preventing the oil from becoming emulsified and deteriorating.
Excellent hydraulic oil management transforms "passive maintenance" into "active prevention".
Up to 80% of hydraulic failures are caused by contamination. There are three major culprits of contamination:
• Particle contamination: The result of wear and tear, which, in turn, can exacerbate the wear process, creating a vicious cycle.
Solution: Use high-precision oil filters (with β₃ ≥ 200) and replace them regularly. Do not rely solely on the pressure difference indicator. When refueling, make sure to use an oil filter vehicle.
• Water pollution: Causes oil to emulsify, additives to hydrolyze, and metals to rust.
Solution: Regularly inspect the bottom of the fuel tank to remove accumulated water; ensure that the fuel tank's ventilation device is dry; repair any possible leakage points (such as the radiator).
• Air pollution: Causes cavitation, oil oxidation, and crawling of the actuator.
Solution: Ensure the oil suction pipeline is tightly sealed to prevent air leakage; the oil return pipe opening should be submerged below the liquid surface.
Ideal working temperature: 40 - 60°C. Within this range, the viscosity of the oil is appropriate and the rate of oxidation is moderate.
• Hazardous high temperature: When the oil temperature exceeds 65°C continuously, the rate of oxidation increases sharply. Rule of thumb: For every 10°C increase in oil temperature, the lifespan is approximately halved. It is necessary to check whether the cooler is clogged and whether the system has been experiencing prolonged high-pressure overflow.
This is the most advanced maintenance method, capable of predicting failures and achieving "oil replacement based on quality".
• Regular analysis package: Usually includes kinematic viscosity, moisture content, acid value, spectral element analysis (detecting worn metals such as Fe, Cu, Si) and cleanliness grade (ISO 4406).
• How to act: After receiving the report, do not just focus on the conclusion, but pay attention to the trend. For instance, if the iron (Fe) content keeps slowly increasing, it may be due to normal wear and tear; if it suddenly increases sharply, it indicates that the pump or motor may be experiencing severe wear. A high silicon (Si) content suggests severe dust pollution.
Abandon the fixed "XXX hours per change" concept. The scientific oil change interval should be based on:
• The baseline recommendations provided by the equipment manufacturer.
• Actual workload and environment (the cycle should be shortened in dusty, temperature-differential, and continuous heavy-load conditions).
• The final decision on the oil analysis report. When critical indicators (such as a viscosity change exceeding ±10%, an excessive acid value, or an exceeded contamination level) turn red, the oil should be replaced immediately.
Learning to "translate" the fault symptoms into oil-related issues is the first step in rapid diagnosis.
◦ "Translation": Severe moisture intrusion has occurred. The oil and water have emulsified. Immediately inspect the cooling system seal and the oil tank breather, and carry out oil-water separation or oil replacement as soon as possible.
◦ "Translation": The oil has undergone severe oxidation and deterioration. This is usually caused by prolonged overheating operation. New oil needs to be replaced, and the system's cooling condition should be thoroughly checked.
◦ "Translation": It is most likely cavitation. Possible causes: Low oil temperature with excessive viscosity, clogged oil filter, air leakage in the oil suction pipe, resulting in the pump suction failure and the formation of air bubbles. It is necessary to check the oil level, filter, and pipeline sealing.
◦ "Translation": The cleanliness of the oil has seriously exceeded the standard. Solid particle contaminants have stuck in the valve core or scratched the cylinder barrel. It is necessary to inspect the filter element and conduct a comprehensive oil cleanliness test as well as system flushing.
Proper hydraulic oil management is a comprehensive engineering project that integrates chemistry, tribology and equipment management. It safeguards not only the liquid in the oil tank, but also the productivity, reliability and core asset value of your equipment. Every precise selection and every meticulous maintenance is an investment in the long-term health of the equipment.
