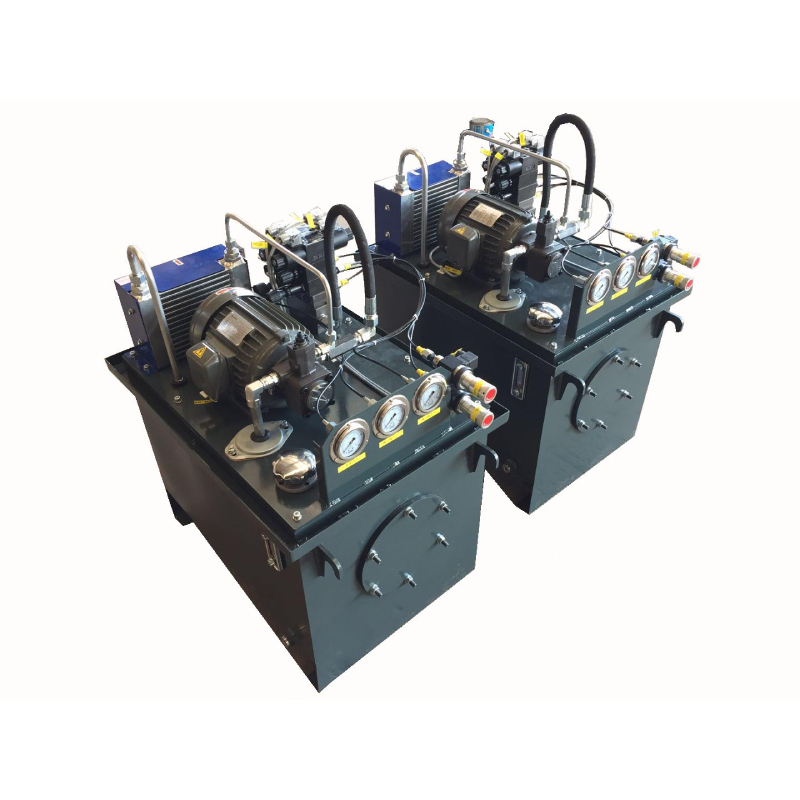

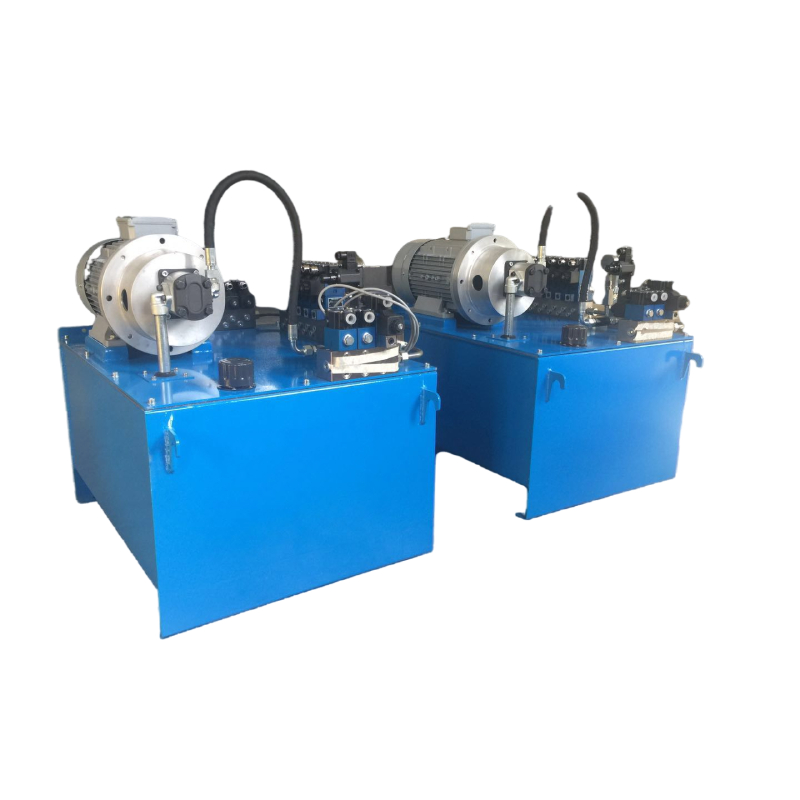

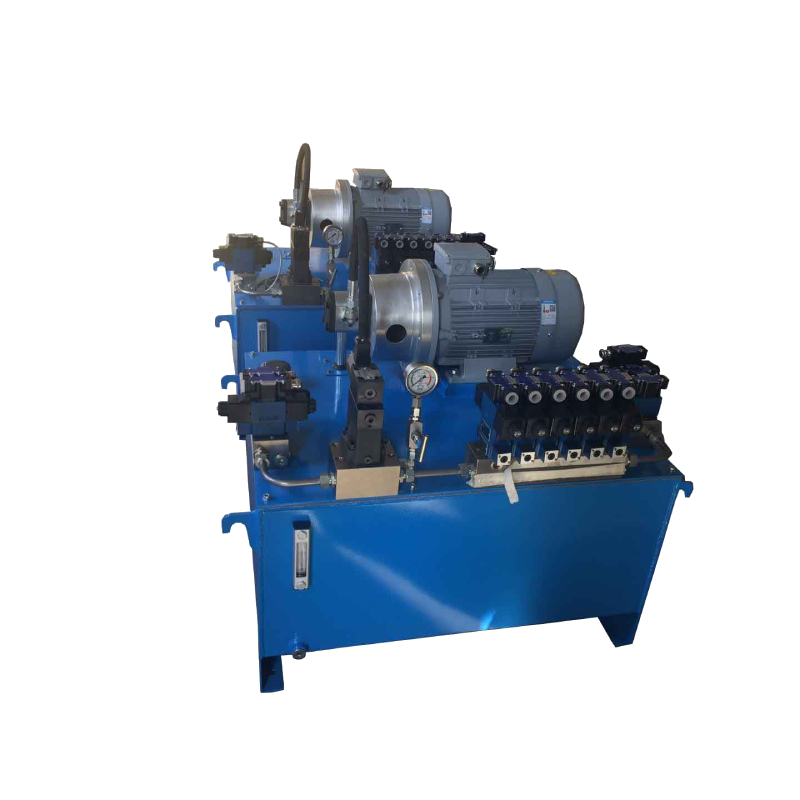

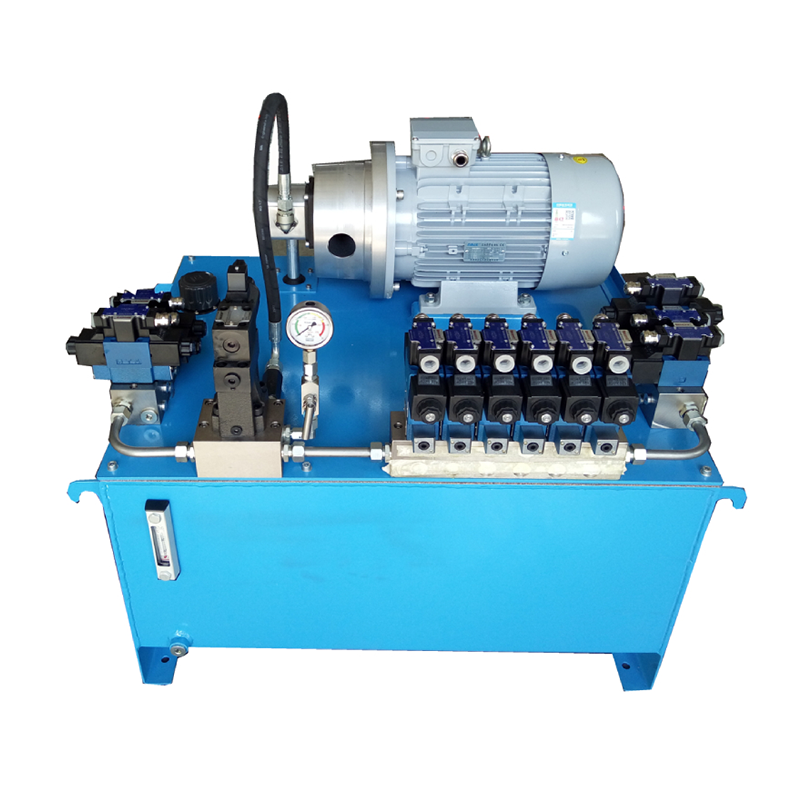

Custom Non-standard Hydraulic Oil Station Hydraulic System

A hydraulic station is a device that converts liquid pressure into mechanical energy and is widely used in fields such as machinery, aviation, shipping, and industry. Its basic structure and working principle are as follows:

The hydraulic station is mainly composed of two parts: the hydraulic system and the control system. The hydraulic system includes key components such as hydraulic pumps, hydraulic cylinders, hydraulic valves, and oil tanks. The control system is mainly composed of electrical control devices and mechanical control devices.

The hydraulic pump is the core component of the hydraulic station, responsible for drawing hydraulic oil from the oil tank and delivering it under pressure to the hydraulic system. The motor drives the hydraulic pump to rotate, thereby converting electrical energy into mechanical energy. The hydraulic cylinder is a hydraulic component that converts liquid pressure into mechanical energy. When the liquid enters the hydraulic cylinder, the pressure of the liquid pushes the piston, enabling the movement of mechanical equipment. The hydraulic valve is used to control and regulate the pressure, flow, and direction of the hydraulic system, ensuring that the hydraulic system operates according to the predetermined working process.

The oil tank is the storage device for the hydraulic system, featuring excellent sealing and corrosion resistance, ensuring the normal operation of the hydraulic system. The hydraulic oil in the tank is filtered through a filter to remove impurities and contaminants, maintaining the cleanliness of the hydraulic system. The pipes and pipelines are used to connect the hydraulic pump, hydraulic valves, and other hydraulic components, forming a complete hydraulic system.

The working principle of the hydraulic station mainly relies on the interaction between liquid pressure and mechanical energy. When the hydraulic pump starts to operate, it converts mechanical energy into liquid pressure and pushes the liquid into the hydraulic system. Through the precise control of the hydraulic valves, the direction, pressure and flow of the hydraulic oil are accurately regulated, thereby driving the hydraulic cylinders and other actuating elements to complete the predetermined tasks.

In summary, the hydraulic station features high transmission efficiency, large transmission torque, and smooth movement. It is an ideal choice for various complex working conditions and environments.

Product Advantages：

• Delivers high power density – generates large force and torque with a relatively compact structure, saving installation space.

• Enables smooth and stable operation – hydraulic systems allow for stepless speed regulation and gentle force control, reducing mechanical shock.

• Features flexible layout – hydraulic oil stations can be installed remotely from the actuator, adapting to complex equipment structures.

• Offers strong overload protection – built-in safety valves prevent system damage from excessive pressure, enhancing operational reliability.

• Ensures easy maintenance and troubleshooting – modular design simplifies component inspection, replacement, and system debugging.

• Provides uniform force transmission – hydraulic oil transmits pressure evenly, ensuring consistent performance of multi-actuator systems.
