Up to 80% of hydraulic failures are caused by contamination! This article provides a comprehensive analysis of the types, working principles, selection calculations, and precise maintenance strategies of hydraulic filters. Learn how to scientifically replace the filter elements and establish a pollution control system to completely avoid system damage and costly repairs caused by contamination.
Imagine that if the engine of your car doesn't have its oil and oil filter replaced, it will soon wear out and break down. The same is true for the hydraulic system, but the "blood" of the hydraulic system - the hydraulic oil - faces more concealed and lethal threats.
An astonishing fact is that over 80% of hydraulic system failures can be traced back to oil contamination. These contaminants are not sand, but microscopic particles that are completely invisible to the naked eye. They are so small that they can pass through the gaps of a strand of hair (which is about 70 micrometers thick), yet they can cause continuous scratches on the precise hydraulic components with internal gaps ranging from a few micrometers to several tens of micrometers (such as the flow distributor of a piston pump and the valve core of a servo valve), like "microscopic sandpaper" constantly rubbing inside the system.
• The excavator suddenly experiences insufficient arm strength and is unable to lift the rated weight.
The injection molding machine slows down its operation, prolongs the production cycle, and reduces the yield rate.
A hydraulic pump worth several hundred thousand yuan was rendered unusable due to wear and tear within just a few hundred hours.
The hydraulic filter is like a "guardian" specifically designed to combat this invisible threat. Just like the kidneys and immune system in the human body, it operates non-stop for 24 hours, filtering out harmful substances from the hydraulic oil and protecting the heart (pump), brain (valve), and muscles (cylinders/motors) of the system. Understanding and managing the filter properly is the most cost-effective investment for ensuring the health of the equipment and extending its service life.
The core mission of the filter is very simple: to capture and remove contaminants from the oil before they cause damage to the system components. The contaminants mainly include solid particles (metal chips, dust), water, and gummy substances and oil sludge produced due to the aging of the oil.
Its working principle can be imagined as an extremely precise "screen" or "maze":
• Surface filtration: Like a fishing net, it directly blocks particles larger than the mesh size. This is commonly seen in metal mesh-type coarse filters.
• Deep filtration: This is the primary method for high-performance filter elements. The filter material is formed by countless tiny fibers (such as glass fibers) randomly interlaced to create a complex three-dimensional maze. When the oil flows through, particles are firmly trapped in the deep recesses of the maze through various mechanisms such as direct interception, inertial impact, and diffusion adsorption. This gives the filter element high precision and a large capacity for absorbing contaminants.
The key indicator for evaluating the efficiency of this "maze" is the filtration ratio. For instance, a filter labeled "β₃ = 200" means that for particles with a size of 3 micrometers, for every 200 particles in the upstream oil, only 1 passes through to the downstream, resulting in a filtration efficiency of (200 - 1) / 200 = 99.5%. The higher the β value, the stronger the filtration capability.
A sound hydraulic system does not rely on a single filter alone; instead, it builds multiple lines of defense to form a "defense in depth" system.
Oil suction filter - "Coarse Screen at the Water Intake Point" of the water treatment plant. Installed on the oil suction pipe of the pump, it prevents large impurities (such as installation residues, sealing debris) in the oil tank from being sucked into the pump. It must be extremely "unobstructed" with minimal pressure drop. Otherwise, it will cause the pump to "run dry" and result in cavitation damage. Commonly, a metal mesh of 100-150 microns is used.

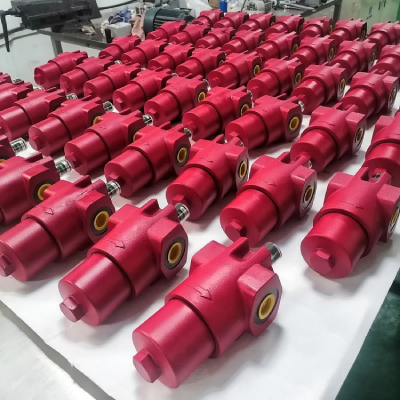

Pressure pipeline filter - the "precise water purifier" that enters every household. Installed at the pump's outlet, it protects all the precision components downstream. It is like a "bodyguard", bearing the highest pressure of the system and having a high filtration accuracy (commonly 3-10 micrometers). Once it fails, contaminants will directly attack the most expensive valves and cylinders. Usually, it comes with a differential pressure sensor (a red button or an electrical signal point) to alert you if the filter element is clogged.
Return oil filter - The "terminal treatment plant" of urban sewer system. Installed on the pipeline that returns oil from the actuator to the oil tank. Most of the "metabolic waste" (wear particles) generated by the system operation are captured here. It is the main force for maintaining the cleanliness of the oil tank, and the filtration accuracy is usually 10-25 micrometers.
Offline loop filter - The "independent mobile inspection vehicle" of the community. Independent of the main system, it pumps oil from the fuel tank using a small pump, filters it, and then returns it. It can even integrate functions of water removal and heating. The advantage is that it can still work when the equipment is off, continuously purifying the oil, making it an excellent tool for maintaining high-end equipment.
The fuel tank ventilation filter, the "fresh air filter" of the building's "fresh air system", is installed on the top of the fuel tank. When the fuel level in the tank rises or falls, it needs to "breathe". This filter ensures that the air drawn in is dry and clean, preventing dust and moisture from the outside from entering - this is one of the main ways for pollutants to enter the system.
Selecting the wrong filter will either result in waste (with too high a degree of purity) or be ineffective (with too low a degree of purity). You can follow the steps below:
• Filter accuracy: This refers to the smallest particle size that the filter element can effectively intercept, measured in micrometers. It is not necessarily the higher the better. An excessively high level of filtration accuracy may cause the filter element to become clogged too quickly and result in a sharp increase in pressure drop. The choice is based on the gap requirements for the most sensitive components in the system that are prone to contamination. For example:
Gear pump / vane pump: Available in 25-40 micrometer size options.
Plunger pump: Recommended size is 10-15 microns.
Servo valve / proportional valve: A high precision filter with a pore size of 3-5 microns must be used.
• Filtration capacity: This refers to the total weight (in grams) of pollutants that the filter element can retain before it is scrapped. The greater the capacity, the longer the filter element's lifespan, the longer the replacement interval, and the lower the long-term usage cost.
• Rated pressure and flow: It must be greater than the maximum working pressure of the system and the actual maximum flow passing through this point. Insufficient flow will result in excessive flow velocity, significant pressure drop, and a decline in filtration efficiency.
• Glass Fiber: The current mainstream high-performance option. Made from extremely fine glass fibers, it offers high precision, large pollutant-capturing capacity, and is resistant to high temperatures and corrosion. It is suitable for most high-pressure and demanding systems.
• Plant fibers: They have a lower cost but poor water resistance. When exposed to water, their strength decreases and they are prone to deformation. They are mostly used in low-pressure systems with less demanding requirements.
• Stainless steel mesh: It can be repeatedly cleaned and used, has high strength, but the filtration accuracy is relatively low (usually ≥ 25μm). It is mainly used for oil absorption filtration or as a safety guard net.
1. Set the goal: Review the manual of the most precise hydraulic components in your equipment to find the requirements for the cleanliness of the oil (commonly using the ISO 4406 standard, such as "ISO 18/16/13").
2. Match the precision: Based on the target cleanliness level, calculate the required filtration accuracy. For example, to achieve ISO 16/14/11, a 3-5 micrometer high-efficiency filter is usually needed.
3. Calculate the flow rate: Ensure that the rated flow rate of the selected filter is greater than the actual maximum flow rate at that location. It is generally recommended to have a 1.2-1.5 times margin.
4. Consider the working conditions: In humid environments, special attention should be paid to the water removal capacity of the filter element and the water resistance of the material; when using flammable liquids such as water-ethylene glycol, special filter elements must be selected.
Replacing the filter element is the core of maintenance. The golden rule is: when the filter's capacity to hold contaminants reaches approximately 80%, it should be replaced before it becomes completely clogged and the bypass valve is forced to open. Replacing it too early is a waste, while replacing it too late means that contaminants have already begun to "escape", causing damage to the system.
1. Pressure differential indicator alarm (the most reliable signal): There are usually mechanical pointers or electronic sensors on the filter. As the filter element gradually becomes clogged, the resistance of the oil flow increases, and the pressure difference between the front and back rises. When the pointer enters the red zone or the electronic signal is triggered, it must be replaced immediately. Ignoring this signal will cause the bypass valve to open, allowing unfiltered oil to pass directly, and the filter will completely fail.
2. Decrease in system performance: The equipment becomes sluggish and weak in operation, or fails to reach the original speed and power. This may be due to the clogging of the filter element, resulting in insufficient oil supply or reduced system pressure.
3. Abnormal increase in oil temperature: After the filter element becomes clogged, the oil flow becomes unsmooth, and some energy is converted into heat energy; or the bypass valve opens, causing the oil to flow through a small hole and generating a large amount of heat.
4. Abnormal noise: Especially when the oil suction filter is clogged, the pump will produce a sharp "screaming" sound (air erosion sound) due to "suction failure", which is fatal and rapid damage to the pump.
Important Note: Although the stainless steel oil-absorbing filter screen can be cleaned, it is strongly advised not to reuse the core pressure and return oil filters after cleaning.
• Reason: The contaminants inside the deep filter element (such as glass fiber) cannot be thoroughly washed away. The cleaning process itself may introduce new contaminants or cause damage to the filter material structure, resulting in a significant decline in its filtering performance and rendering it ineffective.
• Cost: Saving the cost of one filter element (which usually amounts to several hundred yuan) while risking the damage of a hydraulic pump valve worth tens of thousands or even hundreds of thousands of yuan is extremely uneconomical. The only reliable option is to replace the entire filter element.
From "timely replacement" to "replacement based on quality":
• Regular oil analysis: Take samples of the hydraulic oil every six months or annually and send them to the laboratory for testing. The report will accurately show the degree of contamination, moisture content, and the concentration of worn metal particles. This is not only an "examination report" of the filter element's condition, but also a "warning system" for the overall system's health.
• Record maintenance log: Every time a filter is replaced, record the date, the operating hours of the equipment, the pressure difference reading, and the reason for the replacement. Long-term data can help you determine the most suitable replacement cycle for your specific working conditions.
Excellent filtration performance depends on both the product and management. The filter is the core component, but a comprehensive approach is also necessary:
• Correct oil replacement procedure: New oil is not clean! When refueling, use a tanker equipped with a filter and prohibit pouring directly from open containers.
• Maintain system sealing: promptly repair any leakage points and replace worn-out seals to prevent contaminants from entering.
• Control the oil temperature: Keep the working oil temperature within the ideal range of 40-60°C. High temperatures will accelerate the oxidation of the oil, resulting in the formation of sludge.
Q: I follow the instructions exactly and replace the filter every 500 hours. Why is the pump still wearing out so quickly?
A: Fixed time intervals are "blind". If your equipment is operating in a dusty construction site, the pollution rate could be more than five times higher than that in a clean workshop. It is necessary to rely on differential pressure indicators and oil analysis to develop personalized maintenance plans.
• Q: What is that red button that can be popped out on the filter housing? What will happen if it is pressed?
A: That is a mechanical differential pressure sensor. When the filter becomes clogged and the pressure difference reaches the set value, it will be pushed out from the inside, alerting you to replace it. Manually pushing it back can only reset the indicator, but it cannot clean the filter! The filter is already clogged and must be replaced.
Q: Why is the original factory filter for the same device so much more expensive than the generic filter available from the aftermarket?
A: The price difference usually lies in the aspects of pollutant capacity, filtration ratio and material reliability. The original factory filter elements may use more high-quality glass fibers, have a larger pollutant storage space and a higher β value. Although they may look the same, they have a longer lifespan and better protection effect. In the long run, using high-quality filter elements may result in lower costs.
The hydraulic filter, this seemingly insignificant component, is actually the "guardian of stability" for the long-term smooth operation of your equipment. Every penny invested in it will be transformed into a lower failure rate, longer component lifespan, higher equipment availability rate, and less unexpected maintenance costs.
Maintaining the cleanliness of hydraulic oil is equivalent to safeguarding the core productivity and asset value of your equipment.
