Within the complex network of pipes and components in a hydraulic power unit, there is a seemingly inconspicuous yet vital part: the hydraulic manifold. It functions like a city's underground utility network and traffic control center, silently directing the flow and controlling the path of hydraulic fluid. It is the core component determining the performance, reliability, and compactness of the entire system. This article will provide an in-depth analysis of the nature, structure, and five key roles of the hydraulic manifold.

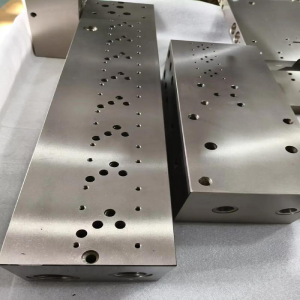

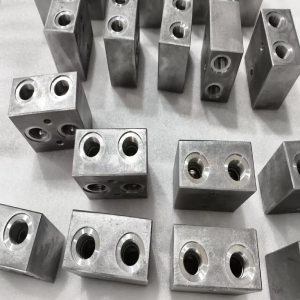

A hydraulic manifold, often called an integrated block, subplate, or simply manifold, is a metal block that has been precisely designed and machined. Its core function is to serve as a mounting platform for multiple hydraulic valves and a carrier for their internal fluid passages.
Simply put, a hydraulic manifold is a metal block drilled with complex internal passages (oil ways). Various hydraulic valves (such as directional control valves, pressure relief valves, flow control valves) are mounted on its surfaces like "Lego bricks" and interconnected via these internal passages, replacing the multitude of complex external steel tubes and hoses used in traditional systems.
Its core value lies in integration and modularity, consolidating scattered control functions into one compact unit.
A typical hydraulic manifold consists of the following key parts:
• Valve Mounting Surfaces: Precision-machined flat surfaces for mounting various sandwich-style hydraulic valves. These surfaces contain grooves for sealing elements (O-rings or combination seals).
• Internal Flow Channels: A complex network of passages created through processes like deep-hole drilling, cross-drilling, and the use of plug screws. These channels connect the valve ports to form a complete hydraulic circuit.
• External Ports: Include the P (Pressure) port, T (Tank/Return) port, A/B (Work) ports, as well as gauge ports and drain ports, used to connect to the pump, tank, and actuators (cylinders/motors).
• Mounting and Lifting Holes: Used to secure the entire manifold block to the tank or frame.
◦ Aluminum Alloy: Lightweight, corrosion-resistant, and easy to machine. Often used in mobile equipment, aerospace, and other weight-sensitive applications.
◦ Carbon Steel: High strength and relatively low cost. The most common material for industrial hydraulic power units, often with anti-corrosion surface treatments (like nickel plating, phosphating).
◦ Stainless Steel: Excellent corrosion resistance. Used in industries with special requirements, such as food, pharmaceuticals, and marine environments.
• Manufacturing Process: Primarily involves high-precision milling and drilling using CNC machining centers. Key processes include deep-hole drilling, threading, deburring (crucial), and cleanliness control.
The hydraulic manifold is not just a connector; it is key to elevating the performance level of the entire hydraulic power unit. Its roles are mainly reflected in the following aspects:
• Drawbacks of Traditional Systems: Using pipe connections requires a large number of steel tubes, fittings, and elbows between valves, resulting in a bulky, messy system that occupies significant space.
• The Manifold Solution: Integrates all control valves onto one compact block, connecting them via internal passages. This makes the hydraulic power unit structure extremely compact, especially suitable for equipment with limited space, such as inside construction machinery or machine tools.
• Leakage is a primary failure source in hydraulic systems. Every pipe fitting is a potential leak point.
• Advantage of the Manifold: It converts most connections from dynamic threaded/flanged connections to static face-seal connections (e.g., O-ring seals). Static seals are far more reliable than dynamic seals. Statistics show that using an integrated manifold can reduce over 60% of the external connection points in a system, thereby greatly minimizing leakage risk and improving long-term operational stability.
• Reduces Pressure Loss: Well-designed internal flow paths can optimize fluid direction, reduce sharp bends and sudden cross-sectional changes, thereby minimizing local pressure drops and turbulence, and improving overall system efficiency.
• Reduces Vibration and Noise: The rigid structure of a manifold is better than pipes at dampening vibrations and noise caused by fluid pulsation. Smooth internal passages also help reduce flow noise.
• Faster Response: Shortens the fluid path length between valves, reduces the compressed fluid volume, resulting in a faster system response and more precise control.
• Easy Installation: During equipment assembly, the entire manifold block is handled as one module for lifting, positioning, and securing. Only a few main inlet/outlet pipes need connection afterward, significantly reducing installation time and labor costs.
• Convenient Maintenance: Valve inspection, replacement, or repair is performed on a single, accessible plane without disassembling complex piping, making troubleshooting and routine maintenance simple and efficient.
• Cleanliness Control: Manifolds can be thoroughly cleaned and sealed at the factory before shipping, ensuring internal cleanliness and reducing contamination risks from on-site installation.
• Modular Design: Complex systems can be broken down into multiple functional manifold blocks (e.g., main control block, pilot control block, auxiliary function block), connected via bolts, facilitating functional expansion and customization.
• Standardized Production: For batch-produced equipment, standardized manifold designs enable scalable, high-quality manufacturing, ensuring consistent performance and interchangeability, and reducing procurement and spare parts inventory costs.
To fully realize the above functions, a well-designed manifold is crucial. Key considerations during selection or customization include:
1. Flow Path Design: Passages should have smooth transitions, avoid sharp corners, and minimize pressure loss. The wall thickness between passages must meet strength requirements to prevent blowouts.
2. Material and Process: Select appropriate materials based on working pressure, fluid medium, and environment. Internal cleanliness and deburring are critical to the process; any残留 debris is a "time bomb" for the system.
3. Valve Layout: Valve positions should facilitate operation and adjustment (e.g., manual valves, pressure regulating valves). Heat-generating components (e.g., throttle valves) should be considered for heat dissipation.
4. Plug Screws and Sealing: Correct selection and use of plug screws (pipe plugs, ball plugs) and sealing methods are essential to ensure zero leakage.
5. Surface Treatment and Marking: Clear port identification, flow direction arrows, and component numbers greatly facilitate installation, commissioning, and maintenance.
The hydraulic manifold is far from a passive connector. It embodies the core of modern hydraulic technology's development towards compactness, high efficiency, and reliability. It physically integrates dispersed control logic into one entity, serving as the "intelligent foundation" of the hydraulic power unit.
Choosing or designing a proper hydraulic manifold means opting for:
• A More Reliable System (Fewer leaks)
• Higher Performance and Efficiency (Lower energy consumption, faster response)
• Lower Total Cost of Ownership (Saves installation/maintenance time and space)
• A More Elegant Engineering Solution
When planning your next hydraulic system, elevate the design and selection of the manifold to a strategic level. It is not just a container for valves but the critical skeleton that shapes the system's intelligence.
