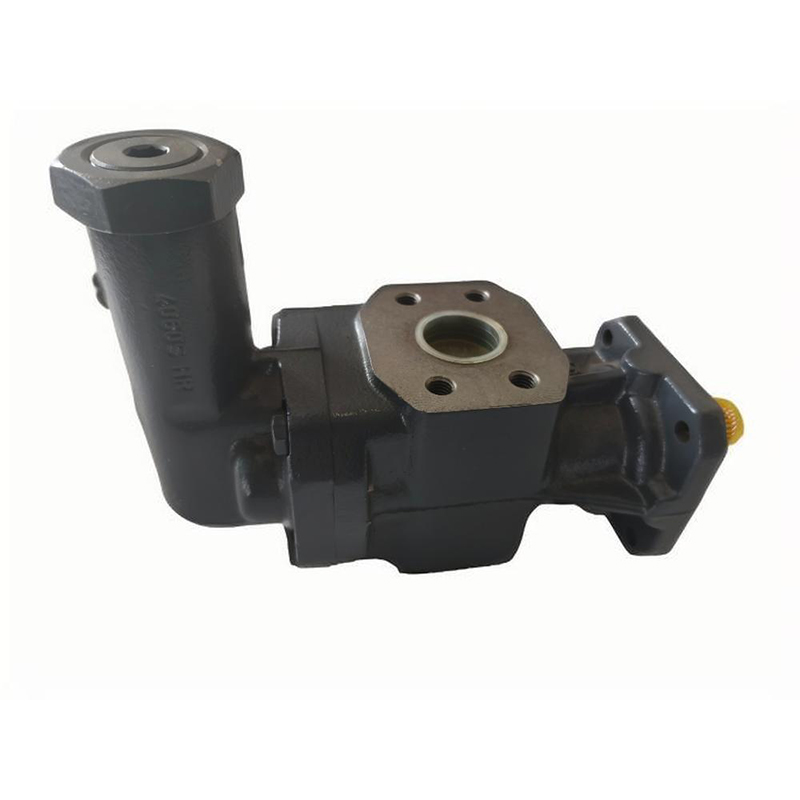

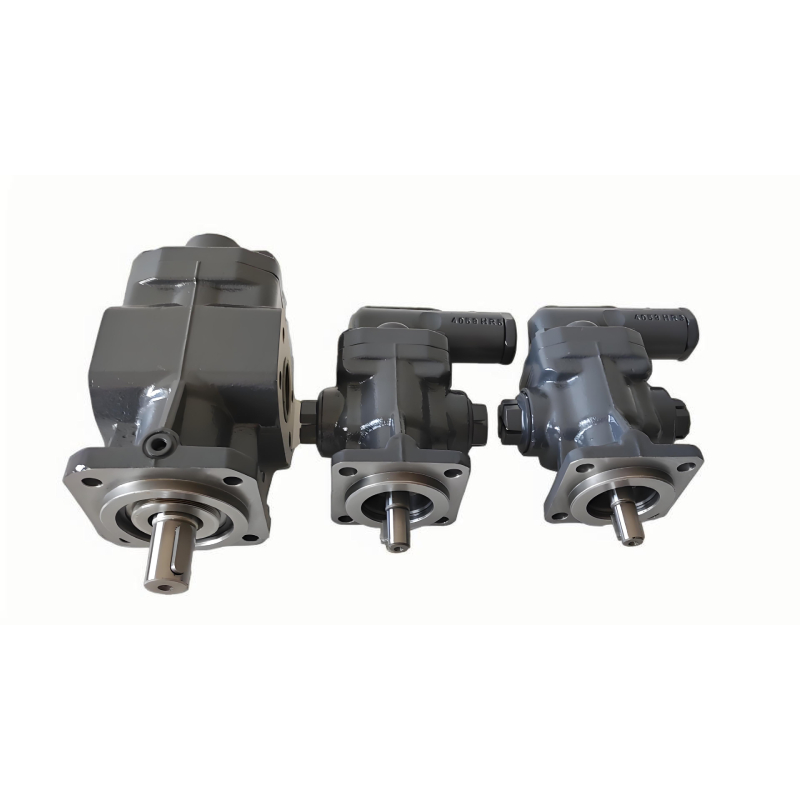

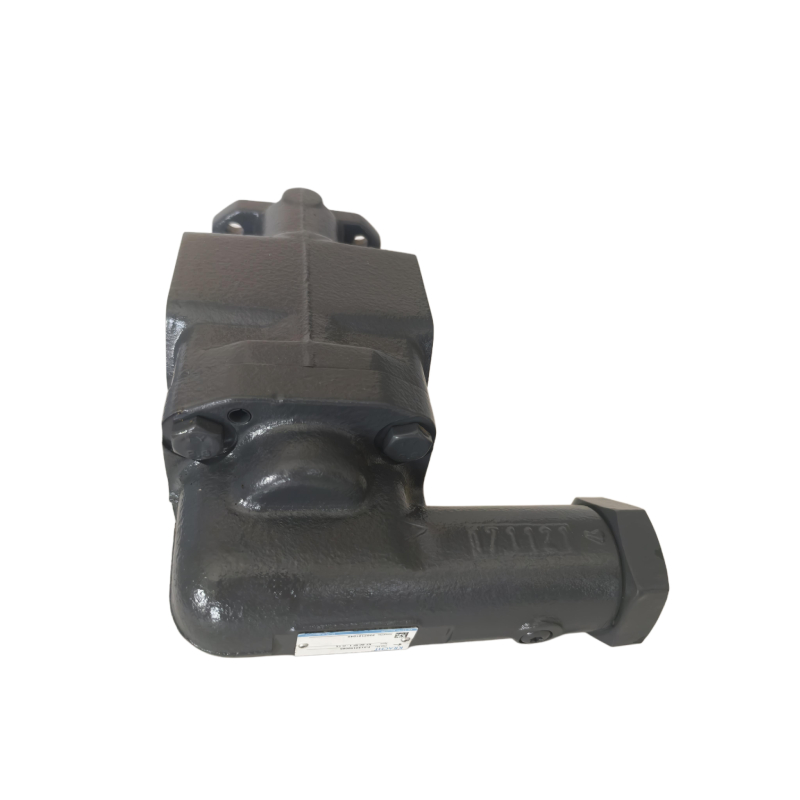

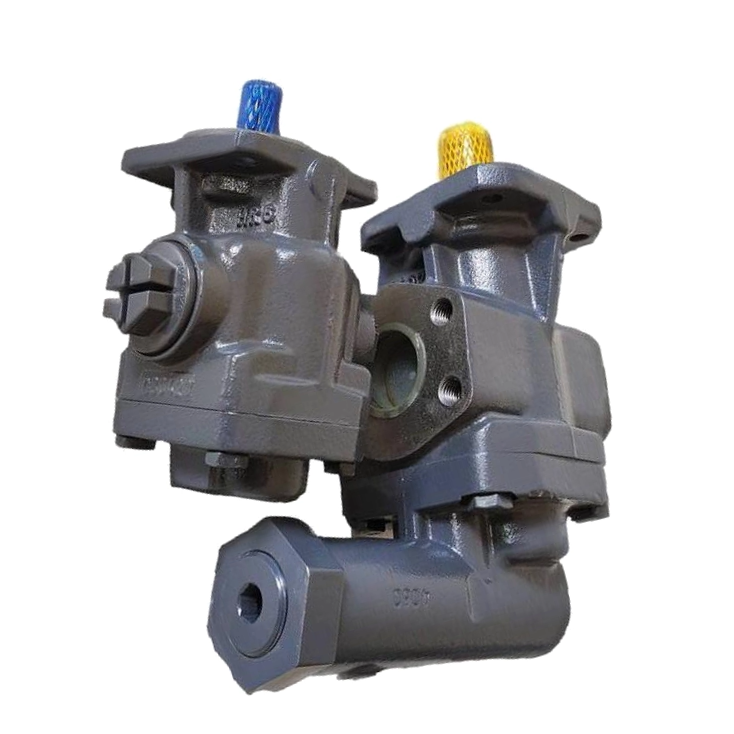

Kf Series Hydraulic Dosing Gear Pump High Quality Cast Iron Gear Type Pump Manufacturers

Helical Gear Transfer Pump with Relief Valve

Kf Series Hydraulic Dosing Gear Pump High Quality Cast Iron Gear Type Pump Manufacturers

Name: Kf Series Hydraulic Dosing Gear Pump High Quality Cast Iron Gear Type Pump Manufacturers
Brand: KRACHT
Rating: 5.0 (30 reviews)

The central element in numerous technical processes is the metering of liquids. PU components, plasticisers, resins, adhesives, lacquers and paints are just a few of the important liquids with a broad application spectrum. The accuracy, uniformity and reproducibility with which these liquids can be processed is also decisive for the quality of the final product. Ideal for these applications is the KRACHT gear pump KF1/4…KF1/24 coated. The KF1/4…KF1/24 coated are external gear pumps with a discharge volume of 4 cm3/rev to 24 cm3/rev.

All gear parts and bearing bushes are protected against wear and corrosion by means of a special coating, so that also filled media up to a certain particle size and hardness of the fillers can be pumped. Guide values in this respect are a maximum particle size of 30 µm and a Mohs hardness of 6. The double rotary shaft seals enable operation with sealing liquid (quench) to prevent hardening or crystallising of the pumped medium. On request the KF 1/4…KF1/24 coated can be supplied with a magnetic drive.

Quantity:
Availability:





Inquire Add to Basket

Model:
KF
Brand:
KRACHT

Product Category

Product Description

Technical data

performance feature

Product Features:

Asserted benchmark displacement (ml/r):416181101121161201251321401501631801100/112/150/180/200 Adjusted numerical value of overflow valve:16bar (cccording to the need to adopt a higher pressure)Seal material: fluorine rubber Applied viscosity(cSt):12-20000

Product Advantages：

Reducer, wind power, lubrication system, filtration system gas stations, vacuum machine, engine...

Attention:

Fluid has basic lubricating and compatible chemical characteristic, and it exclude solid impurity substance

Avoid idling

The pump can only be operated in appointed direction, or else seal of the shaft will be wrecked.

To avoid excessive pressure, the system or pump should be equipped with a relief valve.

Mounted on the pump valve short-term relief effect, do not overflow valve.

Installed it for a long time the overflow relief valve.

size	geom. displacement	Working pressure	Maximum pressure	Speed range		Permissible load (n = 1500 1/min)	Sound level dB (A)			Weight
				nmin	nmax		p =5 bar	p =15 ba	p =25 bar	without valve	with valve
2.4	2.55	25	40	200	3600	700	≤ 65	≤ 66	≤ 67	4.2	5
4	4.03
5	5.05
6	6.38
8	8.05
10	10.11
12	12.58
16	16.09									4.8	5.6
20	20.1
25	25.1
32	32.12									7.7	9.5
40	40.21					1500	≤ 67	≤ 68	≤ 69
50	50.2
63	63.18									9.4	11.2
80	80.5				3000
100	101.5						≤ 67	≤ 68	≤ 69	16	18.7
112	113.5
125	139.5						≤ 65	≤ 65	≤ 65	22.2	24.9
150	155.6
180	186.6									24.8	27.5
200	206.2				2500
250	245.1				2000	2500	≤ 75	≤ 75	≤ 75	44.2	47.6
315	312.9
400	399.5		35				≤ 77	≤ 77	≤ 77	54.7	58.2
500	496.5
630	622.5		30				≤ 78	≤ 78	≤ 80	60.8	64.2

High-precision flow control: The KF 1/11 D10K P0A 0DE32/130 pump is capable of achieving high-precision flow delivery, which is crucial for precisely controlling the raw material input volume in process industries such as chemical and pharmaceutical manufacturing.

Stable pressure output: This pump can provide stable pressure within a certain working range, which is extremely important for maintaining a stable working state in various hydraulic systems, such as in hydraulic equipment used in metal processing.

Durability: By using high-quality materials and advanced sealing technology, it ensures excellent wear resistance and sealing performance, reducing the maintenance frequency of the pump, extending its service life, and lowering long-term operating costs.

Widely applicable temperature range of the medium: The temperature range of the medium that this pump can handle is quite wide. The specific range will depend on the material and structure of the pump.

Displacement range: The displacement range is from 0.5 to 3150 cm³/rev. The displacement varies depending on the model.

Temperature range: The working environment temperature range is from -20°C to 80°C, and a temporary temperature peak of up to 120°C is allowed.
