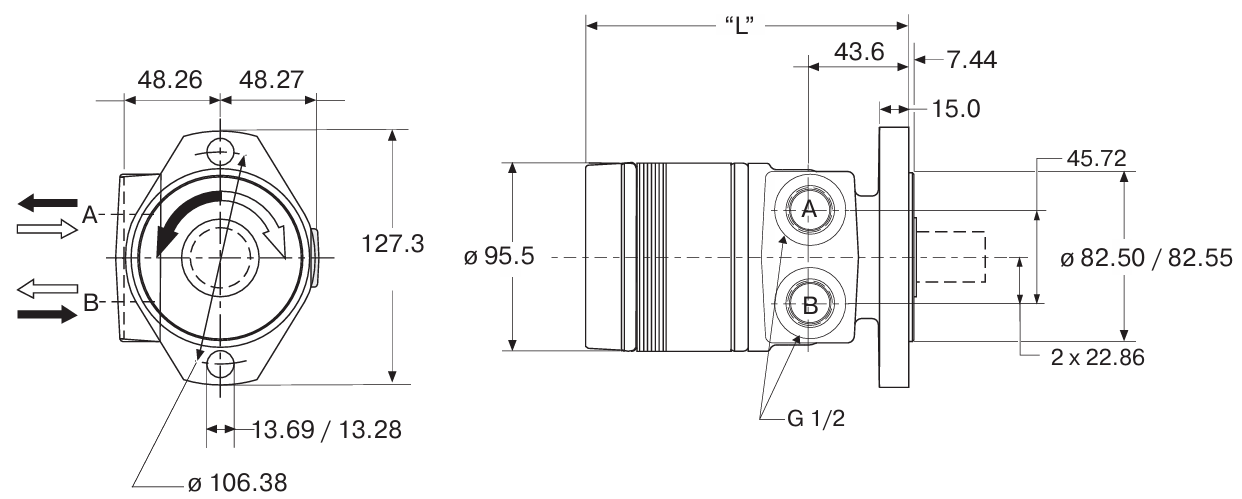

Product Outline Drawing:

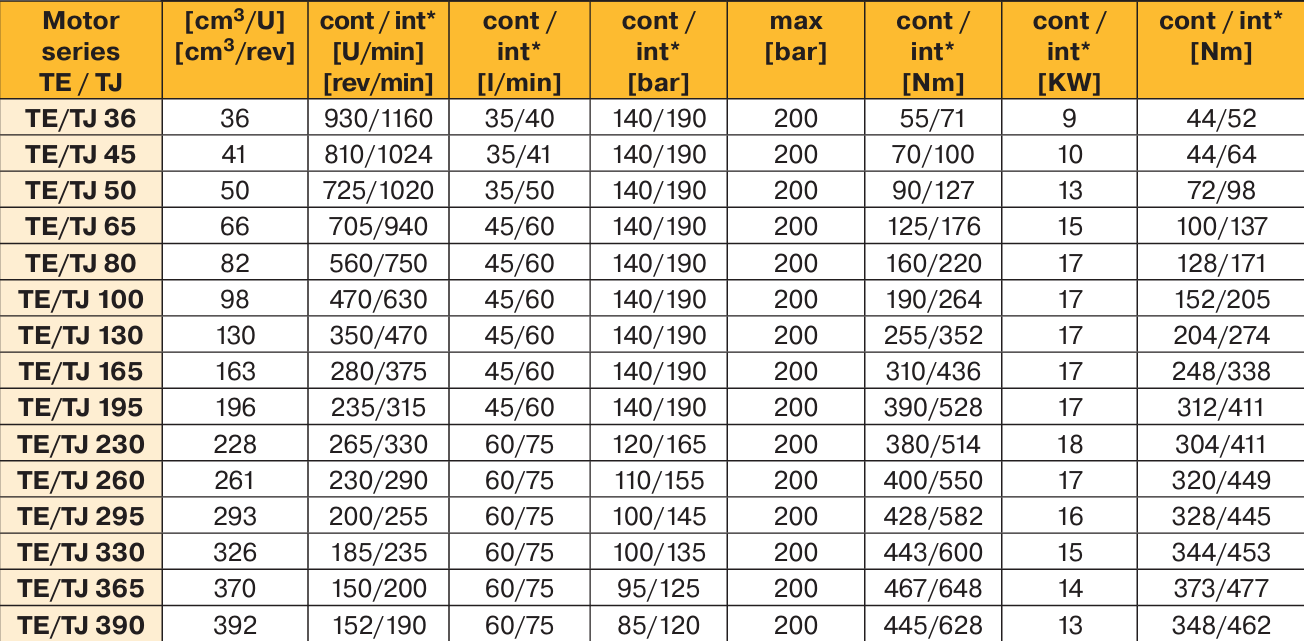

Product Specifications:
Product Features:

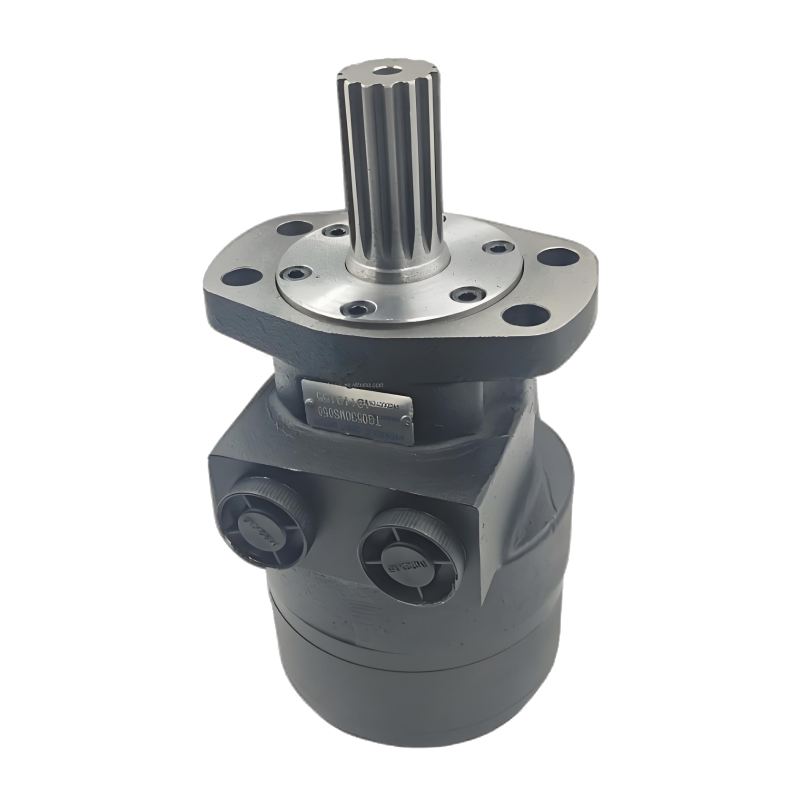

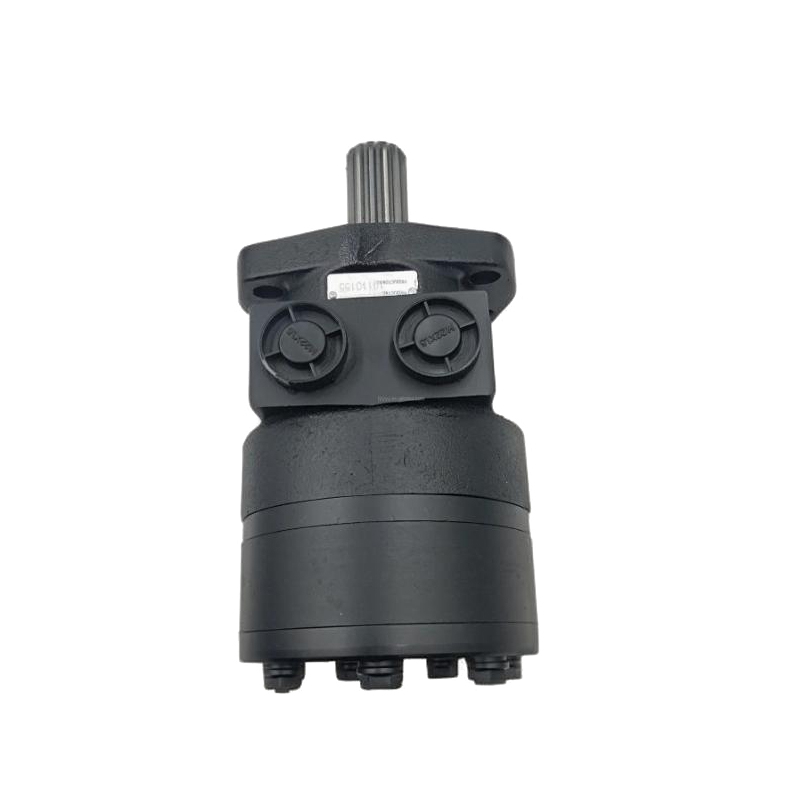

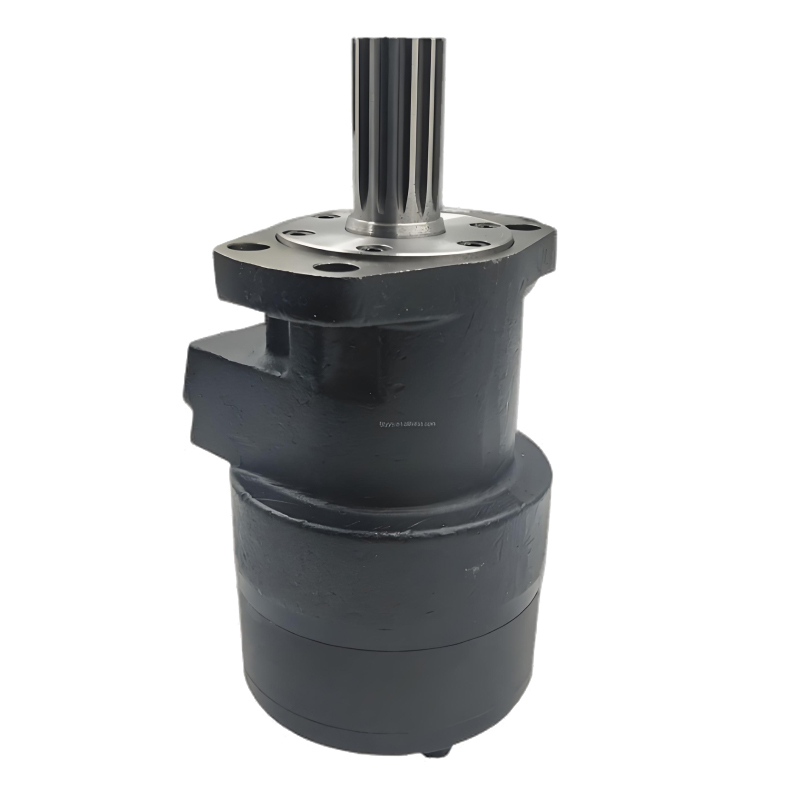

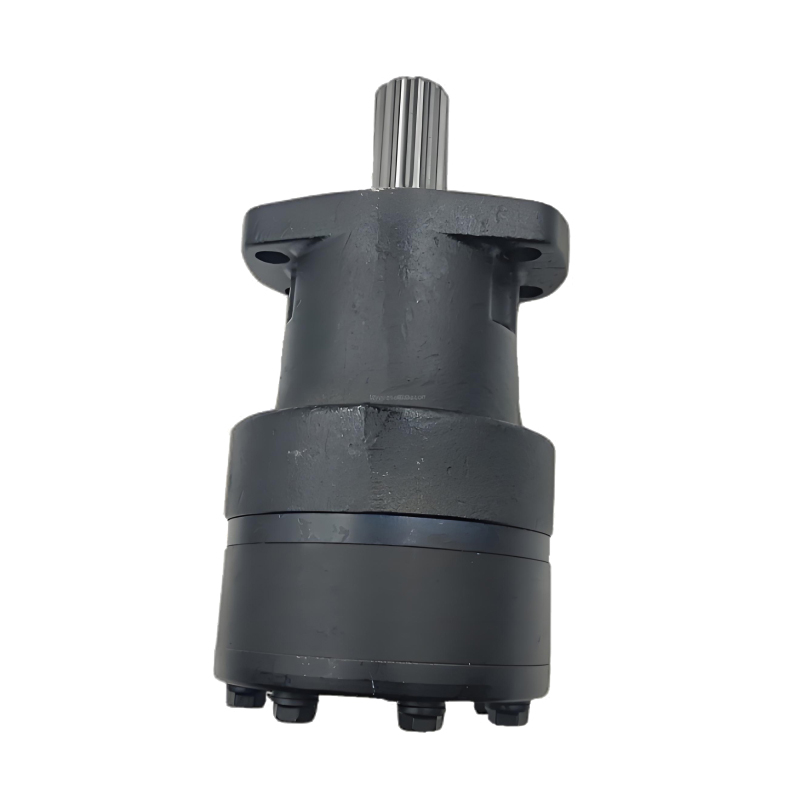

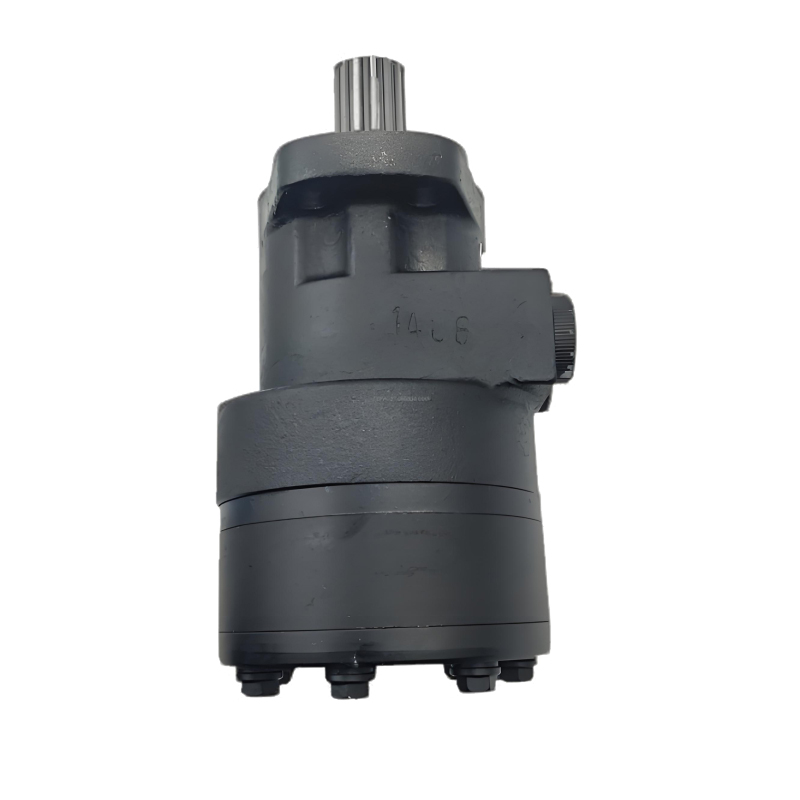

The TE series motor is a durable hydraulic motor with excellent lateral load capacity, high-pressure seal for the shaft, and smooth low-speed operation. It is very suitable for light-duty applications, such as vehicle propulsion, augers, chain drives, winches, and boom rotation. The TE series motor has a nominal shaft diameter of 25.4 mm and roller bearings, with a maximum dynamic lateral load that the key can withstand being 6672 N, and an intermittent working pressure of 190 bar, with a torque of up to 648 Nm. The TE series motor is a robust, low-speed high-torque (LSHT) cycloidal motor, featuring a sturdy structure, continuous hydraulic oil flow through the internal spline, which extends its service life, outstanding lateral load capacity, and smooth ultra-low-speed operation characteristics. The high-pressure shaft seal is standard, designed to eliminate the need for casing oil leakage. Stability is based on high-quality design and manufacturing.
Market:
• Lawn equipment • Aerial work platforms • Agricultural machinery • Construction equipment • Factory automation • Material handling equipment • Oil and gas • Municipal equipment Features/Benefits: • Roller bearings • Sturdy structure, long service life • Continuous hydraulic oil flow through the internal spline to extend service life • Excellent lateral load capacity • Smooth ultra-low-speed operation • High-pressure shaft seal as standard • High-pressure seal design eliminates casing oil leakage • Stability based on high-quality design and manufacturing Applications: • Small skid steer loader attachments • Zero-turn mowers • Golf course maintenance equipment • Sweepers • Wood chippers • Conveyors • Combine harvesters • Winches • Augers • Portable irrigation systems • Vertical rod augers • Specialty harvesters such as for potatoes, tomatoes, nuts, leafy vegetables, sugar, cotton, coffee, and grapes • Combine harvester fronts • Sprayers • Scissor lifts • Snowplows • Salt and sand spreaders • Oil and gas mixing trucks • Bulk cargo transport vehicles
Product Advantages：
• Slow-running gerotor motor
• Special orbital control Low internal leakage High volumetric efficiency
• Roller in the rotor assembly Reduced friction Long lifespan
• Patented high-pressure shaft seal No leak oil line No check valves• Variety of variants Wide range of applications• Slow motor gerotor system
• A special orbital distribution ensures minimal internal leaks high volumetric efficiencies
• The roller rotor reduces friction increases lifespan
• Through the use of patented high-pressure shaft seals no drainage line no check valves
• Thanks to many variants broad areas of applications
