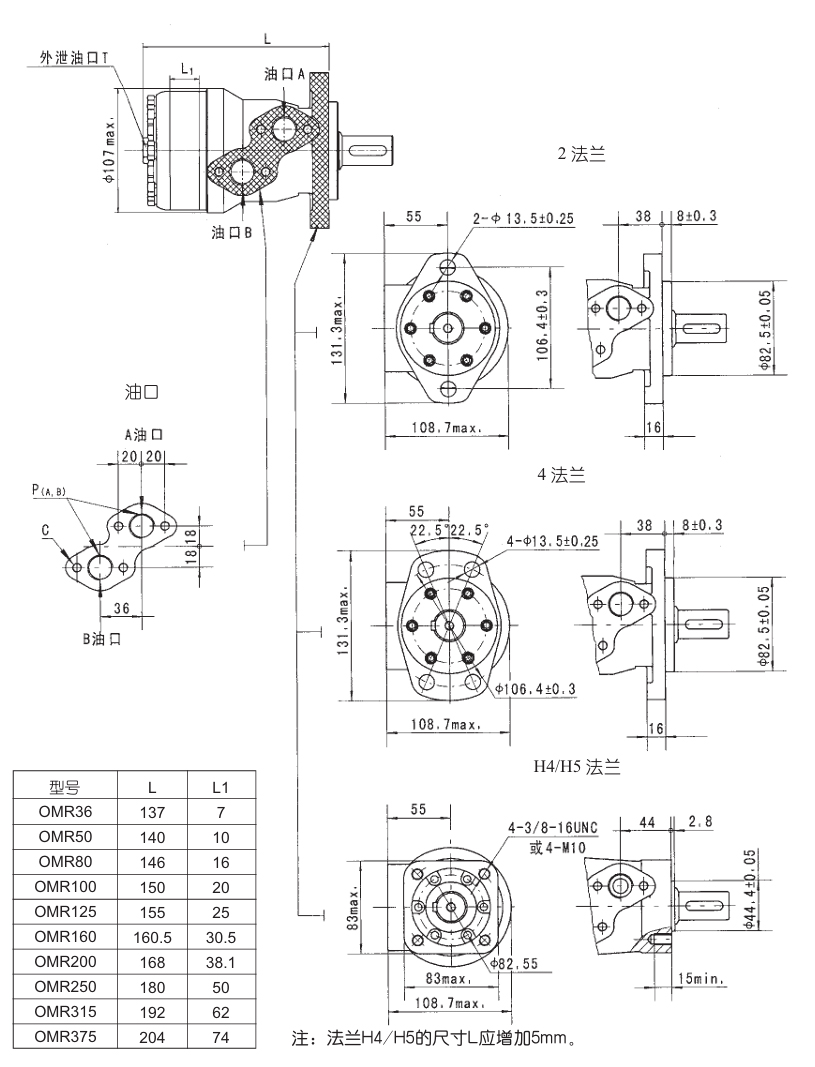

Product Outline Drawing:

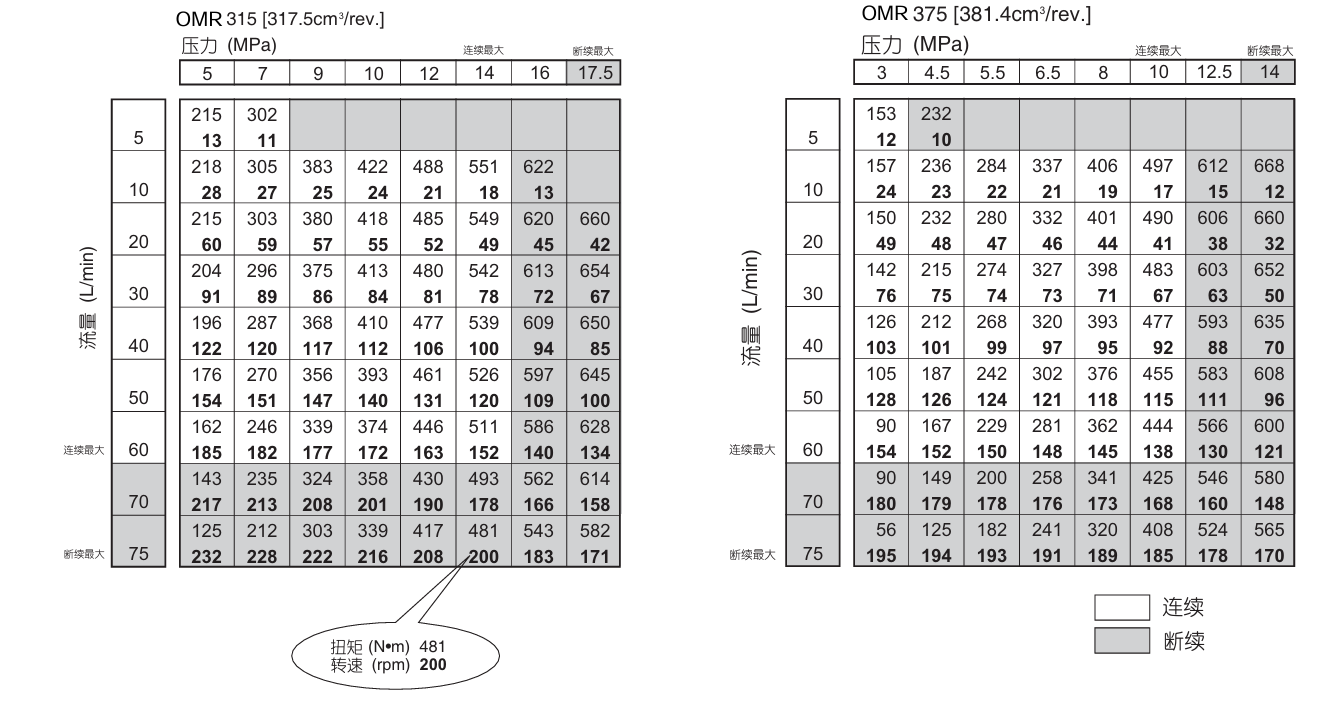

Product Specifications:
Product Features:
• Smooth operation throughout the entire speed range
• Stable working torque over a wide speed range
• High starting torque
• High return pressure without a leakage pipe (high-pressure shaft seal)
• High efficiency
• Long lifespan under extreme working conditions
• Robust, compact design
• High radial and axial load capacity
• Suitable for open-loop and closed-loop hydraulic systems
• Compatible with various hydraulic media
Range of application
The OMR hydraulic motor belongs to the high torque cam motor, specifically designed for export supporting machinery. It uses a column-type stator and rotor pair, allowing it to operate under high pressure and to perform automatic compensation functions. It features precise structure and novel appearance, allowing free direction change for both forward and reverse rotation. The speed can be adjusted from a low speed of 7 revolutions per minute to a high speed of 950 revolutions per minute, operating smoothly and efficiently with high torque. It can be used in parallel and series configurations.
Product Advantages：
The Intermot Five-Star Motor NHM series uses advanced manufacturing technologies and materials to ensure stability during long-term operation. Whether in high temperatures, low temperatures, or harsh working environments, the Intermot Five-Star Motor can maintain efficient operation. In addition, the Intermot Five-Star Motor NHM series also features low noise and low vibration, which not only enhances the comfort of the operators but also reduces the impact on the surrounding environment.
Application Scenarios:
1. Agricultural use: various combine harvesters, seeders, fertilizer spreaders, rotary tillers, mowers, sprayers, and feed mixers.
2. Fisheries use: trawlers, anchor winches, net haulers, and sailboats.
3. Light industrial use: injection molding machines, cutting and grinding machines, winding machines, textile machines, printing machines, and commercial washing machines.4. Construction industry use: road rollers, reinforcement concrete floor drilling machines, cement mixers, street cleaning vehicles, and snow plowing and salting trucks.
