Hydraulic line systems play a crucial role in how hydraulic machinery transmits power and controls motion. From flexible hydraulic hoses to rigid pipes and precision hydraulic fittings, these components keep pressurized fluid moving safely through equipment. Understanding hydraulic line design, fittings selection, and proper maintenance helps prevent leaks, downtime, and costly failures. In this guide, we’ll explore how hydraulic lines and fittings in hydraulic systems work, how to choose the right components, and how good installation and maintenance practices keep your hydraulic equipment running efficiently.

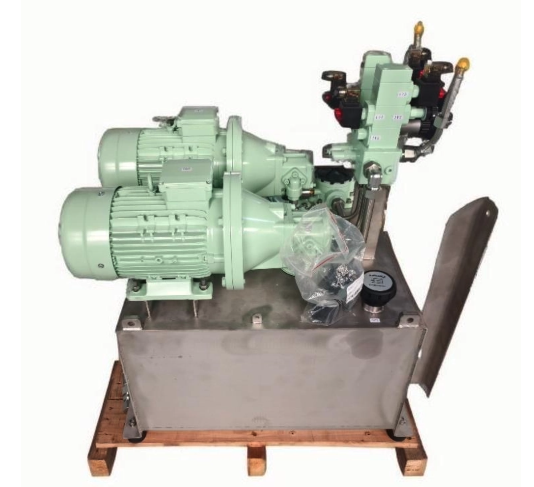

Hydraulic lines are the pathways that carry pressurized fluid throughout a hydraulic system. They act like veins in a body, delivering energy from the pump to cylinders, motors, and valves.
Not all hydraulic lines are the same. You’ll usually see two main types:
Type | Description | Typical Use |
|---|---|---|
Hydraulic Hoses | Flexible, often reinforced with braided steel or textile layers | Mobile machinery, construction equipment, robotics |
Rigid Hydraulic Pipes | Solid metal tubes, usually steel or stainless steel | Stationary systems, high-pressure pipelines, industrial plants |
Hoses bend and move easily, which helps on machines that rotate, tilt, or vibrate. Pipes, however, provide durability and handle high pressures without flexing. Together, they ensure the fluid reaches the system components efficiently. Hydraulic lines transmit energy by carrying pressurized fluid. When the pump pushes the fluid, the pressure flows along the line, forcing pistons or motors to move. This movement transforms hydraulic energy into mechanical work, powering everything from crane arms to factory presses.
Every hydraulic line has several essential parts that work together:
Hose Materials: Rubber, thermoplastic, and steel are common. Rubber is flexible. Thermoplastics resist heat and chemicals. Steel gives strength for high-pressure operations.
Fittings, Connectors, and Seals: They join hoses to pumps, cylinders, or pipes. A proper seal prevents leaks and keeps the system clean.
Reinforcement Layers: Many hoses include braided steel, textile fibers, or synthetic layers. These layers increase pressure capacity and prevent kinks.
Flexibility: Hoses must bend without collapsing. Flexibility matters for moving parts and tight spaces.
These components are carefully chosen based on the system’s purpose. For example, construction machinery often needs a mix of steel reinforcement for strength and rubber for mobility.
Hydraulic lines are more than pipes—they are energy carriers. Here’s a step-by-step of how they function:
Power Transmission: The hydraulic pump pushes fluid into the lines. They carry it from the source to the cylinder or motor.
Mechanical Conversion: Pressure in the fluid pushes pistons, turns motors, or activates valves. The energy transforms into motion or force.
Precision Control: Lines deliver fluid accurately, which is critical for robotic arms, presses, and other automated machinery.
They can handle pressure surges, route around obstacles, and maintain consistent flow. Flexible hoses let machines move while still delivering fluid. Rigid pipes maintain stability where movement is minimal but high pressure exists.
Hydraulic fittings are connectors that join hoses, pipes, and components in a hydraulic system. They keep fluid flowing without leaks and maintain system pressure. Without fittings, hydraulic fluid could escape, causing inefficiency or even system failure. They also make maintenance easier, allowing quick assembly or disassembly of hydraulic circuits. Fittings don’t just connect—they control how the fluid moves, helping to route pressure safely and reliably to cylinders, motors, and valves. In short, they are the backbone of any hydraulic system’s integrity.
Fitting Type | Key Feature | Common Use |
|---|---|---|
Crimped | Permanent, high strength | Industrial machines |
Reusable | Flexible, on-site installation | Temporary setups |
ORFS | Leak-proof seal | High-pressure systems |
Tapered | Thread compression seal | Pipes and hoses |
Mated Angle | Mechanical seal at angles | Hydraulic valves |
BSP / DIN | Standardized thread | European equipment |
Elbows / Tees | Fluid routing | Complex circuits |
Hydraulic fittings are made from materials chosen for pressure, temperature, and fluid compatibility:
Plastic: Light, corrosion-resistant, cost-effective, low-pressure applications
Steel: Very durable, handles high pressure, common in industrial systems
Stainless Steel: Resistant to corrosion and extreme temperatures, suitable for harsh environments
Brass: Excellent for leak-proof connections, medium pressure, often used in mobile machinery
Aluminum: Lightweight, corrosion-resistant, preferred in automotive hydraulics
Material selection affects system longevity, safety, and efficiency. For example, stainless steel can handle high-temperature fluids, while plastic is better in corrosive, low-pressure systems.
Choosing the right fitting starts with recognizing its type, seal, and size:
Match Hose and Port Connections: Always ensure threads and ports align. A mismatch can cause leaks.
Identify Seal Type:
O-ring: Easy to spot, built into connection face
Tapered Thread: Seals by thread compression
Mated Angle: Seals at angled surfaces, not threads
Check Thread Size: Different systems use NPT, BSP, DIN, or metric threads. Always measure carefully.
Every hydraulic line and fitting must meet the system’s pressure demands. Exceeding pressure ratings can cause leaks or catastrophic failures. They are rated in psi or bar, and we always check both operating and surge pressures. Some high-performance systems require fittings rated above 10,000 psi, while low-pressure circuits can work under 3,000 psi.
Choose fittings rated above max operating pressure
Consider pressure spikes during start-up or load changes
Permanent crimped fittings usually handle higher pressures than reusable fittings
Temperature affects both the hose and the fitting material. Some systems run below freezing, others reach over 250°C. Materials expand, contract, or degrade depending on fluid type and heat exposure.
Temperature Guidelines by Material:
Material | Min Temp | Max Temp | Notes |
|---|---|---|---|
Rubber | -40°C | 100°C | Flexible, general purpose |
Thermoplastic | -50°C | 120°C | Resistant to some chemicals |
Steel | -50°C | 260°C | Durable, high-pressure use |
Stainless Steel | -250°C | 648°C | Extreme environments |
Brass | -50°C | 204°C | Leak-proof medium pressure |
Aluminum | -40°C | 150°C | Lightweight, automotive focus |
Hydraulic lines must bend without kinking. Flexible hoses suit moving machinery, robotic arms, and pivoting booms. Rigid pipes work best for fixed layouts or high-pressure zones. Too rigid can cause stress at connection points; too flexible can bulge under pressure.
Tips for Flexibility:
Use braided reinforcement to maintain shape under pressure
Avoid tight bends near fittings
Keep dynamic hoses separate from static pipes
Not all materials react the same with hydraulic fluids. Petroleum-based, water-glycol, and synthetic fluids each affect hoses and fittings differently. Choosing compatible materials prevents swelling, cracking, or corrosion.
Compatibility Checklist:
Verify hose lining against fluid type
Confirm fitting metals resist chemical attack
Consider seals like NBR, Viton, or EPDM based on fluid
Good routing prevents wear, pressure drops, and maintenance headaches. Hydraulic lines should follow smooth paths, avoiding sharp angles and rubbing surfaces. Labeling and color-coding hoses improves safety and troubleshooting.
Routing Tips:
Maintain minimum bend radius
Secure hoses with clamps or brackets
Keep hoses away from heat sources and moving parts
Group hoses logically for maintenance access
Hydraulic lines often face moisture, dust, salt, or chemicals. Corrosion-resistant materials extend lifespan and reduce leaks. Stainless steel, coated steel, and plastics often outperform bare metals in harsh environments.
Environmental Considerations:
Outdoor machinery: UV-resistant hoses, stainless fittings
Marine applications: saltwater-resistant materials
Dusty or chemical zones: protective sleeves or coatings
Hydraulic lines and fittings aren’t just pipes and connectors—they transmit power, control motion, and maintain system reliability. Every movement in a hydraulic system depends on these components.
Hydraulic lines carry pressurized fluid from pumps to cylinders, motors, and actuators. They act as the arteries of the system, enabling fluid to convert hydraulic energy into mechanical work.
They maintain pressure to power equipment efficiently
Flexibility allows movement while avoiding kinks or bursts
Reinforcement layers (braided steel, textiles) protect against pressure spikes
Fittings connect hoses to components and maintain system integrity under pressure. They:
Provide leak-proof connections
Allow easy assembly or maintenance (reusable fittings)
Support complex system layouts like elbows, tees, and flanges
Installing a hydraulic hose isn’t just attaching it. It starts with measuring the exact length needed for the system. Cut the hose cleanly using a designated cutter. Jagged edges or debris can compromise sealing and cause leaks. Next, select the proper fitting for the hose size, material, and pressure rating. Mark the insertion depth, apply recommended lubrication, and carefully insert the hose into the fitting. For crimped hoses, use the crimping machine correctly. Follow charts or manufacturer instructions to ensure uniform compression.
Inspect the crimp for proper alignment and consistency
Clean the assembly to remove contaminants
Conduct a controlled pressure test before full operation
Leak prevention depends on proper sealing. O-rings, gaskets, and thread sealants play a crucial role. Some fittings come with self-sealing designs that simplify installation.
Leak-Proof Tips:
Ensure O-rings fit snugly in grooves
Apply thread sealant sparingly on tapered threads
Use reusable fittings cautiously; check for wear
Conduct a system pressure test to verify integrity
Seal Type | Application | Notes |
|---|---|---|
O-Ring | High-pressure crimped fittings | Easy to replace |
Gasket | Flanges and specialty fittings | Check for compression |
Thread Sealant | Tapered threads | Avoid over-application |
Self-Sealing | Quick-connect fittings | Simplifies assembly |
Routine maintenance keeps hydraulic systems reliable. Inspect hoses and fittings regularly for cracks, leaks, abrasion, and corrosion. Even small damage can escalate under pressure.
Best Practices:
Clean hoses to prevent contamination of fluid
Ensure proper heat dissipation; avoid hot surfaces
Replace hoses or fittings that show wear or damage
Maintain records of inspections, replacements, and tests
Pro Tip: Scheduling maintenance based on operating hours or cycles can prevent unexpected failures and extend system lifespan.
A: Check pressure rating, hose size, thread type, and fluid compatibility. Consider temperature range and system layout. Match fittings to hose and port standards such as NPT, BSP, or DIN. Permanent crimped fittings suit high-pressure systems.
A: Rubber offers flexibility and durability. Thermoplastic resists chemicals and lightweight use. Steel-reinforced hoses handle high pressure. Stainless steel resists corrosion and extreme temperatures. Each material suits different environments and system demands.
A: Inspect them regularly during scheduled maintenance or every few hundred operating hours. Check for leaks, cracks, abrasion, corrosion, or loose fittings. Frequent inspections help prevent pressure loss and unexpected system failures.
A: Some field-attachable fittings can be reused, but repeated use may reduce sealing reliability. High-pressure systems usually perform better with permanent crimped fittings. Always inspect reusable fittings carefully before reinstalling.
Hydraulic lines and fittings form the backbone of every reliable hydraulic system. When the right hose materials, fittings, and routing strategies are chosen, systems run smoother, safer, and far more efficiently. Paying attention to design factors, pressure limits, and regular inspections helps extend equipment life and reduce unexpected downtime.
