Customized
MDP Hydraulics

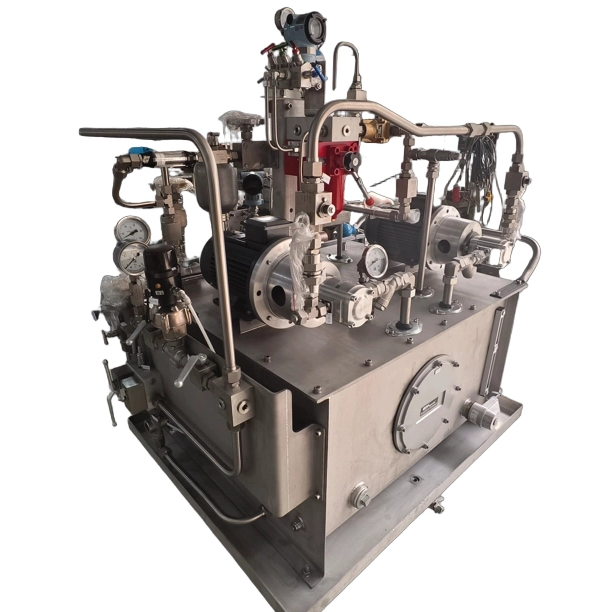

A compressor rarely fails all at once. It usually speaks first through rising temperature, unstable oil supply, abnormal noise, worn packing, and shortened service intervals. Our Non-standard Compressor Lubrication Station for Lubrication Oil Cooling System is designed to solve those problems before they become shutdowns.
Built with a modular architecture, this lubrication station delivers clean, temperature-controlled lubricating oil to critical friction points in compressor systems and other heavy-duty rotating equipment. Instead of forcing your project into a fixed catalog model, we configure the station around your actual lubrication diagram, oil characteristics, layout limitations, automation target, and maintenance preferences.
Delivers lubricating oil precisely to key friction points
Helps maintain a consistent lubrication film under variable load conditions
Reduces dry friction, scuffing, and premature wear
Supports smoother compressor operation and more stable long-cycle running
Built-in or external cooling options available
Helps control oil temperature during continuous-duty operation
Preserves lubricant performance when the system is exposed to heat buildup
Reduces the risk of viscosity loss and thermal degradation
Multi-stage filtration helps keep oil cleaner before it reaches critical components
Reduces damage caused by particles, sludge, and system contamination
Helps extend the life of pumps, valves, bearings, and sealing components
Supports more reliable maintenance intervals
Customized for lubrication point quantity, oil type, tank size, and installation space
Available for horizontal or vertical layouts
Easy to integrate into existing compressor systems or new project lines
Supports non-standard piping interfaces and regional power requirements
Manual, timed cycle, PLC, remote I/O, and IoT monitoring options
Optional alarm and data-recording functions for predictive maintenance
Helps operators identify pressure, flow, or filter issues earlier
Cuts unnecessary manual inspection time
A reliable lubrication station is more than a pump and a tank. It is a coordinated oil management unit. This system can be configured with the following modules:
Module | Purpose | Benefit |
|---|---|---|
Drive Motor | Provides stable power input | Supports steady oil circulation |
Lubrication Pump Set | Gear pump or piston pump options | Matches pressure and viscosity requirements |
Oil Tank / Reservoir | Stores and conditions lubricating oil | Supports stable system supply |
Filtration Unit | Removes contaminants | Helps protect components from abrasive wear |
Cooling Section | Built-in or external cooler | Helps control oil temperature |
Intelligent Control System | PLC or microprocessor-based control | Improves automation and monitoring |
Piping & Fittings | Connects supply points | Enables flexible site integration |
This modular design makes expansion and maintenance easier. It also allows the station to be tailored for compact compressor skids, large industrial layouts, or retrofit lubrication upgrades.
For projects that require a more advanced forced lubrication approach, the system can be designed to work with monitoring and distribution accessories based on project needs.
Divider block arrangements for multi-point oil distribution
Metering elements for controlled outlet quantity
Check valves for backflow prevention and injection protection
Cycle indicators for visible lubrication confirmation
Proximity switch options for signal feedback and alarm logic
Mounting brackets and fitting solutions for site-specific installation
These options are especially valuable when the goal is not just to move oil, but to verify that oil is reaching the right point, at the right rate, under the right pressure. That level of control helps transform lubrication from a routine task into a measurable protection system.
Parameter | Typical Range / Option |
|---|---|
Model | Customized |
Brand | MDP Hydraulics |
Output Flow Rate | 0.1–100 L/min, adjustable |
Output Pressure | 0.6–40 MPa |
Motor Power | 0.18–22 kW |
Power Supply | Three-phase 380V / 50Hz or customized |
Tank Capacity | 10–2000 L |
Pump Type | Gear pump / piston pump optional |
Control Method | Manual / timed cycle / PLC / remote I/O / IoT monitoring |
Filtering Accuracy | 10–100 μm, finer options available |
Protection Level | IP55 standard, IP65 optional |
Communication Interface | Modbus RTU/TCP, PROFINET, Ethernet/IP optional |
Cooling Type | Built-in or external cooling available |
Installation Layout | Vertical / horizontal customizable |
This lubrication station is suitable wherever controlled oil supply and oil cooling are essential to equipment reliability.
Reciprocating compressor lubrication systems
Compressor lubrication oil cooling systems
Gas compression and filling station support systems
Metallurgical and heavy industrial machinery
CNC machine guideway and lead screw lubrication
Conveyor chains and bearing centralized lubrication
Wind power gearbox and rotating equipment lubrication
Engineering machinery and special vehicle lubrication systems
In real use, the value is practical and immediate: less heat, cleaner oil, fewer lubrication errors, and more confidence during continuous operation. For plants where downtime is expensive and service windows are tight, that difference is significant.
We do not push a one-size-fits-all oil station into every project. We study your lubrication points, oil properties, installation space, operating cycle, and automation target, then build the station accordingly.
Clean oil delivery, stable pressure, and controlled oil temperature are not decorative features. They are the basis of longer-running equipment. Our design approach prioritizes dependable operation over short-term simplification.
From tank capacity and control method to layout direction and communication interface, the station can be configured to match existing systems and future plant upgrades.
Accessible service points, filter monitoring, optional alarm functions, and organized modular design help reduce maintenance friction and improve service efficiency.
Good lubrication is quiet protection. It is the invisible layer that separates smooth operation from avoidable wear. This station is built to provide that protection consistently.
Please provide the lubrication point layout, oil type, required oil quantity, lubrication frequency, installation space, preferred control method, and site environment. The more detailed the operating conditions, the more accurately the station can be configured.
Yes. It is suitable for compressor lubrication oil circulation and cooling applications, with built-in or external cooling options based on thermal load and system design.
Yes. The station can be designed to connect with your existing piping standards, thread forms, and fitting arrangements to simplify retrofit work.
Manual control, timed cycle control, PLC control, remote I/O, and IoT intelligent monitoring can all be configured according to the project requirement.
No. Although it is highly suitable for compressor systems, it can also be used in centralized lubrication projects for machine tools, conveyors, heavy machinery, energy equipment, and other industrial systems.
Routine maintenance usually includes checking oil level, observing filter condition, verifying pressure status, and replacing filter elements when needed. Intelligent versions can provide maintenance reminders and fault alerts.
