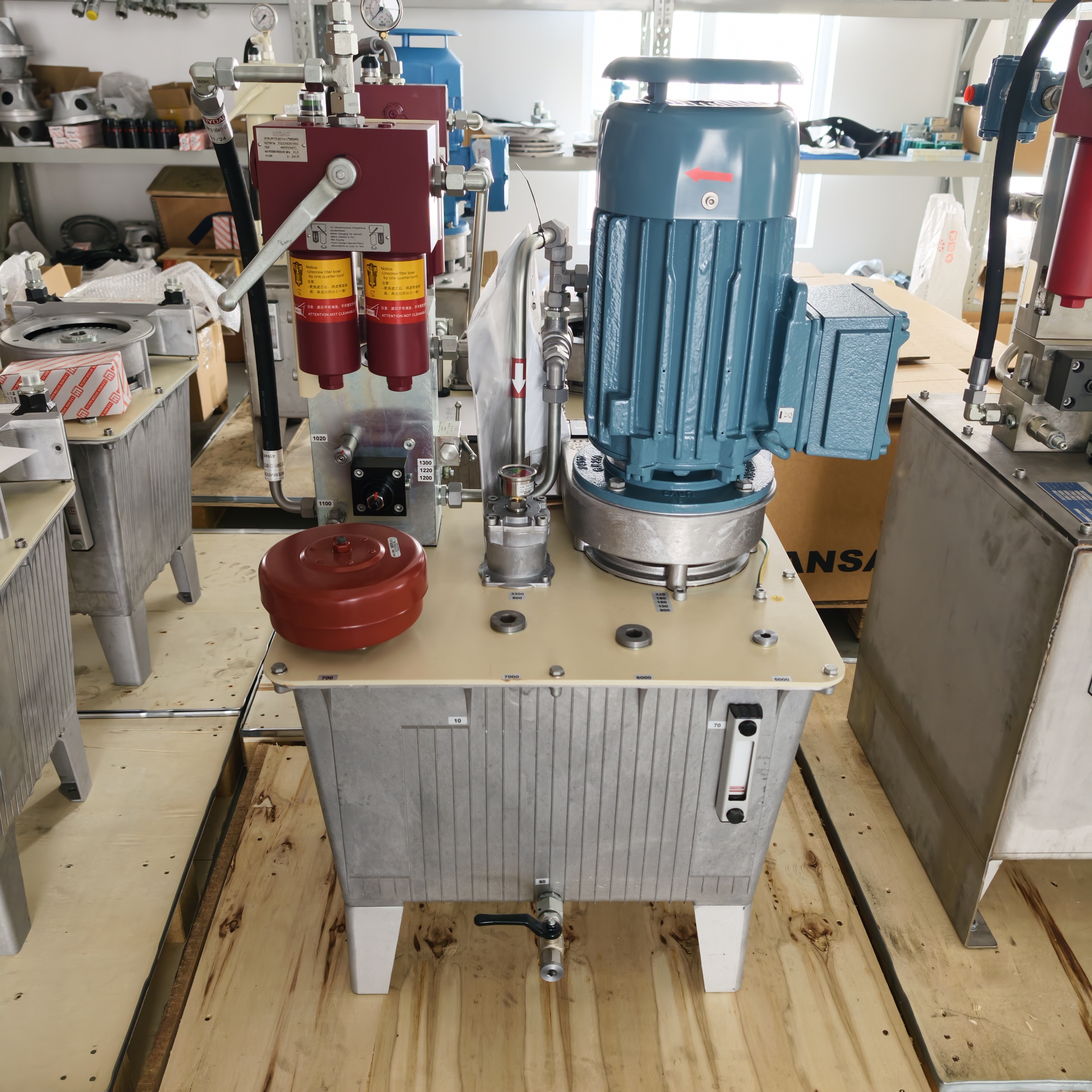

Abnormal noise in your equipment is an immediate acoustic indicator of impending mechanical failure and fluid degradation. When you hear whining, knocking, or squealing, internal components are already taking damage. Ignoring hydraulic system noise directly correlates with accelerated component wear, unplanned downtime, and exponential repair costs. Every hour of operation under these conditions multiplies the physical destruction inside your pumps and valves. You need a systematic framework for isolating the root cause of the noise. This approach helps you evaluate the severity of the underlying issue accurately. From there, you determine the most effective mitigation strategy. You must decide whether the situation requires a targeted repair, a component replacement, or a complete system overhaul. Addressing the acoustics early prevents catastrophic machinery failure and preserves fluid integrity.
Acoustic Signatures Indicate Specific Failures: Whining, knocking, and squealing point to distinct root causes, such as aeration, cavitation, or mechanical wear, requiring targeted diagnostic approaches.
Fluid Dynamics Drive Most Noise: Fluid-borne excitation, pressure ripples, recirculation, and turbulence are primary contributors; addressing fluid health often resolves secondary mechanical resonance.
Misdiagnosis Escalates Costs: Treating the symptom (e.g., dampening vibration) without addressing the root cause (e.g., pump cavitation) leads to catastrophic failure of the hydraulic system.
Strategic Evaluation is Required: Deciding between component repair, fluid system upgrades, or full replacement requires analyzing downtime costs, system scalability, and long-term reliability metrics.
Table of Contents
Understanding the difference between normal operational sounds and destructive noise dictates your maintenance response. Every machine has a baseline acoustic profile. This baseline consists of the standard hum of the electric motor, the rhythmic pulsation of the pump, and the fluid moving smoothly through the lines. Destructive noise breaks this pattern. It introduces high-pitched whining, erratic knocking, or sharp squealing. These sounds indicate the equipment is operating outside its designed parameters. Establishing a clear baseline allows maintenance teams to identify deviations immediately before they escalate into hard failures.
The operational implications of ignoring these acoustic warnings compound rapidly. Destructive noise often indicates a severe loss of volumetric efficiency. When a pump loses efficiency, it moves less fluid per rotation. This directly increases machine cycle times. Slower cycle times reduce overall production output and strain the prime mover. Excessive noise also creates significant safety compliance issues on the factory floor. OSHA enforces strict noise exposure limits in industrial environments, typically capping continuous exposure at 85 dBA over an eight-hour shift. Failing to address loud machinery results in safety violations and mandatory facility upgrades.
Ignoring the noise ultimately leads to total system failure. The progression of this failure follows a predictable path:
Initial Acoustic Warning: The system begins to whine or rattle under heavy load, indicating early-stage fluid aeration or minor cavitation.
Heat Generation: The inefficiency causing the noise generates excessive friction, spiking the fluid temperature above 140°F and degrading the oil's viscosity.
Component Scoring: Thinned oil fails to lubricate internal pump components, leading to metal-to-metal contact and surface scoring on valve plates and cylinder barrels.
Catastrophic Failure: The weakened components shatter. The pump sends metal shrapnel through the entire circuit, destroying downstream proportional valves, cylinders, and manifolds.
Fixing the problem means more than just throwing a sound-dampening blanket over the power unit. Mitigation success requires restoring baseline decibel levels. It requires eliminating fluid contamination and achieving stable pressure parameters. A successful repair stabilizes fluid temperatures and restores original machine cycle times. You know you have solved the issue when the equipment operates smoothly under maximum load without generating erratic acoustic spikes.
Aeration and cavitation sound similar to the untrained ear but require completely different troubleshooting approaches. Aeration occurs when outside air enters the fluid circuit. This air ingress typically happens on the suction side of the pump where pressure is lowest. Loose hose clamps, porous suction lines, or worn shaft seals draw atmospheric air into the fluid. The pump then compresses this air, creating a loud, erratic whining sound. The fluid in the reservoir will often look milky or heavily foamed. Aeration degrades the lubricity of the oil, leading to rapid metal-to-metal contact inside the pump.
Cavitation is a phase change phenomenon. It happens when the fluid vaporizes due to a sudden drop in pressure. If the pump cannot pull enough fluid through the suction line, the pressure drops below the vapor pressure of the oil. Vapor bubbles form. When these bubbles reach the high-pressure side of the pump, they collapse violently. This collapse creates a micro-implosion. The implosions tear metal away from valve plates and gear teeth. Cavitation sounds like marbles rattling inside the pump casing.
Characteristic | Aeration | Cavitation |
|---|---|---|
Root Cause | External air entering the suction line or reservoir. | Fluid vaporizing due to extreme pressure drops. |
Acoustic Profile | High-pitched, erratic whining. | Loud rattling, similar to gravel or marbles in the pump. |
Visual Symptoms | Milky, foamy oil in the sight glass. Spongy cylinder movement. | Clear oil, but pump casing becomes excessively hot. |
Common Culprits | Worn shaft seals, loose suction clamps, low fluid level. | Clogged suction strainers, high fluid viscosity, undersized hoses. |
Fluid viscosity and temperature extremes heavily influence both conditions. If the oil is too thick, often due to cold ambient temperatures, the pump struggles to draw it from the reservoir. This high viscosity creates the pressure drop that triggers cavitation. Conversely, if the oil is too hot, its viscosity drops. Thin oil easily leaks past worn seals, increasing the risk of aeration. Maintaining the correct operating temperature prevents these destructive fluid dynamics.
Mechanical wear generates distinct, easily identifiable noises. Failing bearings produce a rhythmic knocking or grinding sound. As the bearing rollers spall and degrade, they lose their smooth rotation. This degradation introduces heavy vibration into the pump shaft. Misaligned couplers also create severe mechanical noise. If the electric motor and the pump shaft are not perfectly aligned, the coupler binds during rotation. This binding produces a harsh, rhythmic clacking sound and destroys the shaft seals rapidly.
Worn pump internals contribute significantly to the acoustic profile. In a piston pump, worn piston shoes or a scored swashplate create a loud, repetitive knocking under pressure. The pistons slam against the swashplate instead of gliding smoothly. In a vane pump, worn vanes chattering against the cam ring produce a high-pitched scraping sound. These mechanical failures rarely happen in isolation. They are usually the secondary result of poor fluid health or prolonged cavitation.
A machine's mechanical and electrical geometry dictates operational acoustics. The physical layout of the motor, pump, and mounting brackets can amplify normal operating sounds. Rigid mounting without isolation pads transfers pump vibration directly into the machine frame. The frame then acts like a speaker cone, broadcasting the mechanical noise across the facility. Proper mechanical isolation controls these acoustic emissions.
Fluid-borne excitation is a massive contributor to overall noise. Uneven fluid flow creates turbulence inside the piping. When fluid hits a sharp 90-degree elbow or a restrictive fitting, the flow becomes chaotic. This turbulence generates high-frequency vibrations in the pipe walls. Restrictive piping forces the fluid to travel at excessive velocities. High fluid velocity strips the inner lining of hoses and creates a loud rushing sound. Designing circuits with sweeping bends and properly sized lines minimizes this turbulence.
Fluid recirculation and incorrect valve settings create localized hotspots and noise. If a relief valve is set too close to the operating pressure, it constantly cracks open and closed. This rapid movement creates pressure ripples. These ripples travel backward through the fluid, causing hoses to jump and vibrate. Recirculation through a partially open valve shears the fluid, generating massive amounts of heat and a distinct hissing noise.
Low pressure settings often lead to bypass valve squeal. When a valve forces fluid through a tiny orifice at high velocity, it generates a high-frequency squeal. This sound is common in systems where the pressure compensator is unstable. The valve spool oscillates rapidly, trying to find equilibrium. Adjusting the pressure settings or replacing a worn valve spring usually eliminates this specific acoustic signature.
Pump vibrations do not stay isolated at the pump. They travel through the fluid and the rigid piping. These vibrations cause overflow valves, hydraulic hoses, and structural mounts to resonate. Every physical component has a natural frequency. If the pump's pulsation matches the natural frequency of a steel pipe, that pipe will vibrate violently. This resonance amplifies the initial noise, making a small pump issue sound like a massive structural failure.
Proper clamping is the primary defense against structural resonance. Hoses and steel lines must be secured with heavy-duty, vibration-dampening clamps. Standard U-bolts are insufficient. They crush the pipe and provide no acoustic isolation. Using proper clamps breaks the resonance chain. It prevents the transfer of vibration from the fluid lines into the machine chassis, significantly reducing the overall noise footprint.
You must map specific sounds to likely failures to diagnose issues efficiently. Relying on guesswork wastes time and money. A high-pitched whining sound almost always points to aeration or cavitation. If the sound changes pitch as the fluid warms up, suspect cavitation due to viscosity issues. If the sound remains constant regardless of temperature, look for air leaks on the suction side.
Rhythmic knocking indicates mechanical failure. This sound correlates directly with the rotational speed of the pump. If the knocking speeds up as the motor RPM increases, you are dealing with bearing spalling or piston shoe failure. High-frequency squealing points to fluid bypassing under pressure. This squeal usually originates at the relief valve, the pressure compensator, or a severely scored cylinder piston. Mapping these sounds narrows your diagnostic focus immediately.
Acoustic Signature | Likely Root Cause | Immediate Diagnostic Action |
|---|---|---|
High-Pitched Whining | Aeration / Air Ingress | Check reservoir fluid level; inspect suction line for leaks. |
Marbles Rattling | Cavitation | Check fluid viscosity; clear suction strainer blockages. |
Rhythmic Knocking | Bearing / Piston Failure | Perform vibration analysis; check case drain flow. |
High-Frequency Squealing | Relief Valve Bypass | Check pressure settings; inspect valve spool for scoring. |
Harsh Clacking | Coupler Misalignment | Inspect motor/pump alignment; check spider insert wear. |
A rigorous visual inspection protocol is your first line of defense. You can identify most acoustic issues before ever attaching a gauge. Follow a strict walk-around procedure to isolate the fault:
Inspect the Reservoir: Check the fluid levels in the sight glass. Low fluid creates a vortex at the pump inlet, sucking air directly into the system. Look for a layer of foam on top of the oil, which guarantees aeration.
Check Temperature Gradients: Use an infrared thermometer to scan the pump casing, relief valves, and cylinders. A localized hot spot on a valve body indicates internal bypassing and fluid shear.
Feel for Vibration: Grab the suction hose and feel for excessive vibration. Inspect the motor mounts for cracked welds or missing bolts. A loose mounting bracket causes the entire assembly to vibrate, mimicking internal pump failure.
Perform the Silicone Test: While the pump is running and whining, spray silicone lubricant around the pump shaft seal and suction line fittings. If the pitch of the whine suddenly changes or quiets down, you have found your air leak. The silicone temporarily seals the gap, altering the acoustics.
Physical inspections require checking the mechanical connections. Tightening a few loose mounting bolts often resolves severe acoustic issues without requiring any component replacement. Do not overlook the simple mechanical fasteners before assuming a pump has failed.
When physical inspections fall short, you must deploy advanced diagnostic tools. Ultrasonic detectors find internal leaks that are invisible to the naked eye. When fluid bypasses a worn valve spool under high pressure, it generates ultrasonic frequencies. These frequencies are inaudible to the human ear. An ultrasonic detector translates these high-frequency sounds into an audible signal. This tool allows you to pinpoint exactly which valve is leaking internally without removing it from the manifold.
Vibration analysis moves your diagnostics beyond subjective listening. A vibration analyzer measures the exact frequency and amplitude of the mechanical movement. By comparing the vibration data against the pump's rotational speed, you identify specific bearing defects or gear mesh issues. This empirical evidence prevents unnecessary teardowns and ensures you target the correct mechanical fault.
Fluid particle counters provide the ultimate proof of internal wear. If a pump is knocking, a particle counter reveals a spike in metallic contamination. Analyzing the size and composition of the particles tells you exactly what is failing. Bronze particles indicate worn piston shoes or valve plates. Steel particles point to bearing or gear failure. Combining fluid analysis with acoustic profiling guarantees an accurate diagnosis.
Upgrading components directly impacts system longevity and acoustic performance. Installing a low-noise pump design, such as a continuous gear pump, drastically reduces baseline noise. These pumps feature specialized gear profiles that eliminate fluid trapping and pressure spikes. Installing pulsation dampeners near the pump outlet absorbs fluid-borne excitation before it reaches the rigid piping. These dampeners act like shock absorbers for the fluid, smoothing out the pressure ripples.
You must carefully evaluate when to rebuild an existing pump versus specifying a new unit. Rebuilding makes sense if the wear is limited to easily replaceable items like seals, bearings, and valve plates. If the main pump housing is scored or the wear tolerances exceed manufacturer specifications, a rebuild will fail prematurely. You must also assess coupler integrity. A severely worn shaft spline dictates a complete pump replacement. Always base this decision on lifecycle reliability, not just the upfront repair price.
Hose replacement is often overlooked as a noise mitigation strategy. Old, brittle hoses transmit vibration much more readily than new, flexible ones. Upgrading to hoses with a higher pressure rating and thicker outer covers provides better acoustic insulation. Replacing restrictive hard piping with properly sized flexible hoses eliminates turbulence and reduces fluid velocity, instantly lowering the noise floor.
Upgrading your fluid management system yields a massive return on investment. Poor fluid health is the root cause of most Hydraulic System failures. Start by assessing your filtration. Upgrading to high-efficiency glass media filters removes the microscopic particles that cause abrasive wear. Clean fluid prevents the internal scoring that leads to valve squeal and pump bypassing. Implement offline kidney-loop filtration to maintain fluid cleanliness without relying solely on the main system flow.
Reservoir modifications directly combat aeration and recirculation. Installing high-quality desiccant breather caps prevents atmospheric moisture and dirt from entering the tank. Redesigning reservoir baffles forces the returning fluid to travel a longer path before reaching the pump suction. This increased dwell time allows entrained air bubbles to rise to the surface and escape. Proper baffling also prevents hot return oil from being immediately drawn back into the pump.
Fluid viscosity management is equally critical. If your equipment operates in extreme temperatures, you must use multi-grade hydraulic oils with a high viscosity index. These oils maintain a stable thickness across a wide temperature range. Stable viscosity prevents cold-start cavitation and high-temperature aeration. Installing thermostatically controlled oil heaters and coolers ensures the fluid remains within its optimal operating window.
Sometimes the noise originates from a fundamental design flaw. You must evaluate if the current setup is undersized for the application. If a machine has been upgraded to run faster or push heavier loads, the original piping may be too small. Undersized lines force the fluid to travel at excessive velocities. This high velocity creates massive turbulence, heat, and noise. Redesigning the circuit to handle the increased flow is the only permanent solution.
Resizing hoses and steel lines requires calculating the correct fluid velocity. Suction lines should keep fluid velocity between 2 and 4 feet per second. Return lines should stay between 10 and 15 feet per second. Pressure lines can handle up to 20 feet per second. Using nomograms to select the correct inner diameter based on your pump's flow rate eliminates restrictive bottlenecks. Proper sizing stops fluid-borne excitation at the source.
Correcting mechanical alignment and adjusting bypass valve settings complete the optimization process. Use laser alignment tools to ensure the motor and pump shafts are perfectly concentric. Perfect alignment eliminates coupler chatter and bearing side-loading. Adjust all relief valves and pressure compensators using calibrated gauges. Setting these valves to the correct differential pressures prevents spool oscillation and eliminates high-frequency squealing.
Misdiagnosis is the most expensive mistake you can make in fluid power maintenance. The risk of replacing an expensive pump when the actual root cause was a minor suction line leak is incredibly high. If you replace a cavitating pump without fixing the clogged suction strainer, the new pump will destroy itself within days. You must treat the root cause, not just the acoustic symptom. Relying solely on the sound without verifying the fluid dynamics leads to catastrophic repair loops.
Another common misdiagnosis involves structural resonance. Mechanics often spend hours replacing valves and hoses trying to stop a loud vibration. In reality, the issue might be a single broken pipe clamp transferring normal pump pulsation into the machine frame. Failing to perform a thorough physical inspection before ordering parts wastes maintenance budgets and extends unplanned downtime unnecessarily.
You must balance the upfront cost of comprehensive diagnostics against long-term reliability. Advanced tools like ultrasonic detectors and vibration analyzers require a capital investment. Premium replacement parts, such as low-noise pumps and high-efficiency filters, cost more than standard components. This upfront expenditure prevents the exponential costs associated with destroyed downstream components. Investing in diagnostics stops the parts-cannon approach to maintenance.
The long-term value of these interventions is measured in extended maintenance intervals and zero unplanned downtime. A machine that runs quietly is a machine that runs efficiently. By eliminating cavitation, aeration, and turbulence, you drastically extend the lifespan of the fluid and the mechanical components. This proactive approach shifts your maintenance strategy from reactive firefighting to predictable, scheduled servicing.
To ensure the effectiveness of your intervention, you must establish routine verification protocols. Post-repair, establish a new vibration and acoustic baseline. Record the decibel levels and vibration signatures while the machine operates under full load. This new baseline serves as your reference point for future inspections. If the noise begins to creep back up, you have early warning data.
Implement routine fluid analysis as a mandatory maintenance task. Pull oil samples every 500 operating hours. Send these samples to a lab to check for particle counts, water contamination, and additive depletion. Fluid analysis acts as a blood test for your machinery. It provides empirical proof that your filtration upgrades and reservoir modifications successfully prevent wear and aeration.
Schedule a comprehensive fluid analysis to establish a baseline for particulate contamination, water content, and additive depletion.
Perform a walk-around acoustic audit using an ultrasonic detector to map baseline decibel levels across all power units.
Inspect and tighten all suction line fittings and replace any degraded shaft seals to eliminate potential air ingress points.
Upgrade standard reservoir breathers to high-efficiency desiccant models to control moisture and airborne particulates.
Verify motor-to-pump alignment using a laser alignment tool to eliminate mechanical binding and coupler chatter.
A: Aeration occurs when external air is drawn into the fluid, usually through suction line leaks or worn seals, creating a milky fluid appearance and a whining noise. Cavitation happens when fluid vaporizes due to low pressure, forming bubbles that violently collapse inside the pump. Cavitation sounds like rattling marbles and causes severe metal pitting.
A: A whining pump under load typically indicates aeration or severe fluid restriction. The pump struggles to draw enough fluid, or it compresses entrained air bubbles. This sound also occurs if the fluid viscosity is too high due to cold temperatures, restricting flow into the pump inlet.
A: Yes. Low fluid levels create a vortex in the reservoir, sucking air directly into the pump and causing loud aeration. Incorrect viscosity creates suction restrictions leading to cavitation. Oil that is too thin bypasses internal seals, causing high-frequency squealing and increased mechanical wear.
A: Pressure ripples occur when valves rapidly open and close, sending shockwaves through the fluid. These waves hit the rigid walls of hoses and pipes, causing them to vibrate violently. Fluid recirculation through partially open valves creates turbulence and high-velocity shear, further amplifying structural vibration and noise.
A: It depends on the internal damage. If wear is limited to seals, bearings, and minor surface scoring, rebuilding is cost-effective. If the main housing is heavily gouged by cavitation, or the drive shaft splines are severely worn, replacing the unit ensures long-term reliability and prevents premature secondary failures.
A: A bypass valve squeals when fluid is forced through a very small orifice at extremely high velocity. This happens if the pressure setting is unstable, the valve spring is worn, or the spool oscillates rapidly. Adjusting the pressure or replacing the worn internal components resolves the high-frequency noise.
A: While the pump is running and whining, carefully spray silicone lubricant around suspected suction line fittings and the pump shaft seal. If the pitch of the whine changes or quiets down temporarily, the silicone has sealed the gap. This pinpoints the exact location of the air ingress.
