In high-pressure industrial and mobile applications, system reliability hinges entirely on the precise specification and integration of core hydraulic architecture. Mismatching parts or misunderstanding the operational limits of individual components leads to catastrophic system failures, thermal inefficiency, fluid contamination, and unacceptable downtime. Moving beyond basic definitions, this guide breaks down the five foundational categories of fluid power architecture. We provide the technical evaluation criteria, performance variances, and engineering trade-off analyses required to design or upgrade a resilient system. By mastering the interaction between these elements, you can engineer circuits that deliver precise load control, maintain thermal stability, and operate leak-free under extreme conditions.

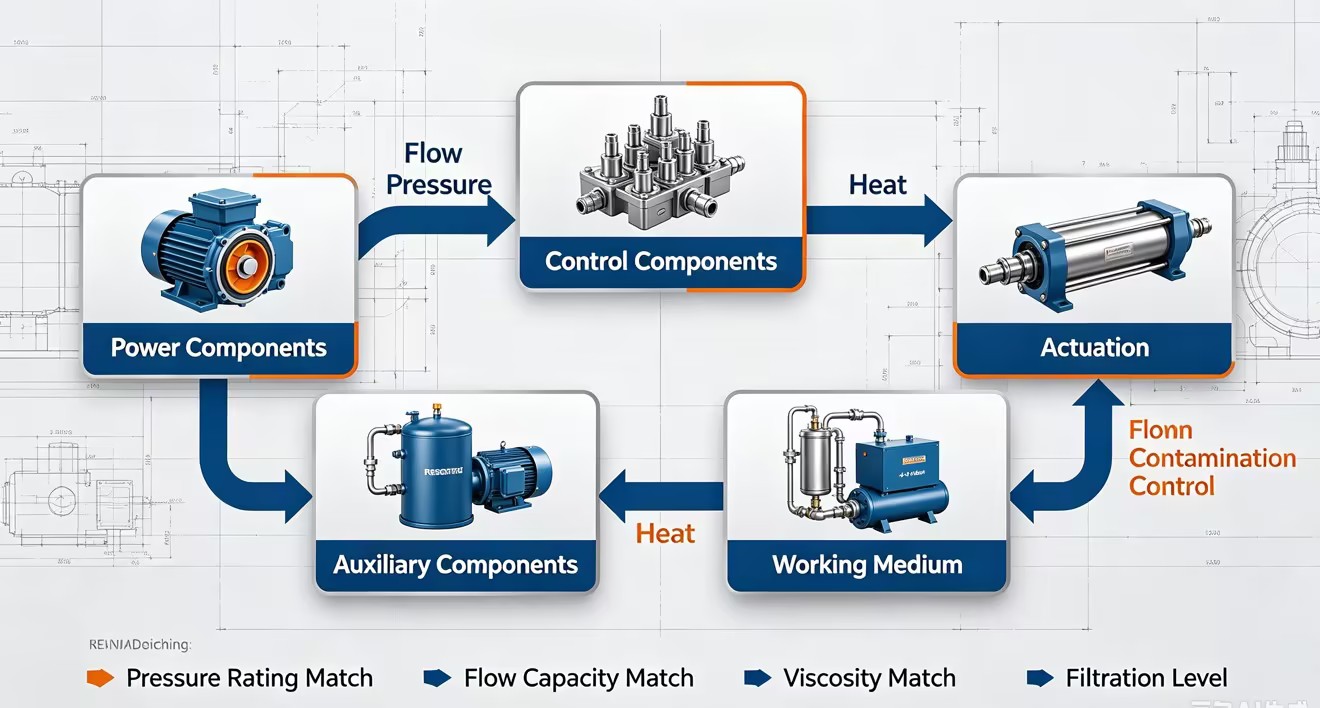

System Synergy: A hydraulic circuit is only as reliable as its weakest link; power sources, control valves, actuation mechanisms, auxiliary systems, and fluid must be perfectly matched for pressure ratings and flow capacities.
Cost vs. Precision Trade-offs: Selecting between gear, vane, and piston pumps—or standard vs. servo valves—dictates both the upfront capital expenditure and the system's operational precision.
Contamination & Leakage Control: Auxiliary components (like reservoirs and conductors) and fluid selection are often treated as afterthoughts, yet they account for over 75% of hydraulic component failures.
Table of Contents
Defining what constitutes a successful hydraulic circuit requires clear performance criteria. Engineers must account for precise load control, thermal stability, energy efficiency, footprint constraints, and leak-free operation. A failure in one area compromises the entire machine. The core function of any fluid power system is energy transfer. The lifecycle begins by converting mechanical energy from a prime mover into fluid power. This pressurized fluid travels through a network of controls and conductors before reaching an actuator, where it converts back into mechanical energy to perform actual work.

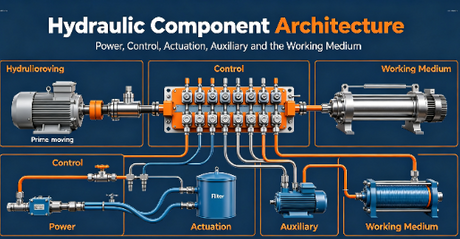

Industry frameworks sometimes list reservoirs or conductors as standalone categories. However, engineering best practices establish a unified framework of five major categories. These consist of Power, Control, Actuation, Auxiliary, and the Working Medium. Understanding how these five pillars interact is the first step in specifying reliable hydraulic system components. When you align the flow capacity of the pump with the logic of the valves and the physical limits of the actuators, you create a highly efficient energy transfer mechanism.
Thermal stability remains a constant challenge across this architecture. As fluid moves through valves and fittings, pressure drops occur. These pressure drops generate heat. If the auxiliary components cannot dissipate this heat, the working medium degrades, leading to sluggish actuator response and accelerated wear on pump internals. Therefore, evaluating component interaction requires a holistic view of fluid dynamics, heat load, and mechanical stress.
Power components serve as the generation stage of the circuit. It is a common misconception that pumps generate pressure. In reality, pumps generate flow. Pressure is simply the result of resistance to that flow within the system. The pump must deliver enough fluid volume to overcome system resistance, driven continuously by a mechanical power source.
The prime mover acts as the initial power source. Evaluating electric motors versus internal combustion engines requires a strict focus on matching the prime mover's RPM, torque curves, and horsepower to the pump's input requirements. An undersized electric motor will stall under peak load, while an oversized diesel engine wastes fuel and increases the machine's footprint. Proper shaft alignment between the prime mover and the pump prevents premature bearing failure.
Selecting the right pump topology dictates the efficiency and pressure capabilities of the entire circuit. Engineers typically choose from three main designs:
Gear Pumps: These offer high durability and handle fluid contamination better than other designs. They fit perfectly into fixed-displacement, lower-pressure applications. While they lack high volumetric efficiency, their ruggedness makes them a staple in mobile equipment.
Vane Pumps: Offering quieter operation and wear-compensating designs, vane pumps fit mid-pressure industrial environments. As the vanes wear down, centrifugal force pushes them further out, maintaining a tight seal against the cam ring.
Piston Pumps (Axial and Radial): These units provide exceptional high-pressure capability and variable displacement options. By adjusting the swashplate angle, a piston pump alters its flow output without changing the prime mover's RPM. This feature drives advanced energy efficiency in complex circuits.
Matching pump displacement (measured in GPM or LPM) and maximum operating pressure (PSI or Bar) to the prime mover's horsepower is a strict mathematical requirement. You must also calculate the actuator's flow demand to ensure the pump maintains the required cycle times. If the pump delivers too much flow, the excess fluid dumps over the relief valve, generating massive amounts of heat.
Implementation risks center heavily around fluid dynamics at the pump inlet. Cavitation occurs when the pump cannot draw enough fluid, causing vapor bubbles to form and violently collapse against internal metal surfaces. Mitigating this risk requires properly sized inlet lines, adequate reservoir pressurization, and strict adherence to the manufacturer's inlet pressure requirements. Tighter pump tolerances—especially in piston designs—demand rigorous contamination control to prevent catastrophic scoring of the internal rotating groups.
Control components act as the logic center of the circuit. They direct fluid routing, limit maximum system pressure, and meter flow rates to dictate actuator speed and force. Without precise valving, fluid power is uncontrollable and highly dangerous. Specifying the correct valves ensures that heavy loads move smoothly, hold their position securely, and stop exactly when required.
Valves fall into three distinct categories based on their function within the circuit. Directional Control Valves (DCVs) determine the path the fluid takes. They utilize various spool configurations to route fluid to different actuator ports. Actuation methods range from manual levers to electrical solenoids. Standard mounting interfaces, such as ISO or CETOP, allow engineers to stack valves into compact manifolds, saving space and reducing plumbing complexity.
Pressure control valves protect the circuit and ensure safe load holding. Relief valves act as the primary safety mechanism, opening to dump fluid back to the tank when system pressure exceeds a safe threshold. Pressure reducing valves step down the pressure for specific sub-circuits, while sequence valves ensure that one hydraulic operation completes before another begins. Flow control valves regulate actuator speed. Pressure-compensated flow controls maintain a constant speed regardless of load fluctuations, whereas non-compensated options allow speed to vary as the load changes.
Deciding between standard bang-bang directional valves, proportional valves, or servo valves dictates the machine's precision. Standard valves simply open or close, causing abrupt starts and stops. Proportional valves allow for smooth acceleration and deceleration by varying the spool position based on the electrical input signal. Servo valves provide closed-loop, high-frequency precision, making them mandatory for applications requiring exact positioning, such as aerospace testing rigs or automated manufacturing robotics.
When integrating these Hydraulic Components, you must calculate the pressure drop across the valve manifolds. Every restriction in the fluid path causes a drop in pressure, which directly translates into heat generation and energy loss. Oversizing valves wastes space, while undersizing them creates excessive heat. Proper manifold design minimizes internal coring restrictions and optimizes the flow path to keep the circuit running cool.
Actuators represent the execution stage of the system. This is where hydraulic energy performs actual physical work, such as lifting heavy machinery, pressing metal, rotating a drill string, or clamping a workpiece. The efficiency of the entire circuit culminates at the actuator. If the actuator is improperly sized or poorly maintained, the power generated by the pump and routed by the valves is ultimately wasted.
Actuators divide into linear and rotary designs. Linear actuators, commonly known as hydraulic cylinders, provide straight-line push and pull forces. Single-acting cylinders use fluid power to extend and rely on gravity or a spring to retract. Double-acting cylinders use fluid power for both extension and retraction. Construction styles vary widely. Tie-rod cylinders are standard in industrial factories, welded cylinders dominate rugged mobile equipment, and telescopic cylinders provide long strokes from a compact retracted footprint.
Rotary actuators, or hydraulic motors, provide continuous torque and rotational motion. Much like pumps, they come in gear, vane, and piston configurations. Gear motors are robust and simple, vane motors offer smooth rotation, and piston motors deliver massive starting torque and high-speed capabilities for demanding applications like winch drives and wheel motors.
Sizing a cylinder requires basic fluid power mathematics. The output force equals the system pressure multiplied by the piston's surface area. However, engineers must also size the rod correctly to prevent buckling under heavy compressive loads. Sizing hydraulic motors involves calculating the required starting torque to break the load loose, the running torque to keep it moving, and the RPM necessary to achieve the desired speed.
Implementation risks in actuation often involve mechanical stress and seal degradation. Side-loading on cylinder rods causes uneven wear on the bearings and seals, leading to premature leaks. Specifying the appropriate seal material prevents failure. Nitrile works well for standard mineral oils, Viton handles high temperatures, and Polyurethane offers exceptional abrasion resistance. Engineers must mitigate stick-slip phenomena at low speeds by selecting low-friction seal profiles and ensuring the fluid possesses adequate lubricity.
Auxiliary components form the support infrastructure of the hydraulic circuit. They condition the fluid, store it, and transport it between the primary components. While pumps and valves often receive the most engineering attention, auxiliary systems dictate the longevity and reliability of the entire machine. Poor filtration, undersized reservoirs, and restrictive plumbing account for the vast majority of premature field failures.
The reservoir does much more than hold fluid. A properly designed tank allows contaminants to settle, air bubbles to dissipate, and heat to radiate away from the fluid. Standard sizing rules suggest a reservoir capacity of 2.5 to 3 times the pump's GPM output. Internal baffling forces the fluid to take a longer path from the return line to the suction line, maximizing de-aeration and cooling time.
Filtration systems are the primary defense against component wear. Circuits typically employ a combination of pressure line filters to protect sensitive valves, return line filters to catch debris before it enters the tank, and kidney-loop (off-line) filtration for continuous fluid polishing. Evaluating filter performance requires looking at Beta ratios and absolute micron ratings. High-performance servo valves and piston pumps demand strict fluid cleanliness, often requiring filtration down to 3 or 5 microns absolute.
Conductors—including hoses, tubes, and pipes—must be sized with the proper internal diameters to maintain optimal fluid velocity. Excessive velocity causes turbulent flow, which generates heat and damages the inner lining of hoses. Fittings and connectors must also be carefully evaluated. O-ring face seals (ORFS) provide superior leak resistance in high-vibration environments compared to traditional JIC flared fittings. Heat exchangers (either air-cooled radiators or water-cooled chillers) maintain optimal fluid viscosity during continuous duty cycles.
Comparison of Common Hydraulic Fitting Types | |||
Fitting Type | Sealing Mechanism | Vibration Resistance | Ideal Application |
|---|---|---|---|
JIC (37° Flare) | Metal-to-metal flare | Moderate | Standard industrial and mobile circuits |
ORFS (O-Ring Face Seal) | Elastomeric O-ring compression | Excellent | High-vibration, high-pressure environments |
NPT (National Pipe Thread) | Tapered thread deformation | Poor | Low-pressure suction or return lines only |
BSP (British Standard Pipe) | Metal-to-metal or bonded seal | Good | European manufactured equipment |
Routing conductors improperly leads to abrasion and premature hose bursts. Minimizing 90-degree fittings reduces pressure drops and keeps the system efficient. Preventing water and particulate ingress into the reservoir is paramount. High-quality desiccant breather caps strip moisture and dirt from the air as the fluid level fluctuates.
The hydraulic fluid is the lifeblood of the system. It is responsible for power transmission, lubrication of moving parts, sealing tight clearances, and transferring heat away from internal components. Treating the fluid as a highly engineered component, rather than a generic commodity, maximizes system uptime.
Petroleum or mineral-based fluids remain the industry standard. They are highly effective, readily available, and offer excellent lubricity for pump and motor internals. Synthetic fluids provide superior high-temperature stability and oxidation resistance, making them suitable for extreme environments where mineral oils would break down rapidly. Fire-resistant fluids, such as water-glycol mixtures or invert emulsions, are legally required in hazardous environments like die casting facilities, steel mills, and underground mining operations where a ruptured hose could spray fluid onto an ignition source.
Evaluating fluid performance involves checking the Viscosity Index (VI). A high VI means the fluid maintains a stable viscosity across a wide temperature range, preventing sluggish operation in the cold and excessive internal leakage in the heat. Bulk modulus measures the stiffness of the fluid. A higher bulk modulus means the fluid compresses less under pressure, which is vital for precise actuator control. Anti-wear (AW) additive packages form a protective sacrificial film on metal surfaces to prevent scoring.
Fluid degradation severely impacts the lifecycle of all other components. As fluid ages and operates at high temperatures, oxidation occurs. This leads to varnish build-up on valve spools, causing them to stick. Monitoring fluid health through regular oil analysis allows operators to track particulate counts, water saturation, and additive depletion, ensuring the working medium remains capable of protecting the system.
Designing a reliable circuit requires a structured approach to specification. You must define the load and duty cycle before selecting any hardware. Continuous operation generates significantly more heat than intermittent operation, dictating larger reservoir sizing, robust cooling requirements, and heavy-duty prime movers. Understanding the exact mechanical force required ensures you do not oversize the cylinders, which would unnecessarily increase the flow demand on the pump.
System integration focuses on prime mover compatibility. The electric motor or diesel engine must handle the pump's peak torque demands without stalling. This requires mapping the pump's pressure-flow curve against the engine's torque curve. Environmental and compliance factors also play a major role. Adhering to ISO standards ensures global parts compatibility. ATEX directives dictate specific component designs for explosive environments. Environmental regulations often mandate specifying biodegradable fluids for forestry, marine, or agricultural applications to prevent ecological damage during a hose failure.
Vendor selection and supply chain reliability influence your engineering choices. Evaluating OEMs and distributors based on parts availability, technical support, and interoperability prevents lengthy machine downtime. Standardizing on specific valve mounting patterns and fitting types across your fleet simplifies maintenance and reduces the need to stock a massive variety of spare parts.
Map out exact load requirements, cycle times, and duty cycles before selecting pump displacement or cylinder bore sizes.
Perform a comprehensive thermal analysis to size heat exchangers and reservoirs accurately based on expected pressure drops.
Standardize fitting types across the entire circuit to eliminate potential leak points and simplify maintenance.
Implement kidney-loop filtration systems on continuous-duty machines to maintain strict ISO cleanliness codes.
Consult a certified fluid power engineer to validate component compatibility and review circuit schematics before finalizing procurement.
A: While the pump generates the necessary flow, the hydraulic fluid itself is often considered the most essential component. The fluid transmits power, lubricates moving parts, and dissipates heat. If the fluid degrades or becomes contaminated, it directly impacts the performance, efficiency, and lifespan of every other component in the circuit.
A: No, the power source is a mechanical component, known as the prime mover. However, it is fundamentally tied to the hydraulic system. The prime mover provides the rotational mechanical energy required to drive the hydraulic pump. Properly matching the prime mover's horsepower and torque to the pump is essential.
A: Choose a gear pump for lower-pressure, fixed-displacement applications where durability and contamination tolerance are priorities. Choose a piston pump for high-pressure, continuous-duty applications requiring variable displacement. Piston pumps offer superior efficiency and control but require stricter fluid filtration and higher initial investment.
A: Hydraulic components, especially proportional valves and piston pumps, operate with microscopic internal clearances. Particulate contamination acts like an abrasive, scoring metal surfaces, causing internal leakage, and leading to catastrophic failure. Proper filtration removes these particles, maintaining system efficiency and preventing premature component wear.
A: Premature cylinder failure is most commonly caused by side-loading, which puts uneven stress on the rod bearings and seals. Other major causes include fluid contamination scoring the cylinder barrel, extreme temperature spikes degrading the elastomeric seals, and pressure spikes exceeding the cylinder's structural design limits.
A: Fluid replacement should be based on regular oil analysis rather than a strict operating hour schedule. Oil analysis checks for particulate contamination, water ingress, oxidation, and additive depletion. If the fluid remains clean and chemically stable, it can often safely operate well beyond generic recommended intervals.
