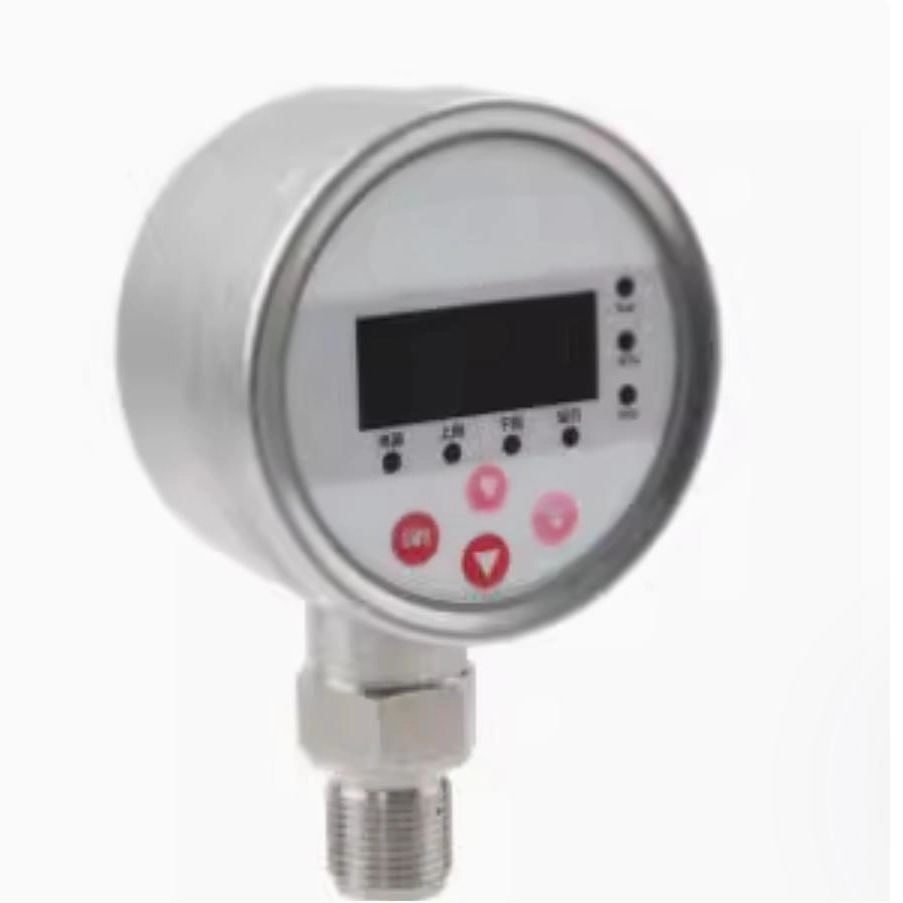

Digital Pressure Relay PS480

PS480 series digital pressure relay High precision diffused siliconmeasuring core, full electronic structure, accurate real-time pressuremeasurement, and has high accuracy, good long-term stability.Simple operation, easy installation, flexible product use. The productshell is made of 304 stainless steel material, good structural stability,good shock resistance, and can measure water pressure, air pressureoil pressure, hydraulic pressure and other non-corrosive media ofstainless steel. Suitable for equipment supporting, pressure protection, constant pressure control and other pressure monitoring andprotection conditions.
-Highlighted LED real-time pressure displaySuper resistance to overpressure design, prevent the instrumentfrom overpressure damage-International pressure unit conversion

Quantity:
Availability:





Inquire Add to Basket

Model:
PS480
Brand:
MDP Hydraulics

Product Category

Technical parameter

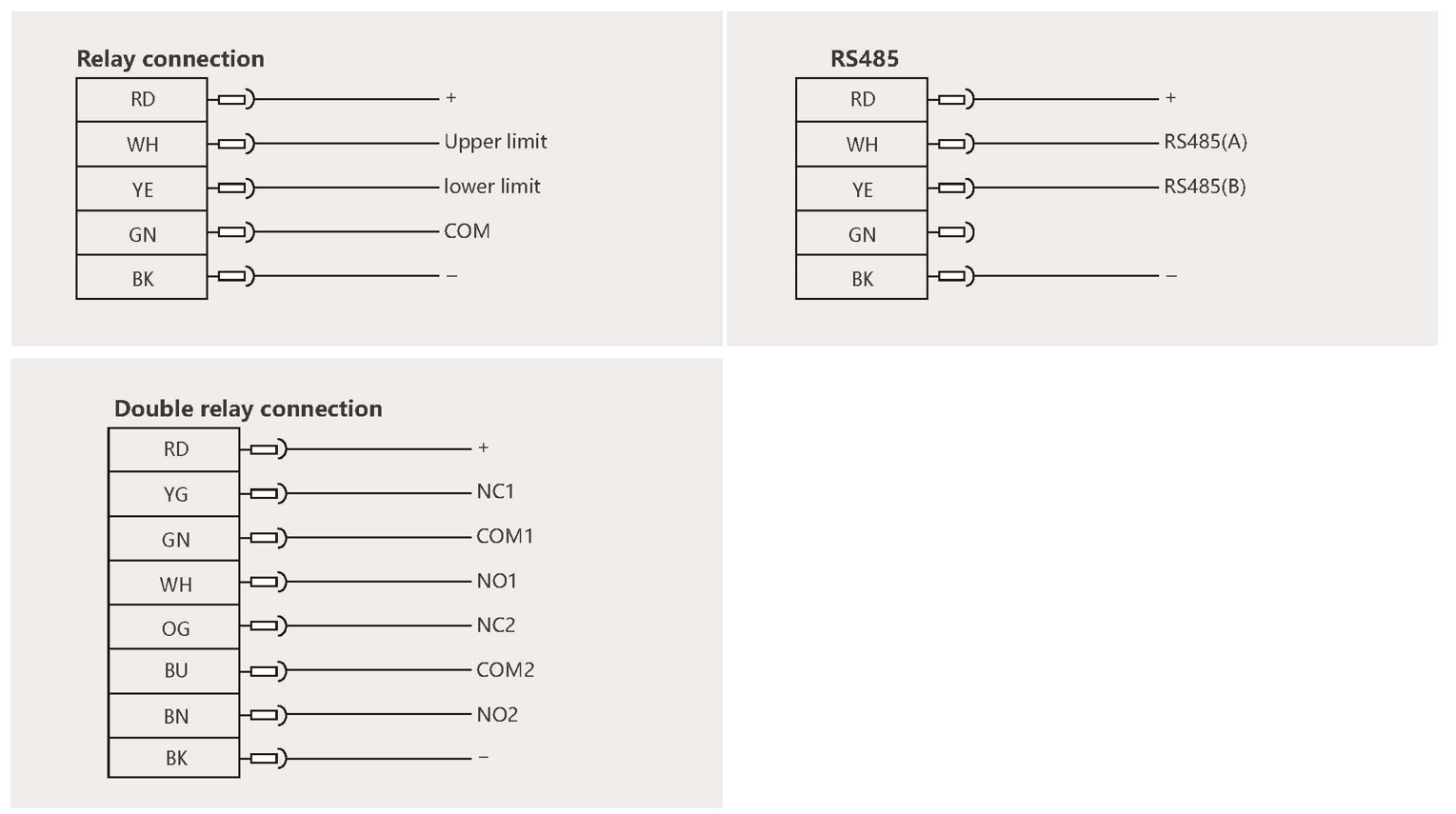

Wiring diagram

Digital pressure relay PS480

Selection list

Measuring range:-100kPa~0...0~5kPa... 100MPa	Sampling frequency: 10ms
Accuracy level: 0.5(default).0.25	Operating temperature:-20~70°C
Power supply voltage: 24VDC/220VAC optional	Long-term stability: +0.2%FS/ year
Pressure type: gauge pressure (default)	Material: 304 stainless steel shell and joint,
absolute pressure, negative pressure	316L stainless steel isolation diaphragm
Display mode: 4-digit LED display
Display range: -1999~9999

ScreenShot_2025-11-28_110447_372

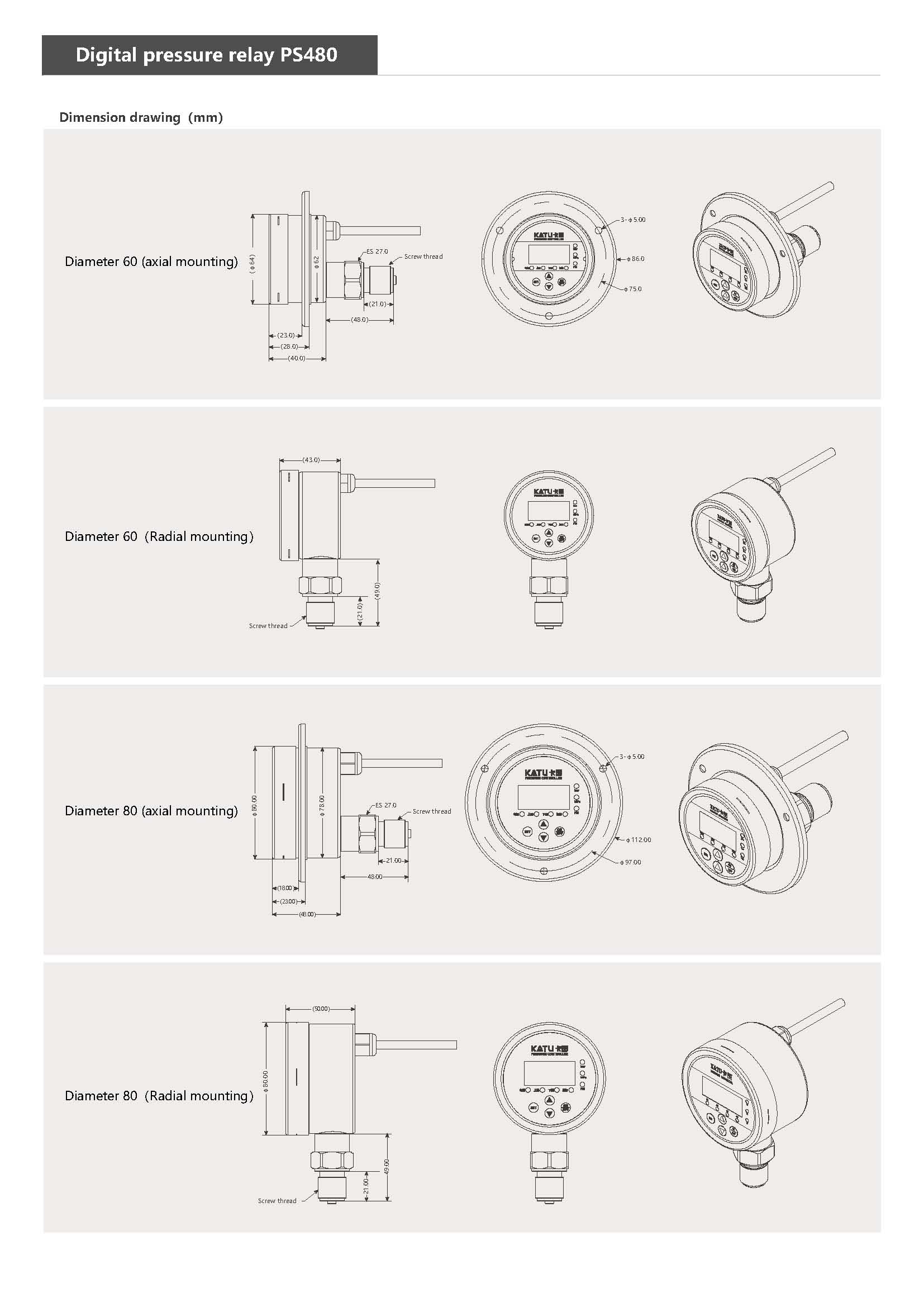

Unlock-PS480 Digital Pressure Relay（EN）_页面_2

PS480-	6	R	D	B	M20	M	-	Instructions
PS480-								PS480 Digital Pressure Relay
	6							Dial diameter 60mm
	8							Dial diameter 80mm
		R						Radial type
		A						Axial type
			D					Output mode: Single relay(5 cores)
			S					Output mode: Dual relay(8 cores)
			R					Output mode:RS485 communication(4-cores)(Only 60 watch heads are available for selection)
				-				See range table
					M20			Process connection: M20*1.5 thread(installation thread default)
					G14			Process connection: G1/4 thread
					G12			Process connection: G1/2 thread
					R14			Process connection: R1/4 thread
					R38			Process connection: R3/8 thread
					N14			Process connection: NPT1/4 thread
					N12			Process connection: NPT1/2 thread
					M14			Process connection: M14*1.5 thread
						M		Male thread
						K		Internal thread
							-	Measurement accuracy: 0.5% (factory default)
							02	Measurement accuracy:0.25%
