Digital Temperature Controller TS480

The TS480 series digital temperature controller features a high-precisionplatinum resistance measurement core, an all-electronic structure, capableof accurately and in real time measuring temperature. lt also boasts highprecision and excellent long-term stability. The operation is simple,installation is convenient and the product is flexible to use. The productshell is made of 304 stainless steel, featuring excellent structural stabilityand shock resistance. lt is suitable for various temperature monitoring andprotection conditions such as equipment matching, temperature protec-tion, and constant temperature control.-High-brightness LED real-time displayConversion of internationally recognized temperature units

Quantity:
Availability:





Inquire Add to Basket

Model:
TS480
Brand:
MDP Hydraulics

Product Category

Technical parameters

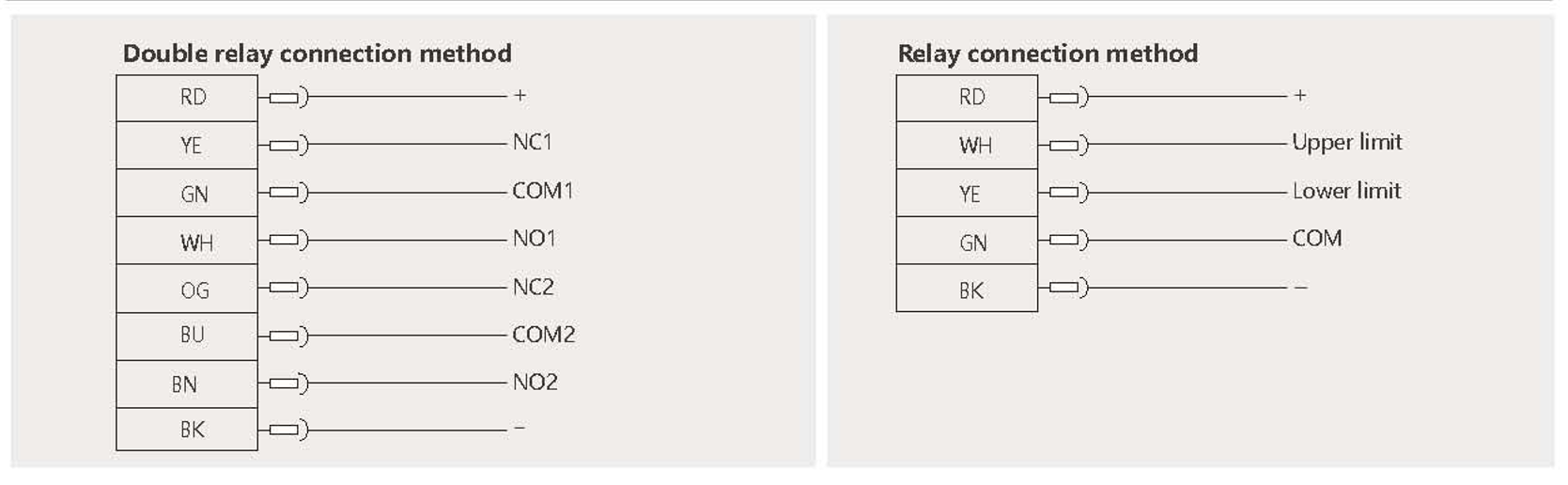

Wiring diagram

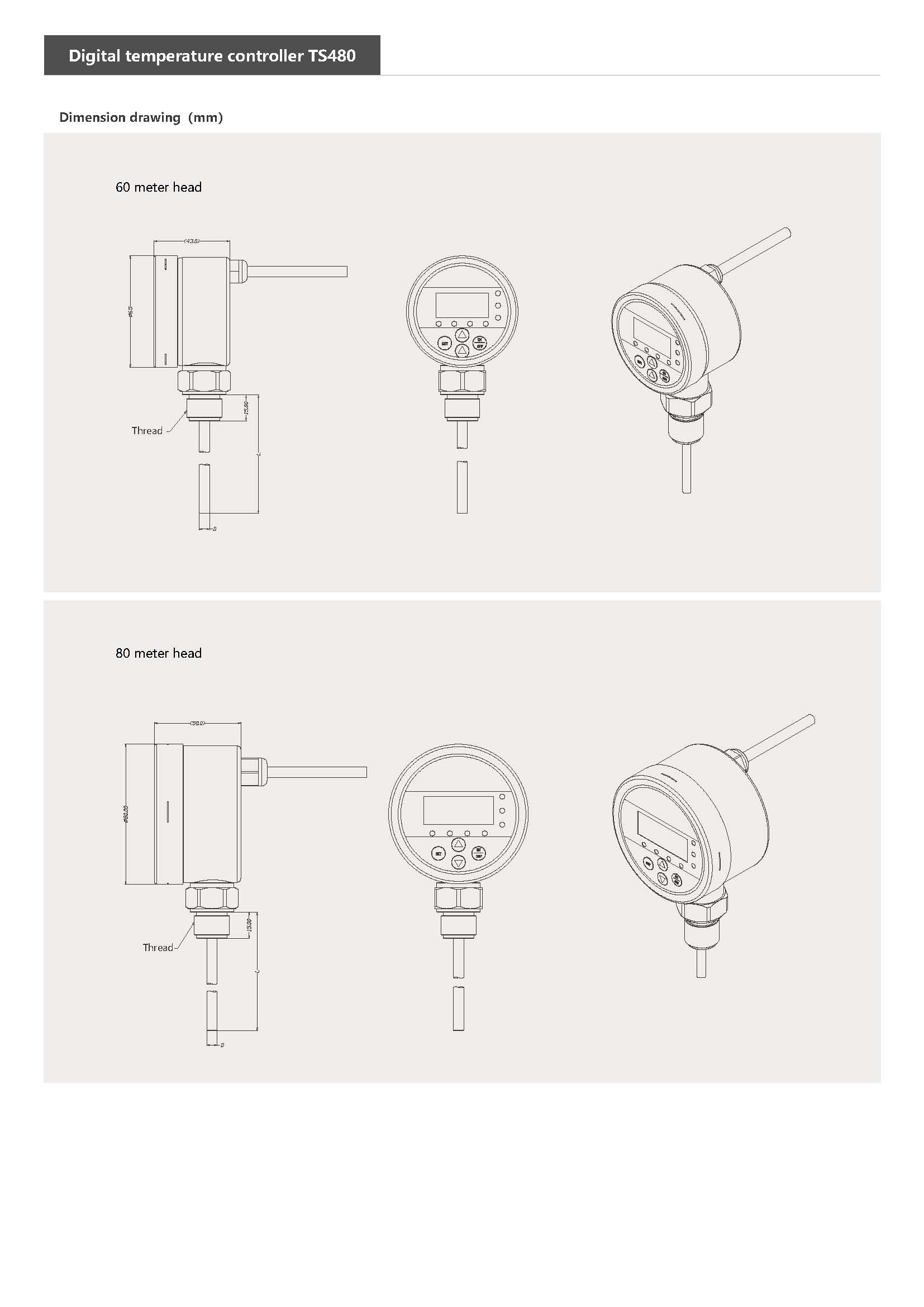

Dimension drawing(mm)

Selection table

Measuring range:-200..600°C	Display range: -1999 to 9999
Accuracy class:+1.0°C	Sampling frequency:10ms
Supply voltage:24VDC	Operating temperature: -20 to 70°C
Display mode: 4-digit LED display	Product material: 304 stainless steel shell and joints

ScreenShot_2025-11-27_100025_221

Unlock-TS480 Digital Temperature Controller（EN）_页面_2

TS480-	6	C20100	D	M20	025	D6	Elaborate
TS480-							TS480 Diqital pressure controller
	6						The dial diameter is 60mm
	8						The dial diameter is 80mm
		C20100					Temperature range:-20...100°C
		C50150					Temperature range:-50...150°C
		C200250					Temperature range:-200..250°C
			D				Output mode: Single relay (5-core wire)
			S				Output mode:Dualrelays(8-core wire)
				M20M			Process connection: M20*1.5 thread
				G14M			Process connection: G1/4 external thread
				G12M			Process connection: G1/2 external thread
				R14M			Process connection:R1/4 external thread
				R38M			Process connection:R3/8 external thread
				N14M			Process connection:NPT1/4 external thread
				N12M			Process connection: NPT1/2 external thread
				M14M			Process connection:M14*1.5 external thread
					025		Rod length (excluding threads):25mm
					050		Rod length (excluding threads) : 50m m
					100		Rod length (excluding threads):100mm
					150		Rod length (excluding threads):150mm
					200		Rod length (excluding threads):200mm
					250		Rod length (excluding threads):250mm
					300		Rod length (excluding threads):300mm
					350		Rod length (excluding threads):350mm
					400		Rod length (excluding threads):40mm
					450		Rod length (excluding threads):450mm
					500		Rod length (excluding threads):500mm
						D6	Probe diameter:6mm
						D8	Probe diameter:8mm
