Product Introduction

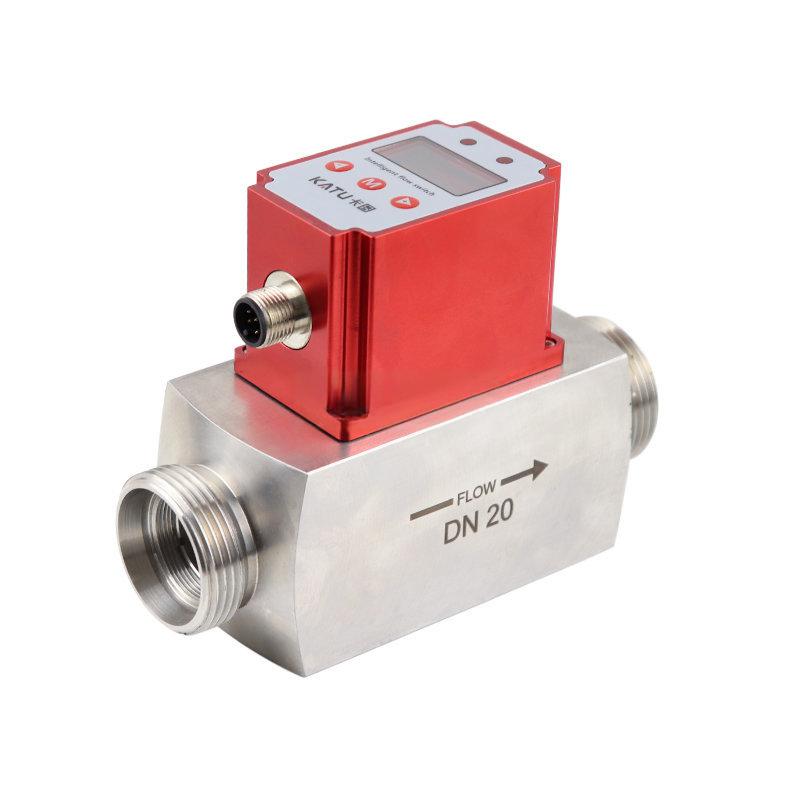

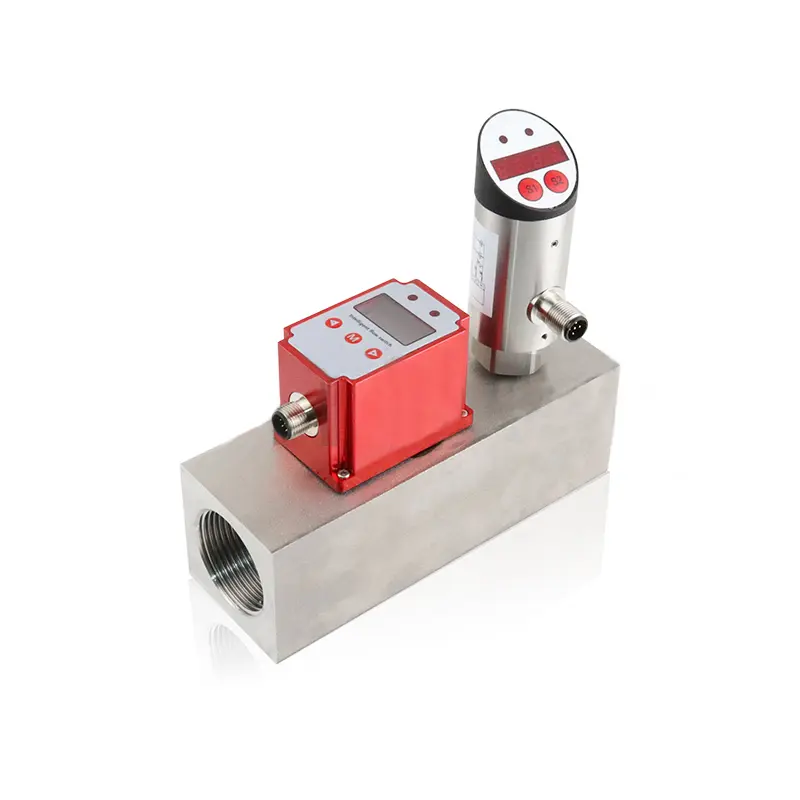

The FM160 Electronic Turbine Flow & Temperature Sensor is designed for accurate monitoring of flow rate and fluid temperature in hydraulic and industrial systems. Featuring a high-precision turbine sensor with digital display, it delivers stable, real-time measurement for lubrication, cooling, and test applications. Widely used in hydraulic equipment and petrochemical processes, the FM160 helps operators optimize system performance and reduce maintenance risks.
Contact us now for technical details, fast delivery, and OEM support.
Product Specifications
| Parameter Category | Technical Specification |
|---|
| Measurement Caliber | DN6 … DN50 |
| Power Supply Voltage | 16 … 30 VDC |
| Output Type | Switching output (PNP / NPN); Analog output (4–20 mA); Pulse output |
| Output Current | < 500 mA |
| Response Time | < 10 ms |
| Switching Accuracy | ≤ ±0.5% of full range |
| Analog Output Accuracy | ≤ ±0.5% of full range |
| Wiring Protection | Reverse polarity, overload, short-circuit protection |
| Display Type | OLED LCD screen |
| Rated Pressure | Up to 400 bar |
| Measured Temperature Range | 0 … 100 °C |
| Ambient Temperature | −20 … 80 °C |
| Storage Temperature | −30 … 80 °C |
| Temperature Accuracy | ≤ ±1% of full range |
| Housing Material | Aluminum alloy / 304 stainless steel |
| Turbine Material | Duplex stainless steel |
| Protection Grade | IP67 |

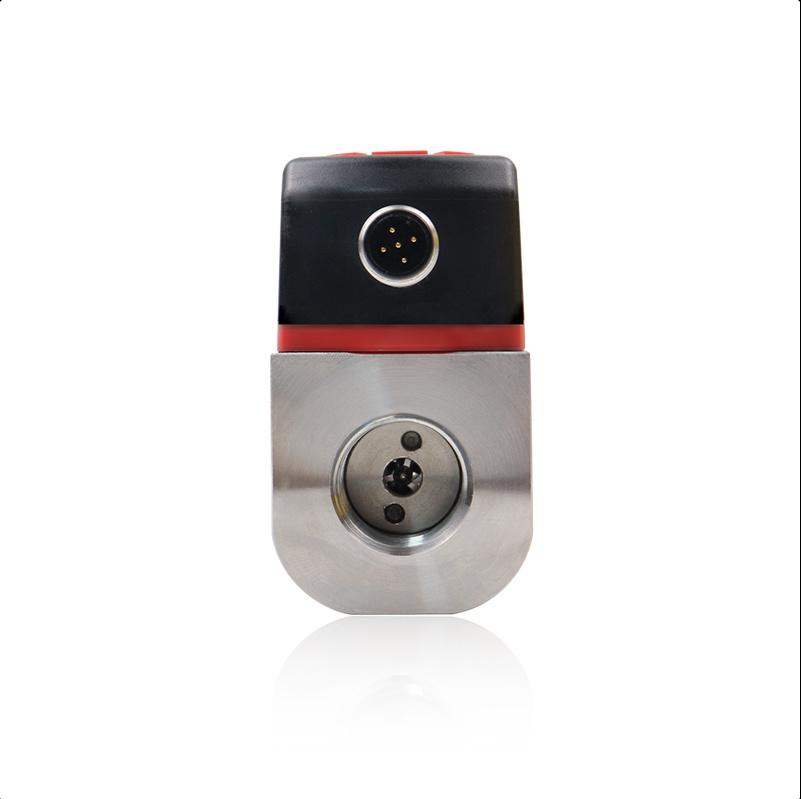

| Electrical Connection | M12×1 connector |
Features & Benefits
High-Precision Turbine Measurement
The turbine sensing element provides accurate and repeatable flow measurement, enabling precise monitoring of system performance and helping prevent energy loss or improper lubrication.
Integrated Flow & Temperature Monitoring
Combining flow rate and temperature in one compact device reduces installation complexity and minimizes leakage points, improving overall system reliability.

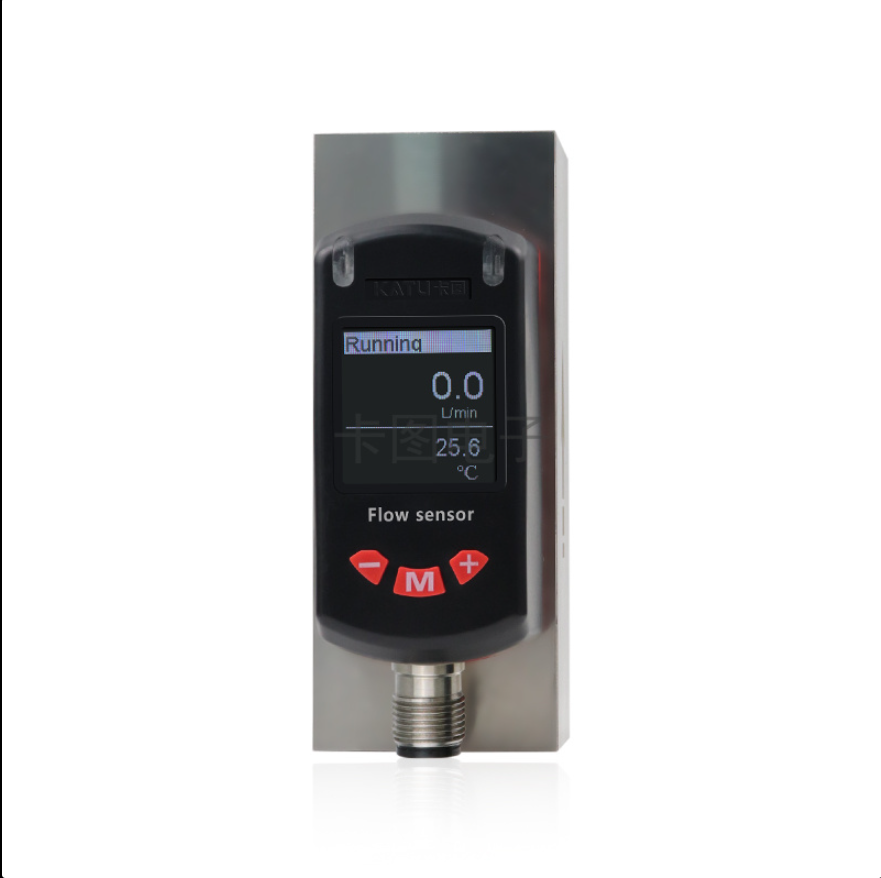

Clear Digital Display for On-Site Reading
The built-in digital display allows operators to read real-time data directly on site, reducing reliance on external instruments and speeding up troubleshooting.
Wide Media Compatibility
Suitable for hydraulic oil, lubrication oil, cooling water, and light industrial fluids, making it a versatile solution for multiple industrial applications.
Industrial-Grade Construction
Durable materials and robust sealing ensure stable operation under harsh industrial conditions, extending service life and lowering maintenance costs.
Easy Installation & Maintenance
Standard threaded connections and compact design allow quick integration into existing pipelines with minimal downtime.
Application
Hydraulic lubrication systems for monitoring oil flow and temperature to prevent pump and bearing failure
Petrochemical process lines requiring stable and repeatable liquid flow measurement
Test benches and calibration equipment for hydraulic component testing
Industrial cooling systems to ensure proper coolant circulation and thermal control
FAQ
Q1: What fluids can the FM160 flow sensor measure?
It is suitable for hydraulic oil, lubrication oil, cooling water, and other low-viscosity industrial liquids.
Q2: Does the sensor measure both flow and temperature?
Yes. The FM160 integrates flow rate and temperature measurement in a single unit.
Q3: What output signals are available?
Depending on configuration, digital display, pulse output, or analog signals such as 4–20 mA may be available.
Q4: Is the sensor suitable for high-pressure hydraulic systems?
Yes. It is designed for industrial hydraulic environments. Please confirm the exact pressure rating for your application.
