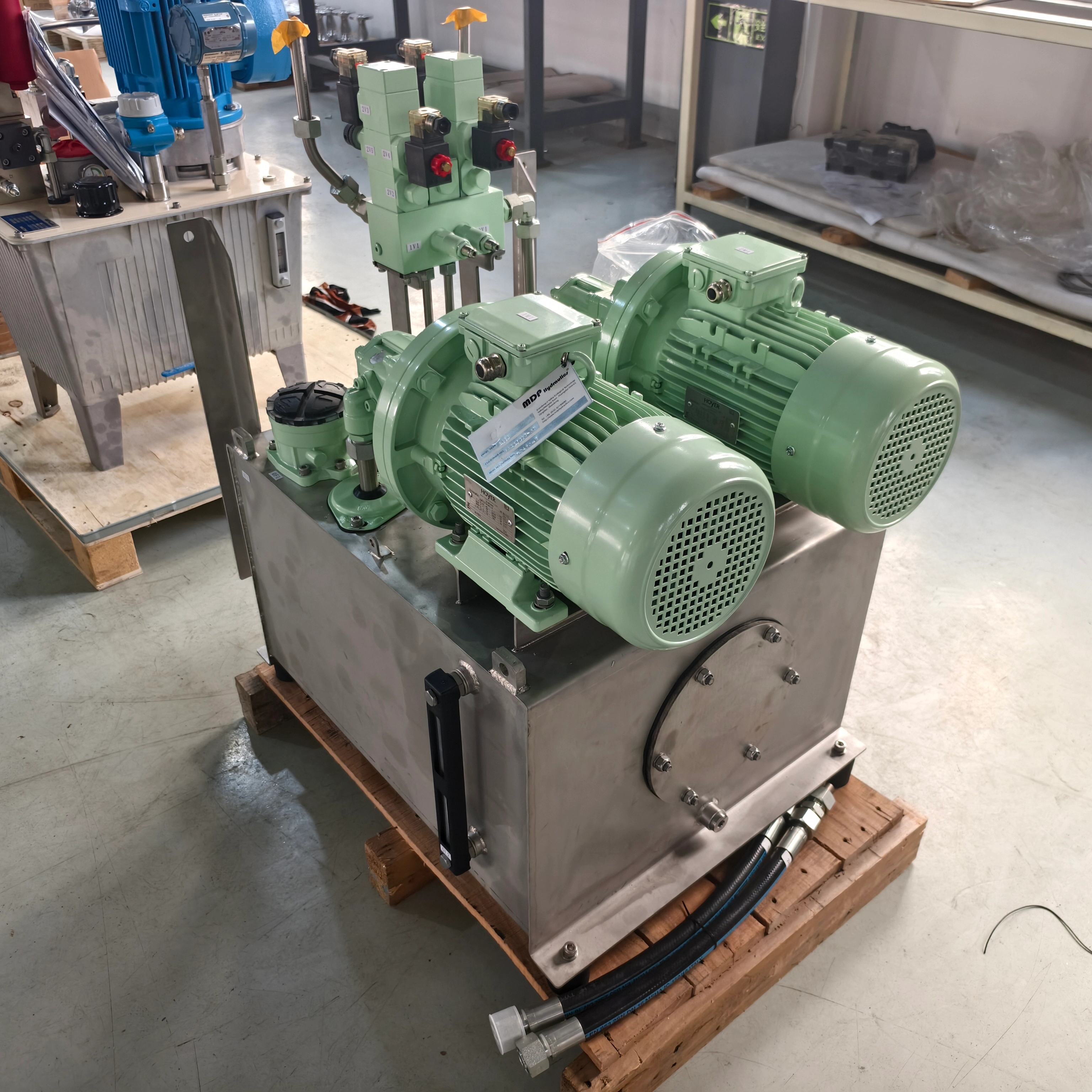

Fuel tank component installation
Cable tray installation brackets
Oil-return type filter EFRN3BCB-06F10-P2R
Clean the lid
Breathing port EFA003BCP01.G34 Clean the lid
Cable tray installation brackets
Level and temperature switch EAVL-T-G1-200-B-NC-T70 NO
Check valve
Manhole cover YG-250CM10 (6 nuts)
G12 pipe thread cap

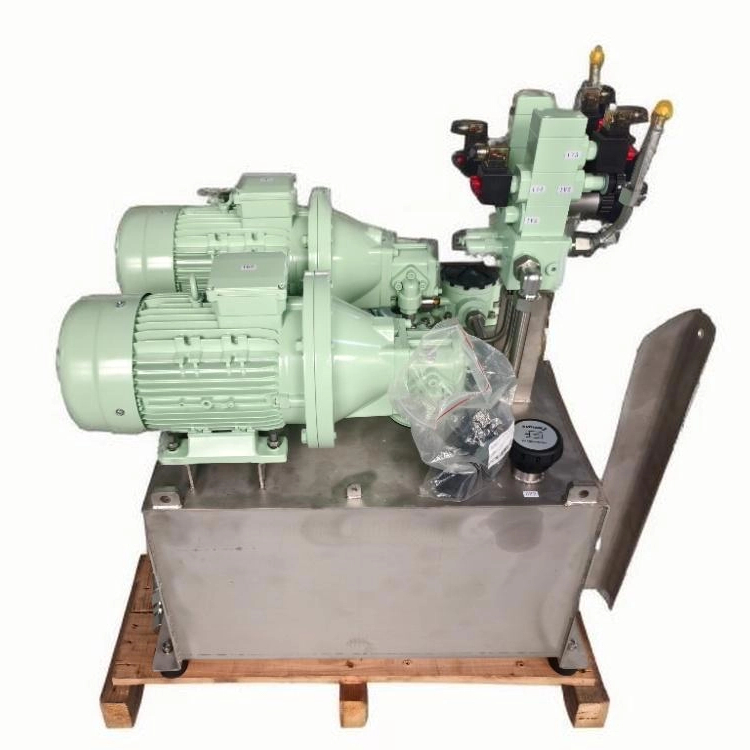

Installation of the electric pump unit
Motor / MOTOR
3.0kW, 400V, 150Hz, 440W, 7690V/60Hz. B35, 1P5 Hoyer
Oil pump / PUMMP
ALP2-D-12.8 5cc
Outlet port end direct connection joint
100532.1
Inlet port end direct connection joint (another one)
100509.1
In and out oil port flanges, 2 RPA2-012-M140-G1/2
Install the pump end coupling and tighten it.
Measure the distance from the edge of the bell-shaped cover to the main body of the pump end coupling. EG:L1=78mm
Install the motor end coupling until the coupling body is level with the motor shaft end.
Then measure the distance between the top of the motor coupling and the motor flange. EG:L2-75mm
L1-L2=3mm

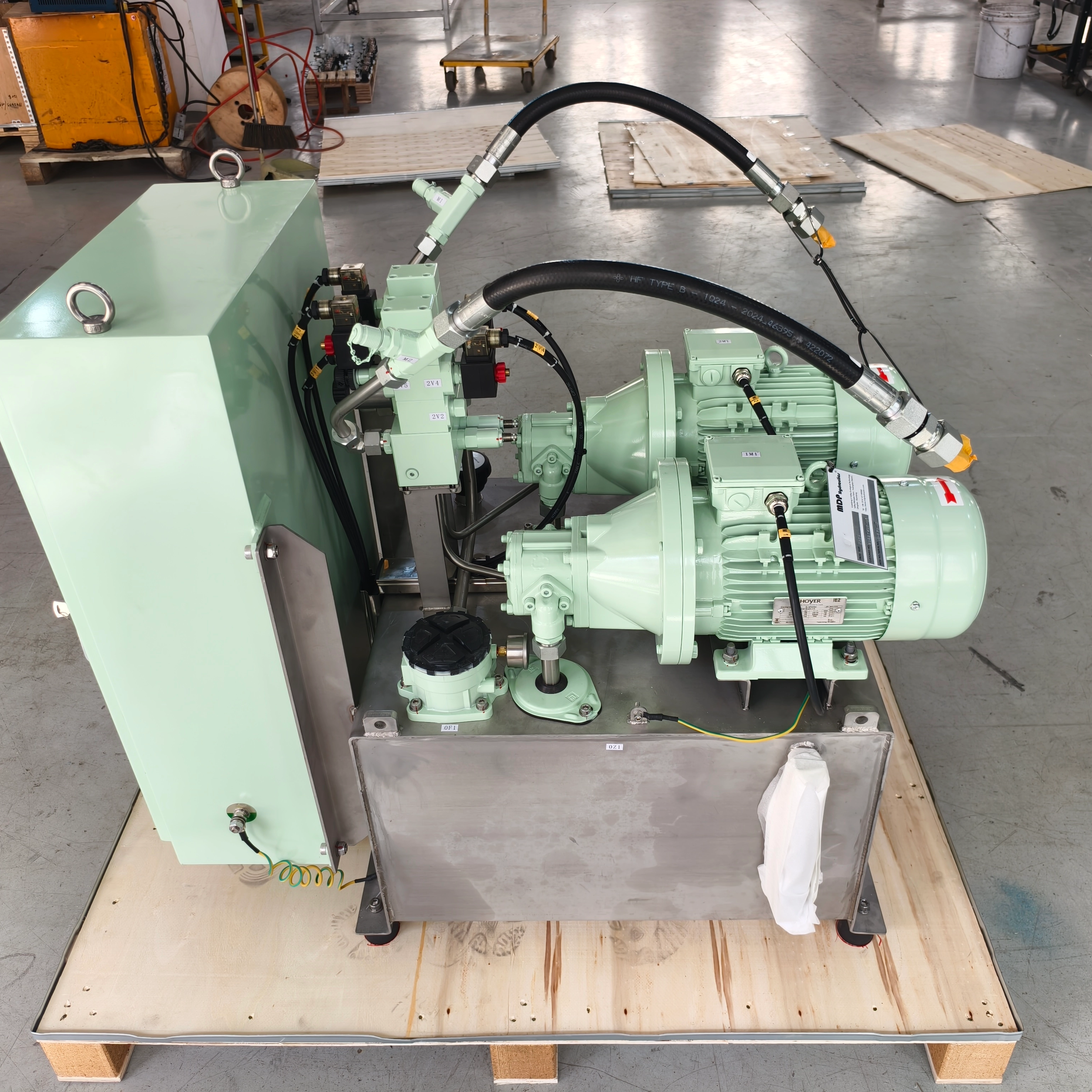

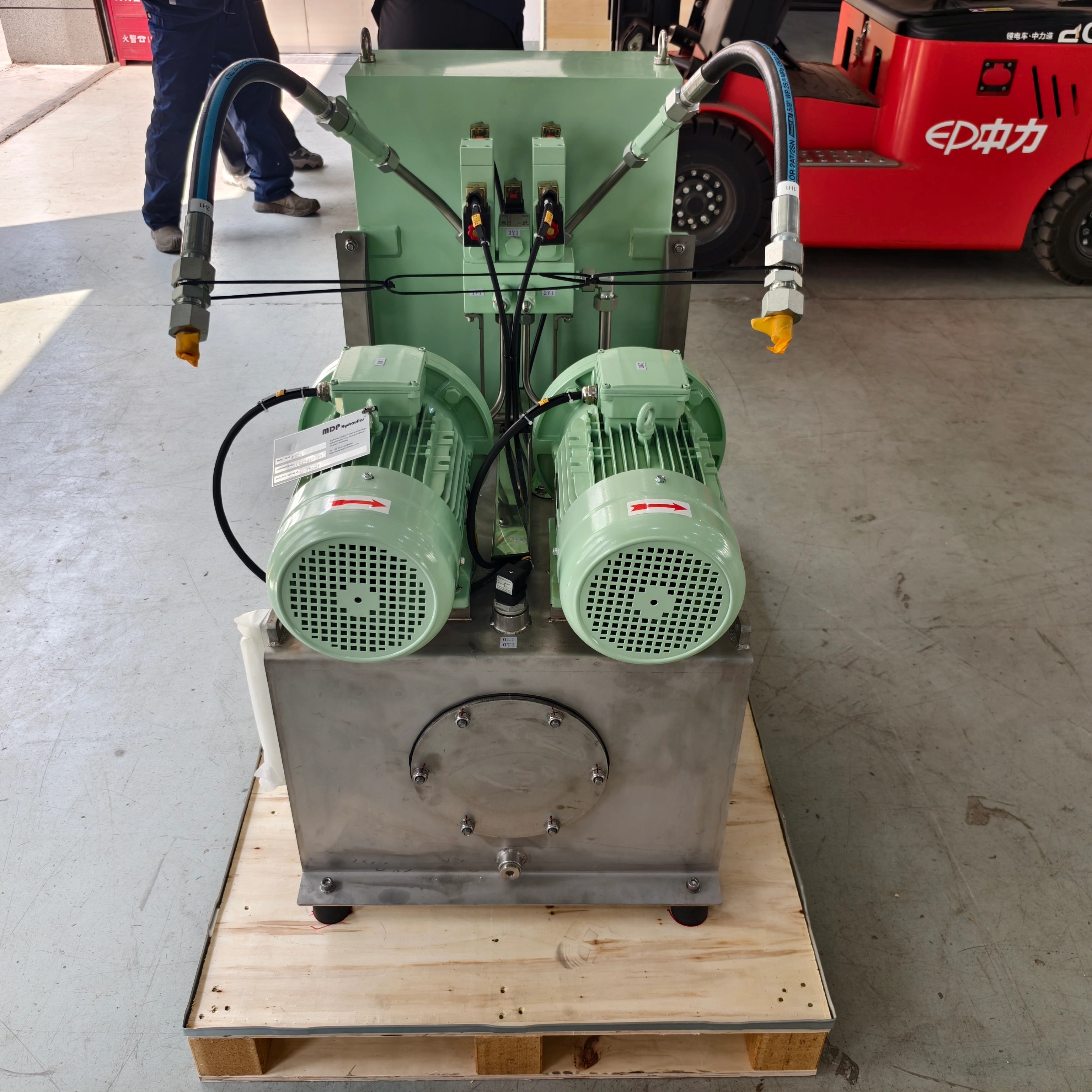

Final Assembly
Pressure measurement connector
S16 pipe
L12 pipe

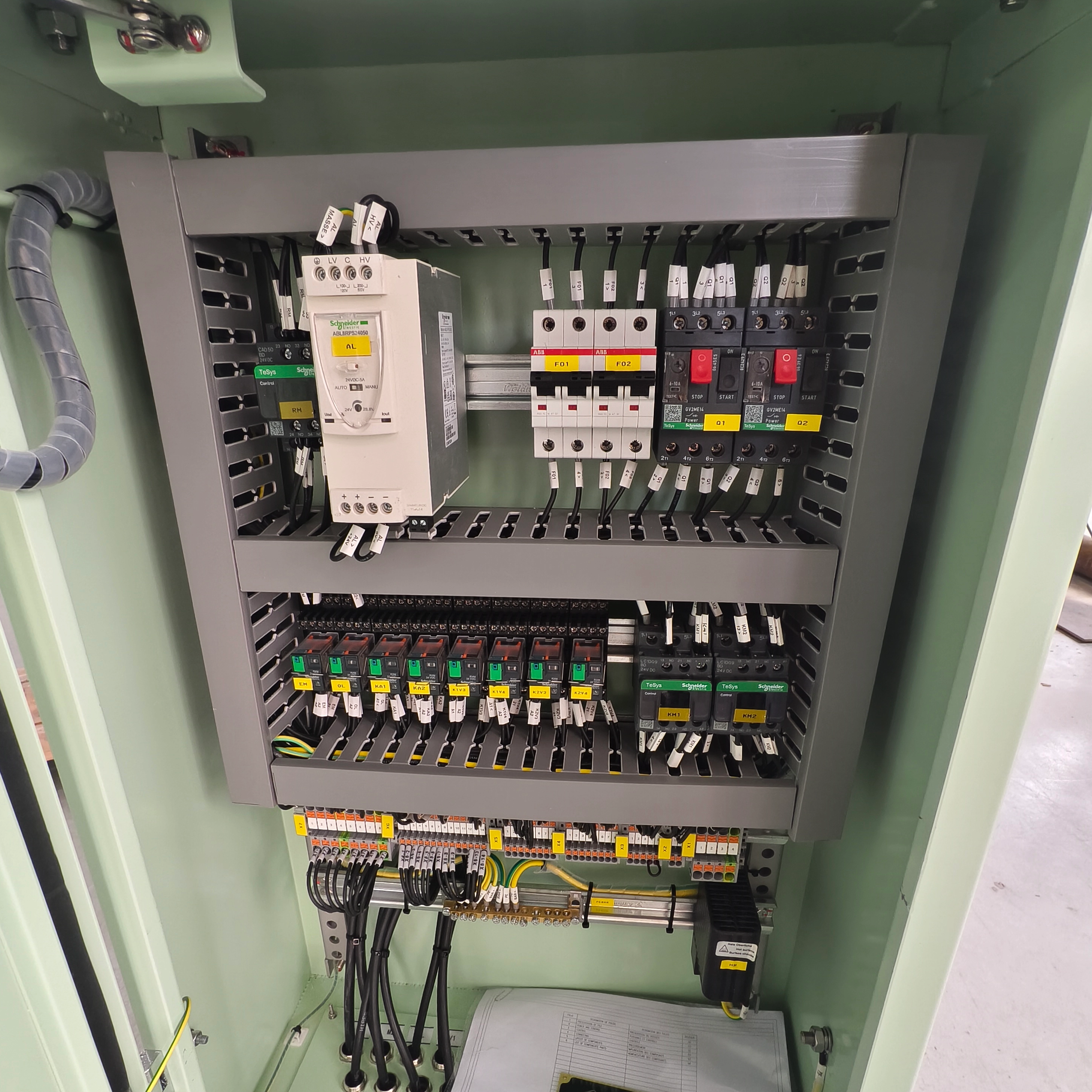

Electrical control box (provided by the customer)
Pressure measurement connector
S16 pipe
L18 pipe
L12 pipe
