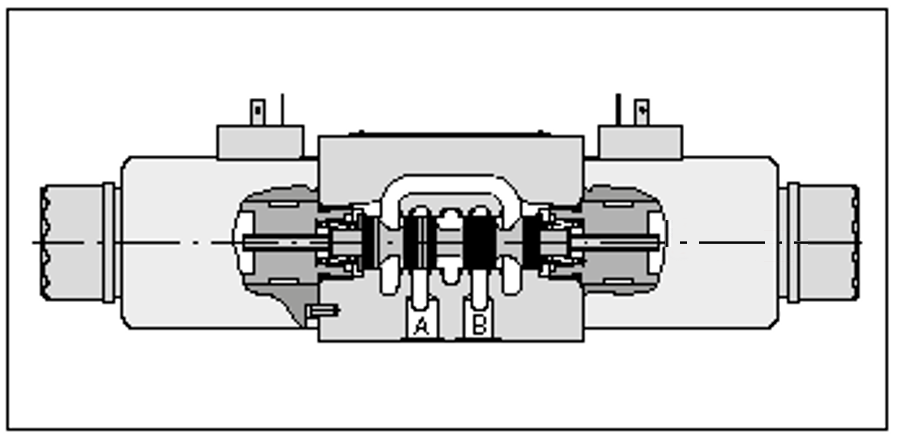

Product Outline Drawing:

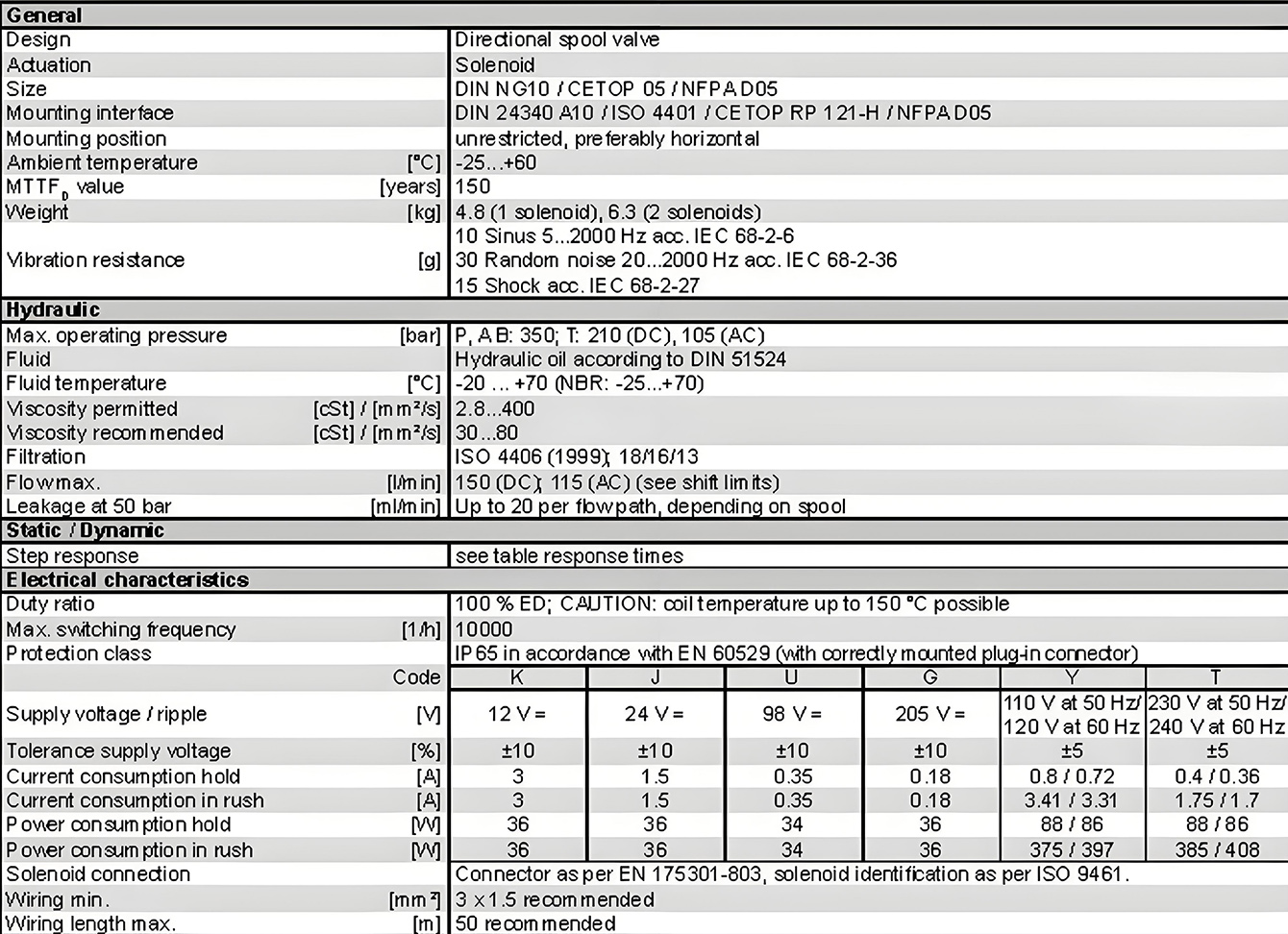

Product Specifications：
Product Features:

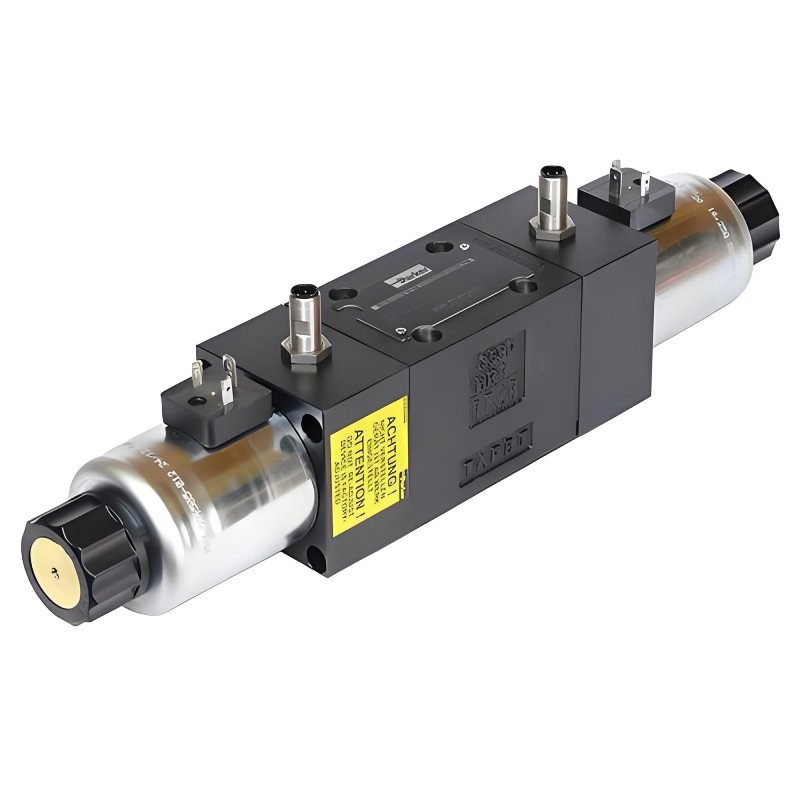

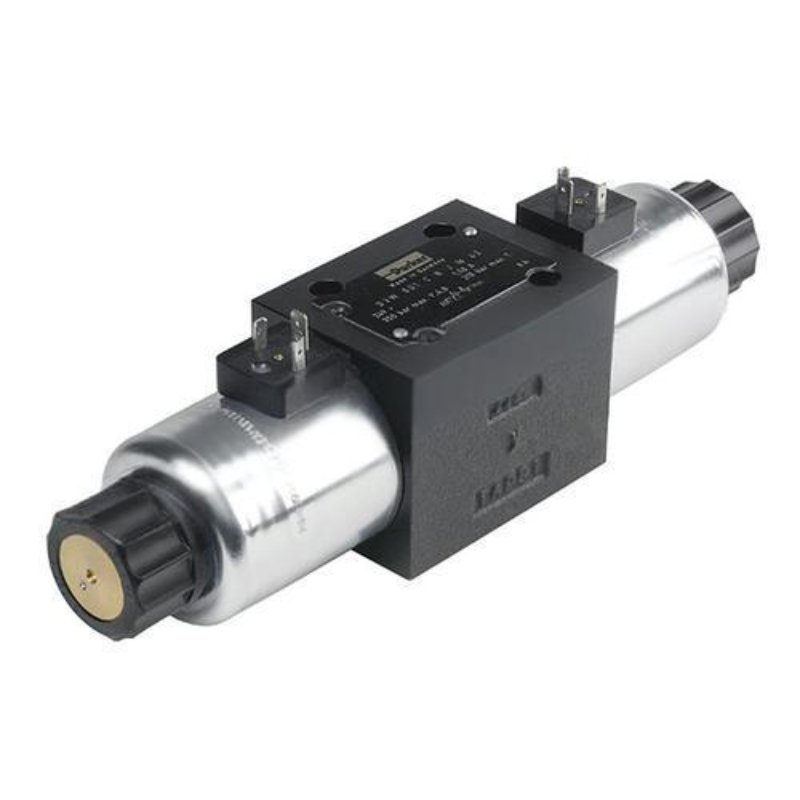

TheNG10 direct operated directional control valve series D3w provides high functional limits up to 150 l/min in combination with a low, energy saving pressure drop The wide variety of options includes soft shift anchor tubes for smooth operation. Versions with position control, additional surface protection and connector variants are shown in the following chapters.
Product Advantages：
• The compact and reliable design represents our long-term experience in hydraulics.
• Higher functional limits - safe operation can be achieved at high flow with smaller applied forces.
• Low pressure drop - reduces energy loss during operation.
• Multiple valve cores - suitable for all hydraulic systems.
• Shortest delivery time - no storage required.
• Can also be used as a 5-chamber valve (D3DW) for high tank pressures and extreme flow conditions.
D3W Series - D3W020DNTW Selection Questions:
Q : What is the electromagnetic selection?
A : With manual override.
Q : What material is the sealing element?
A : Nitrile rubber.
Q : What is the response time (milliseconds)?
A : Standard response.
Q : What is the input voltage?
A : 230/240 (AC), 50/60 Hz.
Q : What is the spool code?
A : 20.6. What is the position of the valve spool?
A : 2 positions, operating in position a or b, no center, no offset position.
Q : What is the nominal size?
A : NG10 / CETOP 05.8. What is the installation type?
A : Base plate mounting.
Q : What is the operating type?
A : Direct.
Q : What is the driving method?
A : Solenoid valve.
