| Measuring range:-200..400C | Stability (annual drift): ≤ ±0.5°C |
| Supply voltage:12..30VDC | Temperature: |
| No-load current consumption: ≤30mA, 24VDC | Medium temperature: -20..100°c (conventional type) |
| Switch output: | 200... 400°c (high and low temperature type) |
| Output type: PNP/NPN can be switched, normally open/normally closed can be set | Ambient temperature:-20...80°c |
| Switching load:<200mA/24VDC | Storage temperature:-30.80°C |
| Response time: 0.01~2s (factory default) | Material: |
| Measurement accuracy: ±1.0°C | Watch head housing: engineering plastic |
| Current type analog output: ≤+0.5% range | Flame retardant class:UL-94 V-0 |
| Output type: 4... 20mA can be configured | Housing: stainless steel 304 |
| Load RA:≤500Q | Protection grade:lP67 |
| Linearity:≤0.5% range | Outlet: M12x1 connector |
| Communication output: lO-Link/RS485 |
|
| Wiring protection: reverse phase, overload, short circuit protection |
|

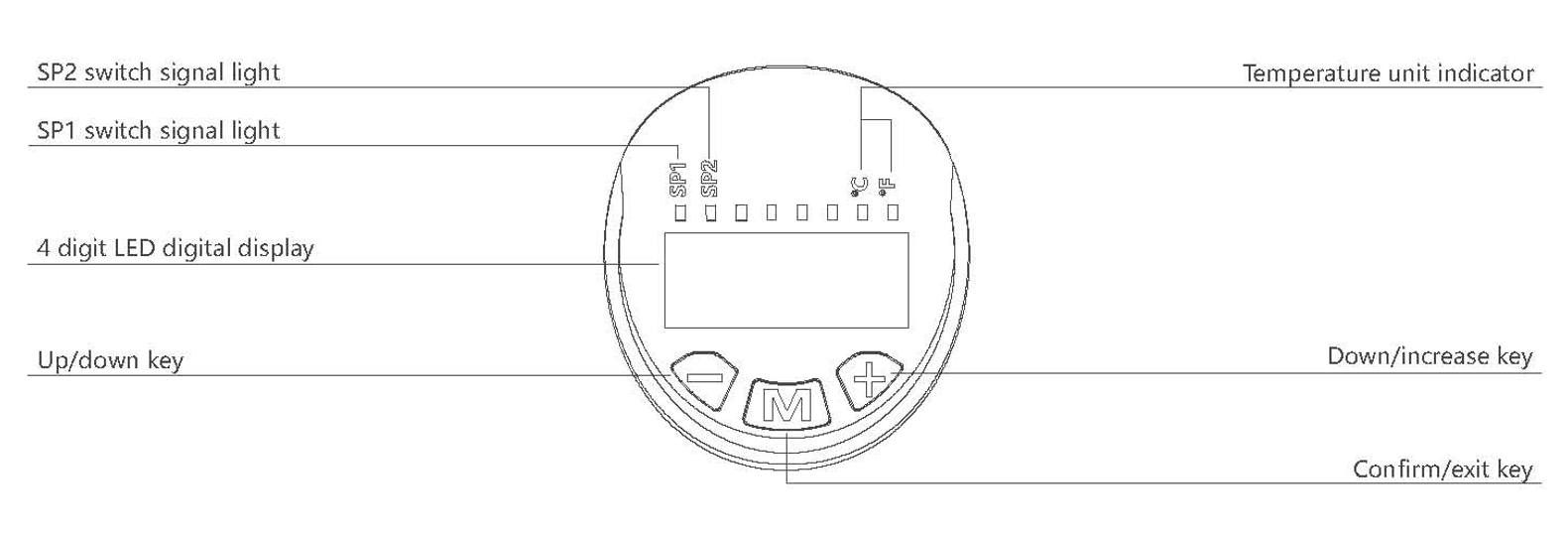

| Display: |
|
| Design: Red 4-bit 12mm high brightness LED |
|
| Display range: -1999..9999 |
|
