Beginner Guide to Hydraulic System Schematics: Understanding Hydraulic Diagram Symbols is your starting point to decode complex hydraulic circuits. Whether you’re an engineer, technician, or hobbyist, learning how to read hydraulic schematics helps you understand pumps, valves, cylinders, and fluid flow with ease. This guide breaks down common symbols, directional flows, and control components, giving you practical insights to troubleshoot and design systems. Follow along to build confidence and master the visual language of hydraulics step by step.

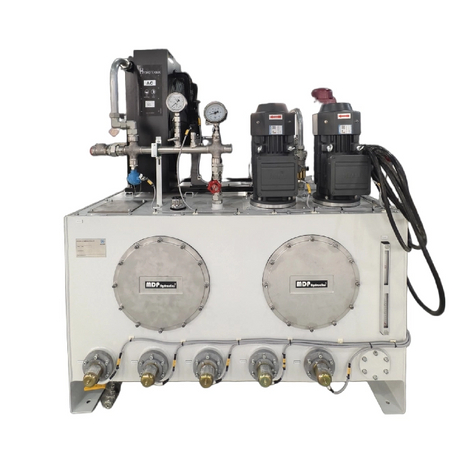

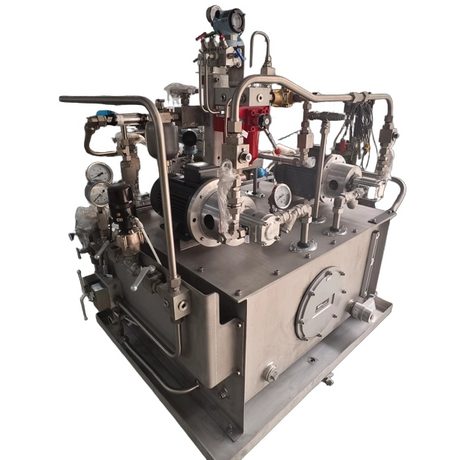

Hydraulic machines contain many interconnected parts. Pumps, valves, cylinders, hoses, and reservoirs must work together to move fluid and generate power. Looking at the actual machine rarely explains how everything works. Because of this complexity, engineers and technicians rely on hydraulic system schematics. These diagrams simplify the entire hydraulic circuit and clearly show how energy and fluid move through the system.
A hydraulic schematic diagram is a simplified visual representation of a hydraulic circuit. It shows how different components connect and how hydraulic fluid flows through the system. Instead of drawing the real machine, engineers use standardized symbols and lines to represent each device. These diagrams focus on function and behavior. A pump symbol represents energy conversion. A valve symbol represents flow control. Cylinders or motors show where mechanical motion occurs.
Because of this symbolic approach, the diagram becomes easier to read than a complex mechanical drawing. Hydraulic diagrams also reveal the relationships between components. Fluid lines connect devices and show the path the oil follows during operation. Arrows often indicate flow direction or pressure movement. When someone traces the circuit from the reservoir to the actuator, they can understand the entire system sequence.
The following table illustrates how a simple hydraulic circuit may appear conceptually in a schematic:
Component | Role in the Circuit | Function |
|---|---|---|
Reservoir | Fluid storage | Holds hydraulic oil before circulation |
Pump | Power source | Converts mechanical energy into hydraulic pressure |
Control Valve | Flow management | Directs fluid toward different components |
Cylinder / Motor | Actuator | Converts fluid energy into mechanical movement |
Return Line | Fluid return path | Sends oil back to the reservoir |
By following the flow between these components, readers can quickly understand how the hydraulic system operates.

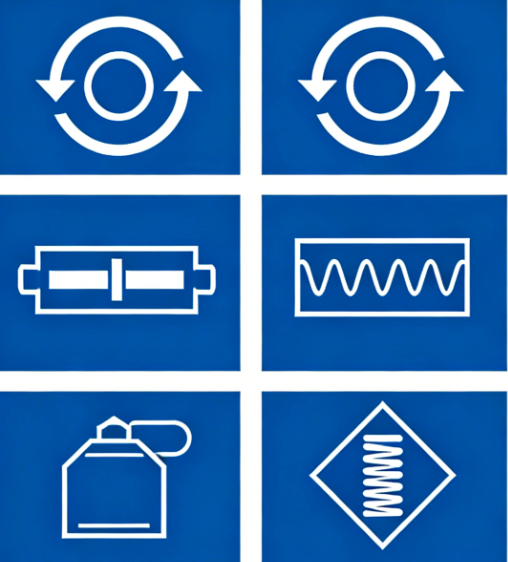

Understanding residential hydraulic schematic diagram symbols makes complex hydraulic circuits easy to follow. Pumps, motors, cylinders, and reservoirs are represented as simple shapes instead of detailed mechanical parts. Recognizing these symbols allows homeowners, engineers, or technicians to trace fluid flow step by step. Properly arranged diagrams show how hydraulic fluid moves through the system, making troubleshooting and maintenance far more efficient.
Hydraulic pumps convert mechanical energy into hydraulic pressure. In residential hydraulic schematic diagram symbols, pumps appear as a circle containing a triangle, with the triangle pointing outward to indicate fluid flow direction. Variations show different pump functions:
Pump Type | Symbol Feature | What It Means |
|---|---|---|
Fixed displacement pump | Single triangle | Delivers constant flow per rotation |
Variable displacement pump | Arrow across symbol | Adjustable flow rate |
Bidirectional pump | Two opposite triangles | Fluid can flow in either direction |
Look for a circle (rotary component) and an outward triangle showing fluid leaving the pump.
Hydraulic motors are shown as circles with inward triangles, signaling that fluid enters to produce rotary motion. In residential schematics, this helps identify where mechanical energy is generated.
Motor Type | Symbol Feature | Function |
|---|---|---|
Standard motor | Circle with inward triangle | Converts pressure to rotation |
Reversible motor | Two inward triangles | Allows rotation both ways |
Variable speed motor | Diagonal arrow | Adjustable speed/displacement |
Pumps are near the start of the circuit, while motors appear where motion occurs.
Cylinders create linear motion and appear as rectangles with internal lines for piston rods in residential schematics.
Cylinder Type | Symbol Feature | Motion Type |
|---|---|---|
Single-acting | One port | Moves in one direction |
Double-acting | Two ports | Extends and retracts |
Cushioned | Arrow at chamber end | Softens stroke impact |
The rod indicator shows cylinder structure and helps diagnose movement issues.
Reservoirs store hydraulic fluid. In residential hydraulic schematic diagram symbols, they appear as rectangular containers—either open (vented) or pressurized (sealed).
Reservoir Type | Symbol Feature | Description |
|---|---|---|
Open | Top open | Vented to atmosphere |
Pressurized | Fully closed | Sealed tank |
Lines show fluid returning to or leaving the tank, completing the circuit.
Accumulators store energy to stabilize pressure and absorb shocks. They appear as oval or capsule shapes in residential schematics.
Accumulator Type | Symbol Feature | Function |
|---|---|---|
Gas-charged | Oval | Uses compressed gas |
Spring | Spring inside | Stores energy with spring force |
Diaphragm | Divided internal section | Separates gas and fluid |
Locating accumulators in residential hydraulic schematic diagram symbols helps understand pressure support during peak demand.
Valves are essential in any hydraulic system, controlling fluid flow, pressure, and actuator speed. In residential hydraulic schematic diagram symbols, valves are represented using squares, arrows, springs, and lines, allowing readers to understand their function without seeing the actual component. Recognizing these patterns makes it easier to interpret and troubleshoot circuits in home or small-scale systems.
Directional control valves guide fluid to specific actuators. In residential schematics, they appear as adjacent squares, each representing a valve position. Arrows inside indicate flow direction, while lines at the edges represent ports.
Symbol Feature | Meaning |
|---|---|
Square blocks | Valve positions |
Arrows inside squares | Flow direction |
Lines at edges | Valve ports |
Two common configurations:
Valve Type | Description |
|---|---|
Two-position | Switches between two flow states |
Three-position | Includes a neutral position between flows |
Ports are labeled: P (pump), T (tank), A/B (actuator outputs). These symbols help trace fluid movement in residential systems.
Pressure control valves regulate system force and prevent damage. Symbols often combine springs, arrows, and pressure paths. Common types:
Valve Type | Symbol Clue | Purpose |
|---|---|---|
Pressure relief | Spring & flow path | Prevents overpressure |
Pressure reducing | Adjustable arrow & spring | Lowers downstream pressure |
Sequence valve | Pressure-controlled path | Ensures operation order |
Flow control valves adjust fluid speed, impacting actuator movement. In residential diagrams, they appear as adjustable restriction symbols along lines, often with a variable arrow.
Flow Condition | Result |
|---|---|
High flow | Faster actuator movement |
Restricted flow | Slower actuator movement |
Check valves allow one-way flow. Residential schematic symbols show arrows blocked by a seat or spring.
Check Valve Type | Symbol Feature | Function |
|---|---|---|
Standard | One-way arrow & seat | Prevents backflow |
Spring-loaded | Arrow + spring | Opens only above certain pressure |
Pilot-operated valves use fluid pressure to trigger operation. In residential schematics, dashed or thin lines indicate pilot paths, while arrows show pressure direction. These symbols help understand complex systems where one section controls another.
A: Hydraulic diagram symbols are standardized graphical representations of components like pumps, valves, actuators, and lines used to illustrate the flow and control of hydraulic systems clearly.
A: Pumps are shown as circles with arrows indicating fluid flow direction, while motors use similar symbols but denote energy conversion from fluid to mechanical motion.
A: Arrows indicate flow direction, helping readers understand fluid movement, pressure paths, and operational functions of valves and actuators.
A: Start by memorizing common symbols, practice tracing flow paths, study sample schematics, and use reference guides to reinforce understanding.
By exploring hydraulic diagram symbols, you can quickly grasp how pumps, motors, valves, and actuators work together in a system. Tracing fluid paths and recognizing standard symbols makes troubleshooting and maintenance much more efficient.
