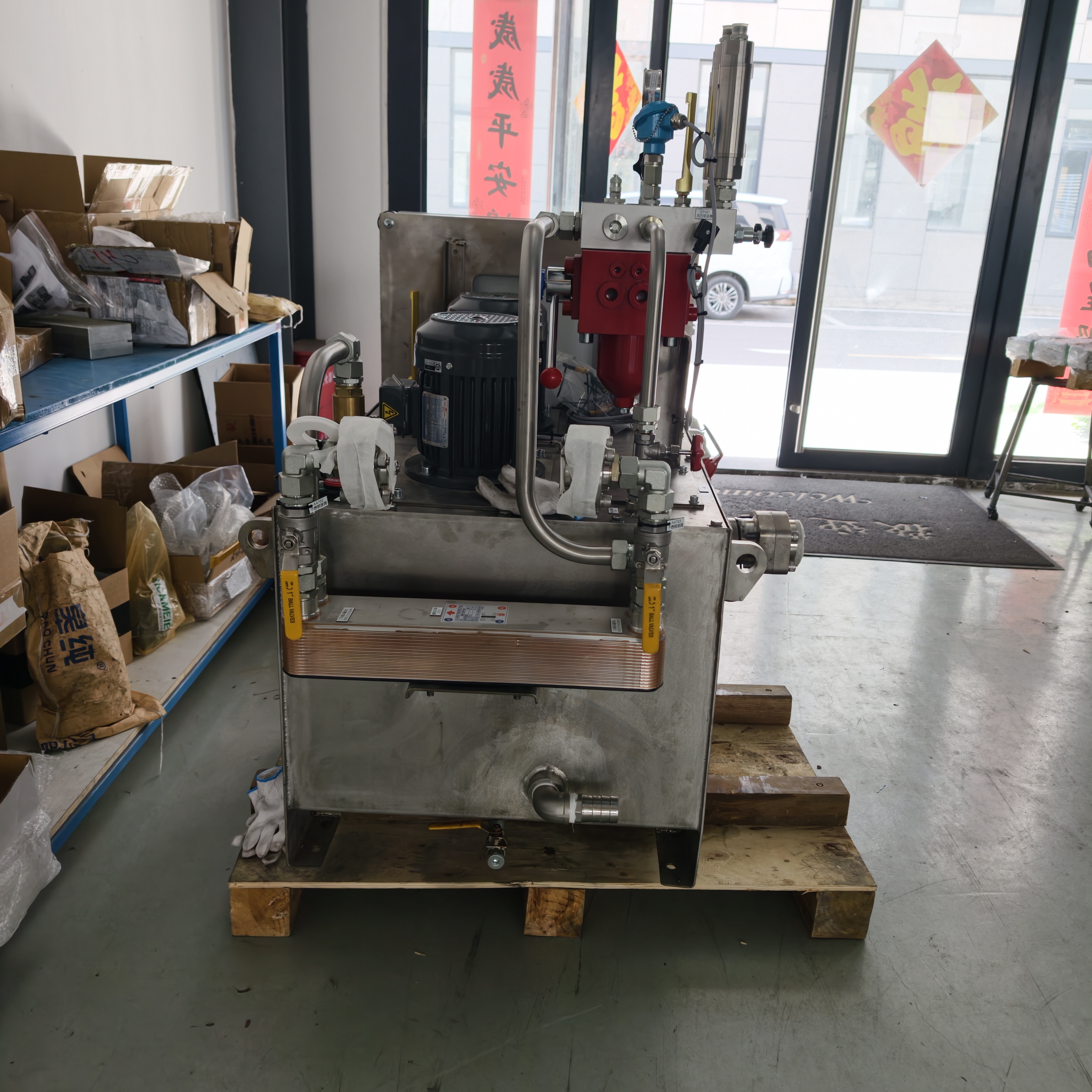

You hear the familiar click of the solenoid coil. Electrical power is confirmed. Yet, the connected cylinder or motor in your Hydraulic System remains completely stationary. This specific diagnostic frustration causes significant unplanned downtime in industrial and mobile machinery. Misdiagnosing the issue often results in replacing expensive electrical control components. In reality, the root cause is frequently a mechanical, environmental, or fluid power failure. Misguided repairs lead to extended production halts and inflated repair bills. We will introduce a systematic, evidence-based diagnostic framework. You will learn how to isolate the fault across three distinct domains: electrical supply and magnetism, valve body mechanics, and the broader fluid power circuit. Stop guessing and start testing with a proven methodology.
An audible "click" only confirms armature movement, not fluid flow: The internal valve spool may still be stuck due to contamination, varnish, or mechanical binding.
Pilot pressure is critical: In two-stage solenoid valves, electrical actuation is useless without sufficient hydraulic pilot pressure to shift the main spool.
Environmental ingress mimics electrical failure: Moisture or dust entering the solenoid armature tube can cause corrosion that physically blocks spool transit, even if the coil is fully energized.
Actuator failure mimics valve failure: Internal seal blowouts or mechanical jamming at the hydraulic cylinder can present identical symptoms to a failed directional control valve.
Systematic isolation saves capital: Testing pressure differentials, electrical load, and physical overrides before ordering replacement parts prevents unnecessary procurement costs.
Table of Contents
Actuation requires a specific sequence of events to function correctly. The process begins with a control signal from a PLC or manual switch. This signal generates a magnetic field within the coil windings. The magnetic field causes an armature shift inside the guide tube. The armature shift forces a spool shift within the valve body. The spool shift results in fluid redirection through the designated ports. Finally, fluid redirection causes actuator movement. If any single step fails, the entire sequence stops dead.
Relying on the sound of the solenoid energizing is an incomplete diagnostic metric. Field technicians call this the false positive click. The armature may strike the pole piece inside the guide tube. You hear this metallic impact clearly. However, a sheared linkage prevents actual fluid flow change. A broken return spring or bound spool will also stop fluid movement entirely. The click proves electrical power reaches the coil. It does not prove the valve is directing fluid to the cylinder.
Troubleshooting requires isolating the specific domains of the system. You must divide the problem into distinct categories to avoid chasing ghosts. Check electrical integrity first. Verify the magnetic force under actual load conditions. Inspect the valve body mechanics for physical binding. Test the fluid power delivery at the ports. Finally, evaluate the actuator and load health. This framework prevents guesswork and isolates the exact failure point quickly.
Diagnostic Domain | Common Failure Modes | Primary Testing Method |
|---|---|---|
Electrical Integrity | Voltage drop, degraded coil, open circuit | Multimeter under load, resistance check |
Magnetic Force | Shorted windings, residual magnetism | Magnetic field indicator pen |
Valve Mechanics | Spool binding, broken return spring | Manual override pin actuation |
Fluid Power | Lost pilot pressure, blocked ports | Inline pressure gauges, flow meters |
Actuator Health | Internal seal bypass, mechanical jam | Cylinder bypass test, load disconnection |
A simple digital multimeter continuity check is often insufficient for field diagnostics. You must measure voltage directly at the solenoid terminals under load. High-resistance connections cause significant voltage drops across the circuit. Corroded terminals and loose wiring harnesses are common culprits in harsh environments. Degraded relay contacts also restrict current flow severely. A voltage drop creates a magnetic field strong enough to click the armature. However, this weak field cannot push the spool against operating pressure.
Internal coil shorts reduce the number of active windings. Heat or moisture ingress typically causes these shorts over time. Fewer active windings mean diminished magnetic flux. Symptoms of a degraded coil include excessive heat and localized swelling. Melting plastic on the coil body is a severe warning sign of impending failure. Resistance readings outside manufacturer specifications confirm coil degradation immediately.
Environmental sealing plays a major role in electrical health. A compromised DIN connector allows moisture to enter the assembly. Failed O-rings let water reach the internal plunger tube. This moisture corrodes the tube rapidly. Corrosion creates physical resistance to the magnetic pull. The coil energizes, but the armature cannot move through the rust buildup.
Verify that the PLC or relay outputs the correct sustained current. Distinguish between initial inrush current requirements and continuous holding current. AC coils require a high inrush current to move the armature initially. Once seated, they need a lower holding current to maintain position. If the control system cannot sustain the holding current, the valve will not stay open.
Residual magnetism can also cause operational failures. A valve may remain magnetically stuck in the energized position. This happens even after the electrical current is removed completely. The residual magnetic force prevents the return spring from resetting the spool. The actuator will not return to its home position, creating a dangerous situation.
Measure supply voltage at the coil terminals while the system is actively trying to shift the valve.
Compare the measured voltage against the coil's rated voltage to identify unacceptable drops.
De-energize the circuit and measure the coil resistance, comparing it to the manufacturer data sheet.
Inspect the DIN connector and internal O-rings for signs of water ingress or dirt bypass.
Use a magnetic field indicator pen to verify flux generation when the coil is energized.
Spool binding is the primary culprit when a valve fails mechanically. Particulate contamination causes silting inside the valve clearances. Varnish buildup from overheated oil wedges the spool inside the bore tightly. Thermal shock also causes severe issues. Large temperature differentials between the fluid and the valve body distort the housing. Uneven torque on valve mounting bolts will also cause housing distortion. This distortion binds the spool tightly, preventing any movement.
Differentiate between fluid-borne contamination and physical armature corrosion. Fluid contamination affects the internal spool directly. Armature corrosion happens within the guide tube assembly. Poor air or fluid quality in the surrounding environment causes rust on the armature. Both issues prevent movement, but they require different solutions entirely.
Pilot-operated solenoid valves rely on internal pressure to function. They use the pressure from the Hydraulic System to shift the main stage spool. Electrical actuation only moves a small pilot spool. If pilot pressure is lost, the main spool will not move at all. Causes for pilot pressure loss include clogged pilot orifices. Failed pilot relief valves also drop pressure unexpectedly. Insufficient main system pressure will prevent pilot operation completely.
Blocked ports and flow restrictions halt actuator movement immediately. Collapsed hoses restrict fluid flow to the cylinder. Blocked return lines create massive backpressure, preventing the spool from shifting. Closed downstream isolation valves stop fluid from reaching the actuator. Always check the physical lines before replacing expensive components.
Contamination Type | Source | Impact on Valve Function |
|---|---|---|
Silting (Fine Particulates) | Poor filtration, component wear | Packs into spool clearances, causing stiction |
Varnish | Overheated, degraded hydraulic oil | Creates a sticky film that glues the spool in place |
Large Debris (Metal Shavings) | Catastrophic pump or cylinder failure | Physically jams the spool, often scoring the bore |
Water Ingress | Condensation, failed heat exchangers | Causes internal rust and degrades oil lubricity |
Catastrophic failure of piston seals allows fluid to bypass internally. Wear, chemical degradation, or thermal damage destroys these seals over time. Fluid moves from the high-pressure side to the low-pressure side easily. This happens without generating any physical motion at the rod. The valve works perfectly, but the cylinder fails to push or pull the load.
Test for internal bypass using a specific diagnostic step. Pressurize one chamber of the cylinder fully. Cap the opposite line safely using high-pressure steel caps. Measure the return-side leakage under pressure. If fluid pours out of the capped side, the internal seals have failed completely.
Extend the cylinder fully to the end of its stroke.
Turn off the power unit and verify zero pressure in the system.
Disconnect the hydraulic line from the rod end port.
Cap the disconnected line to prevent environmental contamination.
Turn the power unit back on and apply pressure to the cap end port.
Observe the open rod end port; continuous fluid flow indicates a blown piston seal.
Differentiate between a fluid power failure and a mechanical lock-up. The machine or guide rails may be physically jammed. The actuator tries to move but hits a solid mechanical stop. Assess the load conditions carefully before tearing into the hydraulics. Verify if the current load exceeds the designed force limits. Excessive loads cause the system relief valve to open. Fluid dumps back to the reservoir before the actuator can move an inch.
Entrapped air in the lines causes significant operational issues. Air compresses under pressure, absorbing hydraulic energy like a spring. This prevents actuator movement, especially under heavy loads. The system feels spongy and unresponsive to commands. Bleeding the air restores solid fluid power transmission immediately.
Evaluate components based on features and outcomes required for the application. Does the current environment require upgrading the hardware? You may need valves with higher ISO cleanliness tolerance. Heavier-duty return springs might be necessary for high-vibration areas. Improved IP-rated electrical enclosures prevent moisture ingress effectively. Upgrading prevents repeat failures and extends service life.
Weigh the cost of stripping and manually cleaning a contaminated valve body. Compare this against the immediate availability of a drop-in replacement. Manual cleaning takes hours of skilled labor. A drop-in replacement gets the machine running immediately. Scalability and lead times dictate this decision on the factory floor.
Use a cost-to-downtime analysis to drive maintenance decisions. Decide when to rebuild a cylinder versus replacing the entire unit. Base this on hourly operational downtime costs. If downtime costs thousands per hour, replace the unit immediately. Rebuild the old unit later for spare inventory when time permits.
Address the root cause of systemic contamination aggressively. If a valve is replaced due to scoring or varnish, you must take action. Upgrade the filtration immediately to catch finer particles. Perform a comprehensive oil analysis to check fluid health. Failing to clean the fluid will cause the new component to fail prematurely.
Stored energy hazards pose severe risks to maintenance personnel. Follow strict protocols for verifying zero mechanical and hydraulic energy. Discharge all accumulators safely using the designated dump valves. Lower all suspended loads to the ground securely. Do this before cracking fittings or removing the solenoid coil. This prevents accidental movement or high-pressure fluid injection injuries.
Avoid coil burnout risks during testing procedures. Never energize an AC solenoid coil while it is physically removed from the valve stem. The armature guide tube acts as a magnetic core. Without it, the coil draws massive current continuously. This leads to rapid overheating and immediate coil burnout.
Follow best practices for bleeding the system thoroughly. Remove entrapped air after any component replacement. This prevents actuator sponginess and erratic movement during startup. Proper bleeding also prevents micro-dieseling, which destroys seals and degrades oil quality rapidly.
A clicking solenoid with a stationary actuator requires deep investigation. Move beyond basic electrical checks immediately. Systematically test pressure differentials and valve spool freedom. Inspect mechanical load linkages for binding or jamming.
When purchasing replacement parts, match specifications exactly. Confirm flow rates, voltage, and port configurations. Ensure manual override options are present. Consider contamination-resistant spool designs for harsh environments.
