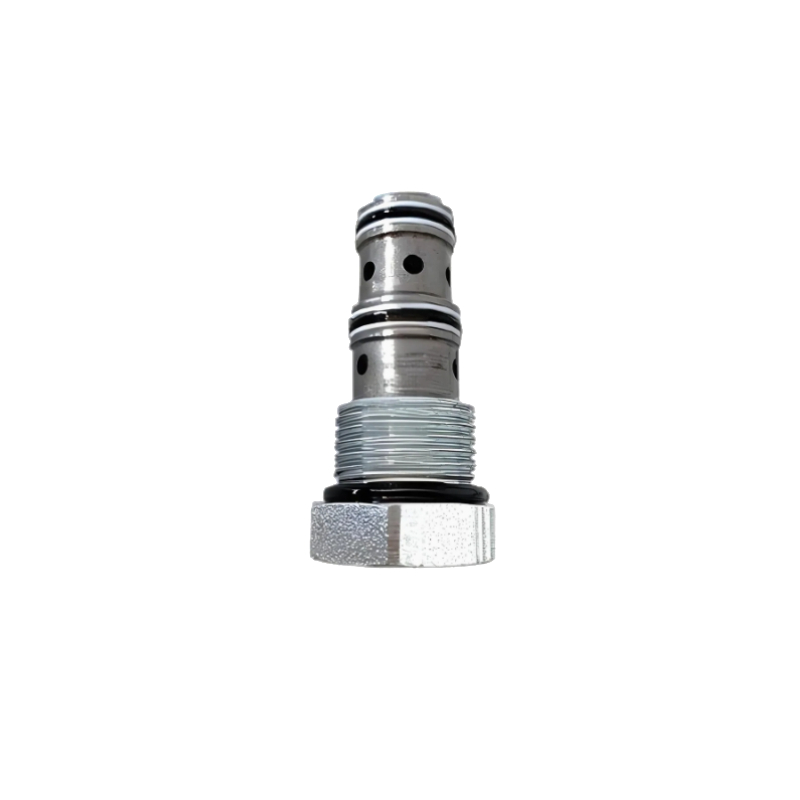

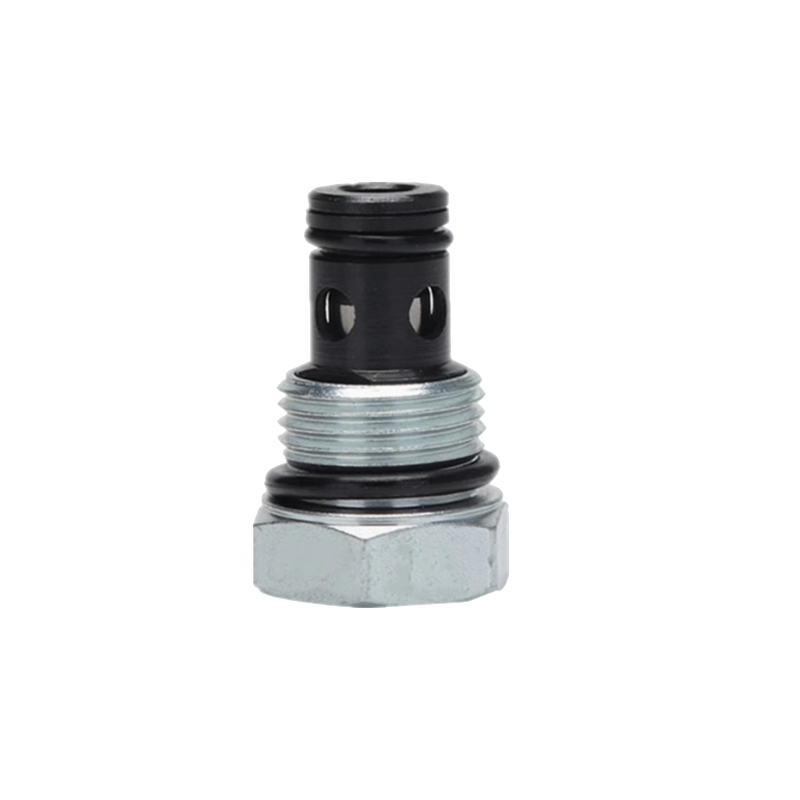

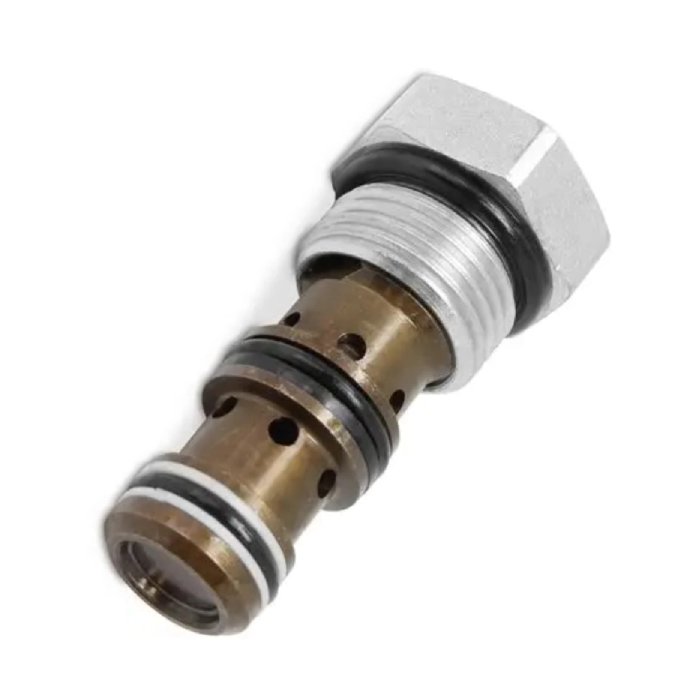

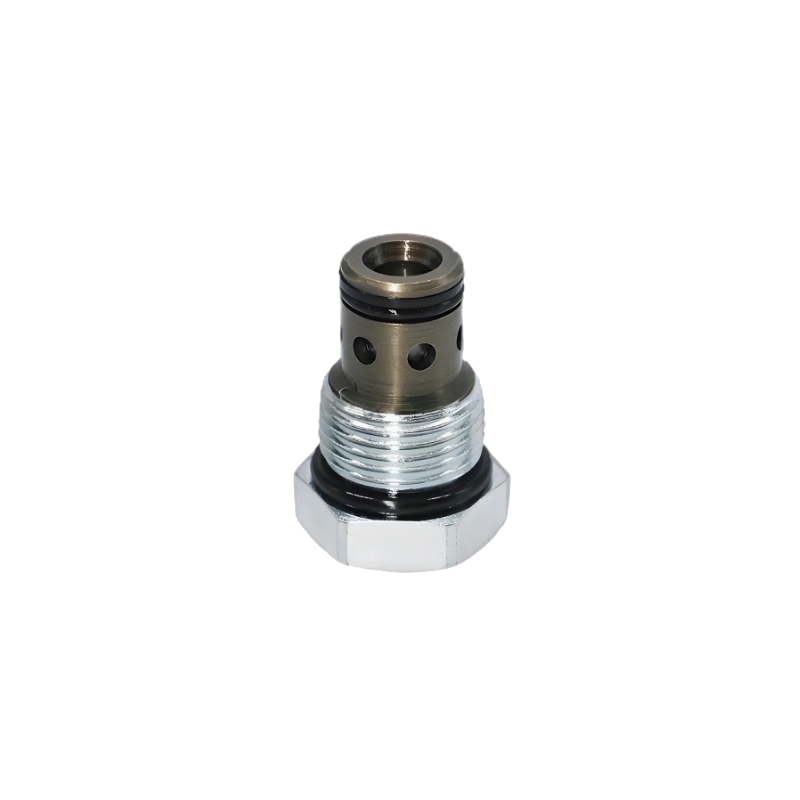

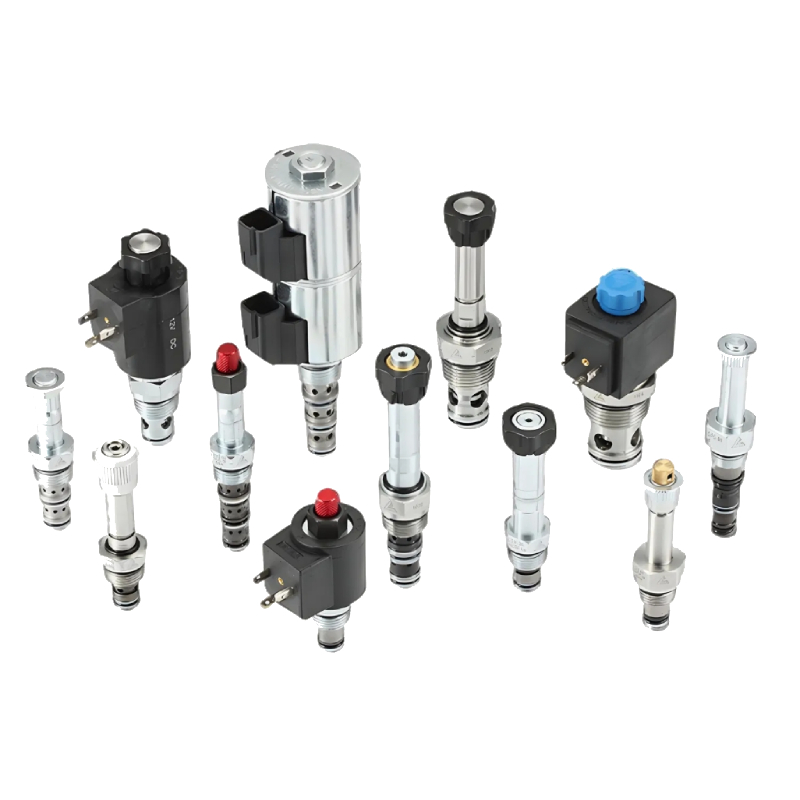

Hydraulic Cartridge Check Valve CV Series CV08/12/16

. Continuous-duty rated coil.

. Hardened seat for long life and low leakage.

. Optional coil voltages and terminations.

. Cartridges are voltage interchangeable.

. Unitized, molded coil design.

. Manual override option.

. Optional waterproof E-Coils rated up to IP69K.

. Industry common cavity.

. Compact size.

Operating Pressure: 207 bar (3000 psi)

Proof Pressure: 255 bar (3700 psi)

Flow: See Performance Chart

Internal Leakage: 0.15 cc/minute (3 drops/minute) max. at 207 bar (3000 psi)

Temperature: -40 to 120C with standard Buna seals

Coil Duty Rating: Continuous from 85% to 115% of nominal voltage

Response Time: First indication of change of state with 100% voltage supplied

at 80% of nominal flow rating: Energized: 40 msec. De-energized: 46 msec.

Initial Coil Current Draw at 20C: Standard Coil: 1.2 amps at 12 VDC;

E-Coil: 1.4 amps at 12 VDC; 0.7 amps at 24 VDC

Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi)

Filtration: See page 9.010.1

Fluids: Mineral-based or synthetics with lubricating properties at viscosities of

7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1

Installation: No restrictions; See page 9.020.1

Cavity: VC08-2; See page 9.108.1

Cavity Tool: CT08-2XX; See page 8.600.1

Seal Kit: SK08-2X-T; See page 8.650.1

Coil Nut: Part No. 7004400;

For E-coils manufactured prior to 1-1-04, see page 3.400.1 for coil nut info.
