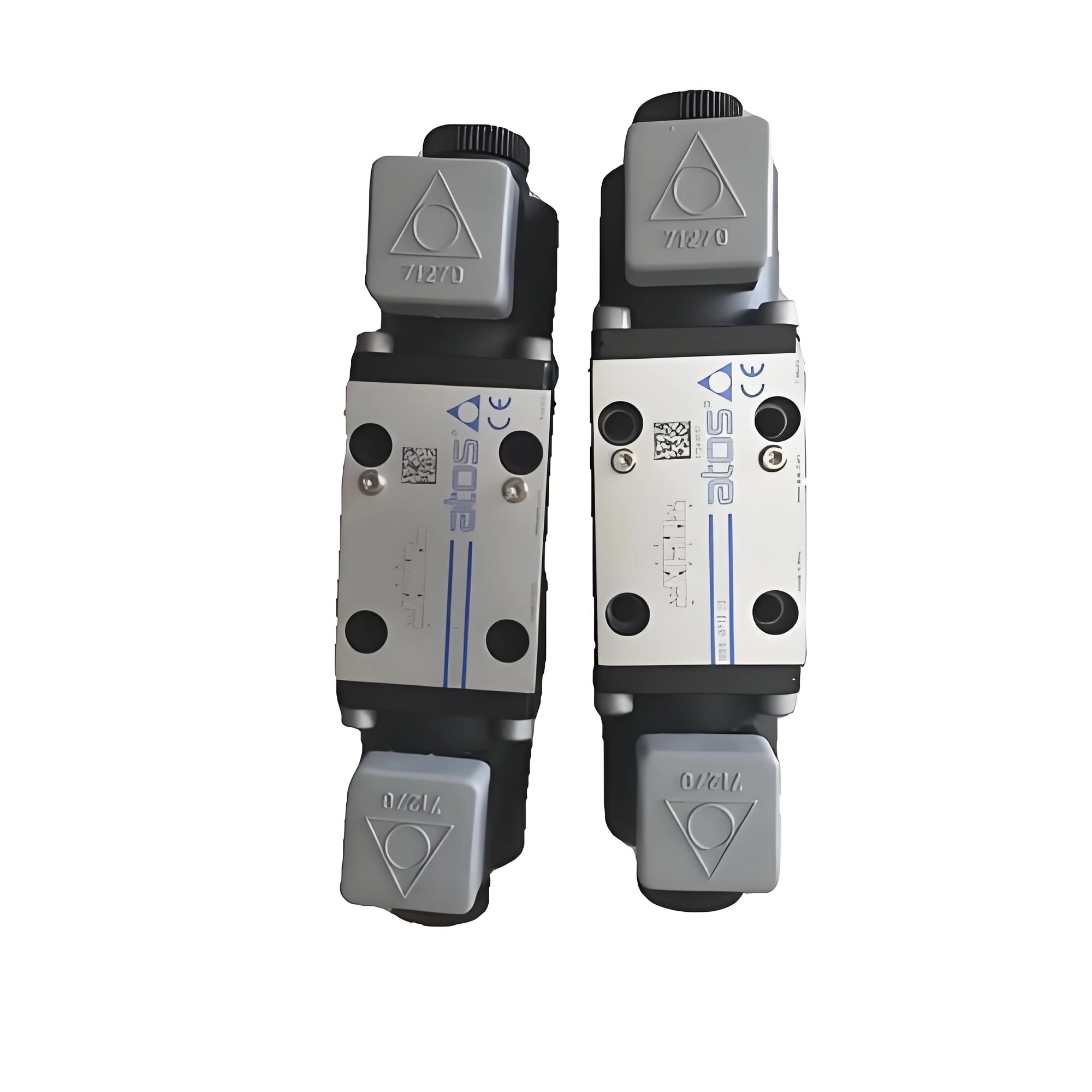

DHZO-A-060 is a direct operated proportional valve, without position transducer, which provides both directional and not compensated flow control according the electronic reference signal.
Technical characteristics:
It is derived from standard DHZO execution, but with single solenoid and 3 position progressive spool with zero overlap in the intermediate configuration.
This feature makes the valve suitable for cost effective closed loop position controls
It is available in different executions:
-A, without position transducer
-AE, as -A plus integral electronics
Applications:
Mobile machines, sky-lifts. Mounting surface: ISO 4401, size 06 Max flow: 28 l/min at Ap 30 bar Max pressure: 350 bar
