| General |

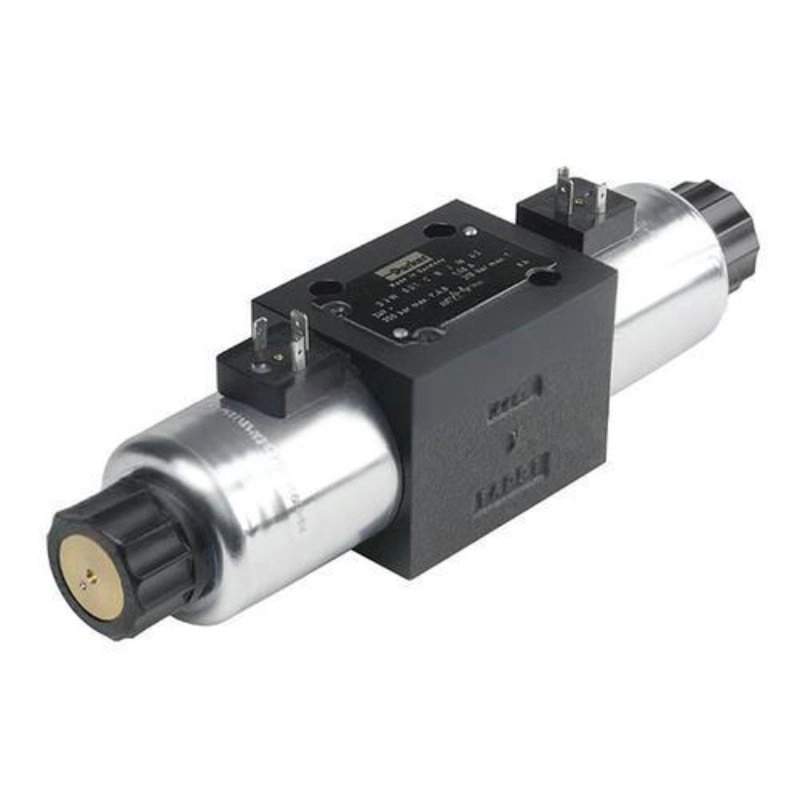

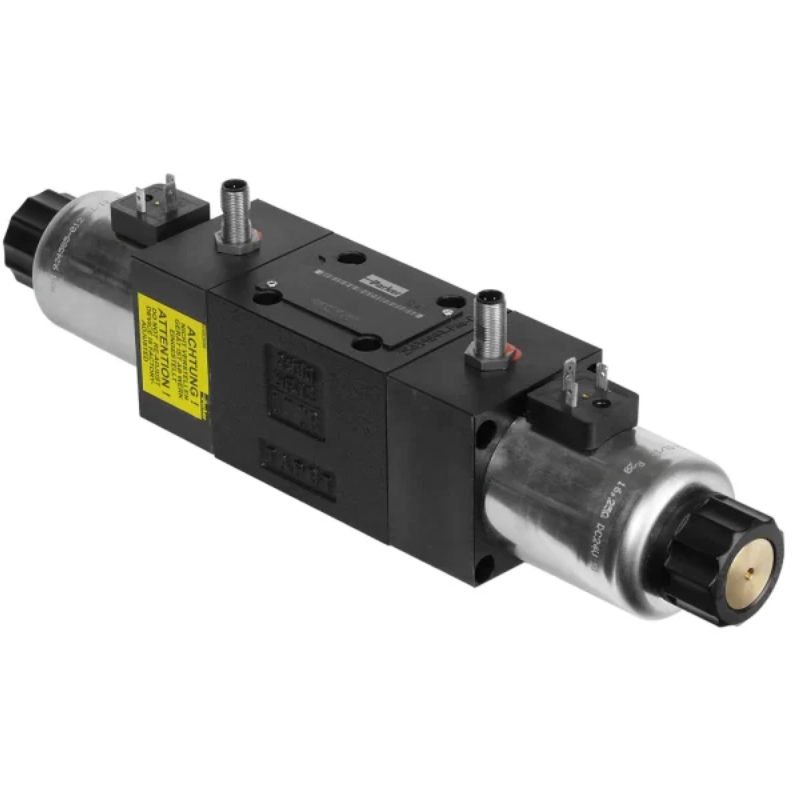

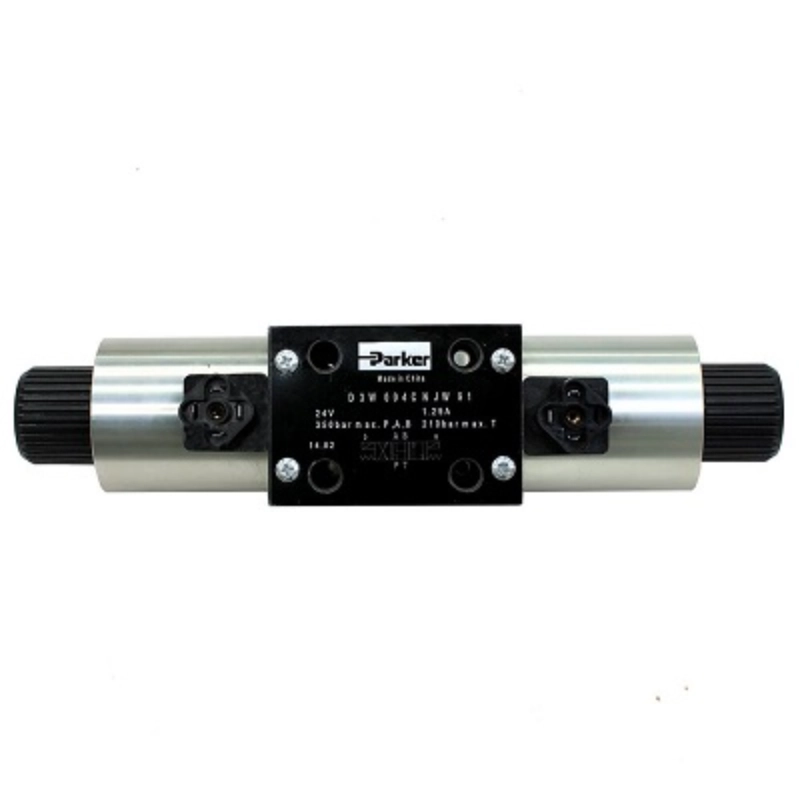

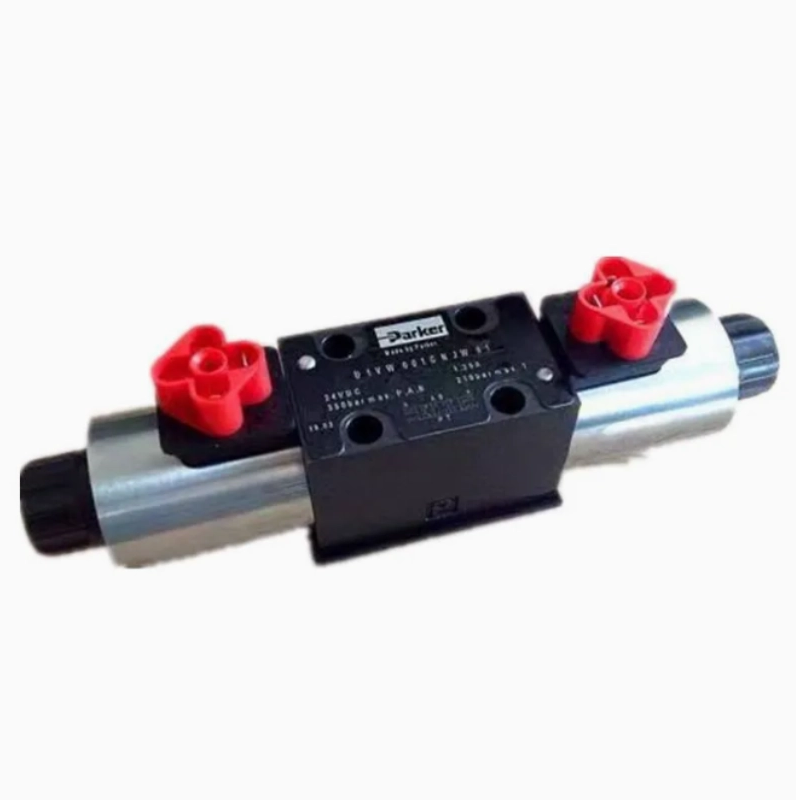

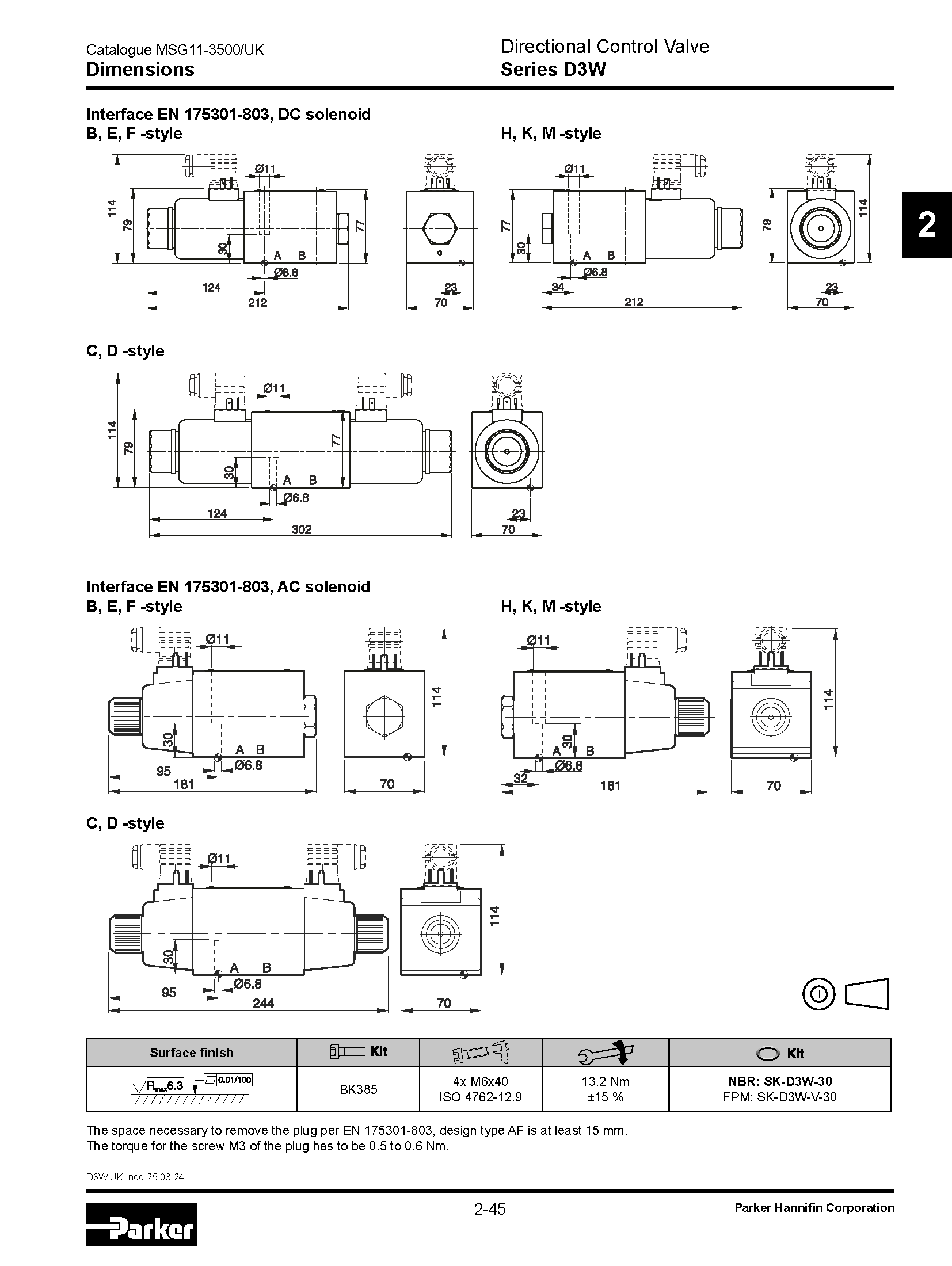

| Design | Directional spool valve |
| Actuation | Solenoid |
| Size | DIN NG10 /CETOP 05/NFPAD05 |
| Mounting interface | DIN 24340 A10 /ISO 4401 / CE TOP RP 121-H /NFPAD05 |
| Mounting position | unre stricted, pre ferably horizont al |
| Ambient temperature [°C] | -25 ... +60 |
| MTTF, value [years] | 150
|
| Weight [kg] | 4.8 (1 solenoid), 6.3 (2 solenoids) |
| Vibration resistance [g] | 10 Sinus 5 ... 2000 Hz acc. IE C 68-2-6 30 Random noise 20 ... 2000 Hz acc. IE C 68-2-36 15 Shock acc. IE C 68-2-27 |
| Hydraulic |
| Max. operating pressure [bar] | P, AB: 350; T: 210 (DC), 105 (AC) |
| Fluid | Hydraulic oil according to DIN 51524 |
| Fluid temperature ["C] | -20 ... +70 (NBR: -25 ... +70) |
| Viscosity permitted [cSt] / [m m2/s] | 2.8 ... 400 |
| Viscosity recom mended [cSt] / [m m2/s] | 30 ... 80 |
| Filtration | SO 4406 (1999) 18/16/13 |
| Flowmax [l/min] | 150 (DC) 115 (AC) (see shift lim its) |
| Leakage at 50 bar ml/m in] | Up to 20 per flowpath, depending on spool |
| Static / Dynamic |
| Step response | see table response times |
| Electrical characteristics |
| Duty ratio | 100 % ED; CAUTION: coil temperature up to 150 C possible |
| Max. switching frequency [1/h] | 10000
|
| P rotection class | IP 65 in accordance with EN 60529 (with correctly mounted plug-in comnector) |
| Code | K | J | U | G | Y | T |
| Supply voltage / ripple [V] | 12 V= | 24 V= | 98 V= | 205 V= | 110 V at 50 Hz/ 120 V at 60 Hz | 230 V at 50 Hz/ 240 V at 60 Hz |
| Tolerance supply voltage [%] | ±10 | ±10 | ±10 | ±10 | ±5 | ±5 |
| Current consumption hold [A] | 3
| 1.5 | 0.35 | 0.18 | 0.8 / 0.72 | 0.4 /0.36 |
| Current consumption in rush [A] | 3
| 1.5
| 0.35 | 0.18
| 3.41 / 3.31 | 1.75/1.7 |
| Power con sum ption hold [W] | 36 | 36 | 34 | 36 | 88/86 | 88/86 |
| Power consum ption in rush[W] | 36
| 36 | 34 | 36 | 375/397 | 385/408 |
| Solenoid connection | Connector as per EN 175301-803, solenoid identification as per ISO 9461. |
| Wiring min.[mm 7] | 3 x 1.5 recom mended |
| Wiring length max.[m] | 50 re com mended |
