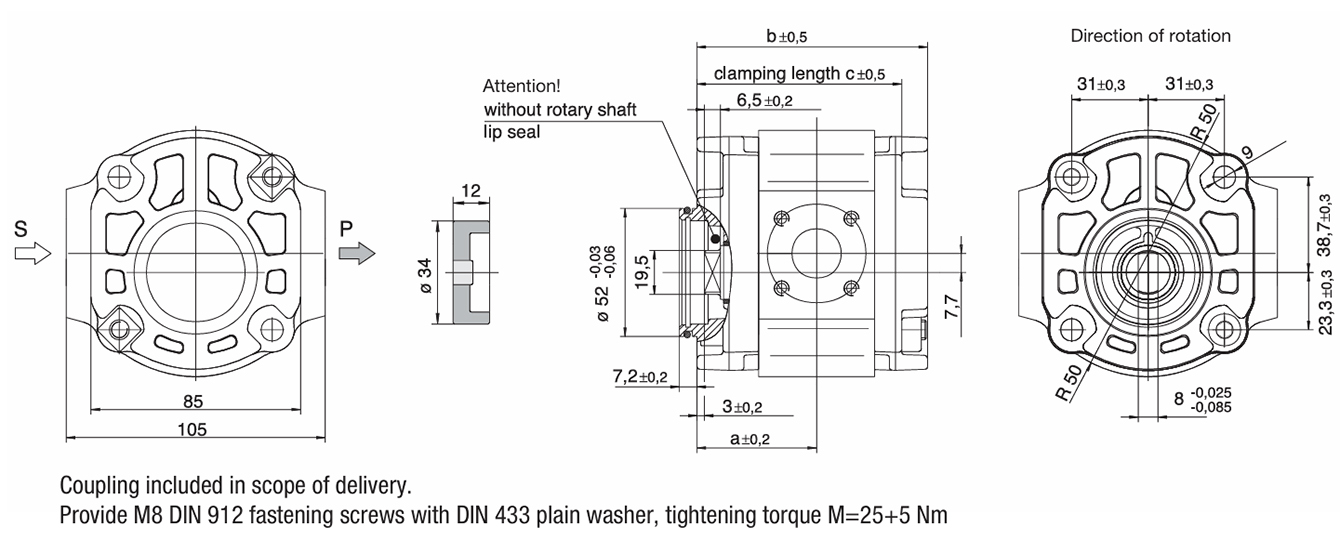

Product Outline Drawing:

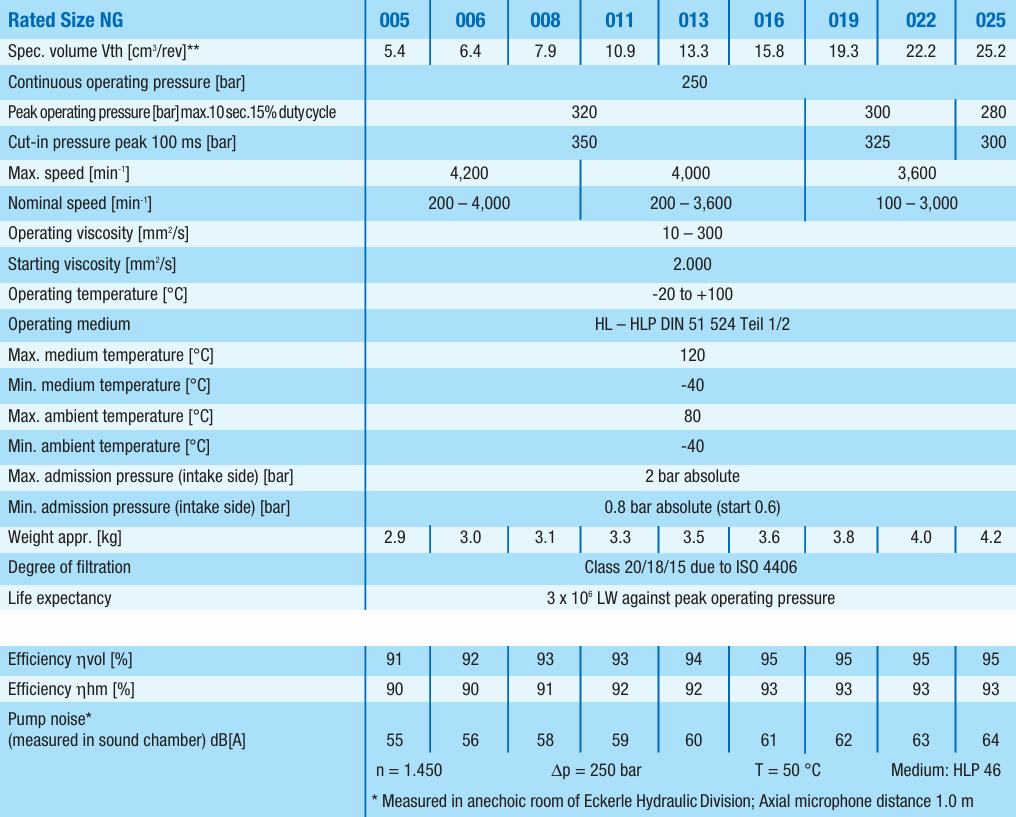

Product Specifications：
Product Features:
With radial and axial pressure compensation design, it is highly efficient.
The inlet and pressure port are at a 90° angle.
Low pulse (< 2%), ensuring stable mechanical operation, stable pressure, and long service life.
Various displacement combinations.
Product Advantages：
Internal gear pump with axial and radial gap compensation
Radial compensation with segments
Pressure cover
Field of application: Mobile hydraulic systems, e.g. for fork lifts, industrial hydraulic
Direct fixture
Low noise
Long time life
Low pulsation (pressure pulsation ~ 2%)
