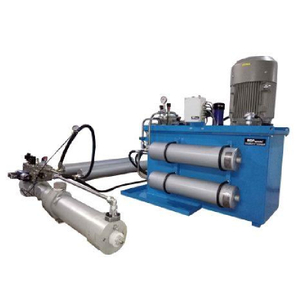

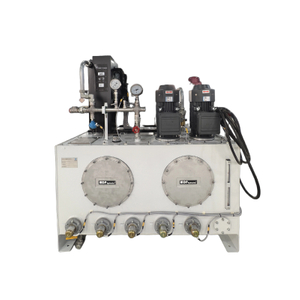

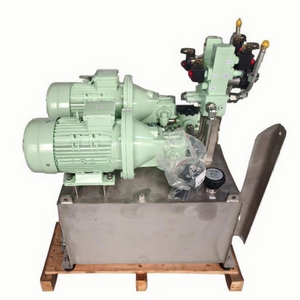

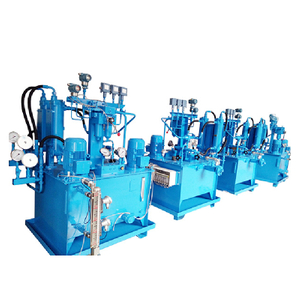

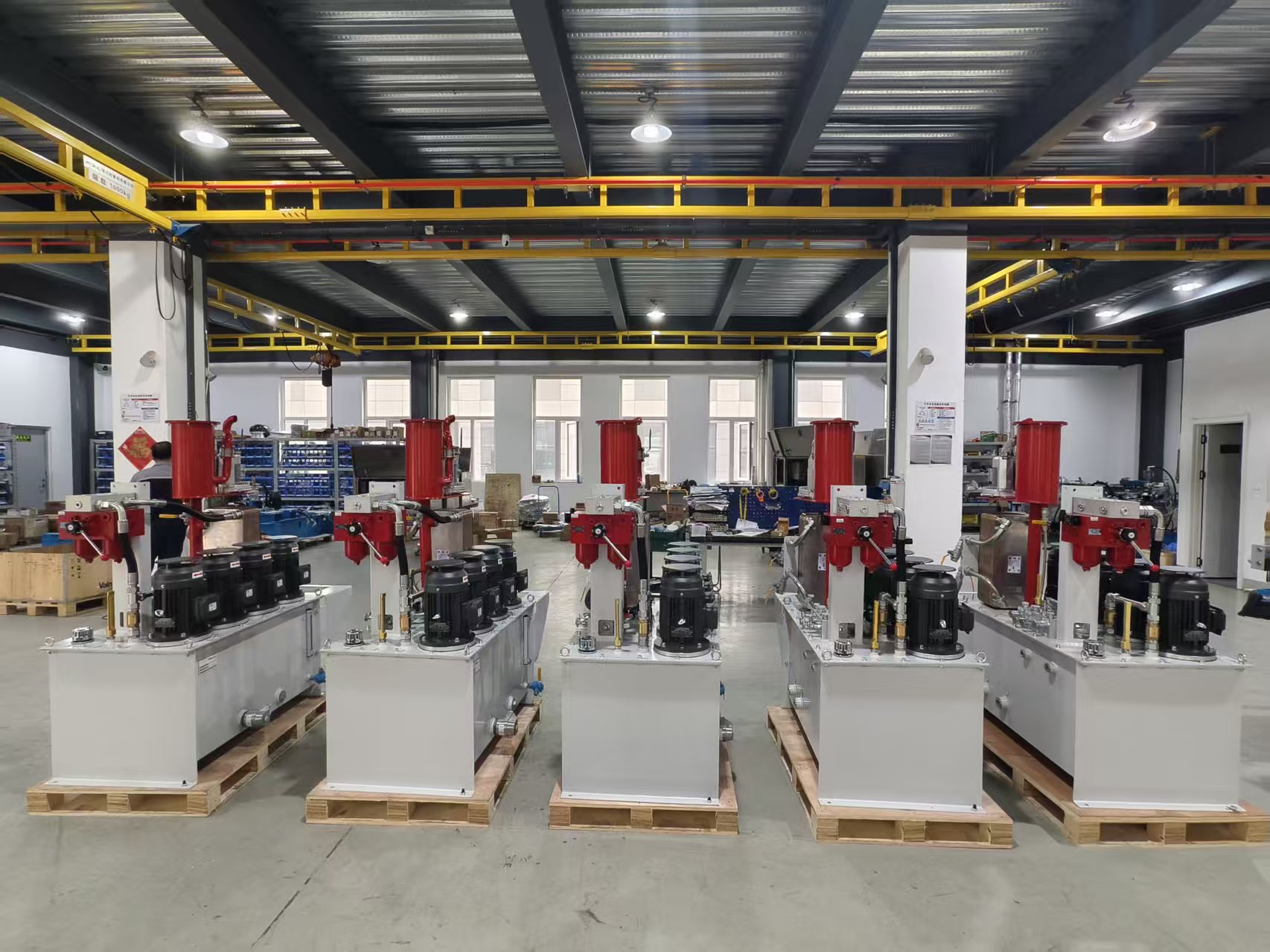

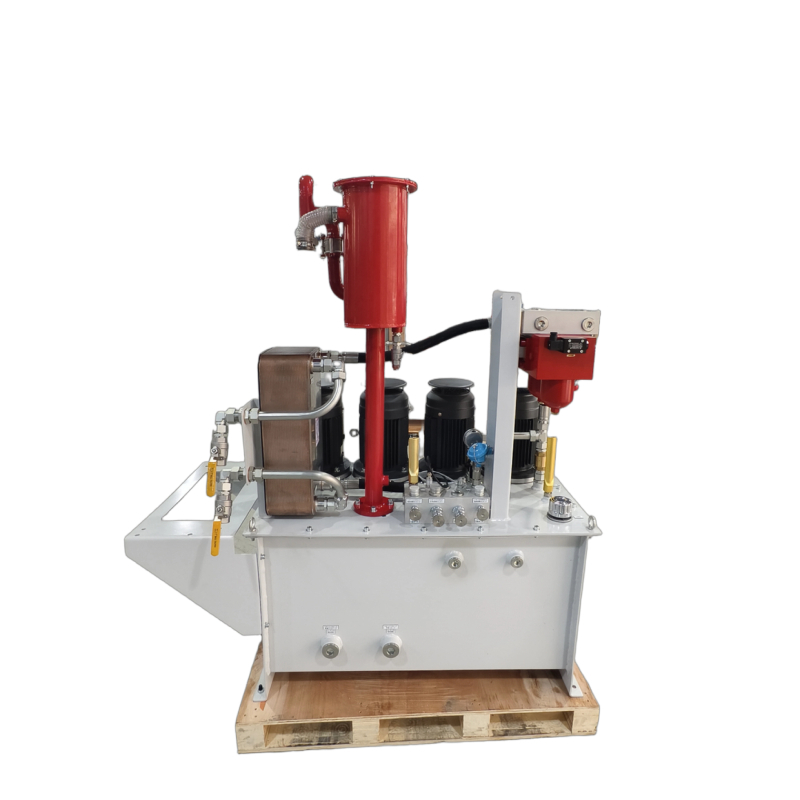

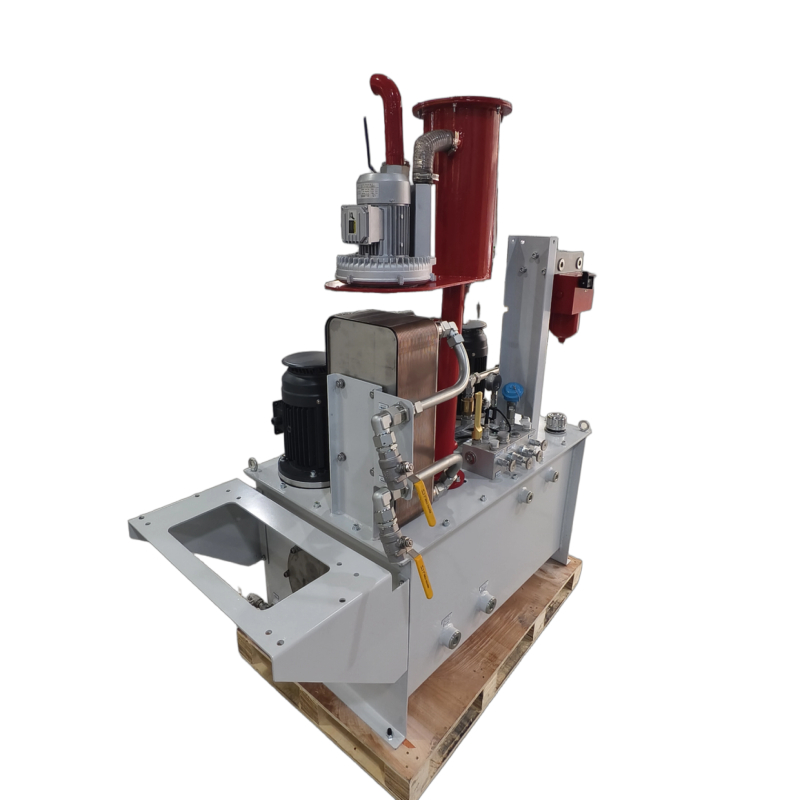

MDP Series Engineering-Adaptable Centralized Lubrication Station Hydraulic System

• Wind power industry: Provide forced circulation lubrication for the main gearbox of wind turbines and yaw and pitch bearings. The system must be able to start at -30℃ temperatures, withstand high tower cylinder vibration conditions, and have remote monitoring capabilities to reduce the frequency of on-site maintenance climbs.

•   Steel Industry: Applied to the roller bearings of the hot rolling line. The system requires a high-temperature heat insulation design, the distributor needs to be resistant to heat radiation, and the lubricating grease should be of extreme pressure and high-temperature type. The system needs to be synchronized with the rolling rhythm and perform centralized lubrication during the gap between the replacement of the rollers.

• Mining industry: Open gear spray lubrication for large ball mills and rotary kilns. The system requires a large flow rate and high pressure to atomize and spray the viscous synthetic lubricating oil onto the gear meshing surfaces. A large-capacity oil tank is equipped to reduce the frequency of oil replenishment.

•   Food and Pharmaceutical Industry: A hygienic-level (3-A or EHEDG standards) design is required. Lubricants certified by NSF H1 must be used. The system materials should be stainless steel, with a satisfactory surface finish and easy to clean to prevent the growth of microorganisms.

•  Large-scale rotating equipment: Centralized lubrication for the main bearings and gearboxes of mine ball mills, rotary kilns, and large fans.

Continuous production line: Roller bearing lubrication for the continuous casting and hot rolling lines of steel, as well as quantitative grease lubrication for the conveying chains.

• Material conveying system: Large bearing assemblies of port stacker-reclaimers and tunnel boring machines (TBM), as well as open gear jet lubrication.

• Special operating condition equipment: Hygienic lubrication system for the food and beverage industry; Explosion-proof lubrication system for the chemical field.

•  Precision transmission system: The guide rails and lead screws of high-speed CNC machines, the forced circulation lubrication station of wind power gearboxes.

1. Transformation from "Cost Center" to "Value Center":

• Quantitative cost reduction: By eliminating excessive lubrication, it is expected to reduce the costs of lubricant procurement and waste oil treatment by 15% to 40%. By preventing lubrication-related damage to bearings and gears, it is expected to lower the annual maintenance budget for related components by 30% to 60%.

• Capacity Assurance Value: Assuming that a non-planned downtime results in a production interruption loss of X yuan per hour, the ProAdapt system reduces this loss to nearly zero. The annual avoided loss thus represents the direct cash flow value created.

2. Empowering Digital Operation and Decision-Making:

• The system provides data such as lubricant consumption trend charts, pump operating load curves, and oil deterioration indicators, which are important components of the equipment health record. It provides a scientific basis for preventive maintenance plans and offers data support for equipment upgrades, spare parts inventory optimization, etc.

3. Reducing overall risk:

• Safety risk: Automation of lubrication eliminates the exposure risk for personnel when operating equipment, working at heights, or in confined spaces, as manual lubrication is no longer required.

• Compliance risk: Precise lubricant management and leakage prevention help enterprises better comply with environmental protection regulations (such as ISO 14001) and safety production standards.

• Quality risk: Stable lubrication ensures the consistency of the operating precision of equipment (such as machines, production line conveying systems), directly contributing to the stability of product quality.

Q1: When the lubrication pipeline is very long (such as over 100 meters) or there is a significant height difference, how can the lubrication effect at the end point be guaranteed?

A1: This is the core challenge in engineering design. We will take the following measures: 1) Increase the system's rated working pressure to overcome the pipeline's resistance along the route and static pressure difference. 2) Conduct precise calculation of pipeline pressure drop, select the appropriate pipe diameter, and possibly adopt a primary/secondary pipeline design or a booster (Booster). 3) Design an automatic exhaust valve at the highest point of the system to prevent air blockage. 4) Select a distributor with pressure compensation function to ensure a constant oil injection volume under different back pressures. Before leaving the factory, long-distance tests will be conducted using the actual pipeline.

Q2: How does the system handle the hardening or oil separation of the lubricating grease after long-term standing?

A2: Regarding the grease station: 1) A spiral conveyor or mixer can be designed inside the grease tank to gently remix the grease before each pumping. 2) Use high-quality grease with excellent mechanical stability. 3) The system program can be designed to "wake up" the cycle regularly (such as running for a short period each month when the equipment is idle), keeping the grease in the pipeline in a fluid state. 4) The key pipelines can be designed with insulation or heating to prevent hardening due to low temperatures.

Q3: How can the data of the intelligent system be integrated with our existing IBM Maximo or SAP PM modules?

A3: The controllers or gateways of the ProAdapt system support the OPC UA industrial interoperability standard protocol. We can provide an information model for the devices, and your Maximo or SAP system can directly read the variables we define (such as operating status, alarm codes, cumulative consumption) through the OPC UA client. We also support providing data in JSON format via RESTful API, facilitating more flexible integration with enterprise-level platforms.

Q4: What special configurations are provided for the products in explosion-proof areas (such as Zone 1 or Zone 2)?

A4: Regarding the explosion-proof requirements, we offer a complete solution: 1) Motors, pumps, controllers, and sensors all use certified products corresponding to the explosion-proof grades (such as Ex d, Ex e). 2) The control cabinet design complies with explosion-proof positive pressure (Ex px) or enhanced safety type (Ex e) standards. 3) All wiring uses explosion-proof flange heads. 4) We provide complete explosion-proof certificates and regional applicability documents. The design must follow the IEC 60079 series standards.

Q5: Can we obtain a systematic predictive maintenance algorithm or model?

A5: We offer built-in basic prediction models, such as warning about pump efficiency decline based on the trend analysis of pump operating current and pressure, and warning about distributor blockage based on the extension of oiling cycle. For more complex, advanced analysis models related to your specific equipment failure modes (such as predicting the remaining life of bearings through iron spectrum data of lubricant), this usually falls within the scope of customized development or joint research projects. We can conduct technical cooperation based on specific requirements.

Q6: What does "engineering adaptability" specifically mean? How is it different from providing standard product options?

A6: "Engineering adaptability" means that we start from your equipment drawings, operating conditions, and technical specifications to conduct forward design. This includes: calculating the total oil consumption of the system, evaluating pipeline pressure losses, selecting the best pump and distributor combination, designing anti-erosion and cold-start solutions, etc. This is different from "choosing the closest one" from limited standard products; instead, it is about creating "perfectly matching" solutions to ensure that the system operates in the optimal state from the very beginning.

Q7: Our current equipment has a variety of brands and different lubrication requirements. Can your system manage them uniformly?

A7: This is precisely the strength of the ProAdapt series. By configuring different pump modules, distributor blocks, and independent control loops, a central control system can simultaneously manage multiple "sub-lubrication systems" that use different media, different oiling cycles, and different oiling volumes, achieving unified and refined lubrication management for heterogeneous equipment groups.

Q8: How does the system ensure reliable startup and operation in extremely cold or hot environments?

A8: For extremely cold environments, we can equip with oil tank heaters, pipeline heaters, and pumps suitable for low-temperature media. For high-temperature environments, we use high-temperature seals, calculate a larger oil tank heat dissipation area, or integrate coolers, and select pumps specifically designed for high-temperature stability media. Environmental adaptability is a core component of engineering adaptation.

Q9: What specific issues can the intelligent warning system alert us about?

A9: The system can alert us to: functional failures (such as pump overload, motor locked rotation, abnormal pressure); supply problems (such as low liquid level, filter blockage); and performance degradation trends (such as abnormal prolongation of circulation time, which may indicate distributor blockage or pipeline leakage). These alerts are issued through local HMI, indicator lights, or remote signals.

Q10: If our production line expands in the future and more lubrication points are needed, can this system be easily expanded?

A10: Yes. During the initial design phase, we will assess the possibility of your expansion and reserve capacity in both hardware (such as distributor interfaces, controller I/O points) and software. When expanding, it is usually only necessary to add distributor blocks and pipelines, and enable the reserved program in the controller, to quickly complete the upgrade and protect your initial investment.

Q11: How do you ensure the reliability of the customized design?

A11: We follow the V-type product development process. Before manufacturing, the key hydraulic and logic circuits will be verified through simulation software. Each set of the final product system must pass a test program based on your actual operating conditions parameters, undergo continuous 72-hour functional, pressure, cycle and leakage tests, and submit a complete final test report.
