The hydraulic system, as the "muscles and nerves" of modern industry and heavy equipment, holds a core position due to a series of unique physical properties and engineering advantages. Firstly, its reliability is based on the Pascal's law and the incompressibility of fluids. The system operates in a sealed environment, and the key moving parts are immersed in hydraulic oil with lubrication and anti-corrosion functions, enabling it to withstand extreme loads, impact operations, and harsh environments (such as high dust and humidity), achieving stable operation for tens of thousands of hours. This ensures the availability of equipment such as mining excavators and port cranes during continuous high-intensity operations.
Secondly, high power density is a key feature that cannot be replaced. Hydraulic systems can transfer huge forces or torques in a very small space. For instance, by using small-diameter cylinders and pipelines, it is possible to drive the clamping force of an injection molding machine of several hundred tons, or control large presses to complete precise stamping. This characteristic of "small volume and large output" makes the equipment design more compact, and is particularly suitable for mobile devices (such as the boom of an excavator) and industrial machinery that have limited space and strict requirements for power.
Thirdly, the precise control capability transforms "force" into "skill". Through electro-hydraulic proportional valves or servo valves, the flow and pressure of the oil can be continuously and smoothly adjusted, enabling precise control of the speed, position and force of the actuator (cylinder or motor) at the millisecond level. This allows hydraulic-driven injection molding machines to precisely control the injection speed and holding pressure to ensure product quality, and also enables construction machinery to perform delicate and precise actions such as digging and leveling that require fine manipulation.
However, although all hydraulic systems are based on the aforementioned core values, when dealing with a wide variety of application scenarios, the trade-offs between efficiency, control accuracy, and system complexity have led to different architectural evolutions:
Efficiency Consideration: For energy-consumption-sensitive equipment (such as all-weather operating excavators), the energy loss of the system (mainly throttling and overflow losses) directly affects the operating costs. This has led to the development of energy-saving systems centered around variable pumps and load sensing technology, achieving "on-demand energy supply".
Control Requirements: Different devices have different requirements for control. For instance, the worktable of a machine tool may require precise multi-point positioning (high demand for position control), while the driving system for vehicle movement needs continuous and smooth speed regulation (high demand for speed control). These correspond to closed-loop control systems using servo valves and closed-loop systems using variable pumps.
Complexity and cost balance: Simple one-way action devices (such as lifting platforms) may only require basic switch control, and a simple and cost-effective quantitative pump open-loop system can be adopted. However, to achieve complex and coordinated compound actions (such as a crane simultaneously lifting, extending, and rotating), more complex control logic such as multi-way valves and pressure compensation needs to be integrated, resulting in an increase in system complexity.
Therefore, understanding the fundamental differences among the three main types of hydraulic systems - open circuits, closed circuits, and load-sensing systems - essentially means understanding how to optimally configure multiple objectives such as reliability, power density, control accuracy, energy efficiency, and cost under specific application constraints. This is not only the basis for optimizing the selection of new equipment during design (to avoid "overloading with underpowered equipment" or insufficient performance), but also the key to efficient diagnosis in the event of equipment failure (the common failure modes and troubleshooting paths for different types of systems are completely different). For example, failures in open systems may be more related to contamination and overheating, while high-precision failures in closed systems may be related to the variable mechanism of the pump or the oil replenishment system. Mastering these differences is the core of mastering hydraulic technology from a fundamental level and maximizing the value of equipment.
The essential differences among these three systems are indeed fully reflected in the two fundamental issues of "how the hydraulic oil returns from the actuating elements to the pump" (the return path) and "how the system establishes and regulates pressure to adapt to the load" (the pressure control logic).
The oil flows back to the oil tank. The return oil of the actuating elements (cylinders/motors) directly flows back into an open atmospheric oil tank, completing an open-loop circulation of "pump → valve → actuator → oil tank".
Pressure control logic: The maximum system pressure is set by the relief valve. Typically, a constant-flow pump is used, which continuously outputs a fixed flow rate. When the actuator is not in motion or the required flow rate is less than the pump's output, the excess oil must be released through the relief valve and flow back to the oil tank, resulting in "throttling loss" and "overflow loss". These are the main reasons for its lower energy efficiency.
The structure is simple, the cost is low, and the maintenance is straightforward.
The fuel tank is large and also has the functions of heat dissipation, pollutant sedimentation and air separation.
The energy efficiency is relatively low, especially during standby mode and when operating at partial loads, as heat is generated due to continuous overflow.
It is like a continuously running faucet that discharges excess water through the overflow outlet to maintain a constant water pressure.
machine tools, hydraulic machines, and some auxiliary functions for construction machinery that are not sensitive to energy efficiency and have simple operations.
The oil flows directly back to the suction port of the pump. The outlet of the pump is directly connected to the inlet of the actuating element (usually a hydraulic motor), and the return port of the actuating element is connected to the suction port of the pump, forming a closed circulation loop. A small supplementary oil pump and a flushing valve are needed to replenish the leakage, control the oil temperature and maintain the pressure on the low-pressure side.
The high-pressure side is directly determined by the load and the actuator's movement. Using a two-way variable pump, the direction and magnitude of the output flow can be directly controlled by changing the angle of the pump's diaphragm. The system pressure is determined by the load, and there is no normally open relief valve. The high-pressure side and the low-pressure side will interchange during the reversing process.
High energy efficiency, no leakage or overflow losses, especially suitable for continuous rotation and reciprocating motion.
The design is compact in size, eliminating the need for a large fuel tank.
The speed regulation and direction-changing performance are excellent, smooth, and the control is precise.
The structure is complex, with extremely high requirements for the cleanliness of the oil, and the heat needs to be dissipated through an external heat exchanger.
It is like a reversible gear pump that directly drives a motor, creating a closed oil circulation loop between the two.
Vehicle walking drive (tractors, construction vehicles), rotation system, screw drive for injection molding machines, winch.
The oil flows back to the oil tank (in a form similar to an open system). However, its control logic is revolutionary.
Pressure control logic: "Load-sensing" control. This is the core. The system employs load-sensing variable pumps and load-sensing multi-way valves.
The pump can sense the highest working pressure required by all the actuators in the system and only provide a pressure slightly higher than that (a fixed pressure difference, such as 20 bar).
The valve can sense the exact flow required by each actuator's load and distribute it precisely.
Thus, the output pressure and flow of the pump are always "supplied as needed", providing only the energy required to overcome the load, with almost no excess overflow loss.
The energy efficiency is extremely high, especially in scenarios where there are multiple actuators performing combined actions and the load varies greatly. The energy-saving effect is far superior to that of traditional open-loop systems.
The controllability is extremely good. Multiple actuators can operate independently and without interference, and are not affected by load changes (resistant to flow saturation).
It is a perfect combination of the open-loop structure and the efficient concept of closed-loop, with a complexity level in between the two.
It is like an "intelligent variable-frequency water supply system", which can sense the water pressure and flow required by each faucet. The water pump only provides the exact total demand, without wasting any energy.
Construction machinery that requires complex compound operations (such as excavators and cranes) is the preferred system for modern high-performance mobile hydraulics.
Characteristics | Open-loop system | Closed-loop system | Semi-closed loop (load-sensitive) system |
Return oil path | Return tank | Directly back to the pump suction port | Return tank |
|---|---|---|---|
Core pump type | Quantitative pump | Bidirectional variable pump | Load-sensitive variable pump. |
Pressure control | Set the upper limit of the relief valve | The load determines it. There is no overflow | The pump senses the load and provides a slightly higher pressure |
main energy losses | throttling loss, overflow loss, | volume loss, friction loss | negligible pressure difference loss. |
System complexity | Low | High | Medium to High |
Control objectives | Simple, low cost | high-precision, high-efficiency continuous drive | independent control of multiple actions with high energy efficiency. |
Typical representatives | machine tools, presses | vehicle driving systems, winches | modern excavators, cranes |
Understanding these three architectures means grasping the fundamental grammar of hydraulic system design. Based on the operational characteristics of the equipment, energy efficiency requirements, and control needs, one can select or design the most economical and effective power solution.
Describe its basic components (pump, directional valve, actuator, oil tank), with particular emphasis on the "open" path where the oil pump draws oil from the tank, is controlled by the valve to drive the actuator, and then the oil flows directly back to the tank.
The structure is relatively simple and the cost is low.
The fuel tank also has the functions of heat dissipation and pollutant sedimentation.
When multiple actuators operate simultaneously, due to the use of quantitative pumps and throttling control, significant throttling and overflow losses are likely to occur, resulting in relatively low energy efficiency.
Typical application scenarios: Hydraulic presses, machine tools, and auxiliary functions of some construction machinery (such as bucket rotation).
It is described that the core component employs a two-way variable pump. The outlet of the pump is directly connected to the inlet of the actuator (usually a hydraulic motor), forming a closed oil circulation loop. The supplementary circuit typically includes a supplementary oil pump and a flushing valve.
High efficiency and energy saving: No leakage loss. The speed and direction of the actuator are controlled by directly changing the pump's displacement, making it particularly suitable for continuous reciprocating motion.
Compact in size: No need for a large fuel tank.
Precise control: Fast dynamic response and excellent speed regulation performance.
The system is highly complex and has extremely strict requirements for the cleanliness of the oil. The heat needs to be dissipated through an external cooler.
Typical application scenarios: vehicle movement drive (tractors, harvesters), rotation system, injection molding machine screw drive.
As a representative of modern efficient systems, its core feature is that the variable pump can sense the highest load requirement in the system and only provide the flow and pressure necessary for that load. It combines some advantages of both open and closed systems.
On-demand energy supply: Significantly reduces energy loss and heat generation, with high energy efficiency.
Multiple load independent control: Multiple actuators can work simultaneously at different speeds and pressures without interfering with each other.
The complexity is controlled to be in between the open and closed types.
Typical application scenarios: Compound action construction machinery (excavators, cranes), multi-station presses.
Comparison summary (using simple charts): From the perspectives of energy efficiency, control accuracy, system complexity, cost, and typical applications, a direct comparison is made among the three systems.
The comparison of the core benefits of the three systems can be summarized as: within the "impossible triangle" of "initial cost", "operational efficiency" and "control performance", based on your actual application scenario, we can provide the most optimal solution.
Benefit dimension: Open-loop system, Closed-loop system, Semi-closed (load-sensitive) system
Core business benefits: The lowest initial investment and total ownership cost. The highest continuous work efficiency and productivity. The best overall cost-effectiveness and multi-functional synergy.
Direct value to you: Saves money, easy to maintain, simple and reliable; Saves time, energy and costs, precise and powerful; Saves fuel, flexible, smooth and efficient.
The system structure is the simplest, with mostly using quantitative pumps and standard components. The manufacturing and integration costs are the lowest.
For budget-sensitive equipment or those with limited functions and low energy efficiency requirements (such as some machine tools and small presses), the open-loop system can meet the basic power needs at the lowest initial cost, thereby lowering the equipment procurement threshold for customers.
The system principle is clear and the fault points are relatively obvious (such as filter blockage, overflow valve setting). The large fuel tank helps with heat dissipation and pollutant sedimentation, and has a relatively high tolerance for the cleanliness of the oil.
The maintenance personnel at the customer's factory can more easily understand and maintain this system. The spare parts are highly versatile, reducing the time, labor and technical requirements for maintenance and repair, thereby enhancing the maintainability of the equipment.
Although continuous overflow would waste energy and generate heat, for devices that only work for a few hours each day and remain in standby mode for most of the time, the absolute value of total energy consumption is not high.
In the appropriate application scenarios (where there is no continuous overload), the overall benefits brought by its "simplicity and reliability" may outweigh the electricity cost losses caused by energy efficiency. The core benefit is: to solve the problems of "availability" and "reliability" at the lowest total cost of ownership.
There are no leakage or overflow losses, and the energy is directly utilized for work. In scenarios requiring continuous and high-speed reciprocating motion (such as vehicle movement, rotation, and screw drive of injection molding machines), the energy-saving effect is extremely significant. Compared to open systems, it can save 20% to 40% of energy.
For high-energy-consuming equipment or equipment that operates continuously, the savings in electricity or fuel costs can be recovered within a short period (usually 1-3 years), thereby offsetting the higher initial investment difference. This is a long-term investment with a high return rate.
The response is fast, the speed adjustment range is wide and stable, and the control accuracy is high. It can achieve stepless speed variation and rapid, smooth gear shifting.
◦ Directly translate into higher productivity. For instance, the injection molding machine has a faster cycle time, the vehicle travels more smoothly and with precise control, and the winch has more accurate positioning. This improves the quality of equipment output and operational efficiency, and enhances the market competitiveness of the end products for customers.
The closed system does not require a large fuel tank, and the refueling pressure can adapt to environments with poor oil suction conditions.
It has saved valuable space for equipment design, making the host design more flexible. At the same time, its excellent anti-corrosion ability enables it to perform well in mobile devices and situations with limited space. The core benefit is: providing the most powerful and cost-effective "heart" for continuous, efficient and precise driving scenarios, maximizing the output value per unit time.
The pump only provides the actual flow and pressure required by the actuator. It has extremely low power consumption during standby and light load conditions. When multiple actuators are operating in a combined action, it can intelligently distribute the power and eliminate unnecessary waste.
It is particularly suitable for construction machinery with highly variable loads and complex operations (such as excavators). It can significantly reduce fuel consumption (up to 30%), decrease the load on the cooling system, and extend the lifespan of components. For users, this means lower daily operating (fuel) costs and higher equipment availability rates.
The load-sensitive valve ensures that the speed of each actuator is solely dependent on the opening of the control handle, and is independent of the load size and the actions of other actuators.
It has greatly enhanced the operability and working efficiency of the equipment. The operator can simultaneously and precisely control multiple actions (such as the simultaneous movement of the arm, bucket, and bucket of an excavator for combined digging and extraction), making the operation smoother and faster, reducing the operational difficulty and improving the working quality. This represents a qualitative change from "being able to work" to "working well and quickly".
The load-sensing system inherently possesses pressure and flow signals, which makes it easy to be combined with electronic control components (such as electro-hydraulic proportional valves and controllers), thereby upgrading to a more advanced electro-hydraulic load-sensing or flow-sharing system.
It has reserved the hardware foundation for the future intelligent upgrade of the customer's equipment (such as remote control, automatic operation, energy management), protecting the investment and ensuring that the equipment remains advanced during technological iterations. The core benefit is: to provide the most intelligent, cost-effective and optimal control solution on complex equipment that requires multi-functionality, high collaboration and is sensitive to energy consumption, in order to minimize the total operating cost and maximize the operational efficiency.
In summary: The choice of which system to adopt essentially helps customers make the optimal trade-off among equipment purchase costs, long-term operating expenses, and production efficiency, which best suits their business model. Open systems are the economical choice, closed systems are the efficient choice, and load-sensing systems are the intelligent choice for addressing complex, efficient, and energy-saving requirements.
In conclusion, open-type, closed-type and semi-closed-type (load-sensitive) hydraulic systems are not mere technical iterations, but rather engineering solutions tailored to different strategic positioning.
l The open-loop system is the cornerstone of reliability and economy. It offers stable power for intermittent and single-load applications with the lowest complexity and initial cost.
l The closed-loop system is a benchmark for high efficiency and precise control, providing unparalleled energy utilization and smooth operation for continuous, high-speed, and high-power driving scenarios.
l The semi-closed (load-sensitive) system is a prime example of complex collaboration and intelligent energy efficiency. It achieves on-demand power distribution in multi-executor and load-variable devices, significantly reducing energy consumption while enhancing operational efficiency.
The correct choice lies in the core competitiveness hidden beneath the surface of the equipment. A hydraulic system that perfectly matches your equipment's operating conditions, production rhythm, and operational costs directly determines the reliability, availability rate, and long-term total cost of ownership of the equipment. An incorrect choice, on the other hand, means continuous energy waste, potential performance bottlenecks, or high maintenance burdens.

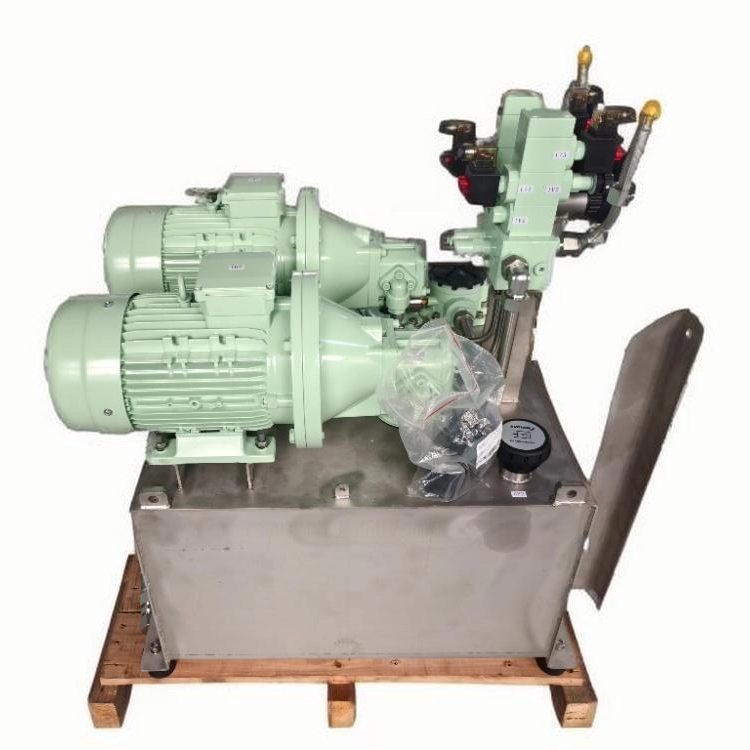

There is no need to compromise between performance, efficiency and cost. Our expert team has a thorough understanding of the essence of these three systems and can go beyond simple product recommendations. Based on your actual application scenarios, production goals and return on investment, they can provide customized hydraulic system solutions.
Contact us immediately to start the technical consultation. Let's work together to design, optimize or upgrade that "hydraulic heart" that drives the future for you.
