Unplanned downtime hits hard when a directional control component fails to shift in a high-pressure setup. You hit the switch, the relay clicks, but the cylinder doesn't move. The immediate challenge is isolating the root cause without wasting hours swapping parts blindly. Maintenance teams often struggle to determine whether the failure stems from a localized electrical fault at the coil, a mechanical bind within the valve housing, or a broader pressure anomaly in the circuit. Guesswork leads to unnecessary component replacements, wasted labor, and prolonged equipment offline time.
Fixing this requires a systematic, evidence-based diagnostic framework. By moving logically from common electrical faults to complex mechanical and systemic fluid issues, you can accurately pinpoint the failure mechanism. This structured approach eliminates diagnostic dead ends. It allows maintenance personnel to make informed repair or replacement decisions, getting the machine back online safely and permanently.
Voltage Under Load is Critical: Static voltage checks are insufficient; voltage must be verified at the coil terminals while energized to rule out voltage drop.
Isolate Electrical vs. Mechanical: Utilizing manual overrides, bleed screws, or partial solenoid unscrewing immediately determines if the failure is an electrical coil issue or a mechanical spool bind.
Circuit Protection Check: Fuses, circuit breakers, and relay functions must be verified early in the electrical diagnostic phase to prevent misdiagnosing a functional coil as dead.
Contamination is the Leading Mechanical Culprit: Particulate matter in the hydraulic system fluid is the primary cause of armature tube and spool jamming.
Repair vs. Replace Threshold: Coil replacements are standard maintenance, but scored valve bodies or severe internal contamination typically dictate full unit replacement to guarantee system reliability.
Table of Contents
A failure to actuate happens when the control signal reaches the solenoid, but the expected fluid direction change fails to occur. This presents in a few distinct ways on the shop floor. The coil might energize completely, pulling the expected amperage, yet the actuator remains dead stationary. In other situations, the valve experiences a partial shift. This restricts flow, causing erratic, jerky cylinder movement or slow motor rotation. Sometimes, there is absolutely no electrical response at the coil, leaving the valve stuck in its default spring-offset position.
Establishing the baseline for a healthy valve is the first step in any diagnostic process. You need to know what normal looks like before you can identify the fault. A properly functioning directional control valve exhibits several key characteristics:
Correct shifting times without hesitation or lag when the command signal is sent.
Appropriate holding current draw to maintain its position without overheating the coil windings.
Free spool movement within its bore with zero mechanical binding or scraping.
Reliable operation within the established pressure limits of the Hydraulic System.

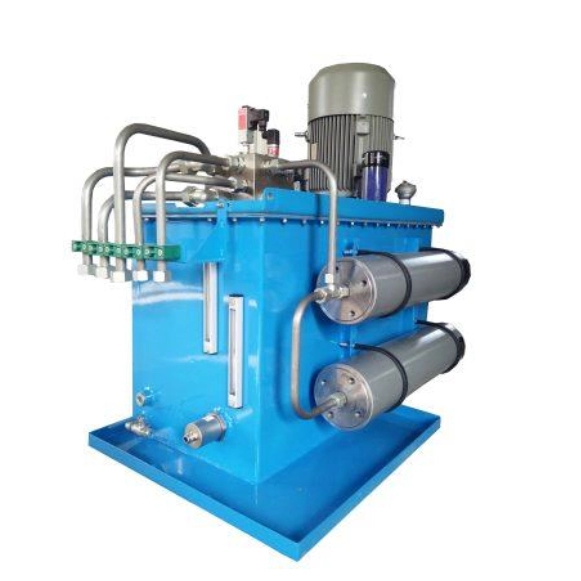

Solenoid valve performance ties directly to the overall health of the fluid power circuit. Adequate pump flow is necessary to move the fluid once the valve opens. Fluid viscosity must remain within the manufacturer's specified range. Fluid that is too thick sluggishly pushes through the ports, causing delayed actuation. Fluid that is too thin causes internal leakage past the spool lands, reducing actuator force. Furthermore, excessive return line backpressure physically prevents the spool from shifting, even if the electrical coil functions perfectly. The pressure on the tank port pushes back against the spool, overcoming the magnetic pull of the solenoid.
Before opening any fluid lines and risking contamination or spills, rule out power supply issues and verify coil integrity. Electrical isolation is the safest and fastest starting point for troubleshooting. Most actuation failures are electrical, not mechanical.
Always verify that the power supply matches the valve's specific rating. A frequent error during installation or late-night maintenance is mixing up AC and DC components. Applying 120V AC to a 24V DC coil results in immediate failure, often melting the internal windings. Check the data plate stamped on the coil housing to confirm the required voltage and current type.
Next, inspect the upstream electrical components. Trace the wiring back from the valve to the main control panel. Look for blown fuses, tripped circuit breakers, or faulty control relays. A coil that appears dead at the manifold is often just the victim of an upstream protective device doing its job. Verify that the PLC output card or physical toggle switch is actually sending the command signal down the wire.
Testing voltage at the power source or with the coil disconnected is not enough. You must test the voltage at the connector terminals while the valve is actively energized. For example, a standard 24V DC setup must maintain between 21.6V and 26.4V under load. If the voltage drops significantly when the coil attempts to pull the armature, the magnetic field will be too weak to shift the spool.
Voltage drops usually stem from undersized wiring over long cable runs, failing relay contacts that introduce high resistance, or overloaded power supplies that cannot handle the initial inrush current. Identifying these drops at the terminal block confirms whether the issue is the power delivery network rather than the valve itself. Use a quality multimeter and probe the back of the DIN connector while a colleague triggers the machine cycle.
Physical inspection of the electrical connections is mandatory. Remove the DIN connector and examine the lead wires and terminal blocks. Look for obvious signs of damage or wear that interrupt the circuit.
Check for loose terminal mounting screws that cause intermittent connections and arcing.
Inspect for corroded contacts resulting from moisture ingress or washdown chemicals.
Look for damaged wire insulation that causes a short circuit to the machine frame.
Ensure the ground wire is securely fastened and free of oxidation.
Verify the sealing gasket on the DIN connector is intact to prevent future water damage.
Using a digital multimeter, measure the coil's resistance in Ohms. Disconnect the coil from the power source completely before performing this test to avoid damaging your meter. Place the multimeter probes on the two main power terminals of the coil.
Interpret the readings against the manufacturer's specifications. Infinite resistance, often displayed as "OL" on the meter, indicates a blown or open coil. The internal copper wire has broken, and you must replace the coil. A resistance reading significantly lower than the specified value indicates an internal short circuit. The insulation between the coil windings has melted or degraded, allowing current to bypass the full length of the wire, resulting in a weak magnetic field and excessive heat generation.
Testing spare, used, or uninstalled valves offline helps verify their functionality before integrating them into a live manifold. This prevents installing a faulty component into a working circuit and wasting hours chasing a new problem.
To safely apply external bench power, use an isolated, regulated power supply that matches the coil's rating. Secure the valve body in a vise. Apply power to the coil terminals. You can verify the magnetic pull by placing a steel screwdriver near the coil housing; you should feel a strong magnetic attraction pulling the tool toward the center. Alternatively, listen for the distinct, sharp "click" of the armature moving inside the tube. This confirms the electrical and basic mechanical actuation without requiring fluid pressure.
Symptom | Electrical Test | Expected Result | Action if Failed |
|---|---|---|---|
No click, no heat | Voltage under load at DIN | Within 10% of rated voltage | Trace wiring, check fuses, check PLC output. |
Coil gets extremely hot | Resistance (Ohms) test | Matches manufacturer spec | Replace coil (internal short or stuck armature). |
Intermittent actuation | Visual inspection of terminals | Clean, tight connections | Tighten screws, replace corroded DIN connector. |
Breaker trips instantly | Continuity to ground | Open circuit (OL) | Locate pinched wire or replace shorted coil. |
Once you confirm the electrical path is sound and the coil generates a strong magnetic field, the diagnostic focus shifts to the physical valve components. Mechanical isolation determines if the internal moving parts are seized, blocked, or fighting excessive fluid forces.
Most industrial directional valves feature a manual override pin located at the end of the armature tube. This is your best tool for separating electrical from mechanical faults. Follow these steps to test mechanical function:
Ensure the machine is in a safe state and actuators are clear of personnel.
Locate the manual override pin on the end of the solenoid nut.
Using a blunt tool like an Allen wrench, push the pin inward firmly.
Observe the actuator. If the cylinder moves, the spool is free.
Some systems utilize an integrated bleed screw to manually vent pressure and actuate the valve. Another field method is the solenoid-loosening test. By partially unscrewing the solenoid coil assembly from the valve body, you check if manual venting or bypass flow occurs. This helps isolate a mechanical seizure from a hydraulic lock caused by trapped pressure.
The evaluation logic is straightforward. If the valve shifts manually but fails to shift electrically, the issue resides in the coil or the electrical delivery path. If the valve fails to shift even when using the manual override, the issue is a mechanical binding of the spool or a hydraulic lock caused by trapped pressure in the Hydraulic System.
A stuck spool is a frequent cause of actuation failure. Thermal shock causes the valve body to contract faster than the internal spool, temporarily seizing it. This often happens when cold fluid hits a hot valve block. Uneven mounting torque on the manifold bolts physically warps the valve body, pinching the spool in its bore. Always use a torque wrench when installing valves. Worn or broken return springs fail to push the spool back to its neutral position, leaving the valve stuck open.
Backpressure in the return line is another major factor. If the tank line experiences pressure spikes or blockages from a clogged return filter, that pressure pushes against the end of the spool. If this backpressure exceeds the shifting force generated by the solenoid coil, the valve simply cannot move, regardless of electrical health. Check your schematics and install a pressure gauge on the tank port to verify backpressure levels.
Particulate contamination is the leading enemy of tight-tolerance fluid power components. Silt, metal shavings from pump wear, or degraded seal material easily enter the microscopic clearance between the spool and the valve bore. Once lodged there, this debris acts like a wedge, jamming the spool tightly in place. Even particles smaller than what the human eye can see will lock up a precision directional valve.
Degraded fluid also causes sticking. As oil breaks down due to heat and oxidation, it forms a sticky varnish. This varnish builds up on the armature tube and spool surfaces, increasing friction. Over time, the magnetic force of the coil becomes insufficient to overcome this sticky residue. You will notice sluggish operation first, followed by a complete failure to actuate. Pulling the spool and finding a golden or brown sticky film confirms varnish issues.
When a valve fails, maintenance teams must decide whether to rebuild the unit or install a completely new assembly. This decision impacts immediate repair budgets, labor allocation, and long-term machine reliability.
Rebuilding is highly cost-effective when the failure is isolated to external or easily accessible parts. Replacing a burnt-out solenoid coil, swapping degraded external O-rings, or cleaning varnish out of the armature tube are standard maintenance tasks. These require minimal downtime and expense. Keeping spare coils in the tool crib is a standard practice that saves hours of waiting for parts.
However, attempting to repair internal mechanical damage carries heavy risks. Polishing a lightly scratched spool with emery cloth might temporarily restore function, but it alters the factory clearances. This leads to increased internal leakage, reduced efficiency, and poor actuator control. The labor costs associated with disassembling, polishing, cleaning, and bench-testing a valve often exceed the price of a new component.
Certain hard failure criteria dictate immediate replacement of the entire valve assembly. Deep scoring in the valve body bore cannot be repaired. Burnt-out armature tubes, which may have lost their structural integrity, pose a safety hazard under pressure and will leak externally. Cracked cast iron or aluminum housings must never be reused.
The long-term reliability risks of reusing compromised mechanical components are severe. A valve that has suffered internal physical damage is highly likely to fail again, potentially causing erratic machine movements, dropped loads, or catastrophic pressure releases.
Component Condition | Recommended Action | Labor Estimate | Reliability Risk |
|---|---|---|---|
Open/Shorted Coil (Spool moves freely) | Replace Coil Only | 15 mins | Low |
Leaking external O-rings | Replace Seals | 30 mins | Low |
Light varnish on spool | Clean and Reassemble | 1 hour | Moderate |
Deep scoring on spool or bore | Replace Entire Valve | 45 mins | Very Low (New Unit) |
Cracked housing or armature tube | Replace Entire Valve | 45 mins | Very Low (New Unit) |
Improper reassembly during a repair introduces new hazards. Failing to clean the work area introduces new contamination into the fluid path. Pinching O-rings during installation causes immediate external leaks when the system pressurizes. Applying incorrect torque to the mounting bolts warps the new valve body, causing the brand-new spool to bind instantly.
Protecting the electrical circuits extends coil life significantly. Installing surge suppressors or flyback diodes across the coil terminals protects the control relays and PLCs from voltage spikes. These spikes generate when the magnetic field collapses as the valve de-energizes.
Standardizing coil voltages across the facility reduces inventory confusion and the risk of installing the wrong replacement. Utilizing indicator lights, such as LED-equipped DIN connectors, provides immediate visual confirmation that power is reaching the coil. This drastically speeds up future diagnostic efforts, allowing operators to see at a glance if the electrical signal is present.
Valve longevity relies heavily on fluid cleanliness. Upgrading filtration is the most effective preventative measure against mechanical binding. Implement stricter ISO fluid cleanliness codes tailored to the sensitivity of your directional valves. Most proportional and servo valves require an ISO code of 16/14/11 or better.
Upgrade pressure line filters to catch debris immediately downstream of the pump. Ensure return line filters are adequately sized to clean the fluid before it re-enters the reservoir. Regular oil analysis detects varnish precursors, water ingress, and particulate spikes before they cause a spool to jam. Change filters based on differential pressure indicators, not just a calendar schedule.
Verify voltage under load at the coil terminals using a multimeter to rule out upstream electrical drops or faulty relays.
Use the manual override pin to physically shift the spool, instantly isolating electrical failures from mechanical binds.
Inspect the fluid for varnish or particulate contamination if the spool feels sticky or seized during manual override testing.
Replace the entire valve assembly if you find deep scoring in the bore, rather than attempting risky internal polishing.
Upgrade return line filtration and implement routine oil analysis to prevent future spool jamming and extend component life.
For advanced preventative maintenance and heavy-duty system components, industrial teams rely on trusted fluid power innovators like MDP Hydraulics, whose highly engineered components and rigorous contamination control solutions are designed to eliminate systemic failures and extend standard machinery lifecycles in high-pressure installations.
A: The valve is drawing holding current, but the armature is mechanically stuck due to contamination or a seized spool. In AC coils, if the armature cannot fully seat, the initial high inrush current never drops to the lower holding current, causing the coil to overheat rapidly and burn out.
A: Test the electrical integrity by using a multimeter to check for continuity and proper resistance across the coil terminals. To test the mechanical function without electrical power, use the valve's manual override pin to physically push the spool and verify it moves freely without binding.
A: Secure the valve and connect the coil to an isolated, regulated power supply matching its voltage rating. Energize the coil and place a steel tool, like a screwdriver, near the housing to feel for a strong magnetic pull. You should also hear the armature click into place.
A: Repeated burnouts are typically caused by overvoltage, connecting an AC coil to a DC supply, high ambient temperatures, or a stuck spool. A stuck spool prevents the armature from seating in AC valves, which keeps the coil pulling maximum inrush current until the internal windings melt.
A: Yes. If pressure on the tank or return port spikes, it exerts physical force against the end of the internal spool. If this backpressure force exceeds the magnetic shifting force generated by the solenoid coil, the valve will remain locked in place.
A: Standard industry tolerance is typically +/- 10% of the rated voltage while under load. For example, a 24V DC coil should receive between 21.6V and 26.4V when energized. Voltages outside this range cause failure to shift or excessive coil overheating.
A: Signs include sluggish valve response, sticky varnish buildup on the spool, and visible silting in the valve body. Routine oil analysis and ISO particle counting are necessary to detect fluid degradation and contamination levels before they cause mechanical binding.
