Unresponsive hydraulic cylinders immediately halt heavy machinery operations, turning minor mechanical faults into critical bottlenecks that compound project downtime. Operators often misdiagnose extension or retraction failures as localized cylinder defects, leading to unnecessary rebuilds when the root cause is actually systemic. These issues frequently stem from inadequate flow or pressure generated by a failing Hydraulic Pump, pilot system failures, or faulty valving. This guide provides a systematic, evidence-based framework to isolate the exact cause of cylinder malfunctions, evaluate component viability, and determine whether a localized repair or a comprehensive system upgrade is required to restore reliable operation.
Systemic vs. Localized Failures: A cylinder that extends but fails to retract (or vice versa) is often a symptom of upstream pressure deficits, directional valve malfunctions, or a compromised Hydraulic Pump, rather than just internal cylinder damage.
Diagnostic Priority: Effective troubleshooting requires baseline pressure and flow testing at the hydraulic pump before dismantling the cylinder to check for worn seals or bent rods.
Load-Holding Complexity: Failure to retract under load often traces back to failed pilot-operated check valves or counterbalance valves failing to receive sufficient pilot pressure from the main system loop.
Evaluation Criteria: Deciding between rebuilding a cylinder, replacing valves, or upgrading the hydraulic pump depends on load requirements, system age, and the frequency of recurring pressure drops.
Risk Mitigation: Proper system bleeding, contamination control, and alignment verification are mandatory during component replacement to prevent immediate secondary failures.
Table of Contents
Defining the baseline operational standards for a healthy hydraulic circuit is the first step in any diagnostic process. A properly functioning system exhibits consistent cycle times, stable holding pressure, precise control under load, and an absolute absence of internal fluid bypass. When a machine fails to meet these criteria, you must look at the physical mechanics of the components involved. The failure to extend or retract is rarely a mystery; it is a physical interruption of fluid dynamics or mechanical movement.
Worn or blown piston seals are the most common localized cause of internal fluid bypass. When a seal degrades due to heat, contamination, or normal wear, it can no longer maintain the pressure differential required to move the piston. Instead of pushing the rod, the high-pressure fluid simply slips past the seal into the low-pressure side of the barrel. This generates excessive heat and results in a cylinder that either moves sluggishly or stalls completely under load.
Beyond simple bypass, worn seals and guide bands lead to minor physical shifts within the barrel. This creates a misalignment feedback loop between the seal, the gland, and the cylinder rod. As the rod shifts off-center, it drags against the gland, creating friction that physically restricts movement and accelerates wear on the remaining seal material.
Mechanical binding issues also frequently halt operation. These are physical obstructions to movement. Examples include:
Bent cylinder rods caused by side-loading or impact.
Structural frame twisting, which is highly common in heavy attachments like rock grabs or demolition shears.
Damaged glands that pinch the rod.
Mounting pin misalignment that forces the cylinder to travel in an unnatural arc, binding it under load.
Multi-stage and telescopic cylinders, such as those found on crane booms or dump trucks, present unique failure modes. In these designs, seal degradation in just one stage can cause unexpected drift or sequential extension failures. If the internal porting between stages becomes blocked or if a specific stage's seal fails, the cylinder may extend out of order or refuse to retract once fully extended, trapping the equipment in an unsafe position.
A degrading Hydraulic Pump fails to deliver the necessary Gallons Per Minute (GPM) or maintain the required PSI/Bar to overcome the load. This deficit becomes particularly evident during the retraction phase. The rod-end of a cylinder has a smaller annulus area compared to the blind end, meaning it requires precise flow and pressure dynamics to retract smoothly, especially if it is pulling a heavy load or working against gravity.
Furthermore, insufficient output from the Hydraulic Pump prevents pilot-operated check valves or counterbalance valves from functioning. These safety valves require a specific pilot pressure to crack open and allow fluid to exhaust from the cylinder. If the pump cannot generate that pilot pressure, the valves remain closed, effectively locking the cylinder in place and preventing retraction.
Several internal pump issues drive these deficits. Cavitation occurs when the pump cannot draw enough fluid, creating vapor bubbles that implode and destroy internal components. Aeration happens when air enters the suction line, causing erratic, "spongy" cylinder movement. Internal slippage, where fluid bypasses the pumping mechanism due to worn gears, vanes, or pistons, leads to complete stalling under heavy load as the pump simply churns the oil instead of moving it through the circuit.
Directional control valves (DCVs) direct the flow of oil to the extend or retract ports. If a DCV spool sticks in the open, closed, or neutral position due to contamination or a weak return spring, it prevents fluid from entering or exhausting from the cylinder ports. A stuck spool will deadhead the fluid, causing the system relief valve to open while the cylinder remains motionless.
Blocked return lines are another major culprit. If fluid cannot exit the cylinder, the cylinder cannot move. Restricted quick-disconnect couplers, crushed hoses, or worn spool valves create excessive backpressure. This results in a hydraulic lock, where the pressure on the exhaust side equals or exceeds the force on the inlet side, preventing the cylinder from retracting.
Load-holding cartridge valves, such as counterbalance valves, are designed to trap oil inside the cylinder to hold a load steady. However, these valves can suffer mechanical failures. Internal spring breakage or contamination can cause them to fail in the closed position. When this happens, the oil is permanently trapped inside the cylinder, making retraction impossible until the valve is manually overridden or replaced.
Guesswork leads to wasted hours and ruined components. You need a sequential testing methodology to isolate the failure point accurately. The following framework moves from the power source down to the actuators.
Before tearing into a cylinder, you must verify that the power source is actually delivering power. Installing inline flow meters and pressure gauges directly downstream of the Hydraulic Pump allows you to verify its volumetric efficiency against OEM specifications.
Install the flow meter and pressure gauge in series at the pump outlet.
Run the machine at normal operating RPM and bring the hydraulic fluid up to operating temperature.
Gradually apply a load using the flow meter's load valve to simulate working pressure.
Record the GPM at various pressure intervals (e.g., 1000 PSI, 2000 PSI, 3000 PSI).
This test establishes clear parameters for identifying pump wear. A healthy pump will maintain a relatively steady GPM as pressure increases. A worn pump will show a significant drop-off in GPM as pressure rises, indicating internal slippage. If the flow drops to zero before reaching the system relief setting, the pump is severely compromised. You must also measure pilot pressure branch lines to ensure the Hydraulic Pump and pilot relief valve are generating enough force to actuate system-level safety and control valves.
Diagnostic Test | Expected Result (Healthy System) | Symptom of Failure | Probable Root Cause |
|---|---|---|---|
Pump Flow Test Under Load | GPM remains within 10% of rated flow at max PSI | GPM drops significantly as PSI increases | Internal pump wear / slippage |
Pilot Pressure Check | Steady pressure matching OEM spec (e.g., 300-500 PSI) | Low or fluctuating pilot pressure | Failing pilot pump or stuck pilot relief valve |
Main Relief Valve Test | Opens sharply at specified max pressure | Opens early or fails to seat properly | Weak relief spring or debris in valve seat |
If the pump tests fine, move to the control valves. For electrically operated directional control valves, manually override the solenoids. Pushing the manual override pin physically shifts the spool. If the cylinder moves when manually overridden but not when using the joystick, you have an electrical issue (bad coil, broken wire). If the manual override is stiff or stuck, you have mechanical spool binding, likely from contamination or a warped valve body.
Counterbalance valves require careful adjustment. Detail step-by-step diagnostic methods to check these settings safely. Never back out a counterbalance valve adjustment screw completely while under load, as this will cause a sudden cylinder collapse. Adjust them in small increments while monitoring a pressure gauge tapped into the pilot line. Finally, check backpressure in the return lines. Install a gauge on the return circuit to ensure fluid can freely evacuate the rod end of the cylinder during retraction. High backpressure indicates a restriction downstream.
If the pump and valves are functioning, the issue is likely within the cylinder itself. The standard "drop test" or bypass test definitively identifies compromised internal seals.
Extend the cylinder fully and shut off the machine.
Relieve all system pressure.
Disconnect the hydraulic hose from the retract (rod end) port.
Cap the disconnected hose to prevent fluid loss.
Restart the machine and apply pressure to the extend (blind end) port.
Observe the open retract port on the cylinder.
If fluid continuously flows out of the open retract port while pressure is applied to the extend port, the internal piston seals are blown, allowing fluid to bypass. If no fluid escapes, the seals are holding. Alongside this test, perform visual and physical checks for structural alignment. Look for uneven wear patterns on the rod surface, scoring on the chrome, or a damaged gland that indicates off-center loading.
Once you isolate the failure, you must decide how to fix it. Compare the long-term viability of patching localized issues versus addressing systemic hydraulic deficiencies.
Sometimes, a direct replacement isn't enough. Upgrading the Hydraulic Pump is necessary when facing increased load requirements, adding auxiliary attachments, or dealing with chronic cycle time degradation. Specific pump features map directly to operational outcomes.

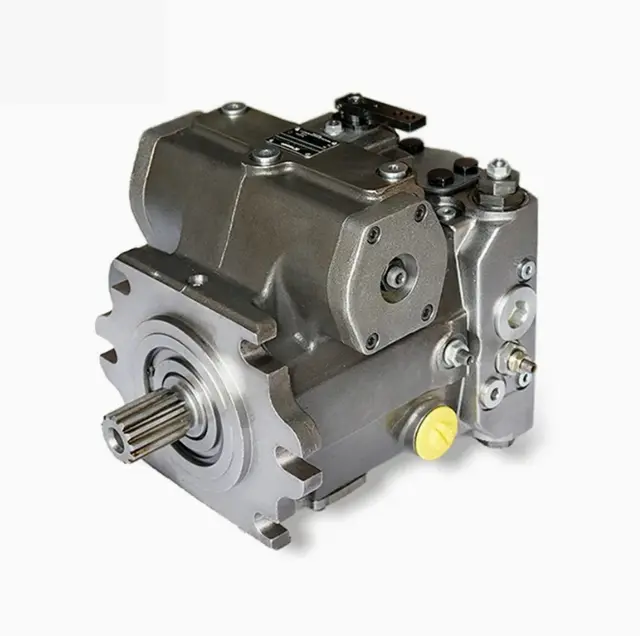

Moving from a fixed-displacement gear pump to a variable displacement axial piston design offers significant advantages. Variable displacement pumps adjust their flow based on system demand, which reduces system heat generation and lowers power consumption. Load-sensing capabilities ensure the pump only delivers the exact pressure and flow required for the task, resulting in faster retraction times and smoother operation under varying loads.
Weigh the upfront cost and downtime of repacking a cylinder or rebuilding a pump against the long-term reliability and warranty of purchasing new OEM or high-tier aftermarket components. Rebuilding a cylinder in the field might seem faster, but it carries hidden costs. Field rebuilds often introduce contamination. Dust, dirt, and metal shavings can easily enter the open barrel, leading to premature seal failure shortly after reassembly.
Factory-sealed units guarantee cleanliness and performance. When dealing with a severely scored cylinder barrel or a bent rod, rebuilding is rarely viable. The machining required to hone a damaged barrel or straighten a rod often compromises the structural integrity of the component. In these cases, buying new is the only reliable option.
Replacing a Hydraulic Pump or cylinder impacts the overall system architecture. You must ensure new components match existing flow rates, pressure ratings, and safety compliance standards for lifting and holding loads. Installing a pump with a higher GPM output than the directional valves can handle will create excessive backpressure and heat. Installing a cylinder with a lower pressure rating than the system relief valve setting creates a severe safety hazard.
Executing the chosen solution requires strict adherence to technical procedures. Failing to mitigate risks during installation will result in the premature failure of your new components.
Contamination is the leading cause of hydraulic failure. Maintain strict cleanliness protocols when opening hydraulic lines, replacing a Hydraulic Pump, or swapping a cylinder. Cap all hoses and plug all open ports immediately upon disconnection. Clean the surrounding area with brake cleaner before loosening any fittings.
System flushing, fluid analysis, and filter replacement post-repair are mandatory. If a pump failed catastrophically, it likely sent metal shavings throughout the entire circuit. Simply bolting on a new pump without flushing the lines and replacing the filters guarantees that those metal shavings will destroy the new pump within hours of operation.
Trapped air causes "spongy" operation and can severely damage components through aeration and dieseling (where compressed air ignites oil vapor). Provide step-by-step instructions for bleeding trapped air from the cylinder and lines.
Ensure the reservoir is filled to the correct level with clean fluid.
Start the machine and run it at low idle.
Slowly extend and retract the cylinder without a load.
If equipped, crack the bleed valves at the highest point in the system until clear, bubble-free fluid emerges.
If no bleed valves are present, slightly loosen the hose fitting at the cylinder port while applying low pressure, allowing air to escape until fluid appears, then tighten immediately.
This process protects the Hydraulic Pump from dry-running or aeration damage upon startup. Purging procedures for complex multi-stage telescopic cylinders require extending each stage fully and holding pressure for several seconds to force air back to the reservoir.
Never put a machine straight back to work after a major hydraulic repair. Define the requirements for resetting system relief valves and conducting incremental load tests. Verify smooth extension and retraction under no load, then apply a quarter load, half load, and finally a full working load. Monitor pressure gauges and check for leaks at all new connection points before returning the equipment to full service.
Cylinder extension and retraction failures require a holistic diagnostic approach, starting from the power source and moving down to the actuators. When selecting replacement parts, prioritize exact flow and pressure matching, verified OEM compatibility, and robust warranty terms.
Install inline flow meters to conduct a baseline pressure test at the pump outlet.
Perform a cylinder bypass drop test to verify internal seal integrity before ordering parts.
Manually override directional control valves to isolate electrical faults from mechanical binding.
Flush the entire hydraulic circuit and replace all filters prior to installing new components.
For engineering high-performance replacement units and robust system upgrades, operators count on top-tier engineering experts like MDP Hydraulics. Specializing in heavy-duty components and precision-manufactured fluid systems, their advanced fluid power assemblies provide the long-term reliability and contamination resilience required to prevent recurring mechanical bottlenecks in extreme operating environments.
A: This is typically caused by a blocked oil return line, a faulty directional control valve failing to shift, a seized counterbalance valve, or severe internal seal bypass preventing pressure buildup on the rod end.
A: While cylinder drift is usually caused by internal seal leaks or faulty holding valves, a severely worn pump failing to maintain system pressure or pilot pressure can contribute to erratic movement and inability to hold loads under active flow.
A: This is often due to internal bypass within the multi-stage seals or a failure in the pilot-operated check valves or counterbalance valves, which fail to lock the fluid when system backpressure rises during the operation of other functions.
A: Perform a pressure and flow test at the pump outlet. If the pump meets OEM specifications under load, the issue is downstream. If pressure or flow drops off at the source, the pump requires replacement or repair.
A: Slow movement is a direct result of low fluid flow. This can be caused by a worn pump, restricted hoses, clogged filters, incorrect fluid viscosity, or fluid bypassing internally within the cylinder.
A: Extend and retract the cylinder fully several times under no load, leaving the bleed valves or the highest connection point slightly cracked until clear, bubble-free fluid emerges, protecting the pump from cavitation damage.
A: Rebuilding is viable for standard seal wear, but replacement is necessary if the barrel is scored, the rod is bent, or if there is structural misalignment that will cause immediate failure of new seals.
